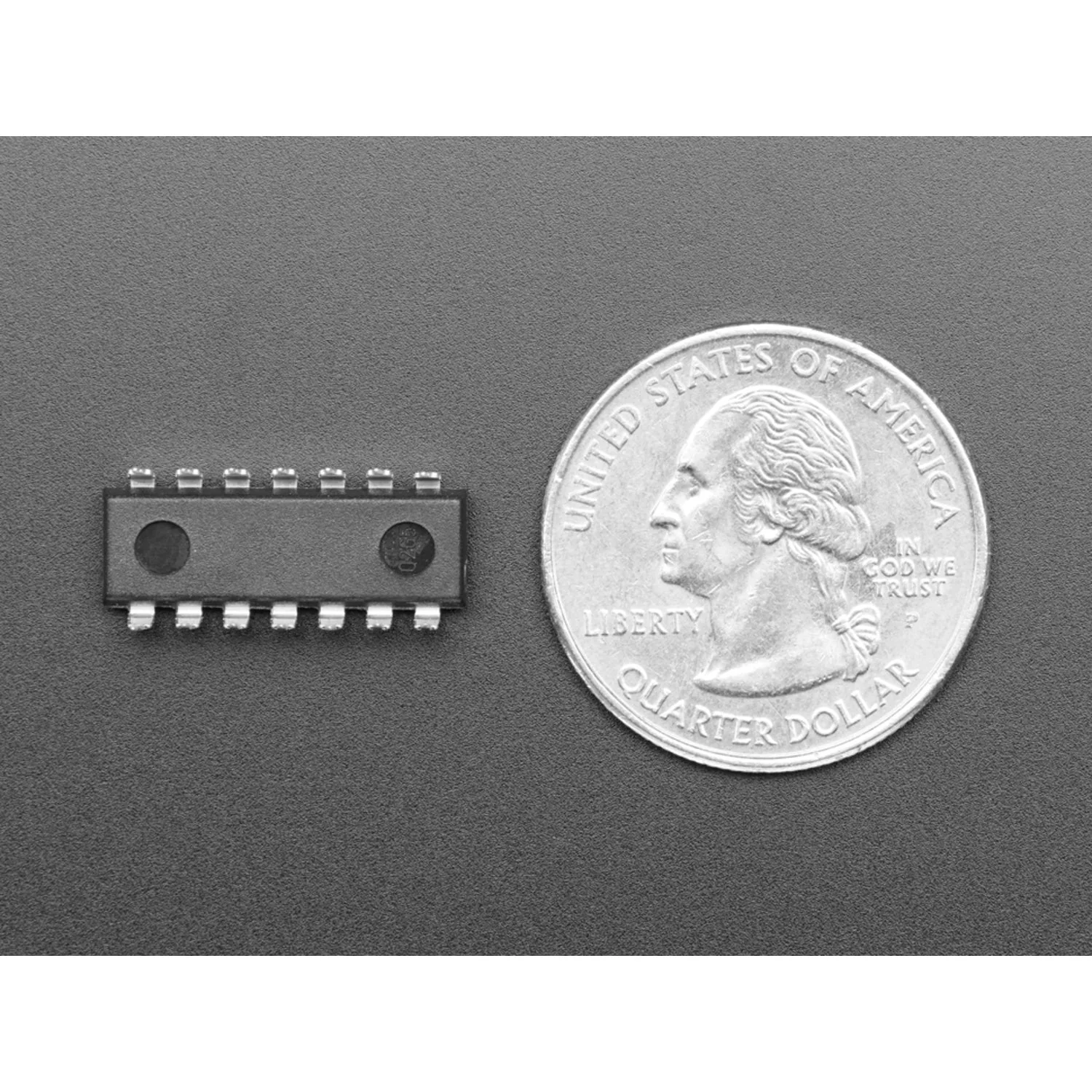

A hex Schmitt-trigger inverter IC that doubles as a handy logic level shifter. The 74AHCT14 provides six independent inverter channels, each with Schmitt-trigger inputs for clean switching on noisy or slow-transitioning signals.

Spec'd for 5V operation but works at 3V as well. High-level inputs can be as low as 2V, and the output is inverted on each of the six channels. DIP package for easy breadboard and perfboard use.

Key Features

• 6 Inverter Channels – Independent Schmitt-trigger inputs
• Logic Level Shifting – Inputs accept signals as low as 2V
• Schmitt-Trigger – Clean output on noisy or slow signals
• Flexible Voltage – Designed for 5V, works at 3V
• DIP Package – Breadboard and perfboard friendly

Ideal For

• Signal inversion and level shifting
• Cleaning up noisy digital signals
• Mixed-voltage logic interfacing
