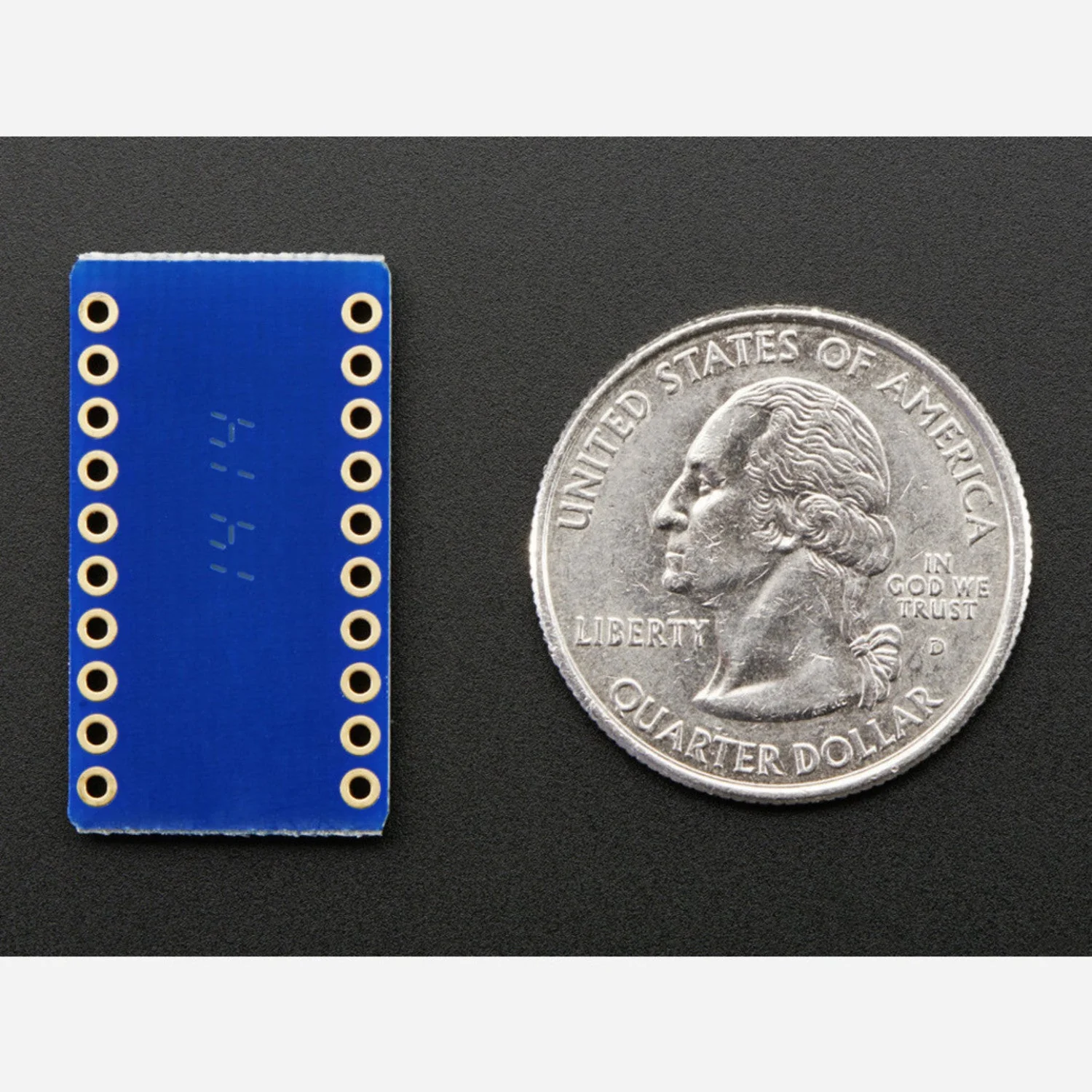

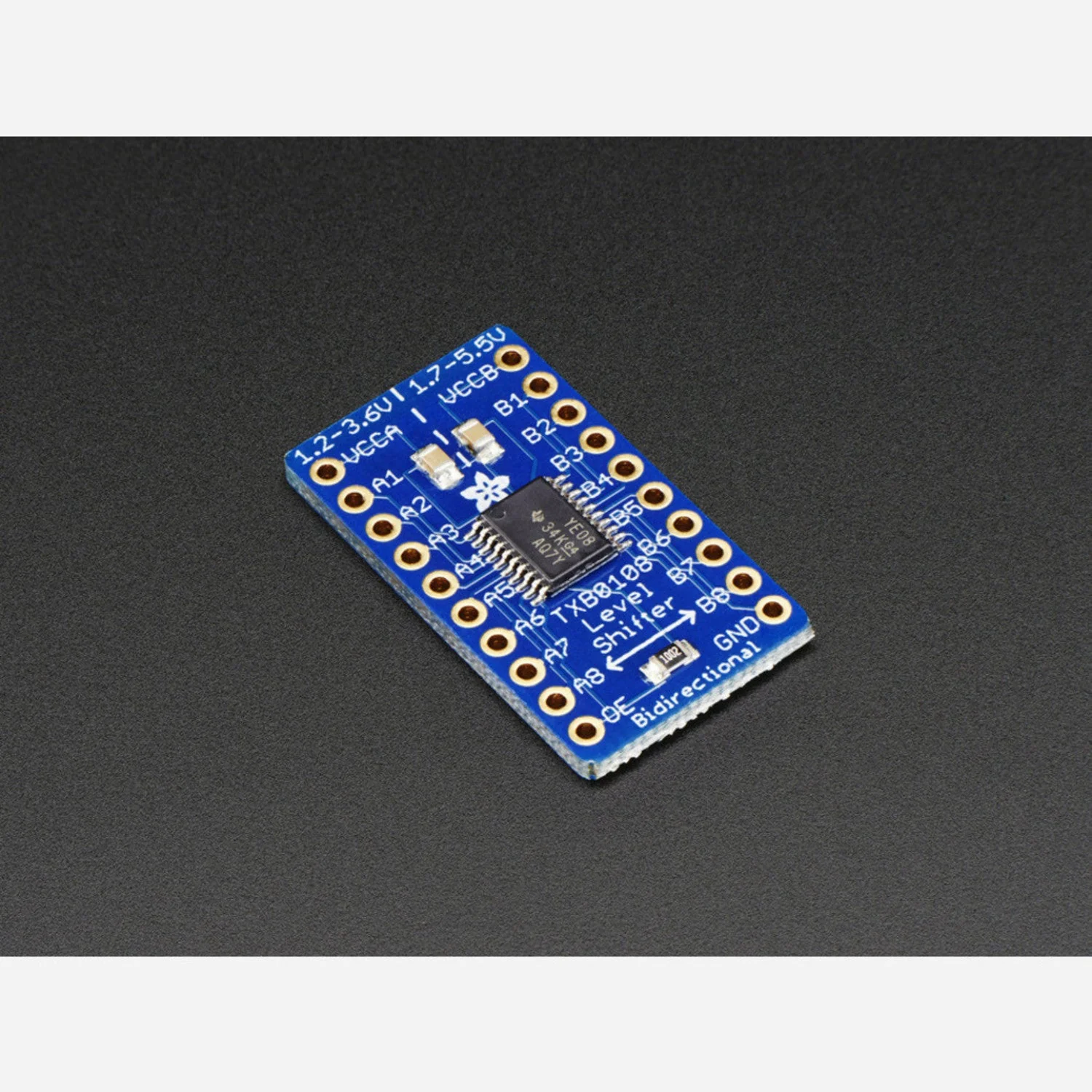

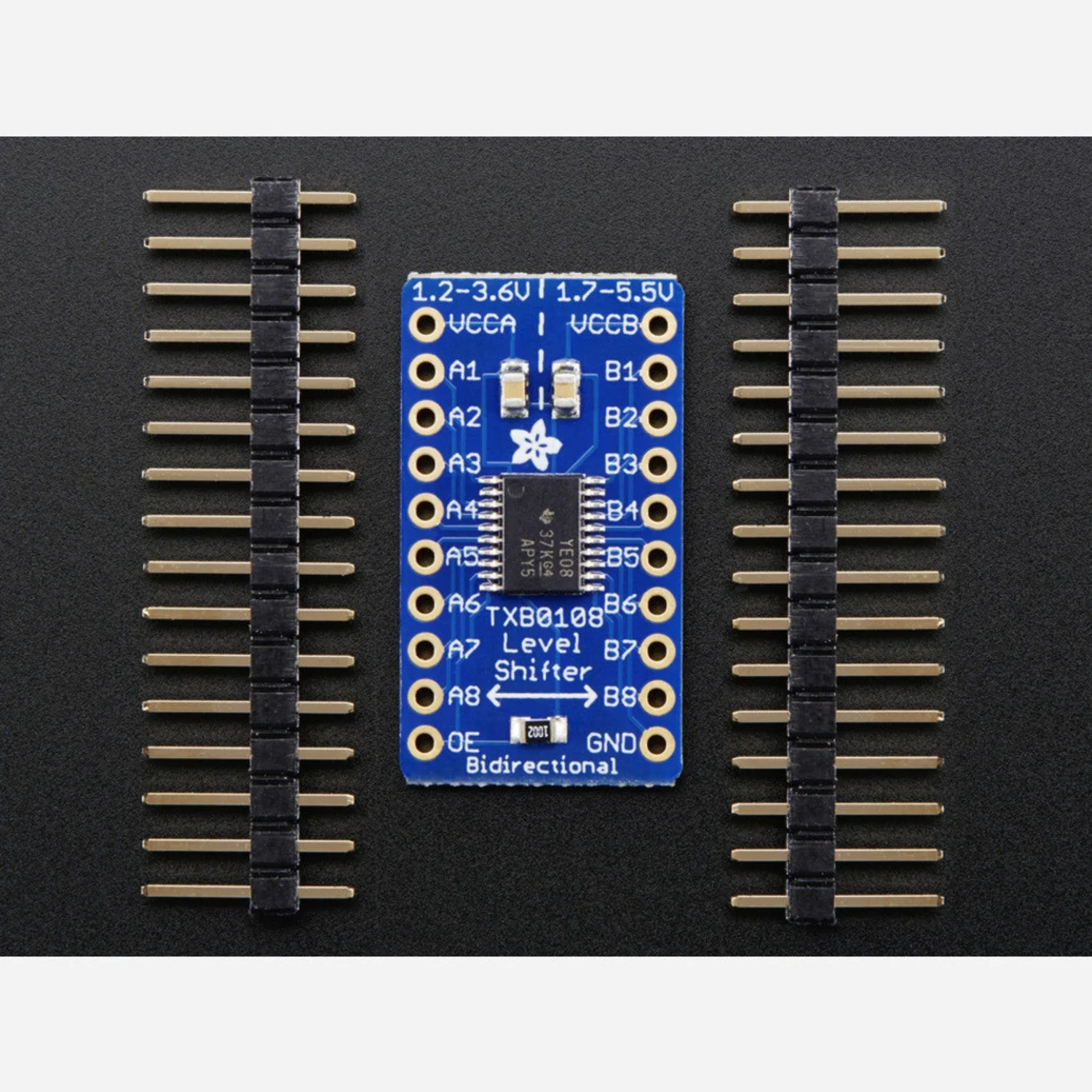

8-channel Bi-directional Logic Level Converter [TXB0108]

An 8-channel bidirectional logic level converter breakout based on the TXB0108 chip. This converter automatically detects signal direction, eliminating the need for direction control pins. It shifts between virtually any two voltage levels, making it ideal for connecting 3.3V and 5V devices.

The breakout includes 0.1uF decoupling capacitors on both voltage sides and a 10K pull-up resistor on the output enable pin, so it works straight out of the box on a breadboard.

Key Features

  • 8-Channel Bidirectional – Auto-detects signal direction
  • TXB0108 Chip – Shifts between any two voltage levels
  • Breakout Board – Pre-soldered with decoupling caps and pull-up
  • Breadboard Friendly – Standard 0.1" pin spacing
Note: This chip does not work well with I2C due to strong pull-ups confusing the auto-direction sensor. If using pull-ups, they must be at least 50K ohm (internal AVR/Arduino ~100K pull-ups are fine). The outputs are not strong enough to drive LEDs or long cables — this is designed to sit between two logic chips on a breadboard.

Ideal For

  • Bidirectional level shifting between 3.3V and 5V devices
  • SPI and other bidirectional bus interfaces
  • Prototyping with mixed-voltage components
