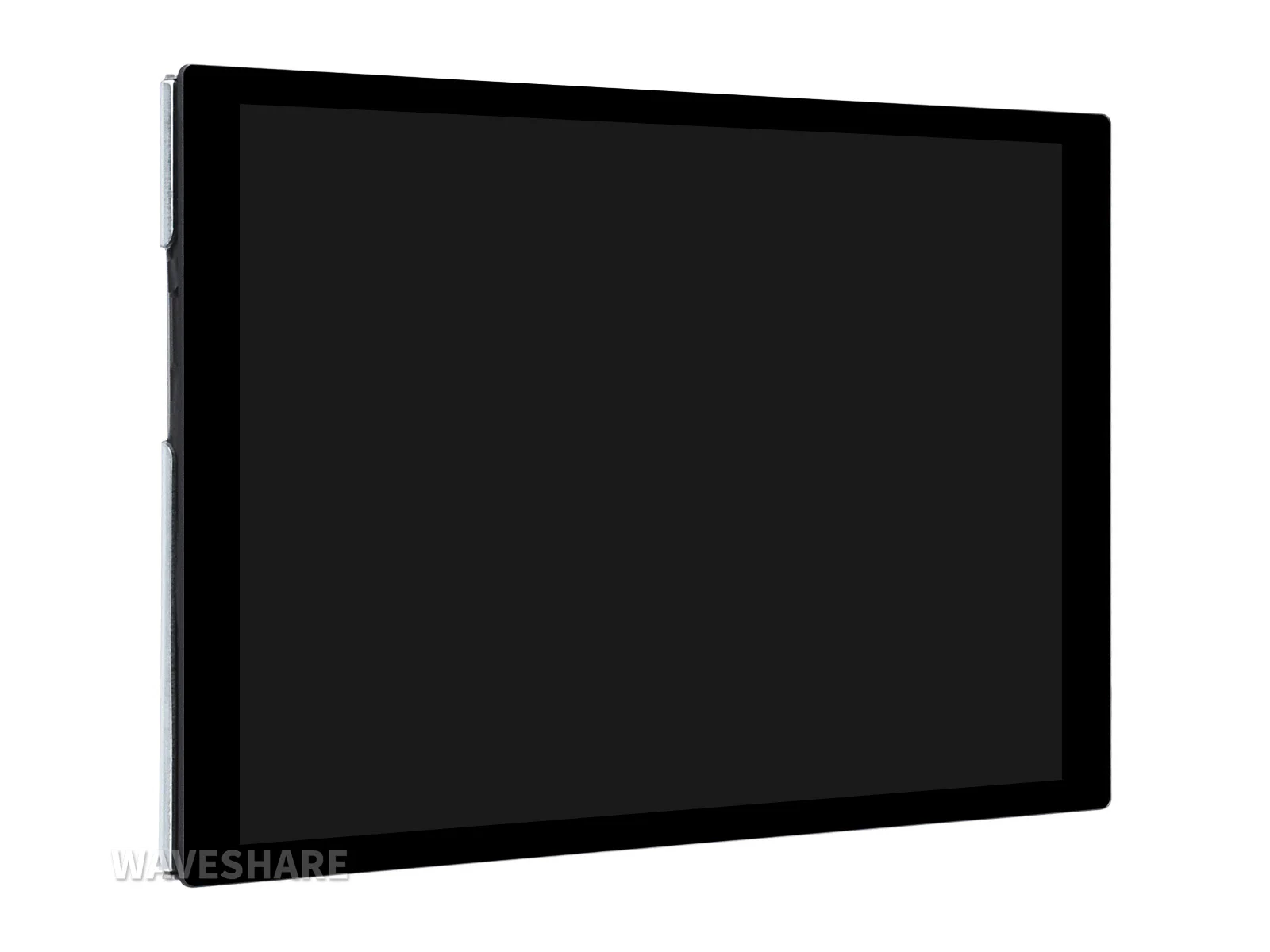

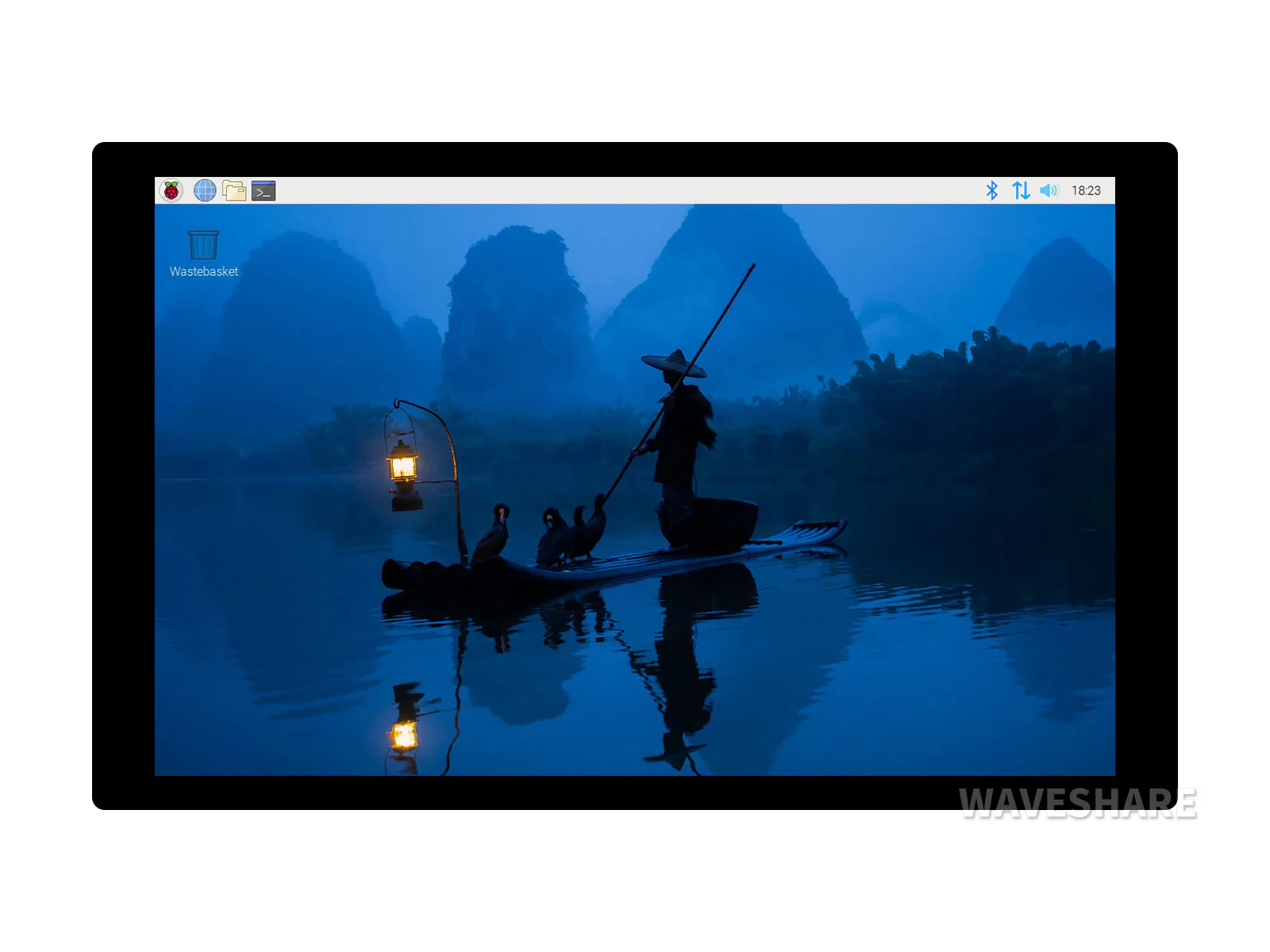

The 8" DSI IPS Touch Display delivers a crisp 800×1280 resolution with 10-point capacitive touch, optical bonding, and toughened glass for a durable, responsive interface. The IPS panel provides vivid colours and wide 178° viewing angles.

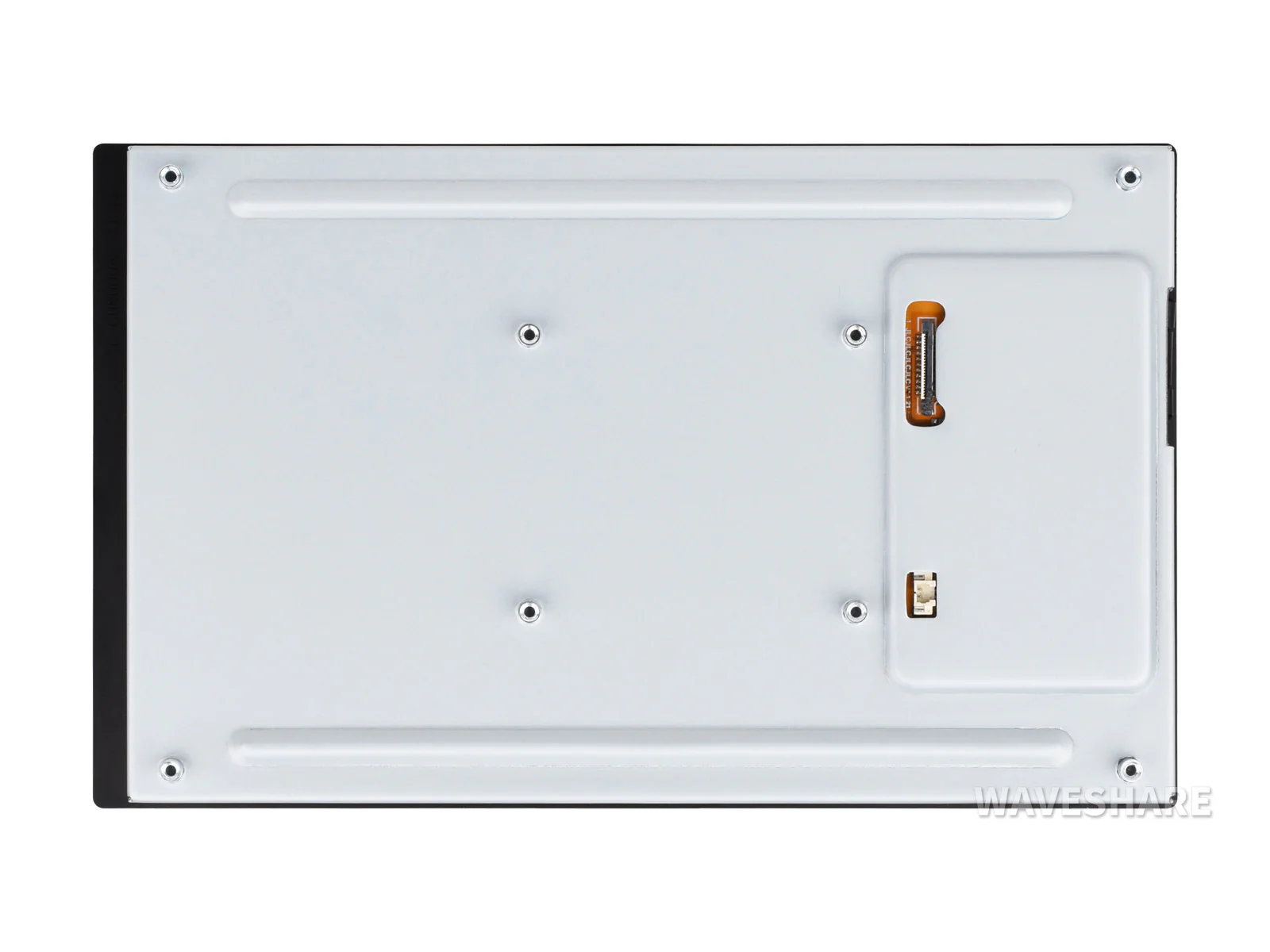

With the driver circuit integrated into a flexible FPC cable, the display is only 11.6 mm thick. Brightness is software-adjustable, and the display supports both portrait (default) and landscape orientation via software configuration. Compatible with Raspberry Pi (via DSI), ESP32-P4 (LVGL GUI), and various Linux platforms including RK3506 and RK3576.

Key Features

• 8" IPS Display – 800×1280 resolution with wide 178° viewing angles
• 10-Point Capacitive Touch – Responsive multi-touch with toughened glass panel
• Optical Bonding – Reduces reflections and improves clarity, dust-resistant
• DSI Interface – Direct connection to Raspberry Pi and compatible SBCs

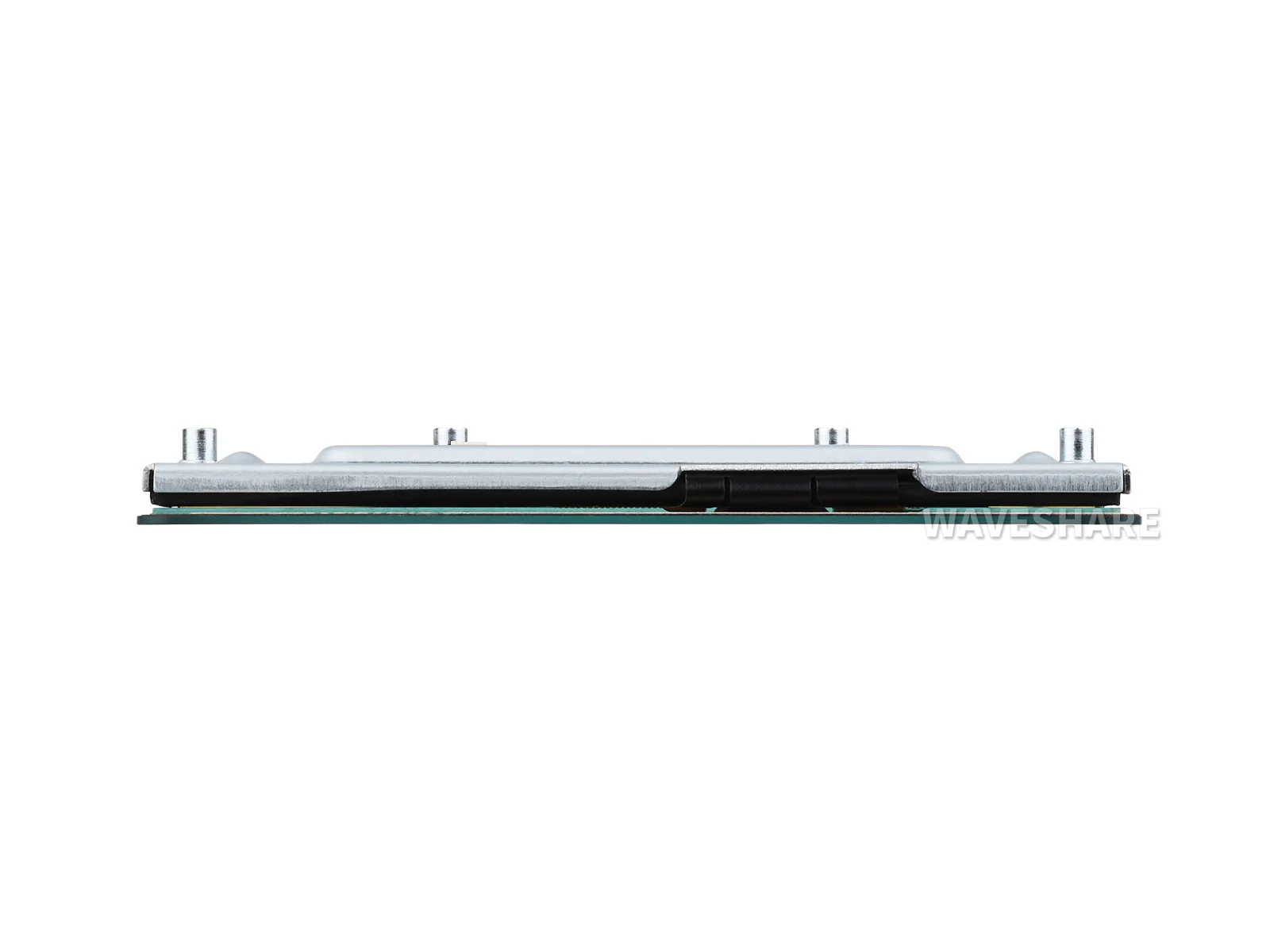

• Ultra-Thin Design – Only 11.6 mm total thickness with integrated FPC driver
• Software-Adjustable Brightness – 400 cd/m² maximum
• Portrait or Landscape – Configurable orientation via software

Specifications

• Screen Size: 8 inches
• Resolution: 800 × 1280 (H × V)
• Display Interface: MIPI DSI
• Panel Type: IPS
• Brightness: 400 cd/m²
• Touch Panel: Toughened glass, optically bonded
• Weight: 396 g

Compatibility

• Raspberry Pi (via DSI interface)
• ESP32-P4 (LVGL GUI programs)
• RK3506 / RK3576 Linux platforms

Package Contents

• 1× 8-DSI-TOUCH-A Display
• 1× MIPI-DSI cable (12 cm)
• 1× MX 1.25 2-pin to 2.54 3-pin cable
• 2× FFC 22-pin cable (~200 mm)
• 1× MX 1.25 2-pin to MX 1.25 4-pin cable (~150 mm)
• 1× Screw pack

Resources

• Waveshare Wiki – 8-DSI-TOUCH-A
