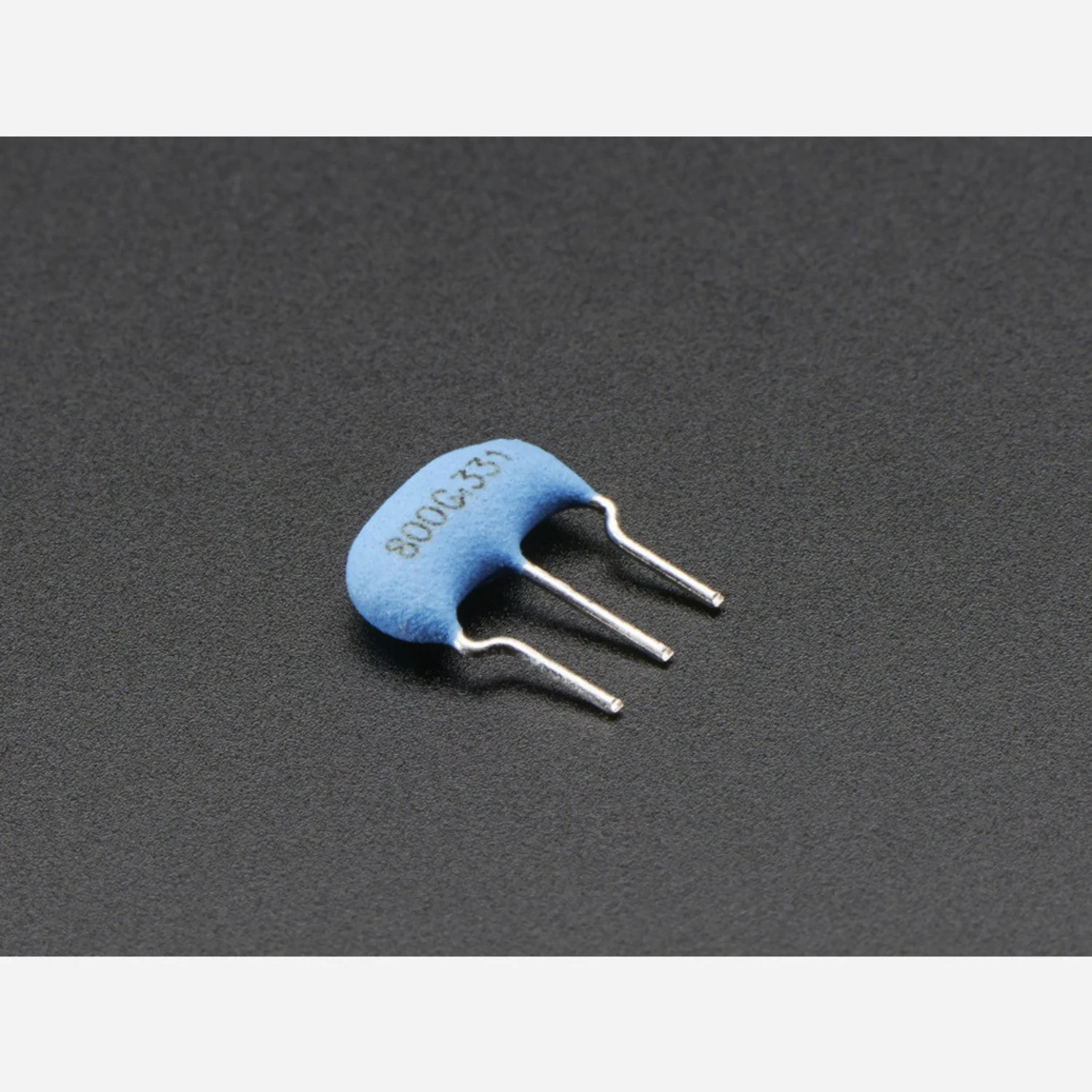

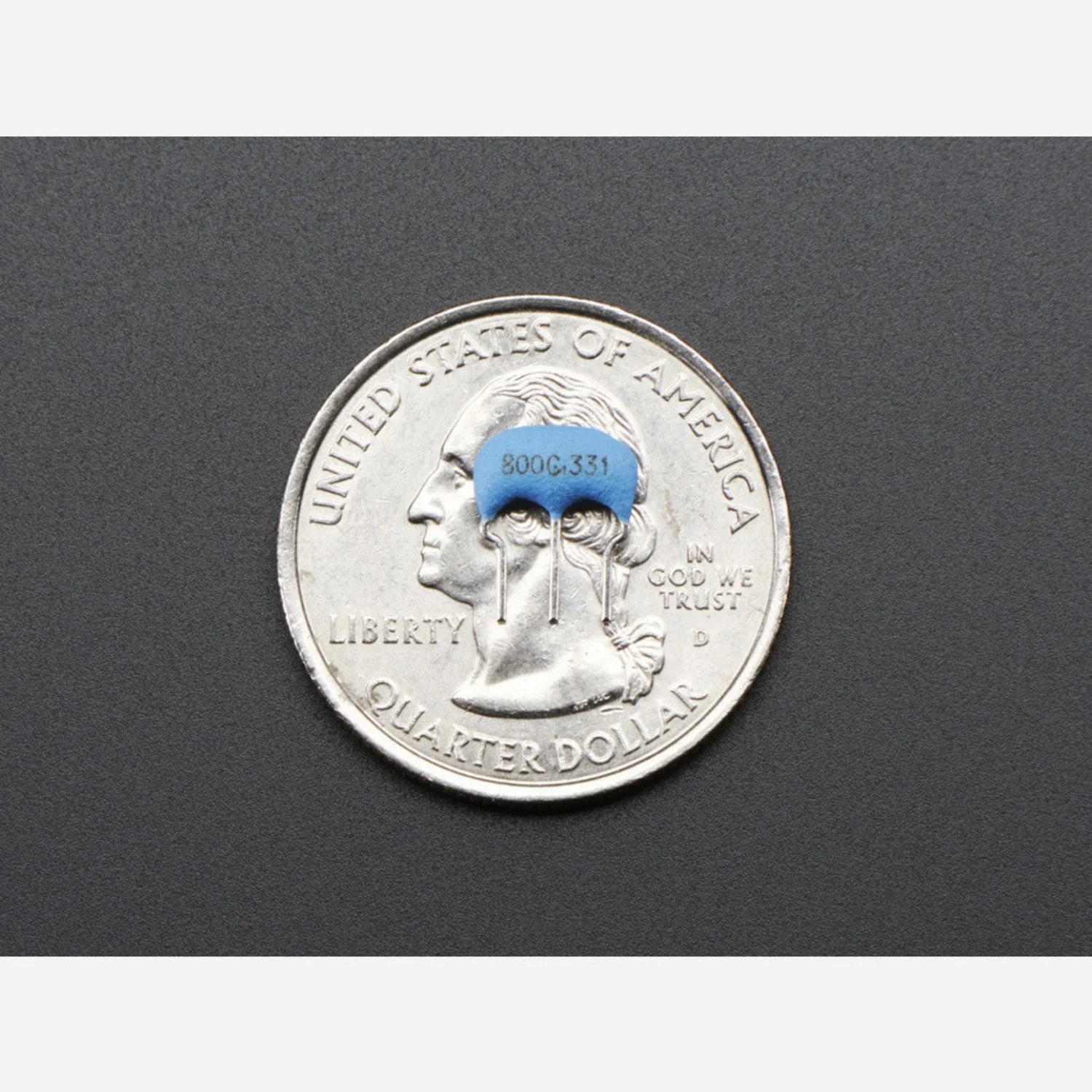

8 MHz Ceramic Resonator / Oscillator
This 8 MHz ceramic resonator is a breadboard-friendly oscillator with built-in load capacitors, making it a simple drop-in timing source for microcontrollers. With 0.5% accuracy, it's well suited for everyday electronics, UART baud-rate generation, and general microcontroller clocking.
The 3-pin package has 0.1" pin spacing — connect the two outer pins to XTAL-in and XTAL-out (the package is symmetric), and the centre pin to ground. No external capacitors needed.
Key Features
- 8 MHz Frequency – Common microcontroller clock speed
- Built-In Load Capacitors – No external caps required
- 0.5% Accuracy – Suitable for UART and general timing
- Breadboard Friendly – 0.1" (2.54 mm) pin spacing, 3-pin package
- Symmetric Package – Either outer pin can be XTAL-in or XTAL-out
Also Available
- 8 MHz Crystal + 20 pF Capacitors – Higher precision (30 PPM) for USB timing and RF applications
Package Contents
- 1× 8 MHz Ceramic Resonator
