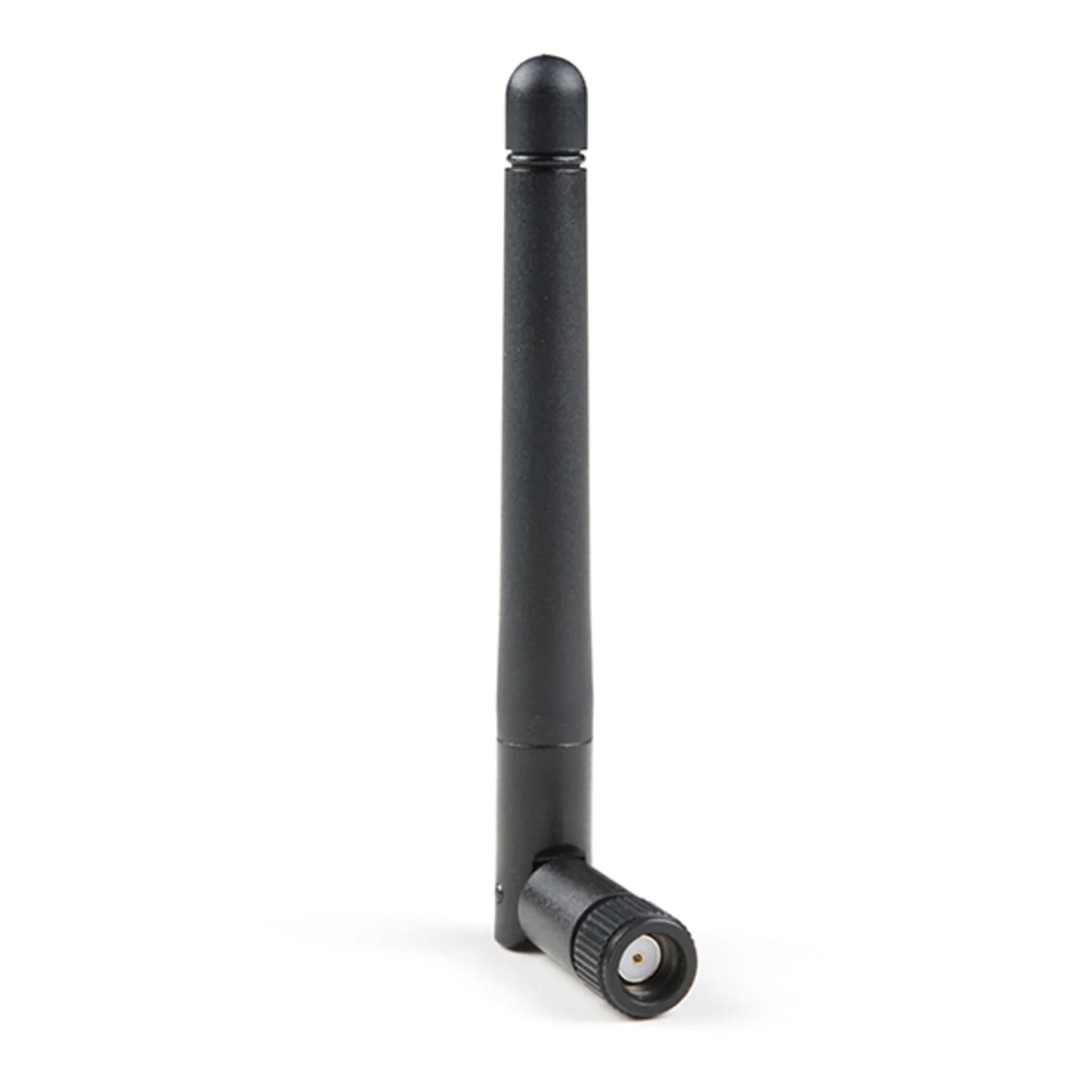

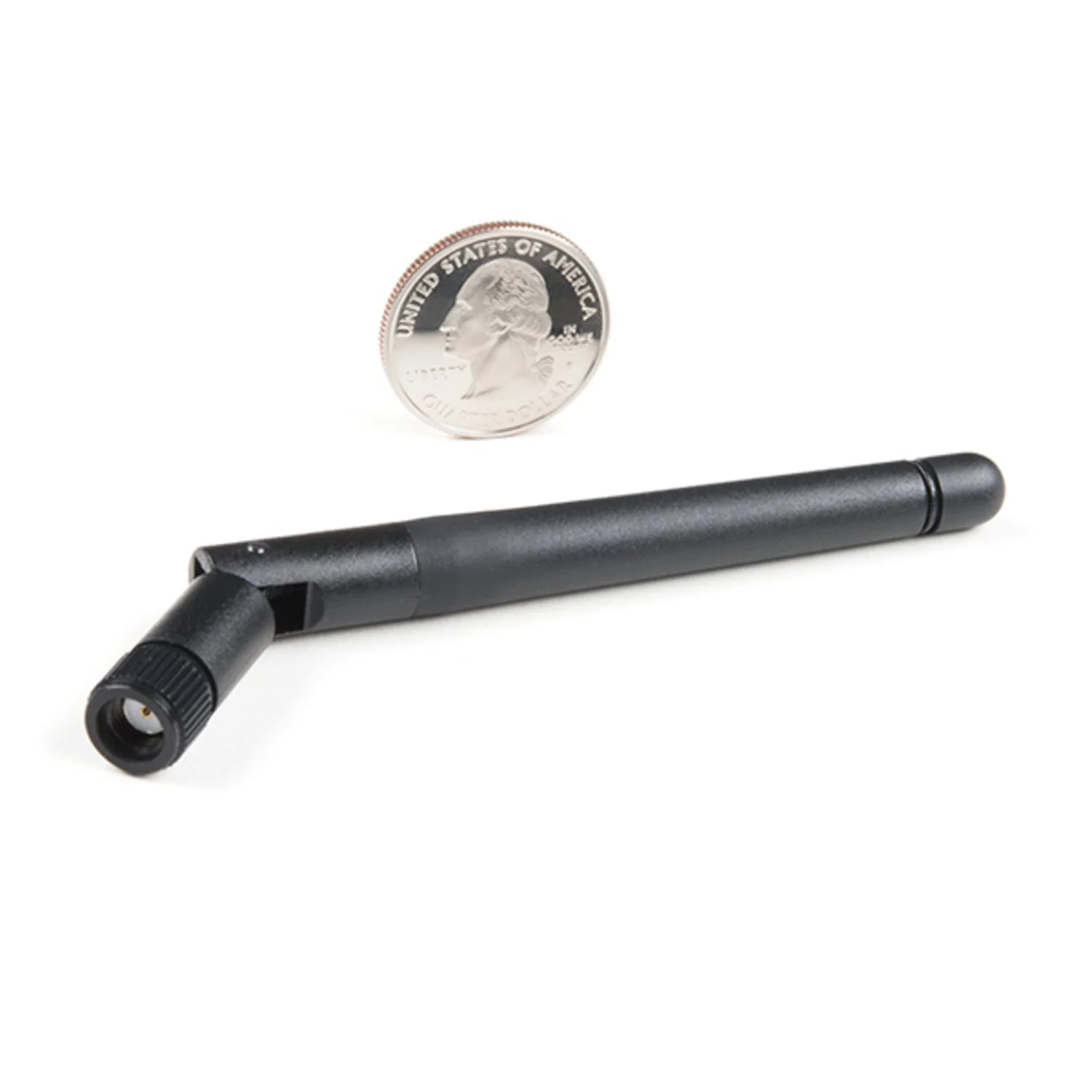

A compact 1/4-wave rubber duck antenna for LoRa and other 860–960MHz communication. With a centre frequency of 915MHz and 2dBi gain, this 110mm antenna is ideal for space-constrained LoRa nodes where a smaller antenna is preferred.

Specifications

• Frequency Range – 860–960MHz (centre 915MHz)
• Gain – 2dBi
• Type – 1/4-wave rubber duck
• Connector – RP-SMA
• Length – 110mm

Ideal For

• LoRa nodes and gateways (AU915 band)
• Compact enclosures where a shorter antenna is needed
• Sub-GHz radio modules with RP-SMA connectors

Also Available

• 915MHz LoRa Antenna 1/2 Wave (200mm) – Longer antenna for improved range
• 915MHz 6dBi Fiberglass LoRa Antenna – High-gain outdoor antenna

Package Contents

• 1× 915MHz 1/4-Wave LoRa Antenna (RP-SMA)
