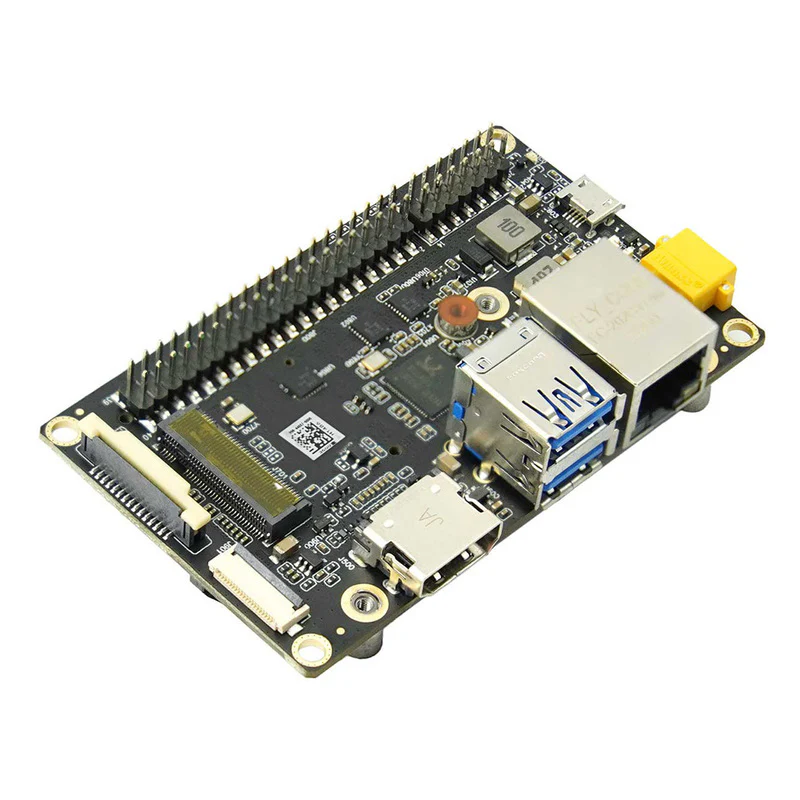

A compact carrier board compatible with the NVIDIA Jetson Orin NX and Orin Nano core modules. It provides a rich array of interfaces including HDMI, Gigabit Ethernet, USB 3.0, M.2 slots for WiFi/Bluetooth and NVMe SSD, CSI camera, and more — all in a lightweight 87 × 52 × 26 mm form factor.

The board supports the full NVIDIA JetPack software stack and operates across a wide temperature range of -25 to 65°C, making it suitable for embedded AI and edge computing applications.

Key Features

• Compact Size – 87 × 52 × 26 mm, only 100 g
• M.2 Key E – PCIe 2230 for WiFi/Bluetooth module
• M.2 Key M – NVMe 2242 SSD support
• USB 3.0 – Two Type-A ports plus 0.5 mm pitch 20-pin ZIF connector
• USB 2.0 – 15-pin header with Micro-AB OTG
• HDMI – Video output
• Gigabit Ethernet – 10/100/1000 Mbps
• CSI Camera – 15-pin camera serial interface connector
• Fan Interface – 5 V PWM for active cooling
• RTC Connector – Real-time clock support
• Additional I/O – CAN, I2C (×2), GPIO (×6), UART, SPI (×2), I2S

Specifications

• Power Input – 9–19 V DC @ 3 A
• Compatibility – Jetson Orin NX / Orin Nano
• Operating Temperature – -25 to 65°C
• Dimensions – 87 × 52 × 26 mm
• Weight – 100 g

Ideal For

• Home robots and autonomous vehicles
• Drones and UAVs
• Industrial automation and control systems
• Digital signage and media players
• IoT edge devices and embedded systems

Also Available

• A203 Carrier Board for Jetson Nano / Xavier NX

Package Contents

• 1× A603 Jetson Orin NX/Nano Carrier Board
• 1× 90 W 19 V Power Adapter (power cable not included)
