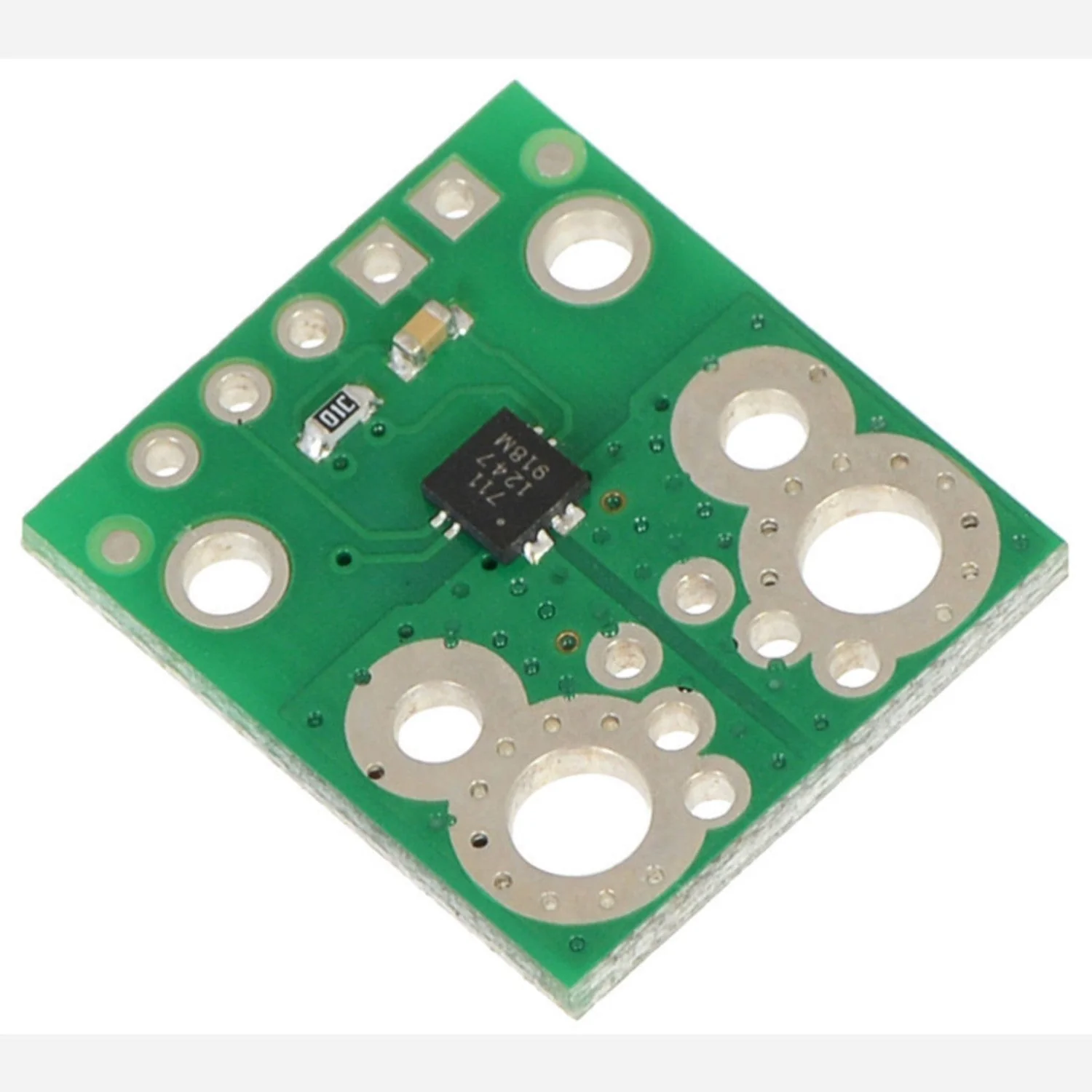

A compact carrier board for the Allegro ACS711EX Hall effect-based linear current sensor with overcurrent fault output. It measures bidirectional current up to ±31 A with a proportional analogue voltage output centred at Vcc/2. The sensor offers a very low resistance current path (~0.6 mΩ) and electrical isolation up to 100 V.

Operating from 3 V to 5.5 V, the board interfaces directly with both 3.3 V and 5 V systems without level shifting.

Key Features

• Current Range – ±31 A bidirectional
• Sensor – Allegro ACS711EX Hall effect linear current sensor
• Low Resistance – ~0.6 mΩ current path for minimal insertion loss
• Electrical Isolation – Up to 100 V between current path and sensor output
• Output – Proportional analogue voltage centred at Vcc/2, typical error ±4%
• Supply Voltage – 3 V to 5.5 V (compatible with 3.3 V and 5 V systems)
• Overcurrent Fault Output – Dedicated fault pin for protection circuits

Ideal For

• Motor current monitoring
• Overcurrent protection circuits
• Battery charging systems
• Power supply monitoring

Also Available

• ACS712 Current Sensor – 20 A
• ACS712 Current Sensor – 5 A

Package Contents

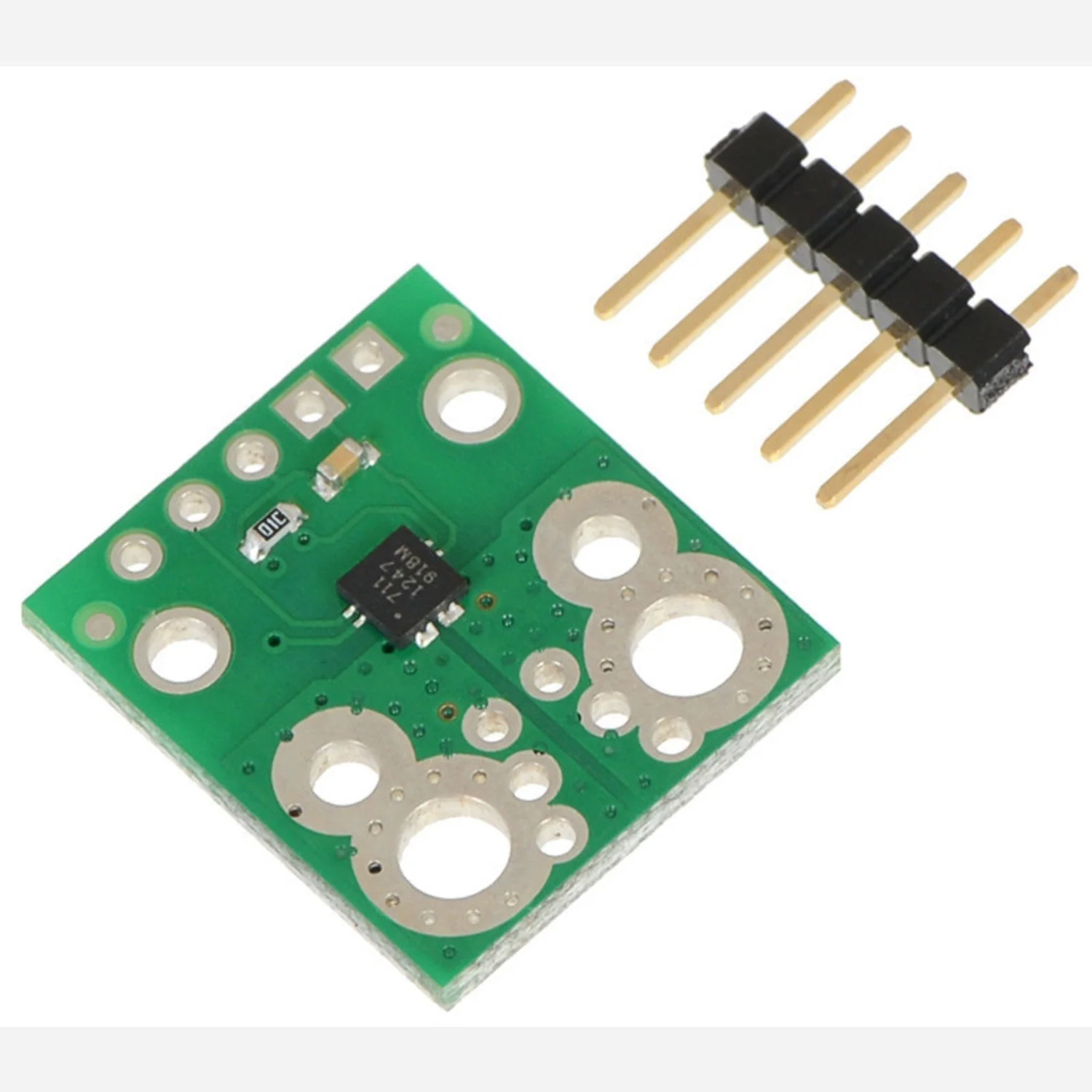

• 1× ACS711EX Current Sensor Carrier Board
