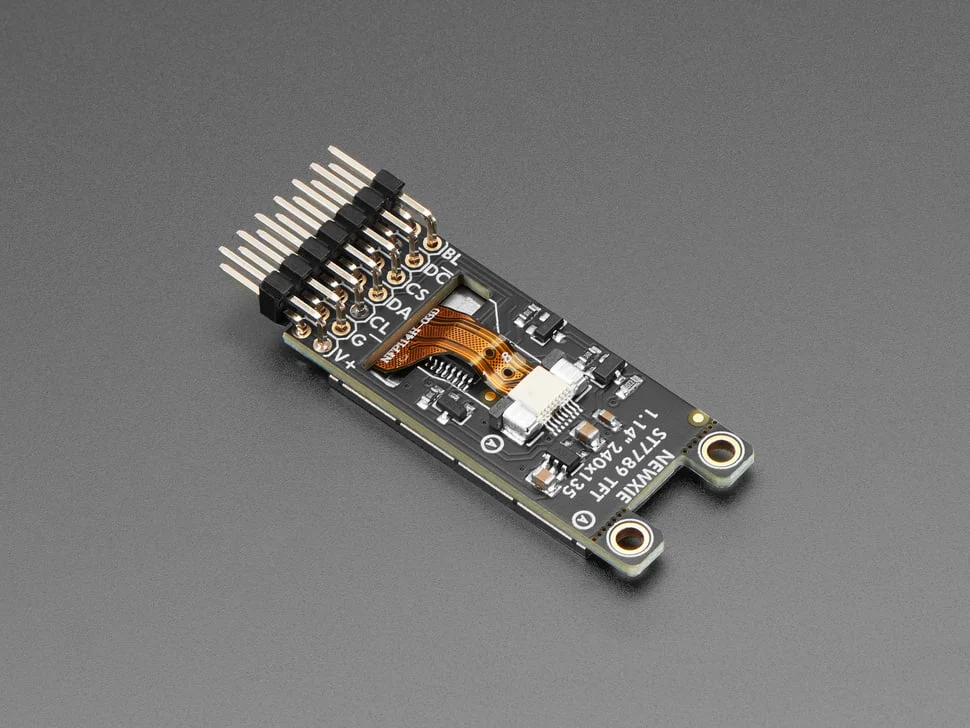

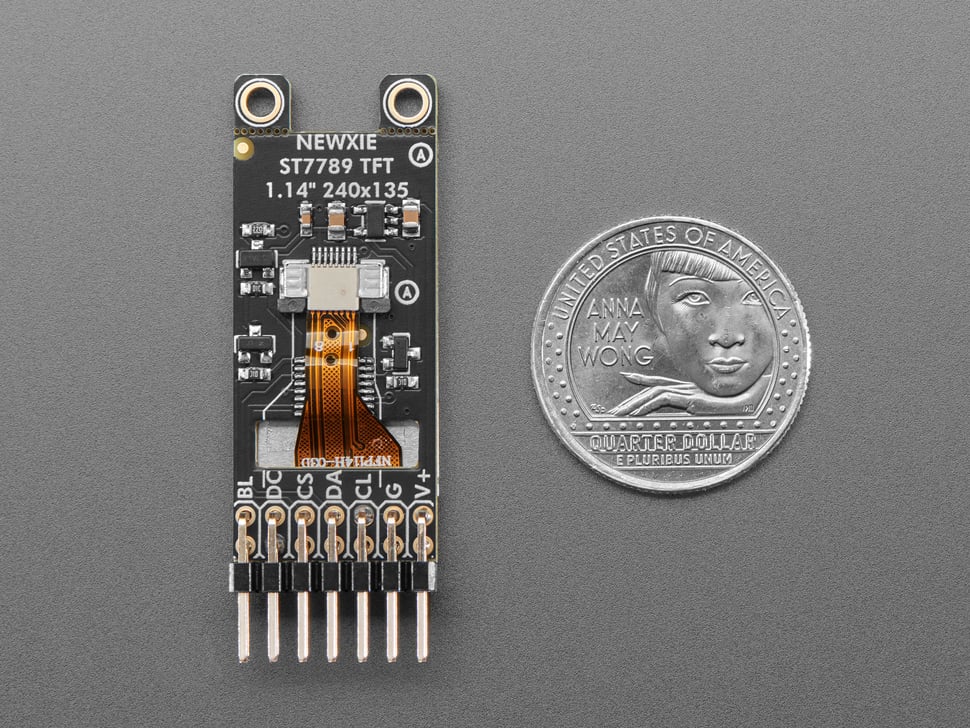

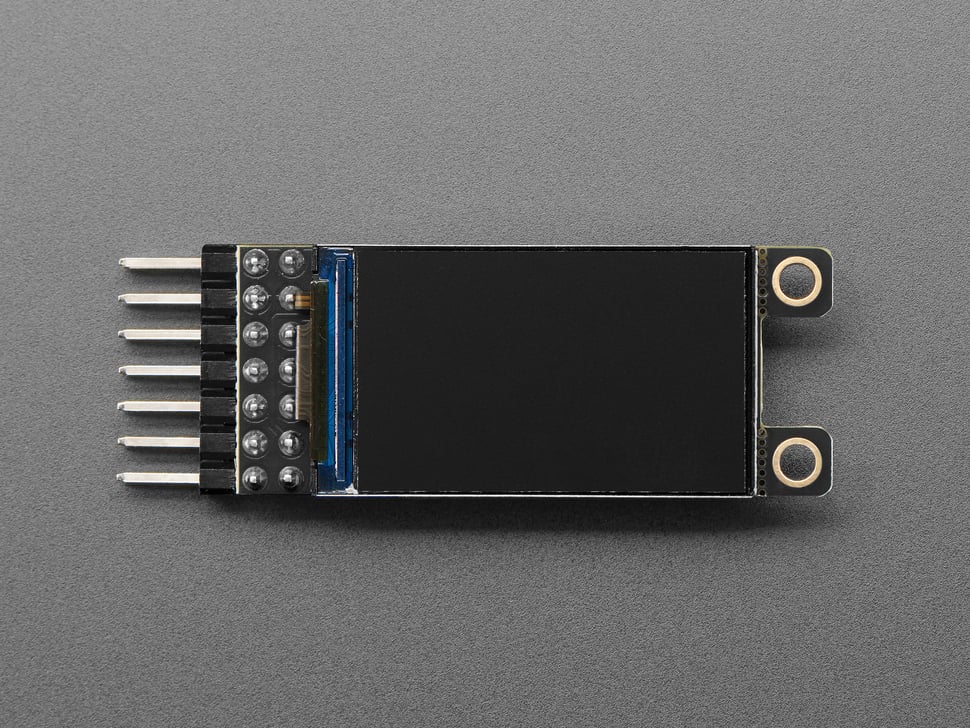

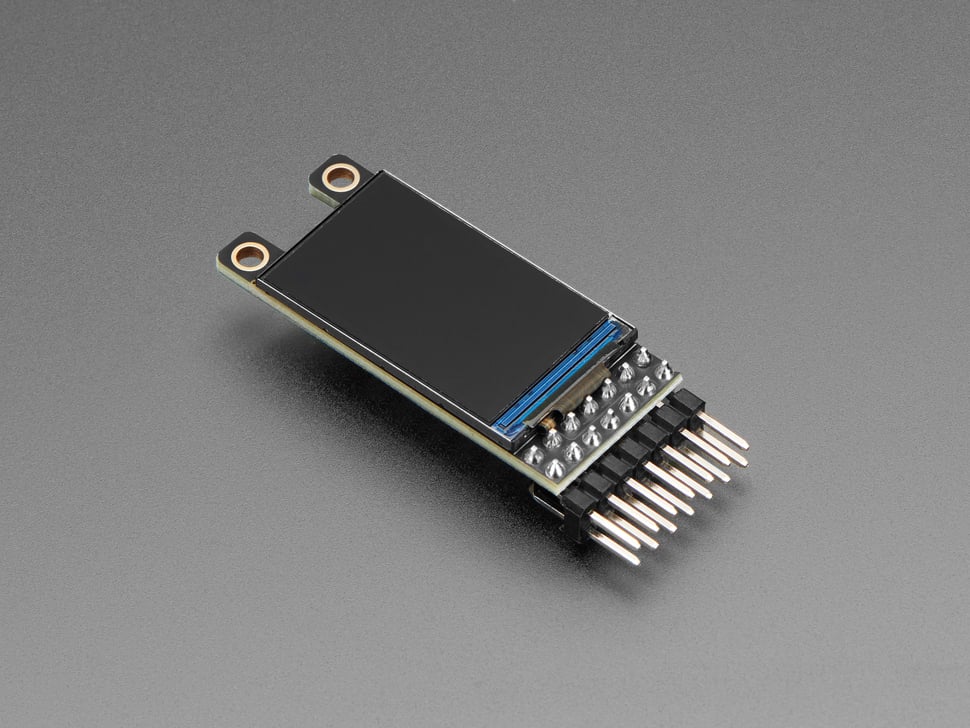

The Adafruit Newxie 1.14" 240×135 Colour TFT Display is a compact, high-resolution IPS display designed for vertical stacking on a 0.1" grid — inspired by the form factor of classic nixie tubes. Despite its small size, it delivers vibrant 16-bit colour at 240×135 resolution with 80° viewing angles in all directions.

The ST7789 TFT driver communicates over a frame-buffered SPI interface, requiring only 7 control pins and working smoothly with low-memory microcontrollers. An onboard 3.3V regulator and level shifter provide compatibility with both 3.3V and 5V logic levels.

Key Features

• 240×135 IPS Display – 16-bit colour with 80° viewing angles, 1.14" diagonal
• ST7789 SPI Driver – Frame-buffered interface requiring only 7 control pins

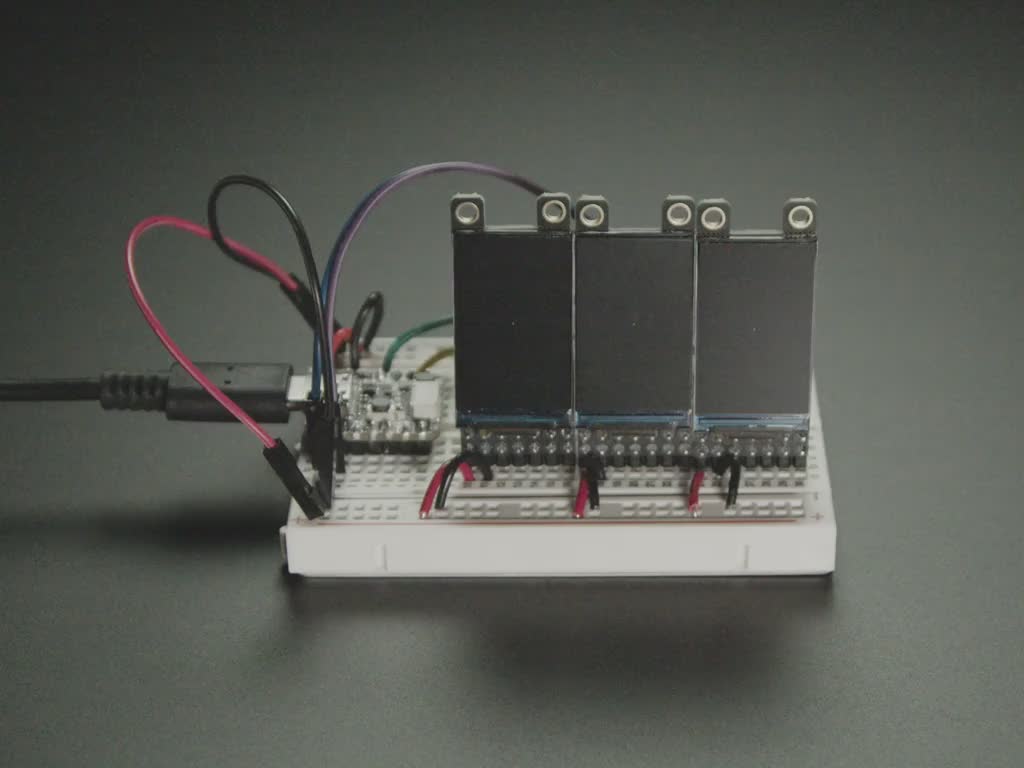

• Stackable Design – Vertical layout on a 0.1" grid for nixie-tube-style stacking
• 3.3V/5V Compatible – Onboard regulator and level shifter for flexible logic levels
• Pre-Soldered Headers – 2×7 right-angle headers included for upright mounting
• Arduino and CircuitPython Support – Compatible with the Adafruit ST7789 library

Ideal For

• Compact UI displays and dashboards
• Gauges and readouts
• Stackable digit or status displays
• Wearable and space-constrained projects

Package Contents

• 1× Newxie 1.14" 240×135 colour TFT display board with pre-soldered 2×7 right-angle headers
