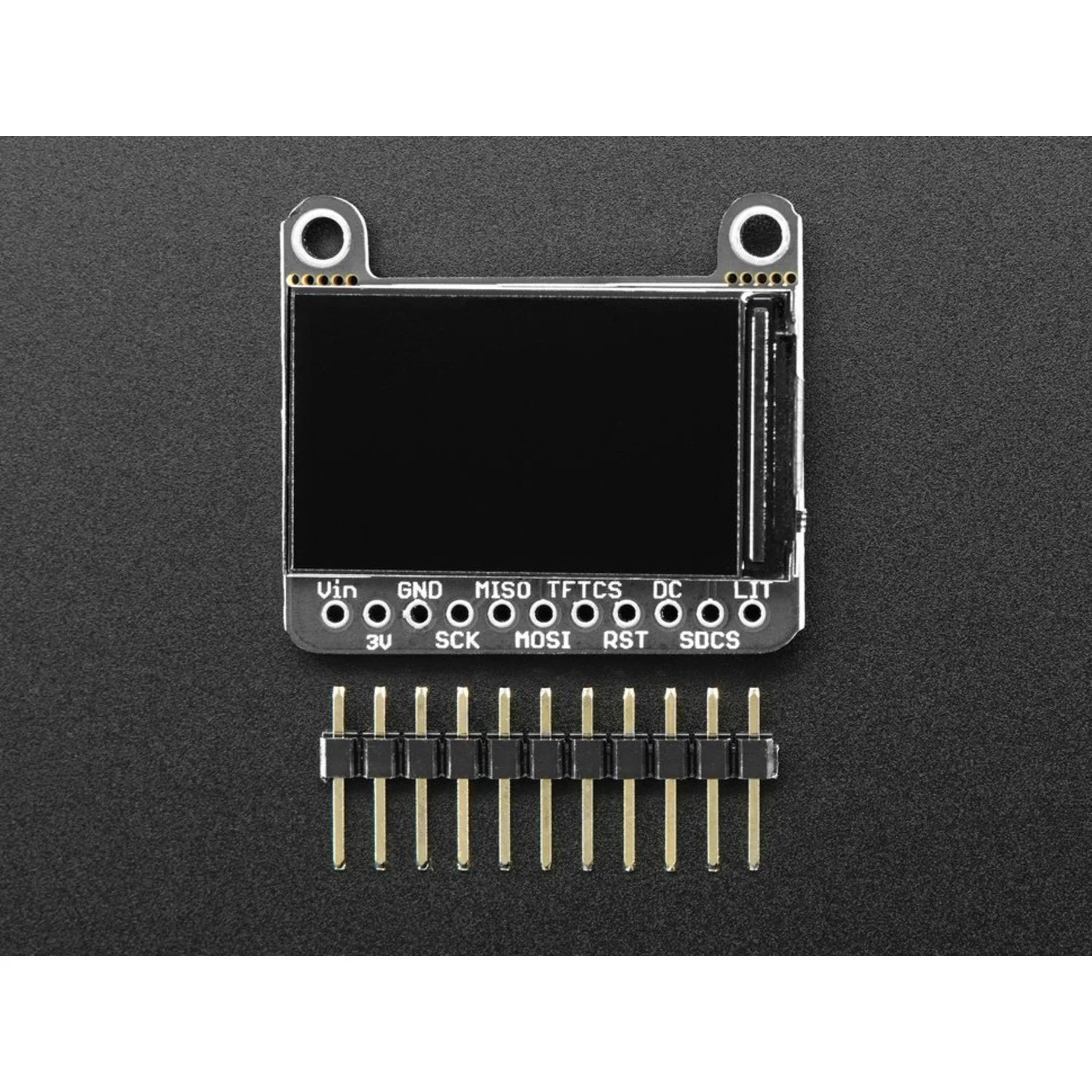

The Adafruit 1.14" 240×135 Colour TFT Display Breakout with MicroSD is a compact, high-density IPS display driven by the ST7789 controller. With 240×135 pixels at 260 PPI in full 16-bit colour, it delivers sharp, vibrant visuals with 80° viewing angles in all directions — a significant step up from older CSTN displays.

The breakout communicates over 4-wire SPI and includes a pixel-addressable frame buffer, making it compatible with virtually any microcontroller. An onboard 3.3V regulator and 3/5V level shifter allow use with both 3.3V and 5V logic. The built-in microSD card slot lets you load full-colour bitmaps from FAT16/FAT32 formatted cards.

Key Features

• 240×135 IPS Display – 16-bit colour at 260 PPI with 80° viewing angles, 1.14" diagonal
• ST7789 SPI Driver – Frame-buffered 4-wire SPI interface works with any microcontroller
• 3.3V/5V Compatible – Onboard regulator and level shifter for flexible logic levels
• MicroSD Card Slot – Load bitmaps from FAT16/FAT32 formatted cards
• Open Source Library – Arduino graphics library with support for pixels, lines, shapes, text, and bitmaps

Package Contents

• 1× 1.14" 240×135 colour TFT display breakout with ST7789 driver and microSD slot
