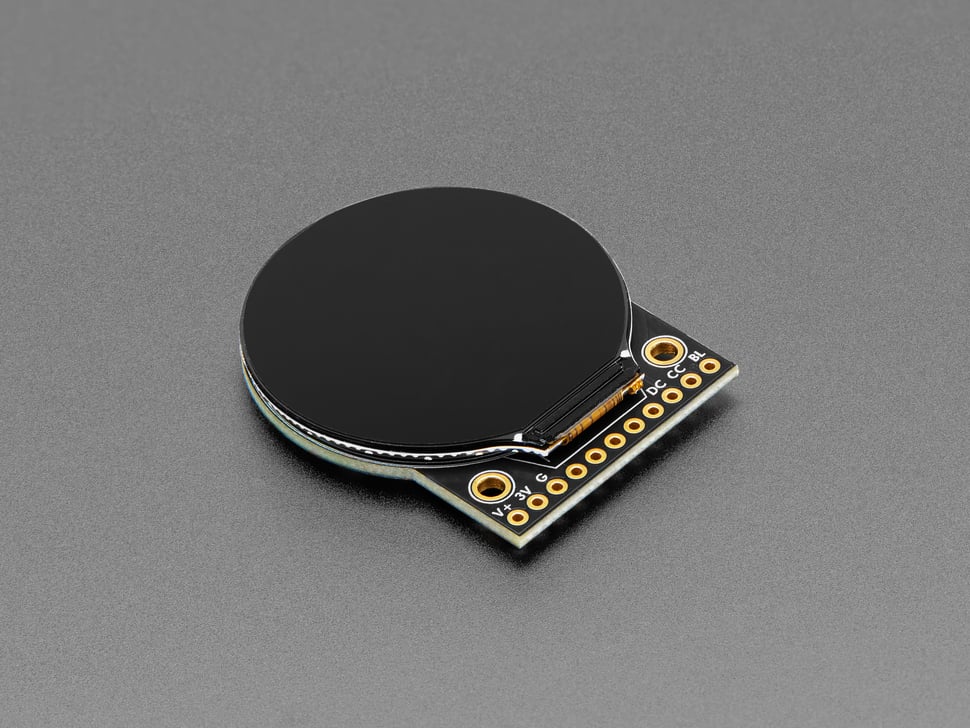

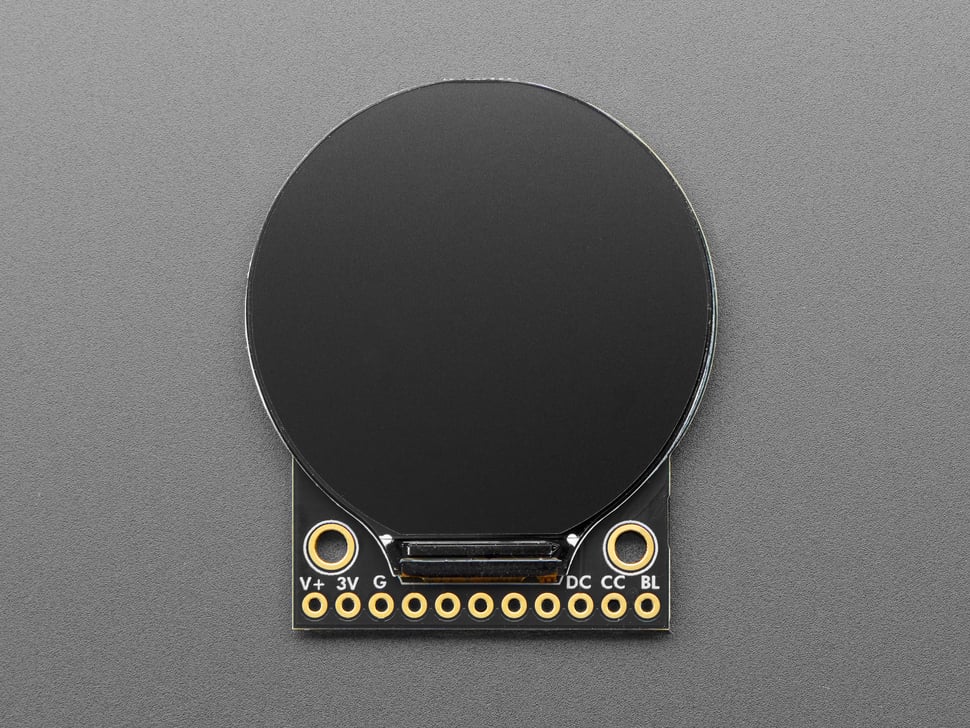

The Adafruit 1.28" Round TFT LCD Display is a circular 240×240 IPS screen at 220 PPI, driven by the GC9A01A controller over SPI. Its beveled edges give it a sleek, watch-like appearance, making it ideal for wearables, dashboards, gauges, and compact electronics.

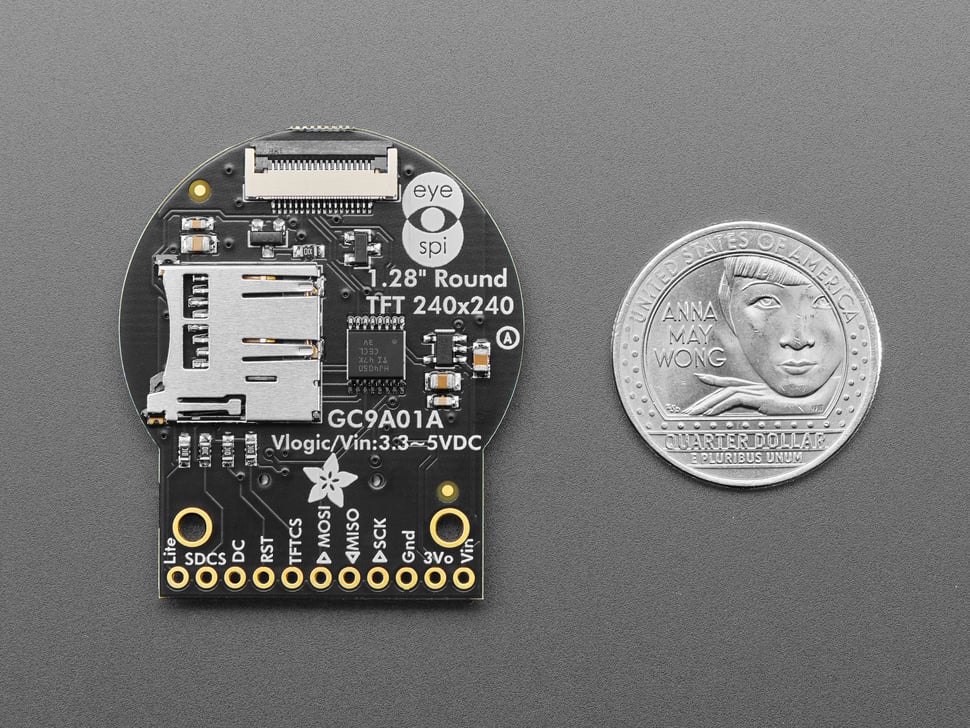

The breakout includes an ultra-low-dropout 3.3V regulator and 3/5V level shifter for compatibility with both 3.3V and 5V logic. A built-in microSD card slot allows loading full-colour bitmaps from FAT16/FAT32 cards, and an 18-pin EYESPI FPC connector provides a solder-free connection option.

Key Features

• 1.28" Round IPS Display – 240×240 resolution at 220 PPI with wide viewing angles
• GC9A01A SPI Driver – Similar to the popular ST7789, with full Arduino library support
• 3.3V/5V Compatible – Onboard regulator and level shifter for flexible logic levels
• MicroSD Card Slot – Load bitmaps from FAT16/FAT32 formatted cards
• EYESPI FPC Connector – 18-pin connector for quick, solder-free integration
• Multi-Platform Support – Arduino, CircuitPython displayio, and Python/Pillow for Raspberry Pi

Ideal For

• Wearable displays and smartwatch projects
• Circular gauges and dashboards
• Compact custom electronics

Package Contents

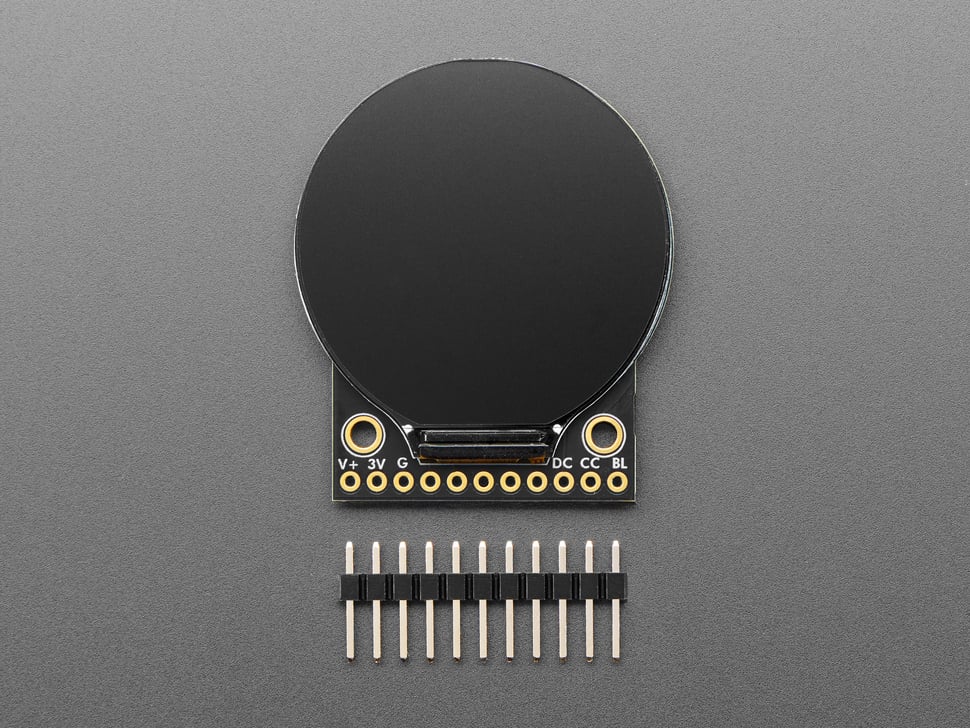

• 1× 1.28" 240×240 round TFT LCD display breakout with GC9A01A driver and microSD slot
