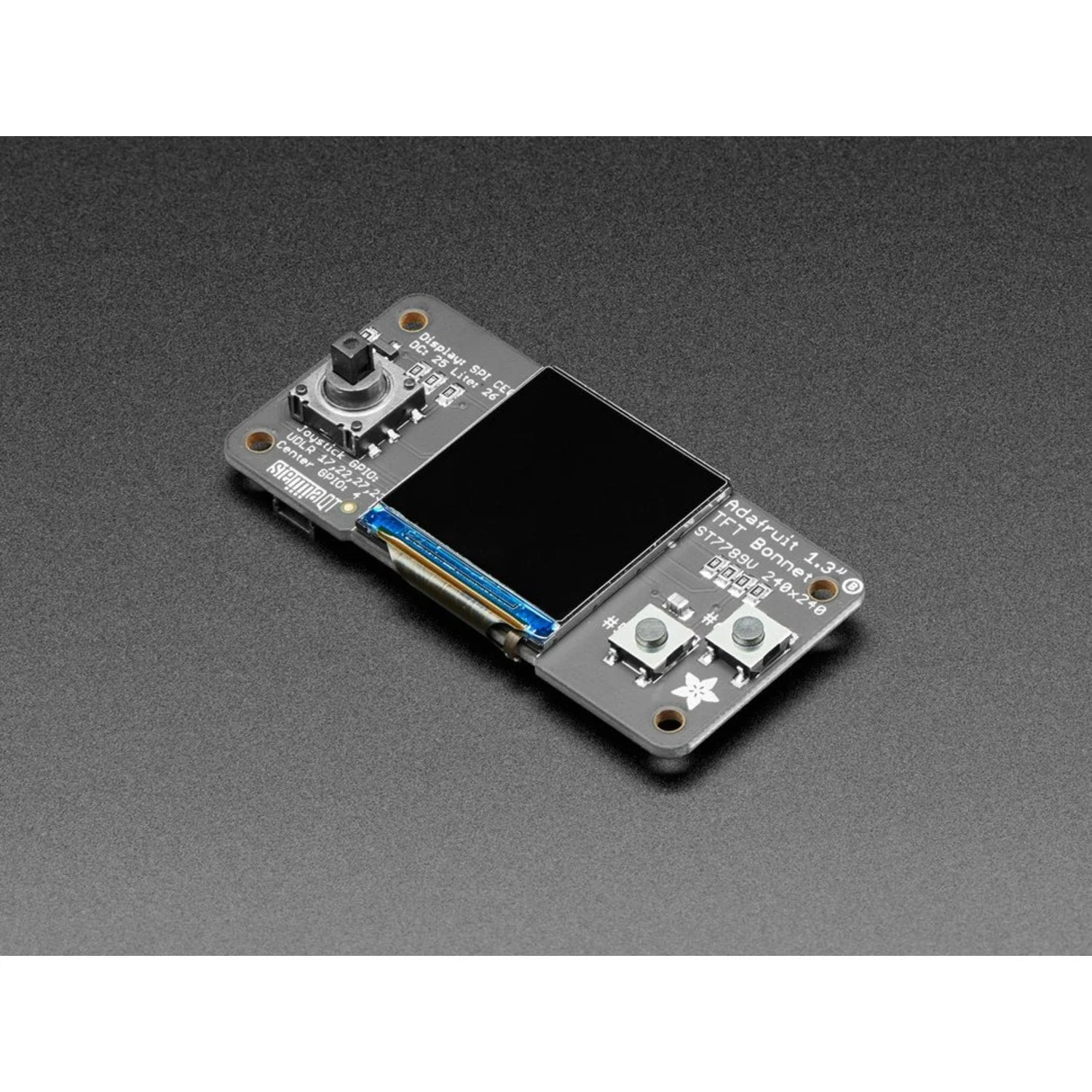

The Adafruit 1.3" Colour TFT Bonnet for Raspberry Pi combines a 240×240 IPS TFT display with a 5-way joystick and two pushbuttons on a single plug-and-play bonnet. The display is driven by the ST7789 controller over SPI, delivering vibrant 16-bit colour with wide viewing angles.

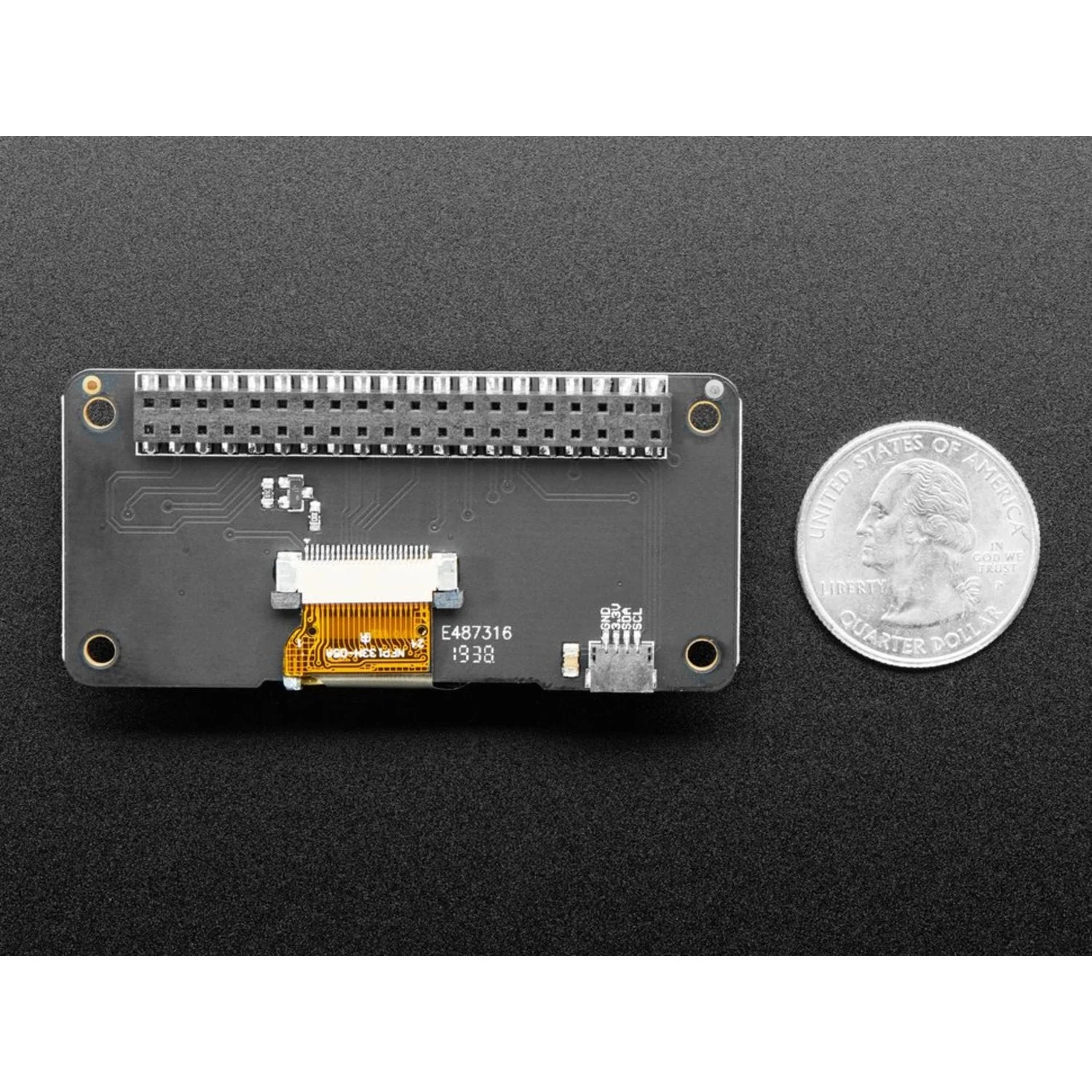

A Qwiic/STEMMA QT I2C connector on the bottom makes it easy to add sensors and peripherals without soldering. The bonnet comes fully assembled — just plug it into any Raspberry Pi's GPIO header and install the Python software.

Key Features

• 240×240 IPS Display – 1.3" diagonal with 16-bit colour and wide viewing angles
• ST7789 SPI Driver – Kernel driver and Python library included for console output or custom graphics
• 5-Way Joystick + 2 Buttons – Built-in control interface for menus and navigation
• STEMMA QT / Qwiic Connector – Plug-and-play I2C for sensors and peripherals
• Pre-Assembled – No soldering required, just plug into GPIO header
• ~15 FPS Update Rate – Suitable for animations and simple video

Compatibility

• Raspberry Pi 1 Model B+
• Raspberry Pi 2, 3, 4
• Raspberry Pi Zero / Zero W

Package Contents

• 1× Adafruit 1.3" Colour TFT Bonnet (fully assembled with display, joystick, and buttons)
