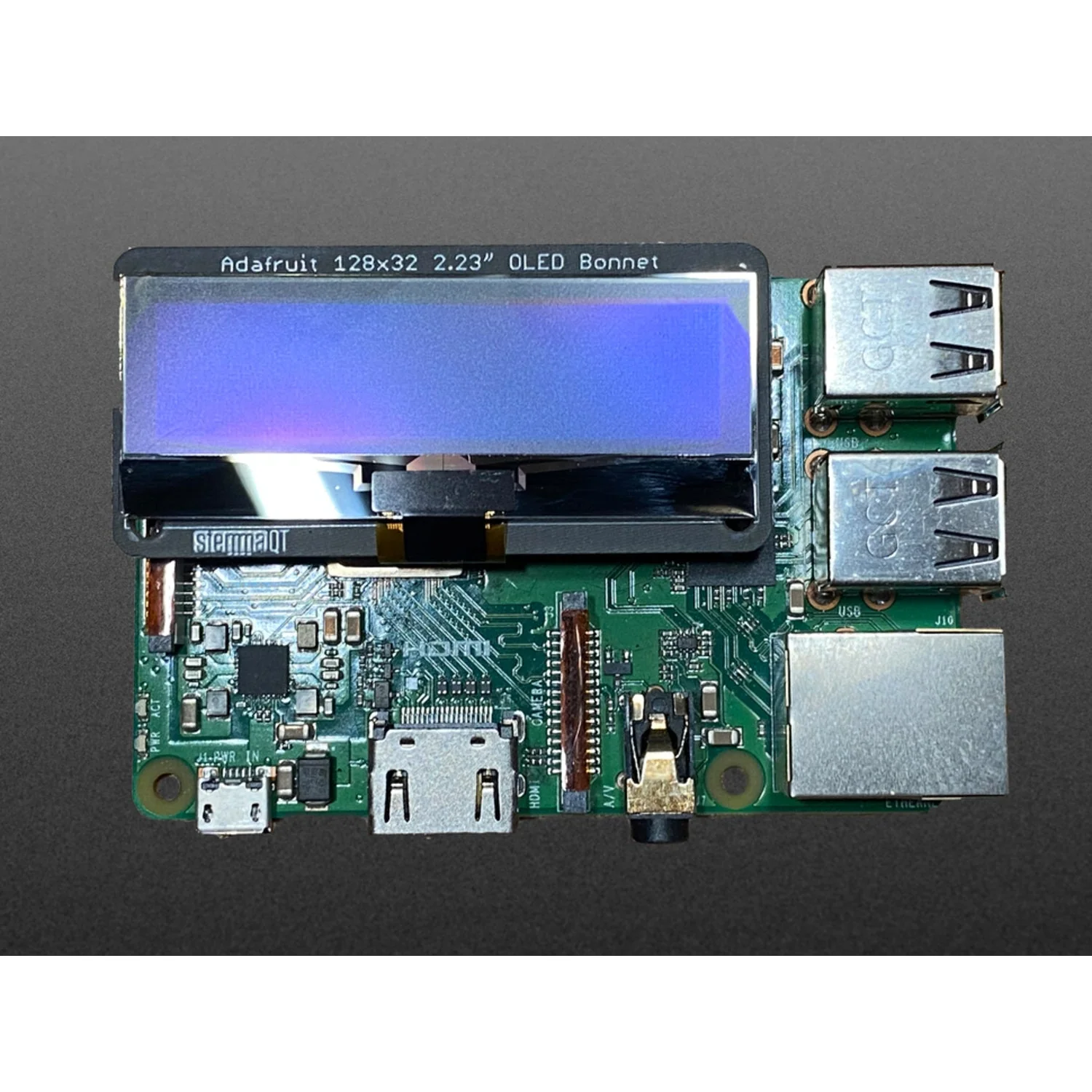

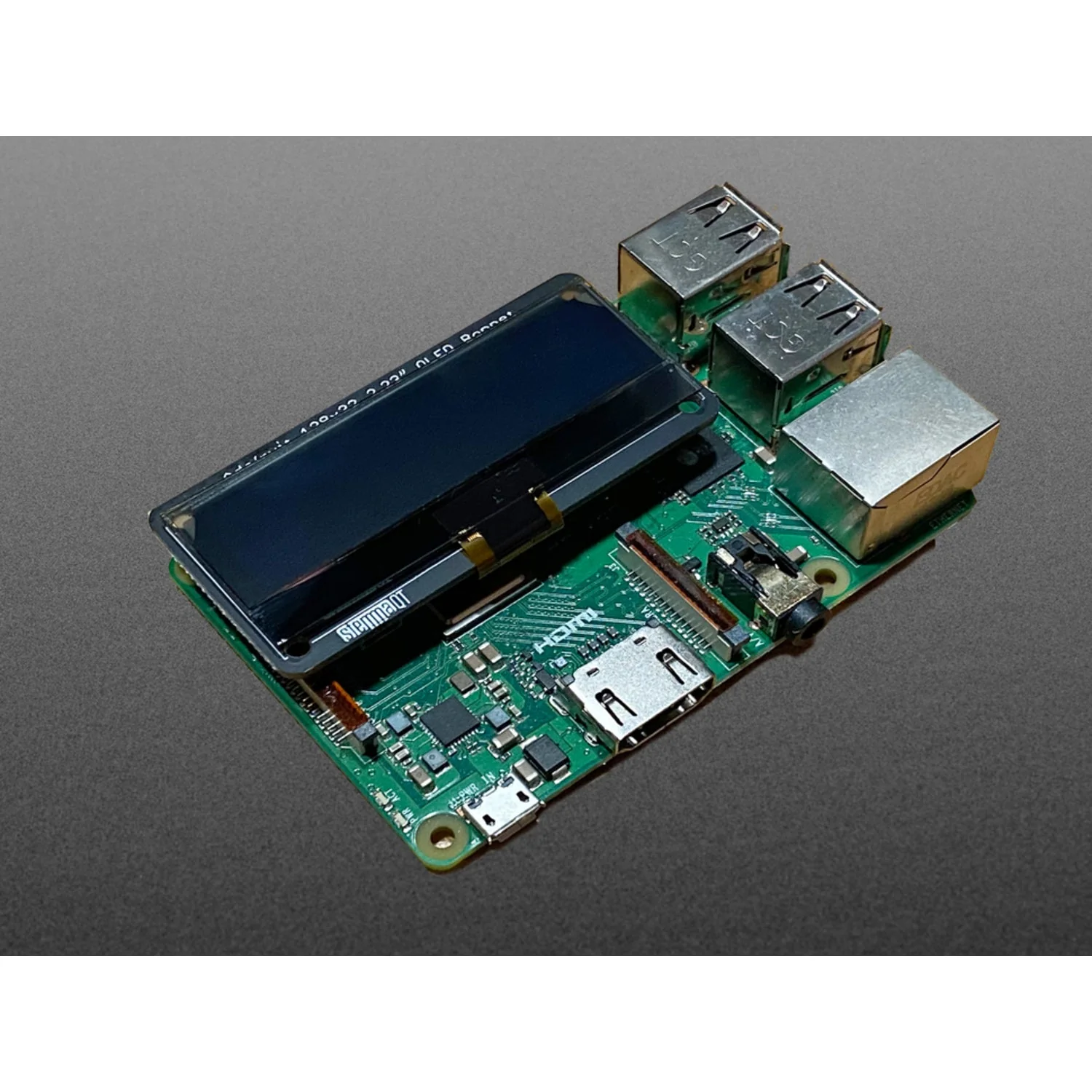

The Adafruit 2.23" Monochrome OLED Bonnet gives your Raspberry Pi a bright, high-contrast display that's easy to read from across the room. Simply plug this pre-assembled bonnet onto any Pi with a 2×20 header and start displaying sharp white text, graphics, and animations at up to 30 FPS.

With 128×32 individual white OLED pixels driven by the SSD1305 chipset, this display produces its own light — no backlight needed. The bonnet communicates over I2C (plus GPIO #4 for reset), leaving plenty of GPIO pins free for buttons, LEDs, and sensors. A STEMMA QT / Qwiic connector on the underside provides easy I2C expansion.

Key Features

• 2.23" Monochrome OLED – 128×32 pixel resolution with bright white pixels on black
• High Refresh Rate – Up to 30 FPS for animations and simple video
• Self-Illuminating – No backlight required; excellent contrast and readability
• Pre-Assembled – No soldering needed; plugs directly onto the Pi's 2×20 GPIO header
• STEMMA QT / Qwiic Connector – Plug-and-play I2C expansion on the underside
• Minimal Pin Usage – I2C plus one GPIO pin, leaving most pins available for your project
• Python Programmable – Full Python library with support for the Python Imaging Library (PIL)

Compatibility

• Raspberry Pi B+, Pi 2, Pi 3, Pi 4, and Pi Zero (any model with 2×20 GPIO header)

Ideal For

• System status monitors and dashboards
• Pi Zero portable projects

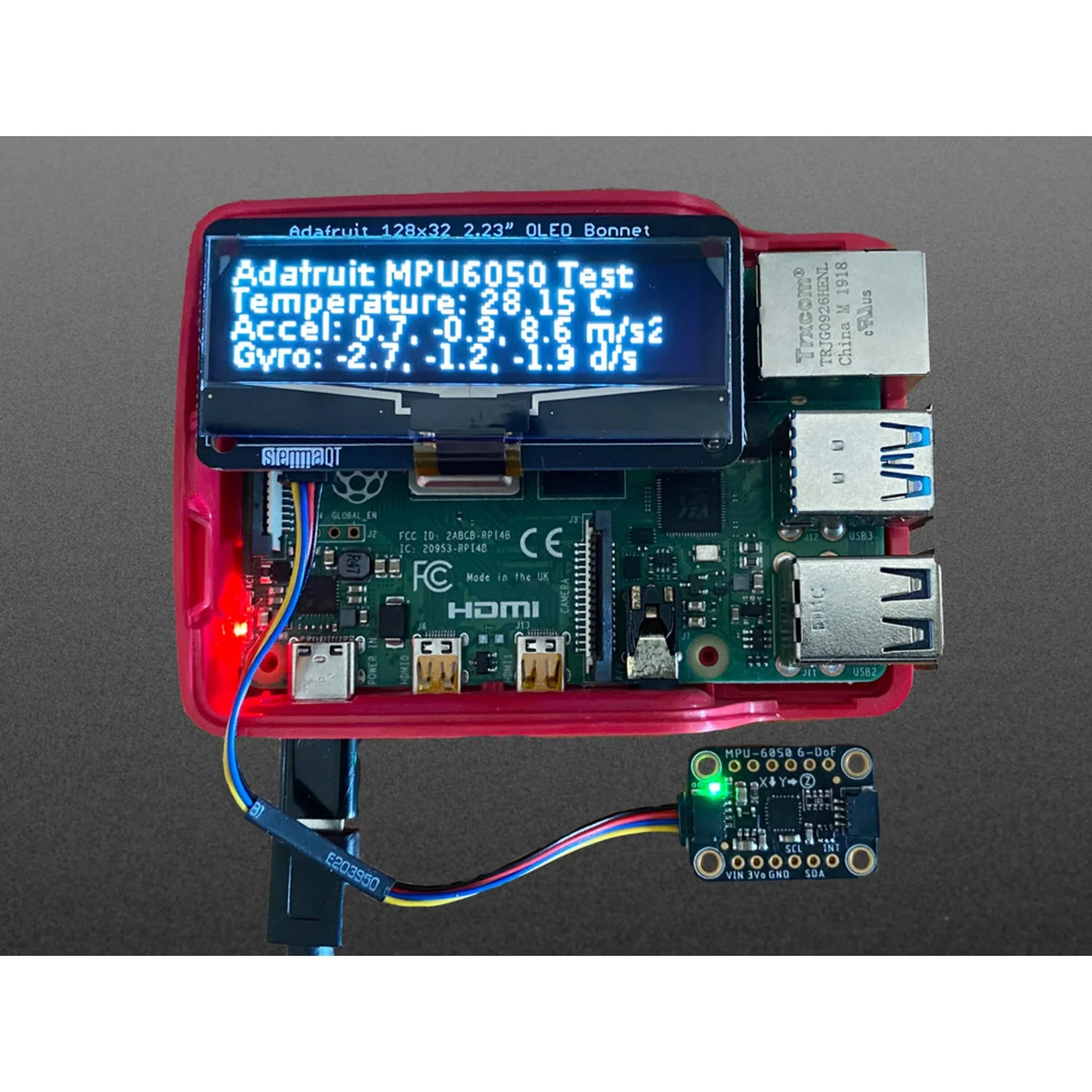

• Real-time sensor readouts
• Animated displays and simple video playback

Package Contents

• 1× Adafruit 2.23" Monochrome OLED Bonnet (fully assembled)
