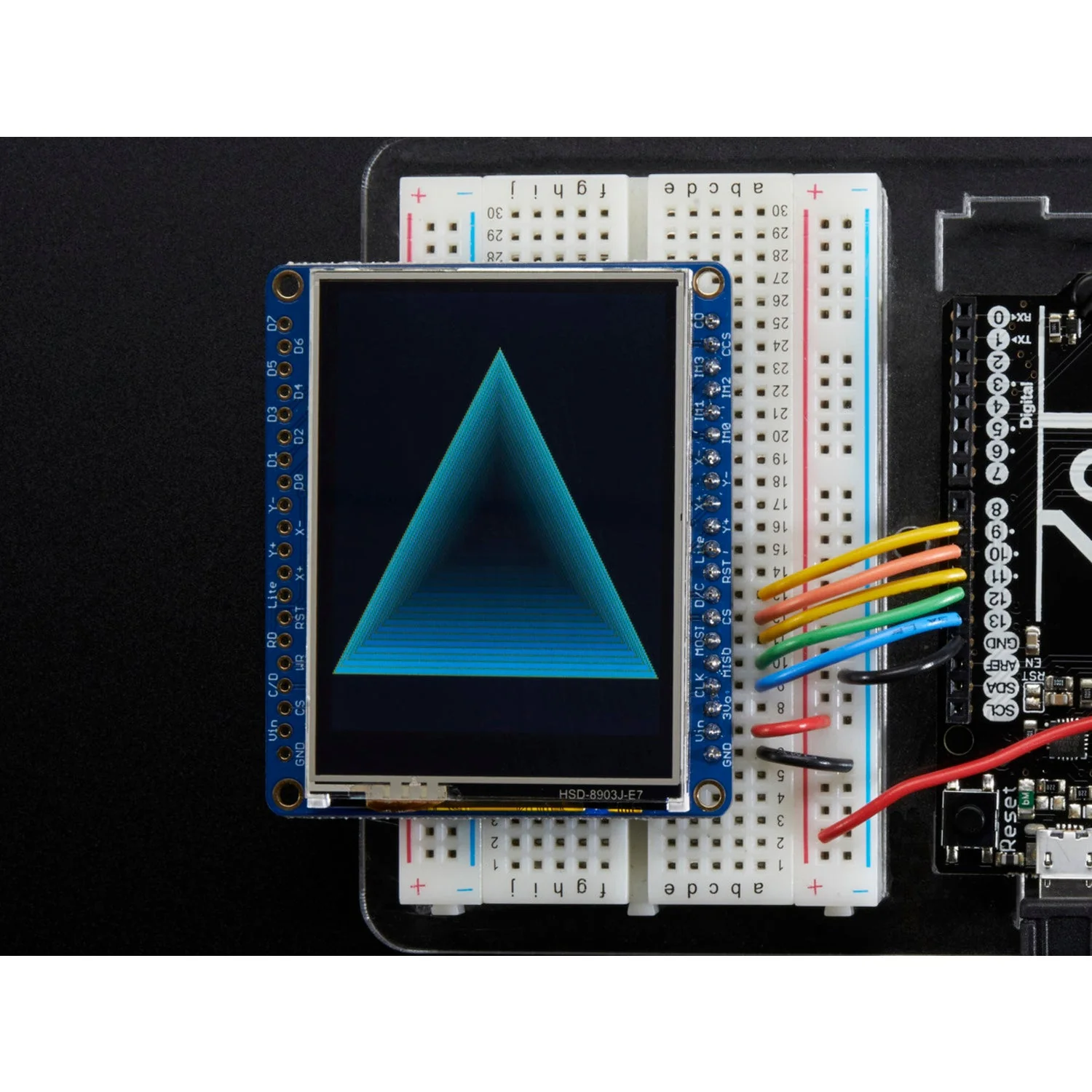

Add a full-colour touchscreen to your project with this 2.4" TFT LCD breakout. The 240×320 pixel display delivers vivid RGB colour with individual pixel control, driven by the ILI9341 controller with built-in RAM buffering so your microcontroller does minimal work. A resistive touchscreen overlay lets you detect finger presses anywhere on the screen, and a MicroSD socket provides storage for images and assets.

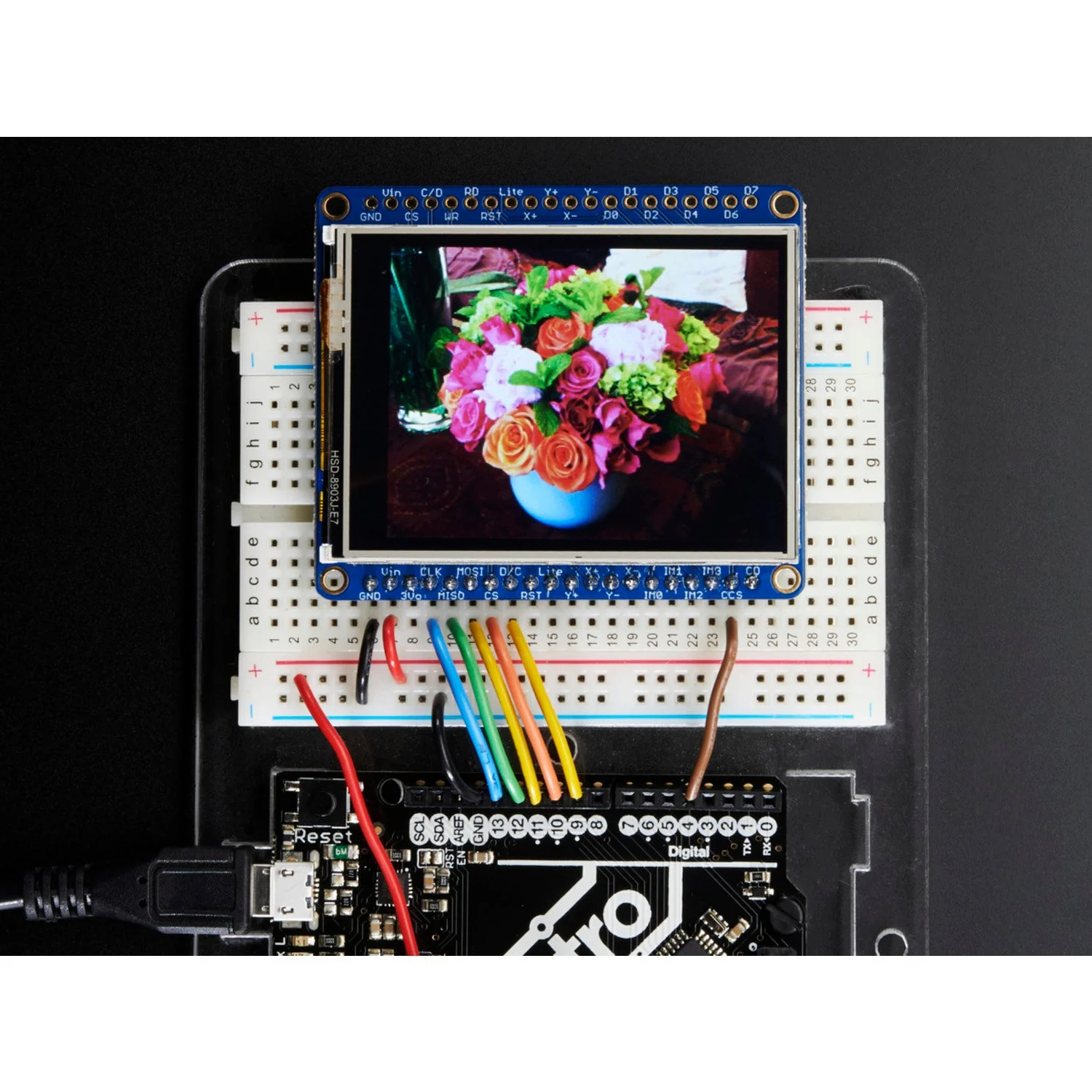

The display supports two interface modes: 8-bit parallel for maximum speed (12 pins total) or SPI for minimal wiring (5 pins). The touchscreen requires 4 additional pins (2 digital, 2 analogue) for direct reading, or can be driven via an optional I2C/SPI touchscreen controller for even fewer pins.

Key Features

• 2.4" TFT LCD Display – 240×320 pixel resolution with full RGB colour

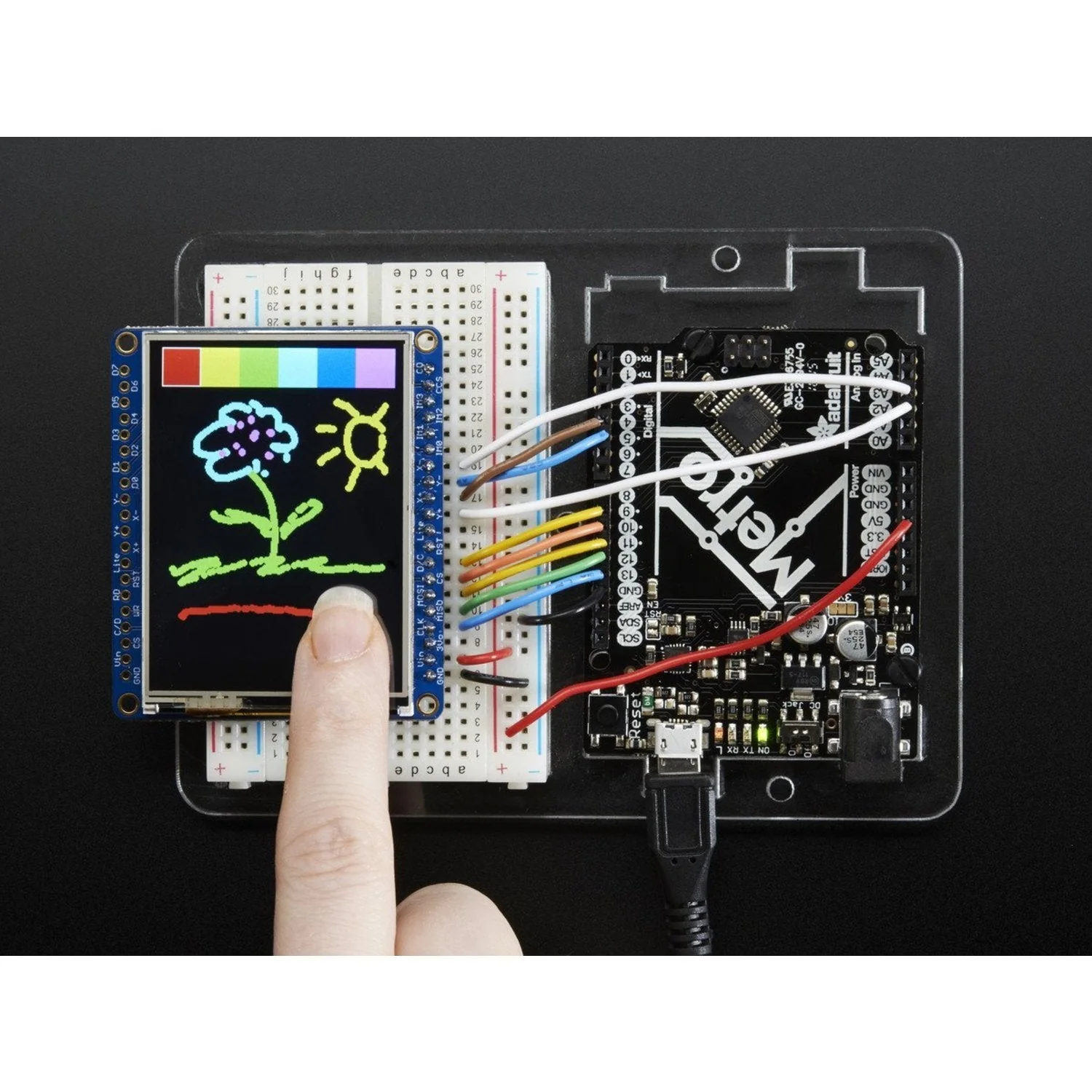

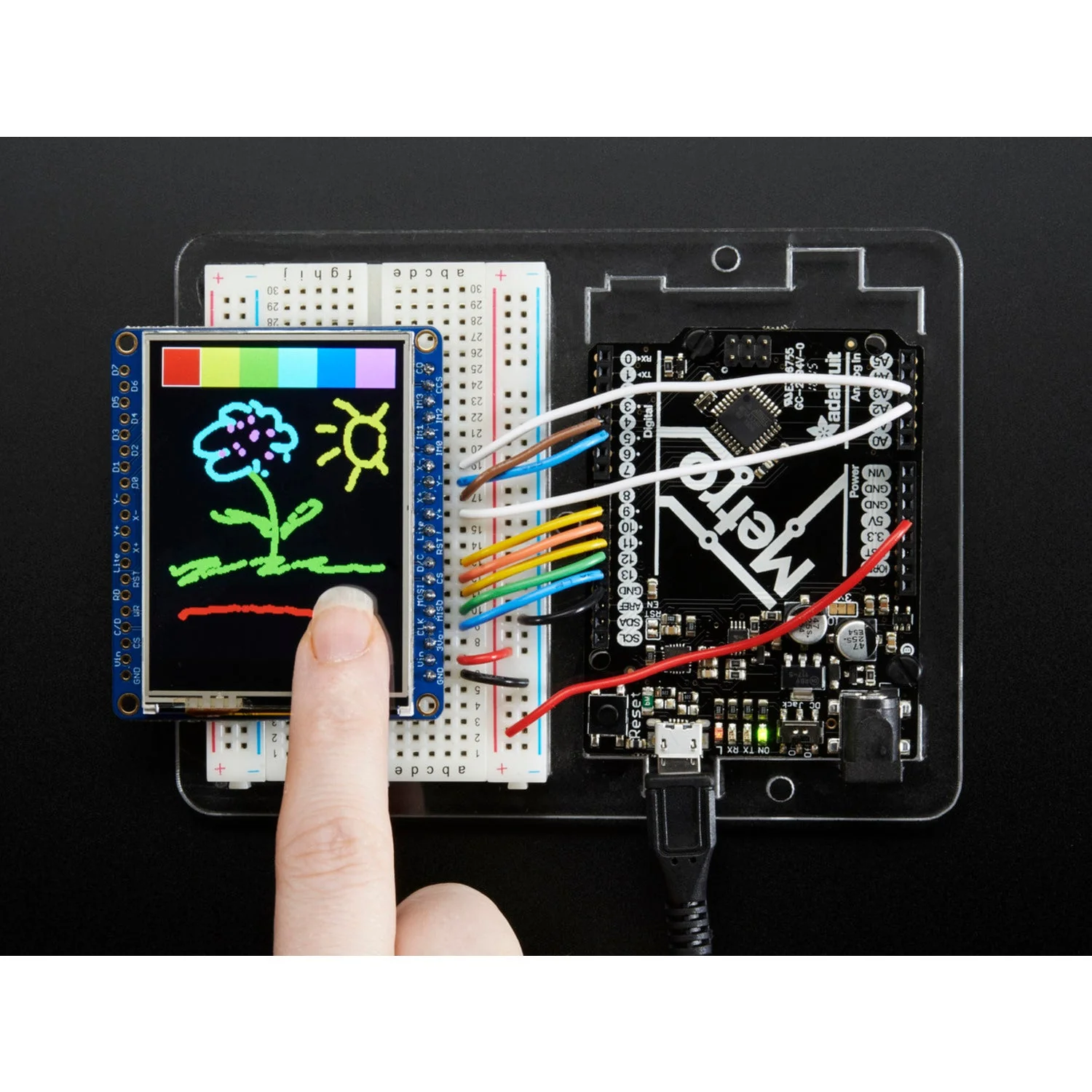

• Resistive Touchscreen – Built-in touch overlay with x, y, and pressure (z) detection
• ILI9341 Controller – Onboard RAM buffering offloads work from the microcontroller
• Dual Interface – 8-bit parallel mode (faster) or SPI mode (fewer pins)
• MicroSD Socket – Store images, text files, and display assets
• Bright Backlight – 4 white-LED backlight for excellent visibility
• Arduino and CircuitPython Support – Optimised libraries for both 8-bit and SPI modes, plus touch input

Ideal For

• Interactive menu systems and GUIs
• Portable data loggers with touch input
• Sensor dashboards and real-time visualisations
• DIY handheld devices and game consoles

Package Contents

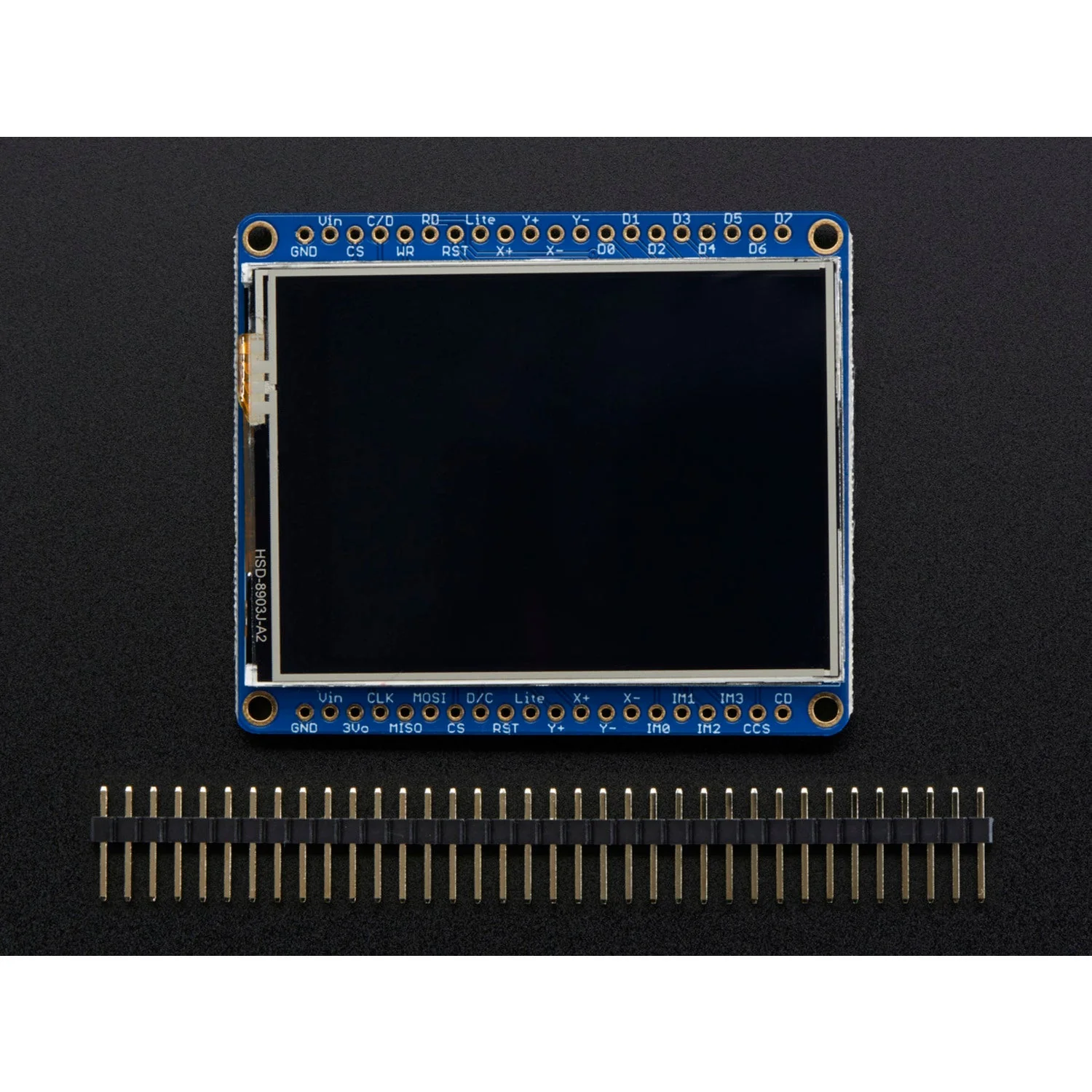

• 1× Adafruit 2.4" TFT LCD Touchscreen Breakout (with header strip)
