Add a versatile grayscale eInk display to your Feather project with this 2.9" FeatherWing. The 296×128 pixel panel supports four levels of grey — white, light grey, dark grey, and black — giving you more visual depth than a standard monochrome display while refreshing in about one second, far faster than tri-colour eInk panels.

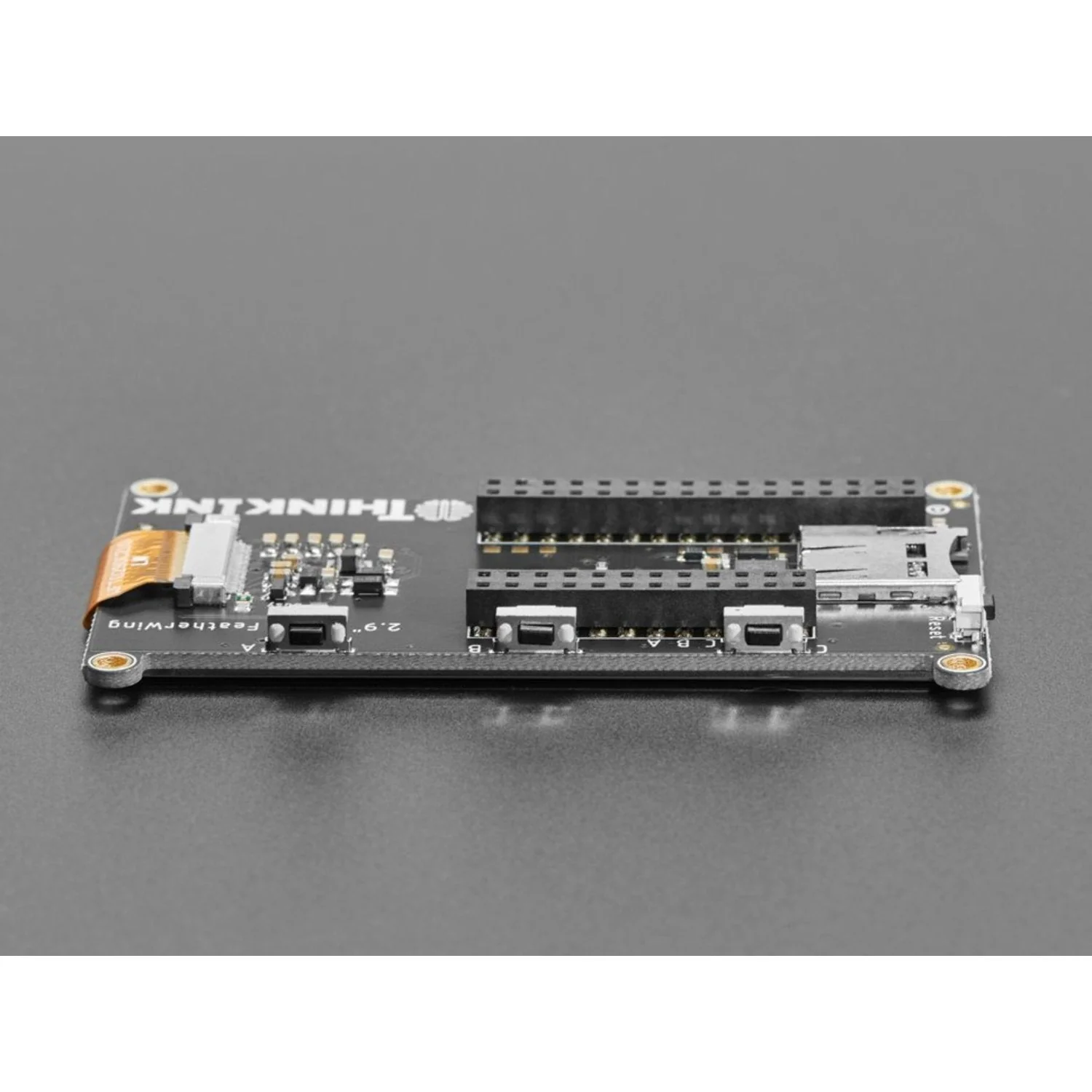

The FeatherWing is tested to work with all Adafruit Feather boards, from the ESP8266 to the M0 and beyond. An onboard SRAM chip handles frame buffering so even memory-constrained microcontrollers can drive the display without sacrificing precious RAM. A MicroSD socket provides storage for images and text files, and three optional buttons are available for navigation when your Feather has spare pins.

Key Features

• 2.9" Grayscale eInk Display – 296×128 pixel resolution with 4-level greyscale
• Fast Refresh – Updates in approximately 1 second (vs ~15 seconds for tri-colour)
• Onboard SRAM – Offloads frame buffering from the microcontroller (~9.5 KB at 2 bits per pixel)
• MicroSD Socket – Store images, text files, and display assets
• 3 Optional Buttons – Built-in navigation buttons for Feathers with available pins
• Ultra-Low Power – Display retains image with no power draw
• No Soldering Required – Comes with socket headers; plug your Feather straight in
• Universal Feather Compatibility – Works with all Adafruit Feather boards

Also Available

• 2.9" Tri-Colour eInk FeatherWing – Red, black, and white version
• 2.9" Tri-Colour eInk Breakout – Universal breakout board

Ideal For

• eBook readers and text display projects
• Low-power dashboards with nuanced graphics
• Portable information displays and name badges
• Battery-powered projects requiring persistent display

Package Contents

• 1× Adafruit 2.9" Grayscale eInk FeatherWing (with socket headers)
