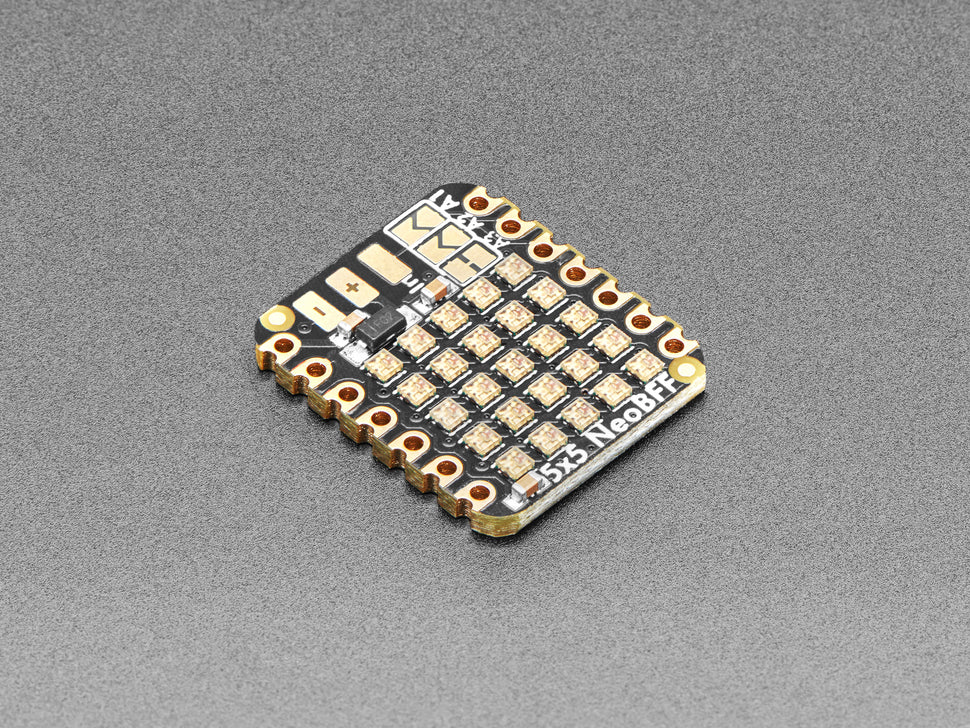

Add a dazzling 5×5 grid of 25 addressable RGB NeoPixels to any QT Py or Xiao board with this compact BFF (Best Friend Forever) add-on. The tiny SK6805 LEDs (1.5 × 1.5 mm each) pack vivid colour into a minimal footprint, powered directly from the QT Py's USB Type-C connection.

The PCB is designed to mount on the back of your QT Py or Xiao — solder it directly for a permanent build or use pin/socket headers for a removable setup. The NeoPixel data line connects to pin A3 by default, with solder jumpers to select A1 or A2 instead. External power and data solder pads are also available for advanced configurations.

Key Features

• 25 RGB NeoPixels – 5×5 grid of SK6805 addressable LEDs (1.5 × 1.5 mm)
• QT Py / Xiao Compatible – Mounts directly on the back of any QT Py or Xiao board
• Configurable Data Pin – Default A3 with solder jumpers for A1 or A2
• USB-C Powered – Draws 5V from the QT Py's USB connector
• 3.3V Logic Compatible – SK6805 LEDs run happily on 5V power with 3.3V data input
• External Pads – Solder pads for 5V, GND, and data input for advanced wiring

Ideal For

• Wearable electronics and cosplay
• Tiny IoT status indicators
• Compact LED art and animations
• Notification and alert displays

Package Contents

• 1× Adafruit 5×5 NeoPixel Grid BFF (assembled and tested)
• 1× Header strip for soldering to QT Py
