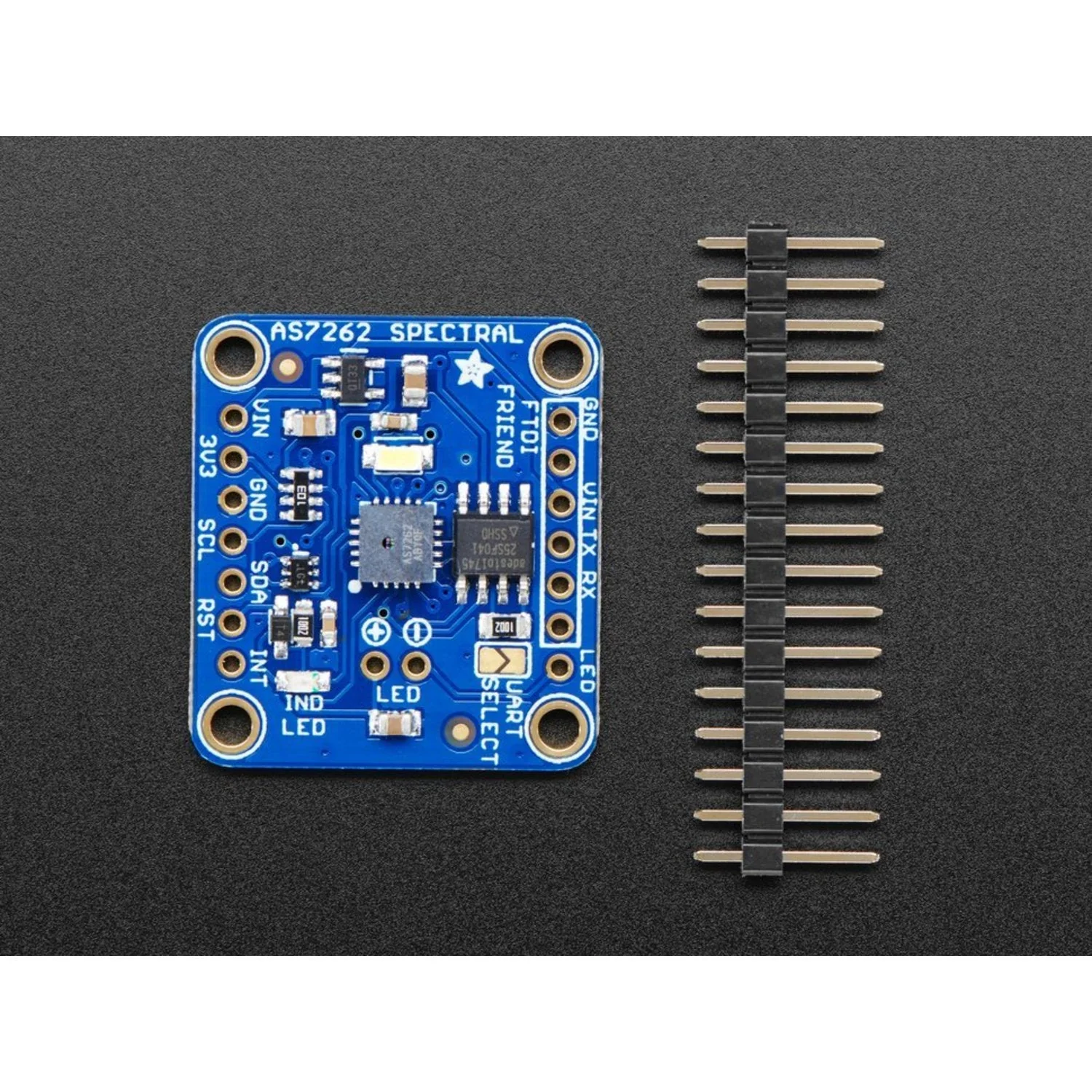

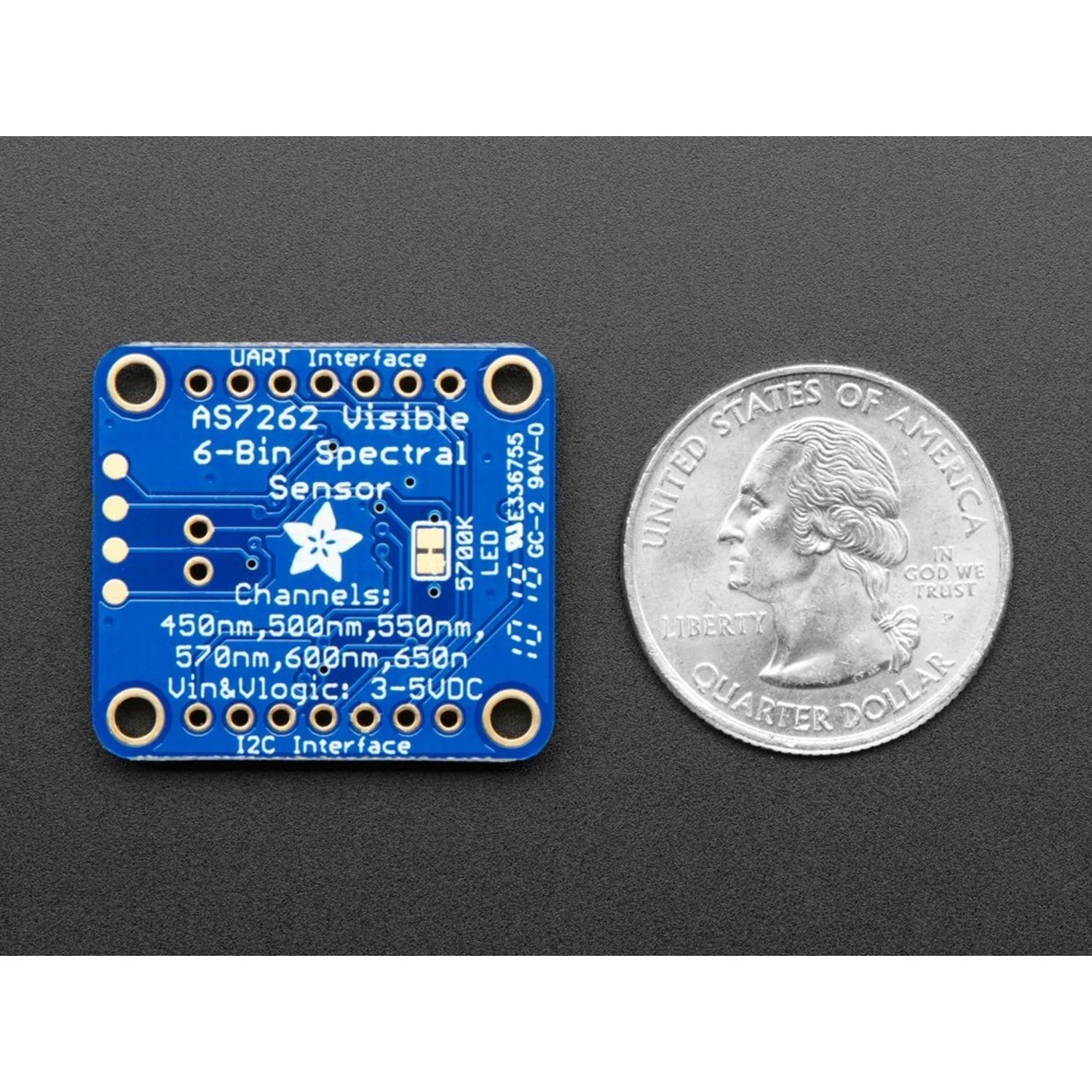

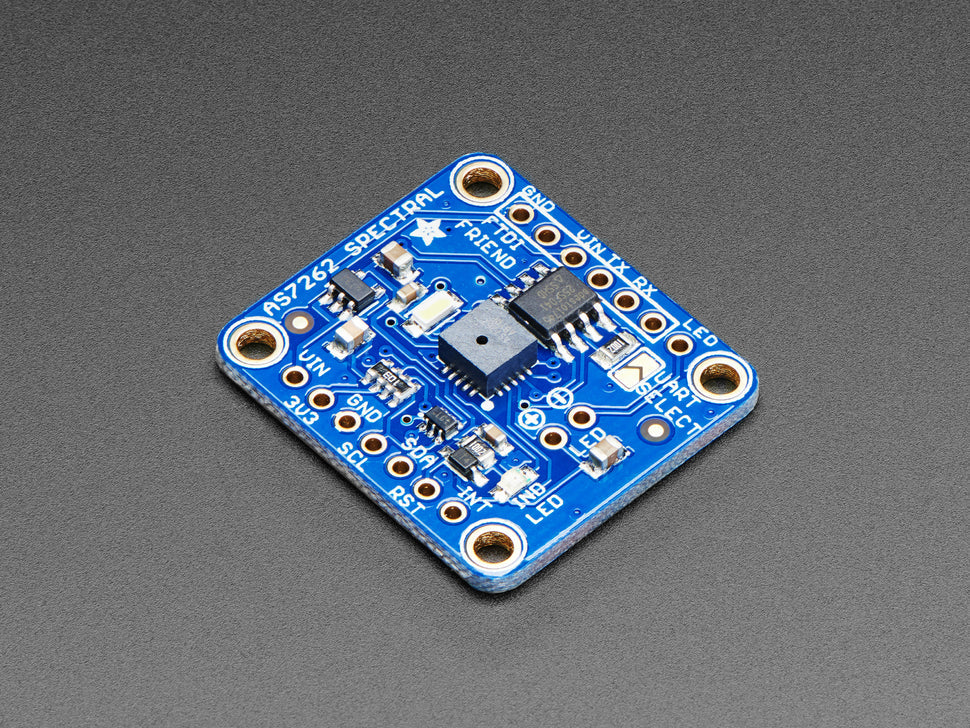

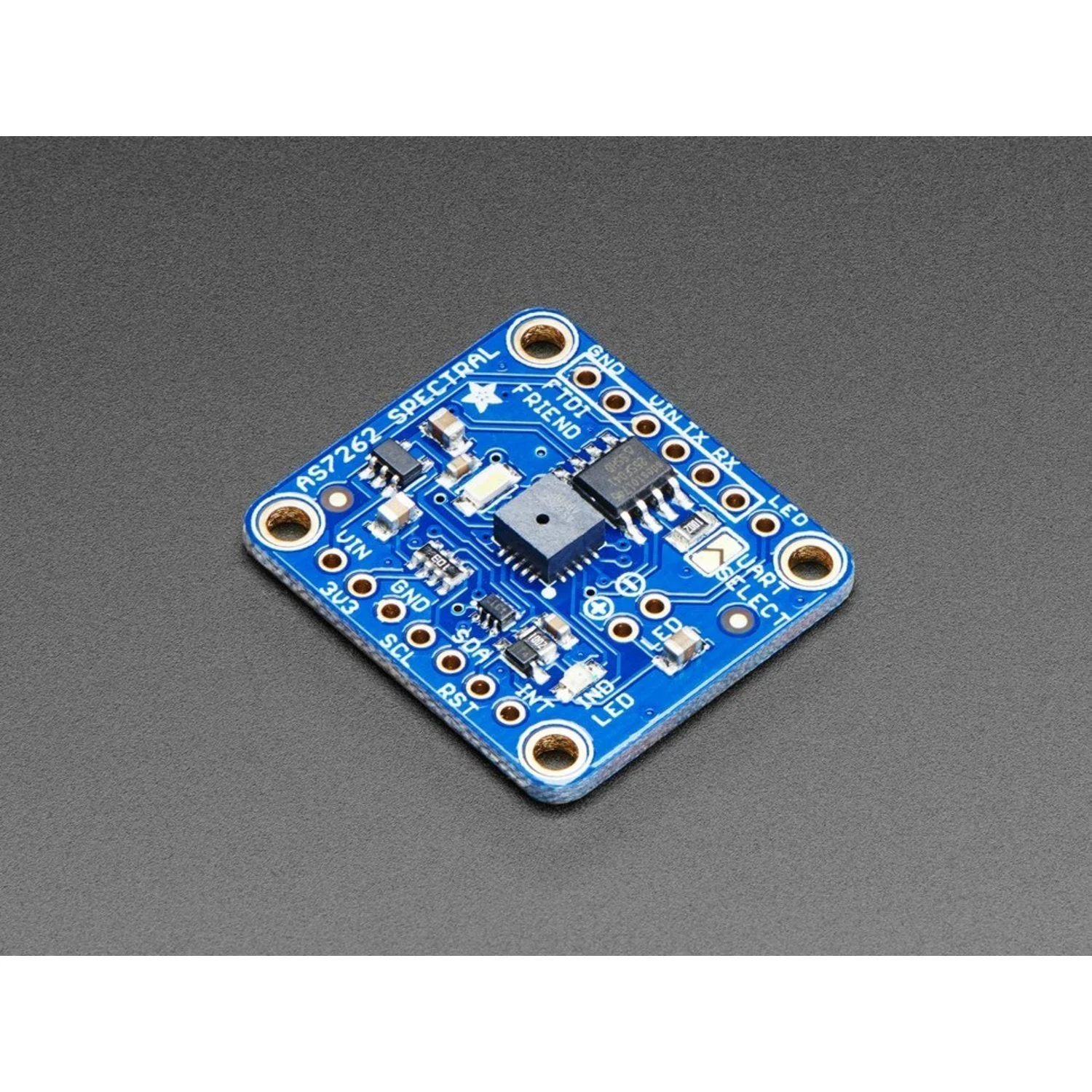

The Adafruit AS7262 is a 6-channel visible light spectral sensor from AMS that measures light intensity across six specific wavelength bands: violet (450 nm), blue (500 nm), green (550 nm), yellow (570 nm), orange (600 nm) and red (650 nm). Readings are available as raw 16-bit values or calibrated floating-point values over I2C.

The breakout includes an SPI flash chip pre-programmed with device firmware, a 3.3V regulator, I2C level shifting, and a built-in LED flash for reflecting light off objects for improved colour detection. A UART interface (AT command compatible) is also available as an alternative to I2C.

Key Features

• 6 Spectral Channels – Silicon interference filters at 450, 500, 550, 570, 600 and 650 nm
• Calibrated Output – Raw 16-bit or calibrated floating-point readings
• On-Board Temperature Sensor – Reads chip temperature
• LED Flash – Built-in illumination for reflective colour measurement
• Dual Interface – I2C (default) and UART with AT commands
• Wide Voltage Range – 3–5V with on-board regulator and level shifting
• FTDI-Compatible UART Pinout – Plug-and-play with FTDI Friend

Also Available

• AS7341 10-Channel Light Sensor – More channels with STEMMA QT

Ideal For

• Colour detection and classification
• Spectral analysis of light sources
• Colour sorting systems
• Environmental light quality monitoring

Package Contents

• 1× Adafruit AS7262 6-Channel Visible Light / Colour Sensor Breakout
