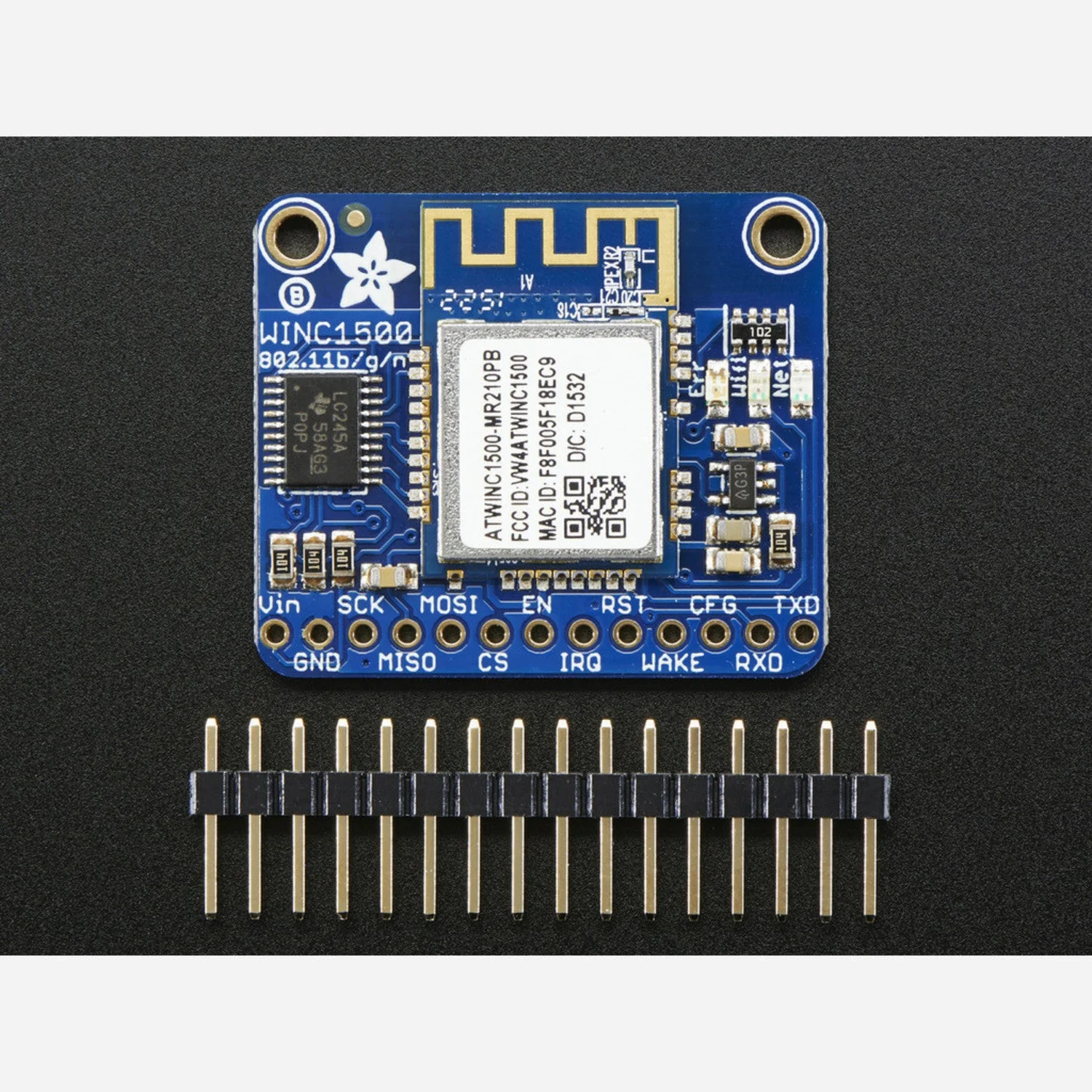

The Adafruit ATWINC1500 WiFi Breakout adds 802.11b/g/n WiFi connectivity to your Arduino or other microcontroller project over SPI. Built around the Microchip ATWINC1500 module, this FCC-certified breakout delivers reliable wireless networking with TLS 1.2 support for secure connections.

With built-in level shifting and a 3.3V regulator capable of handling 300 mA spikes, this board works with both 3V and 5V logic systems. Three controllable status LEDs provide visual feedback for connection state and data transmission. The onboard PCB antenna means no external antenna is required.

Key Features

• 802.11b/g/n WiFi – Connect to standard wireless networks with fast scanning and connection
• SPI Interface – Up to 12 MHz clock speed for reliable, high-throughput communication
• TLS 1.2 Support – Secure client connections with firmware 19.4.4
• WEP, WPA, and WPA2 Encryption – Compatible with all common network security protocols
• Soft AP Mode – Create ad-hoc networks for direct device-to-device communication
• Level Shifting – All input pins shifted for 3V or 5V logic compatibility
• 3.3V Voltage Regulator – Handles 300 mA spikes, power from 3–5.5 VDC
• 3× Status LEDs – Controllable via SPI or the Arduino library (SSID connected, data transmit)
• Onboard PCB Antenna – No external antenna required
• FCC Certified – Ready for use in finished products

Also Available

• ATWINC1500 WiFi Breakout with uFL Connector – For use with an external antenna

Ideal For

• Adding WiFi to Arduino Zero, Uno, or other microcontroller projects
• IoT devices requiring secure TLS connections
• Wireless data logging and sensor networks
• MQTT-based projects and cloud connectivity

Package Contents

• 1× Adafruit ATWINC1500 WiFi Breakout
• 1× Header strip
