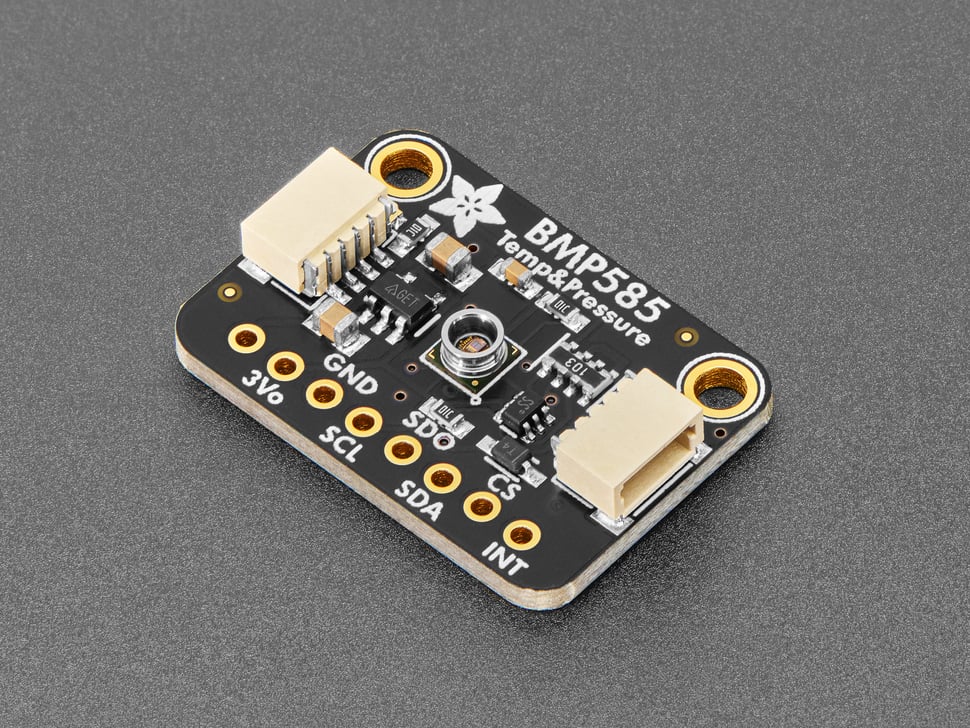

The BMP585 from Bosch is a ported barometric pressure and temperature sensor featuring a tube attachment point for differential or remote pressure measurements. It delivers exceptional precision with altitude noise as low as 1 cm (0.08 Pa), making it one of the most precise pressure sensors in the Bosch lineup.

The BMP585 is software and firmware compatible with the BMP580/BMP581 family but adds a port for tube attachment. It supports both I2C and SPI interfaces, with STEMMA QT / Qwiic connectors for solderless I2C connections. The breakout board includes a 3.3V regulator and level shifting for use with both 3V and 5V microcontrollers.

Key Features

• Barometric Pressure – ±6 Pascal relative accuracy at room temperature (±50 cm altitude)
• Ultra-Low Noise – 0.08 Pa (1 cm) altitude noise floor
• Absolute Accuracy – ±60 Pa typical (approximately ±5 metres)
• Temperature – ±0.5°C accuracy
• Ported Design – Tube attachment point for remote or differential pressure sensing
• Dual Interface – I2C and SPI communication
• STEMMA QT / Qwiic – Plug-and-play I2C connectors for daisy-chaining
• Voltage Range – 3–5V operation via onboard regulator and level shifting
• BMP580/BMP581 Compatible – Same firmware and software libraries

Also Available

• Adafruit BMP390 – Non-ported version with ±0.25 m altitude accuracy
• Adafruit BMP388 – Previous generation (±0.5 m altitude accuracy)
• Adafruit BMP280 – Budget option (±1 m altitude accuracy)

Ideal For

• Drone and quadcopter altitude hold with remote pressure port
• Differential pressure measurement applications
• High-precision weather stations
• Wearable altimeters and fitness devices

Package Contents

• 1× Adafruit BMP585 ported barometric pressure sensor breakout
