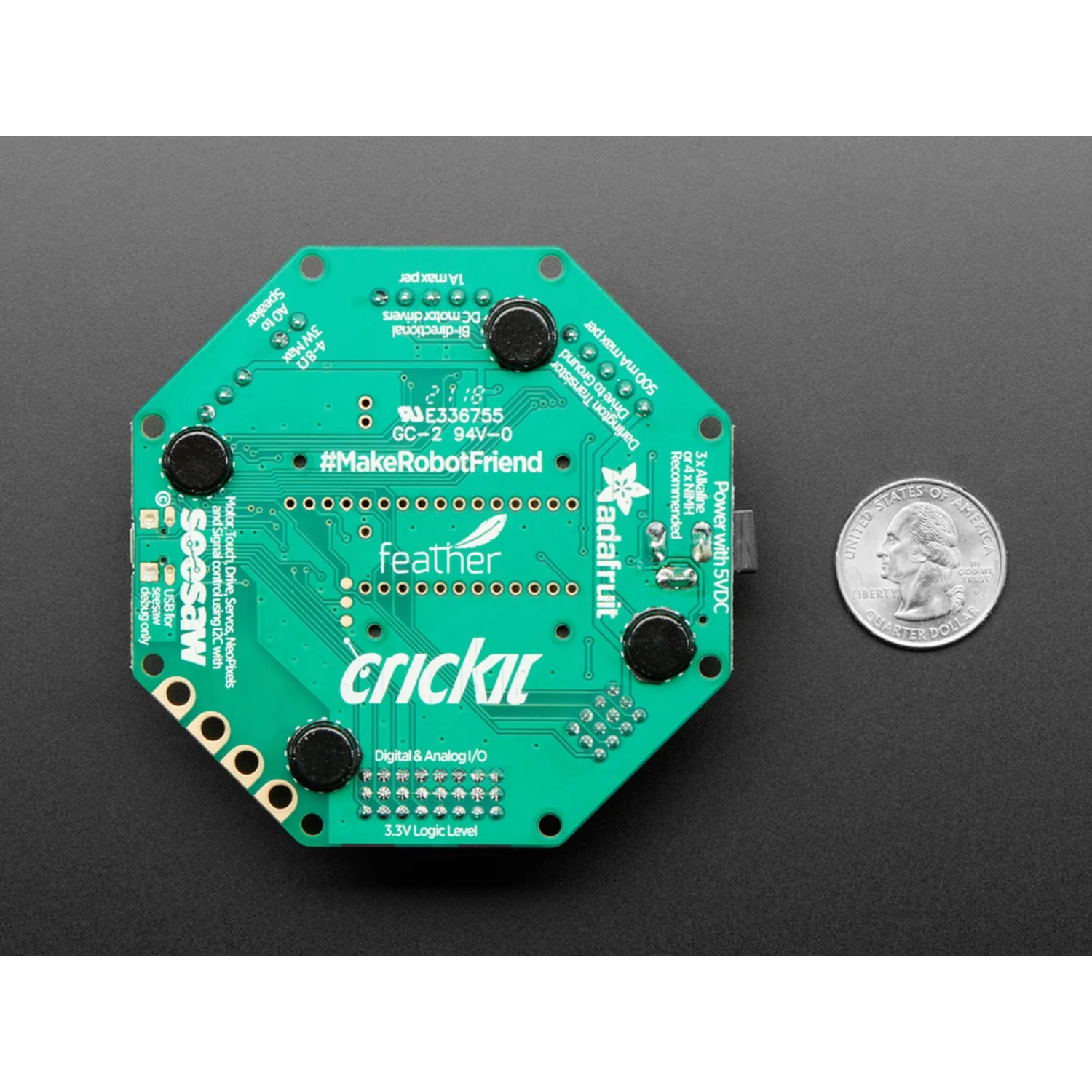

The Adafruit CRICKIT FeatherWing is a robotics and electronics driver board that plugs into any Feather mainboard. It adds motor drivers, servo outputs, capacitive touch inputs, NeoPixel control, and an audio amplifier — all managed over I2C via the Adafruit seesaw co-processor, so it only uses two pins from your Feather.

All outputs run at 5V DC, making it compatible with standard 5V servos, DC motors, steppers, solenoids, and relays. The power supply system includes a TPS2595 eFuse chip with over-voltage (5.5V), under-voltage (3V), and over-current (4A) protection, plus kick-back diodes on every motor driver.

Key Features

• 4× Servo Outputs – Analogue or digital servo control with precision 16-bit timers
• 2× DC Motor Drivers – Bi-directional, 1A current limit each, 8-bit PWM speed control (or 1 stepper motor)
• 4× Darlington Drive Outputs – 500mA each with kick-back protection, for solenoids, relays, LEDs, or 1 unipolar stepper
• 4× Capacitive Touch Sensors – Alligator-clip-friendly pads
• 8× Signal Pins – Digital I/O or analogue inputs
• 1× NeoPixel Driver – 5V level-shifted, controlled by the seesaw chip
• 1× Class D Audio Amplifier – 3W max, 4–8 ohm speaker output (audio input pad solderable to DAC or PWM pin)
• Seesaw I2C Co-Processor – Offloads all timers, PWM, and sensor management to free up your Feather's pins
• eFuse Power Protection – Over-voltage, under-voltage, and 4A over-current protection

Programming

• CircuitPython
• Arduino

Compatibility

• Works with any Adafruit Feather board (ATmega32u4, ATSAMD21, ATSAMD51, ESP8266, ESP32, nRF52, etc.)
• Stackable with other FeatherWings

Ideal For

• Building robots and motorised projects
• Interactive art installations with servos, lights, and sound
• Learning robotics with CircuitPython or Arduino

Package Contents

• 1× Adafruit CRICKIT FeatherWing
