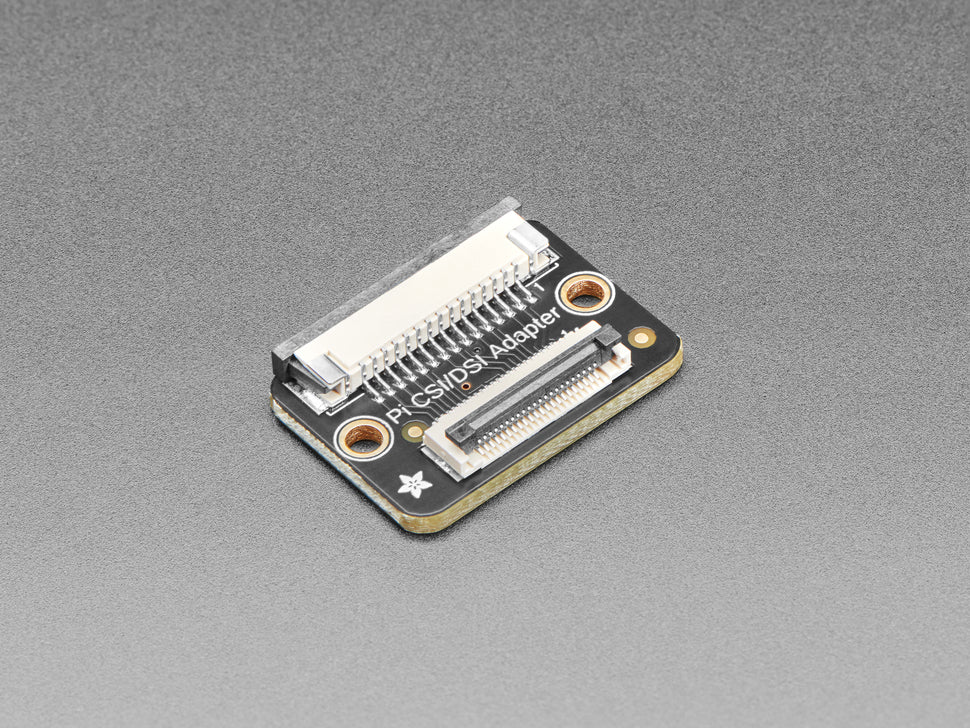

The Adafruit CSI/DSI Cable Adapter Thingy converts between the 15-pin 1.0mm pitch camera/display connector found on full-size Raspberry Pi boards and the 22-pin 0.5mm pitch connector used on the Pi Zero and CM4 development boards. It handles all the pin rearranging automatically — just snap in two FPC cables and go.

Use it to connect a standard Pi Camera or DSI display to a Pi Zero or CM4, or vice versa, without worrying about pinout differences.

Key Features

• 15-pin to 22-pin Conversion – Adapts between full-size Pi (1.0mm pitch) and Pi Zero/CM4 (0.5mm pitch) CSI/DSI connectors
• Bi-Directional – Works for both CSI (camera) and DSI (display) connections
• Automatic Pin Rearranging – No manual wiring needed
• Simple Clip-In Connection – Pry connector ears, insert cable contacts facing down, push ears back

Also Available

• CSI/DSI Cable Extender Thingy – Extends 15-pin cables end-to-end

Ideal For

• Connecting Pi Camera modules to Pi Zero or CM4
• Using DSI displays across different Pi form factors

Package Contents

• 1× Adafruit CSI/DSI Cable Adapter Thingy
