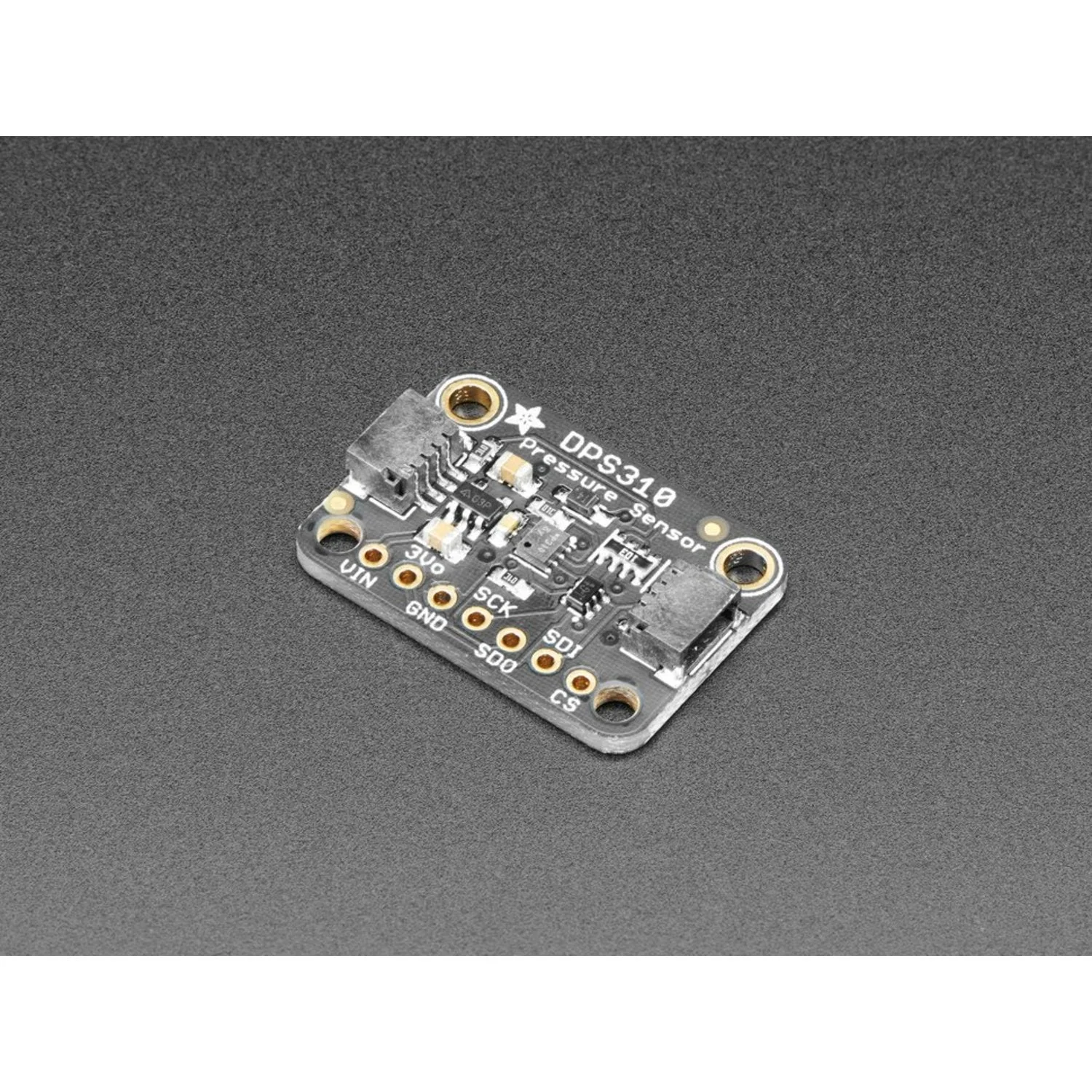

The Adafruit DPS310 is a high-precision barometric pressure and altitude sensor from Infineon, mounted on a breakout board with STEMMA QT / Qwiic connectors for solderless I2C wiring. It delivers ±1 hPa absolute accuracy and up to ±0.002 hPa relative precision in high-precision mode — equivalent to detecting altitude changes as small as 2 cm.

The sensor includes a built-in temperature sensor (±0.5°C accuracy) and configurable oversampling with an internal low-pass filter for the lowest-noise readings. It operates over a wide range of 300–1200 hPa and -40°C to 85°C, and supports both I2C and SPI interfaces. The breakout includes level shifting for use with 3.3V or 5V logic.

Key Features

• ±0.002 hPa Precision – Detect altitude changes as small as 2 cm in high-precision mode
• ±1 hPa Absolute Accuracy – Know your altitude to within ~1 metre
• Built-In Temperature Sensor – ±0.5°C accuracy
• Configurable Oversampling – Internal low-pass filter for low-noise readings
• I2C and SPI – Dual interface support with STEMMA QT / Qwiic connectors
• 3.3V and 5V Compatible – On-board level shifting for Arduino, Feather, or Raspberry Pi
• Operating Range – 300–1200 hPa, -40°C to 85°C

Ideal For

• Drone and UAV altitude hold systems
• Weather stations and environmental monitoring
• Indoor navigation and floor detection
• Altitude-sensitive robotics projects

Package Contents

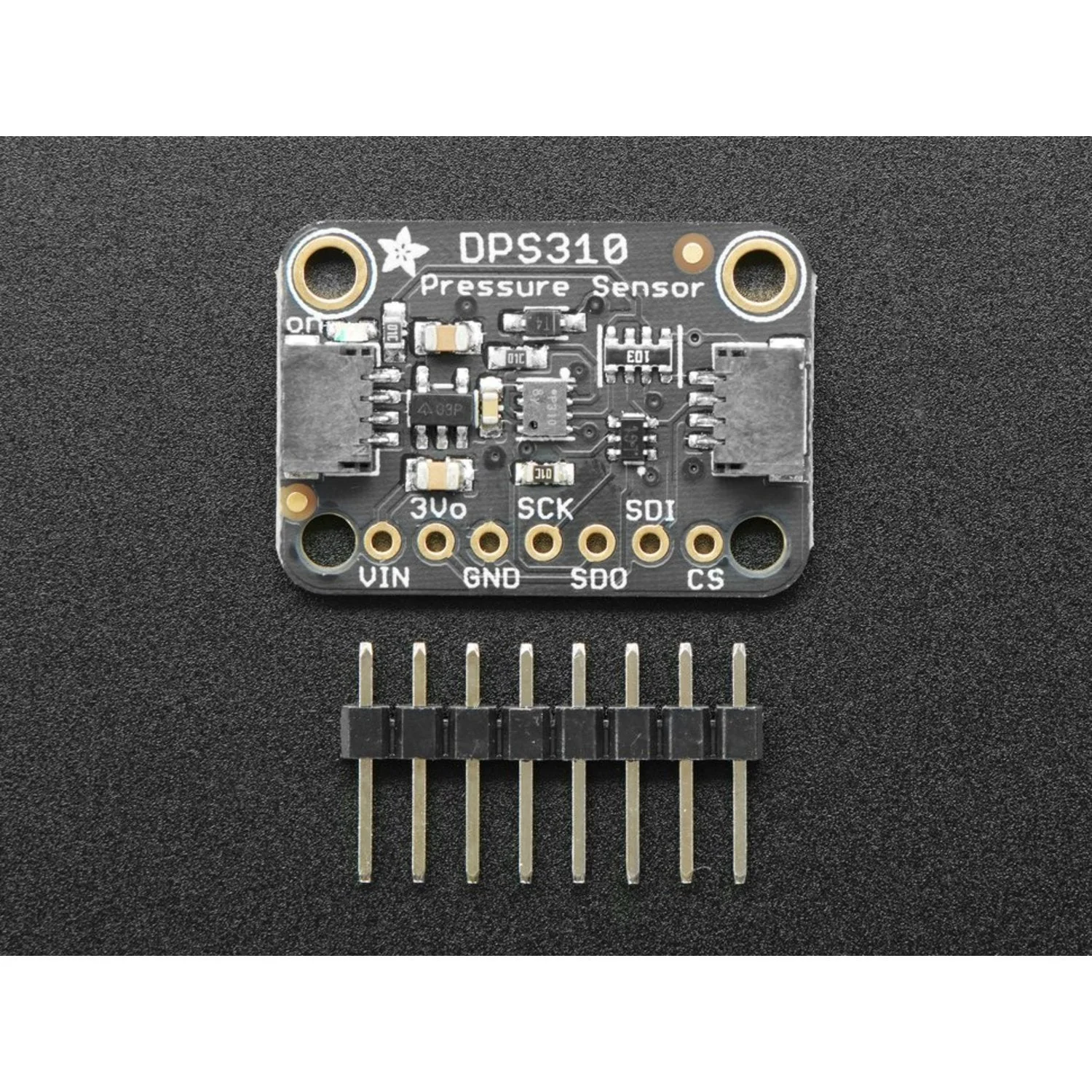

• 1× DPS310 barometric pressure sensor breakout with STEMMA QT connectors
