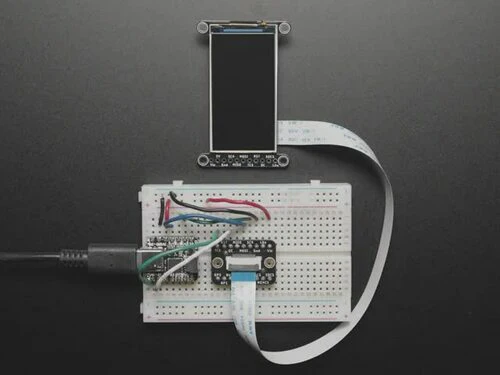

The EYESPI Breakout Board brings the 18-pin EYESPI FPC connector out to standard 0.1"-spaced headers, making it easy to breadboard and prototype with EYESPI-compatible displays. Each pin is clearly labelled, and for most display projects you only need the left half of the header for power and SPI connectivity.

The EYESPI standard is a consistent connector and pinout across a range of TFT and E-Ink display breakouts — look for the EYESPI logo on the back of compatible displays.

Key Features

• 18-Pin FPC Connector – 0.5mm pitch flip-top connector for EYESPI displays
• Breadboard-Friendly Headers – All 18 pins broken out to standard 0.1" spacing
• Labelled Pins – Clear pin labels for quick identification of SPI, I2C, CS, DC, and control signals
• TFT & E-Ink Compatible – Works with any EYESPI-equipped display breakout

Also Available

• EYESPI BFF for QT Py / Xiao
• EYESPI Pi Beret for Raspberry Pi

Ideal For

• Breadboard prototyping with EYESPI displays
• Custom wiring to any microcontroller via standard headers
• Display projects where a BFF or HAT form factor isn't suitable

Package Contents

• 1× EYESPI Breakout Board
