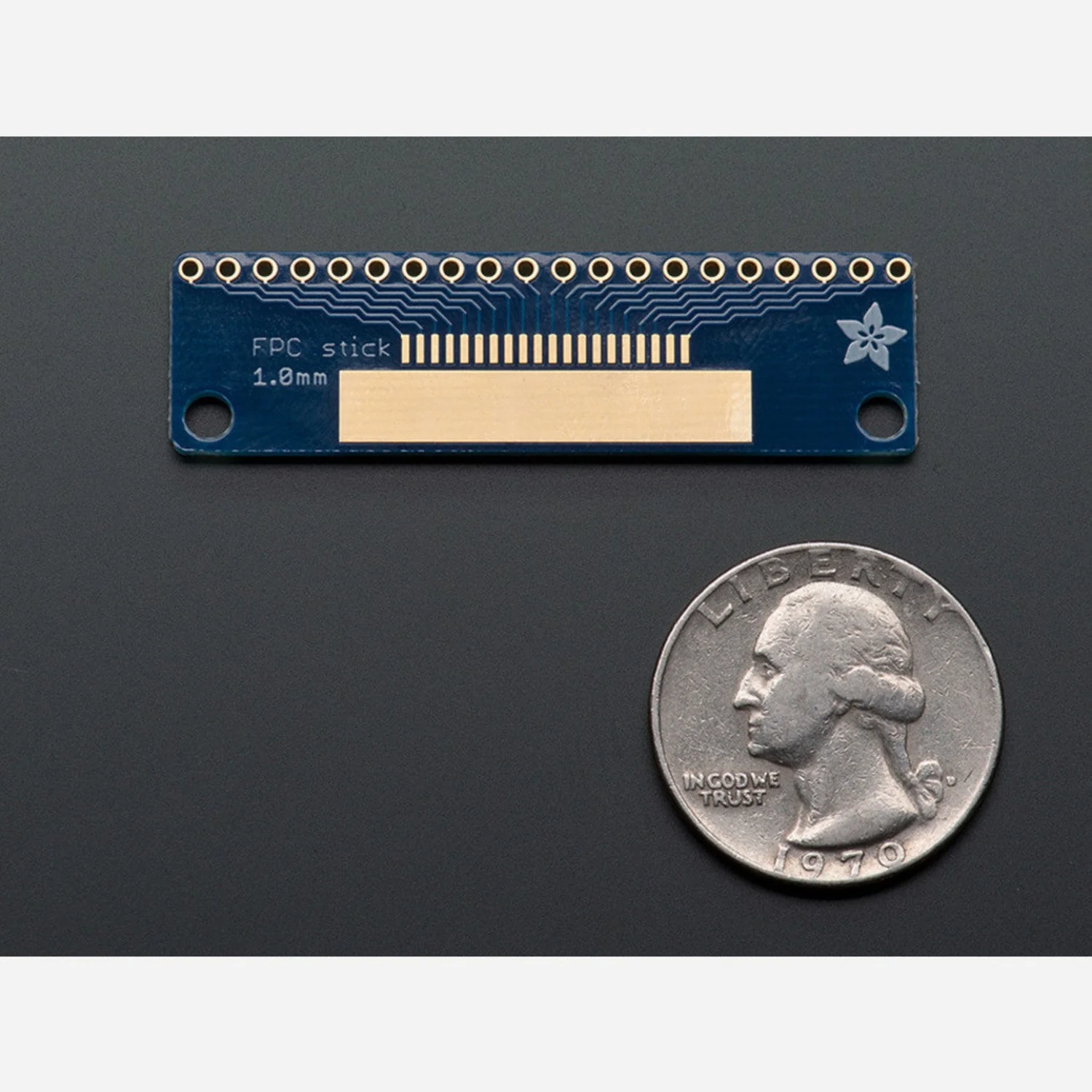

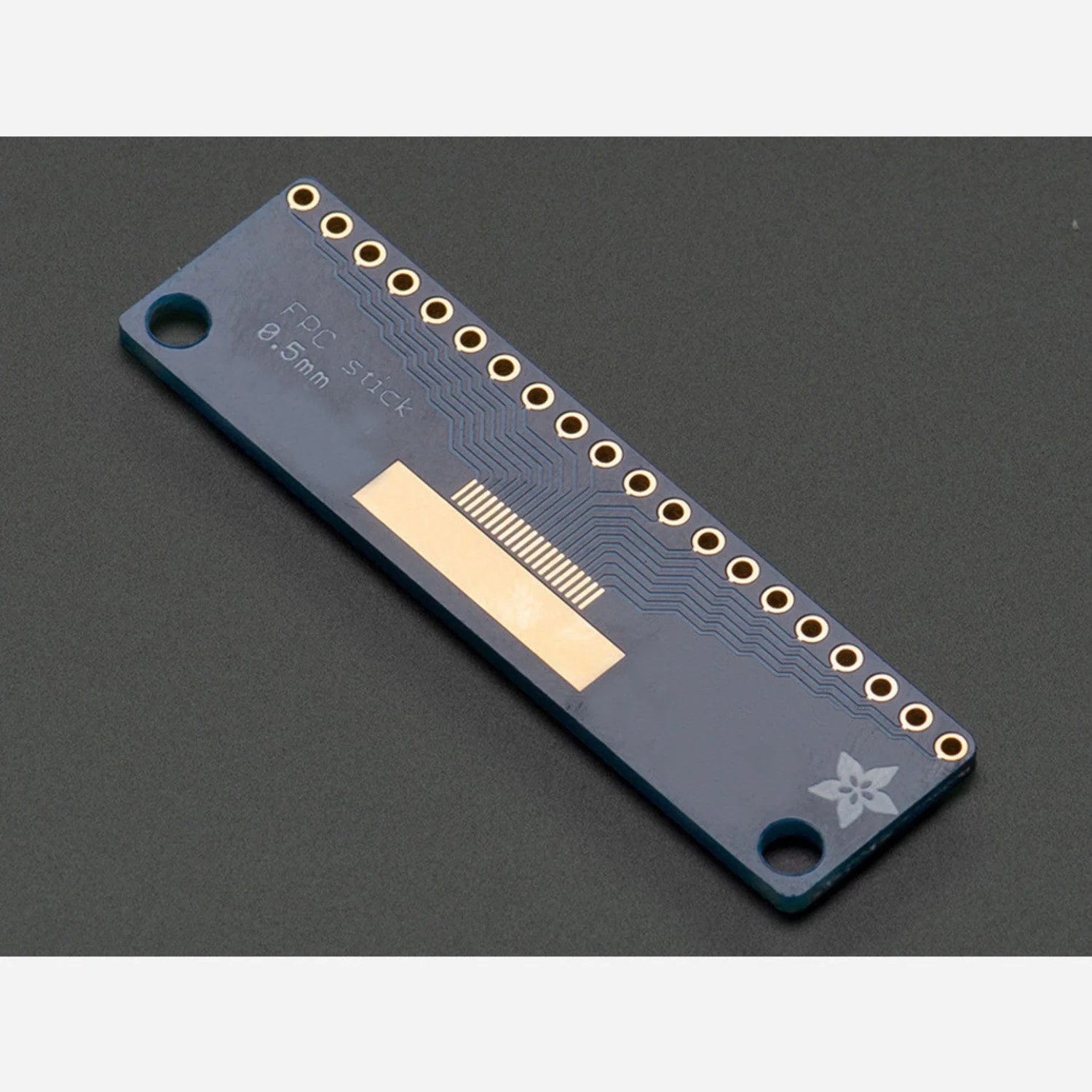

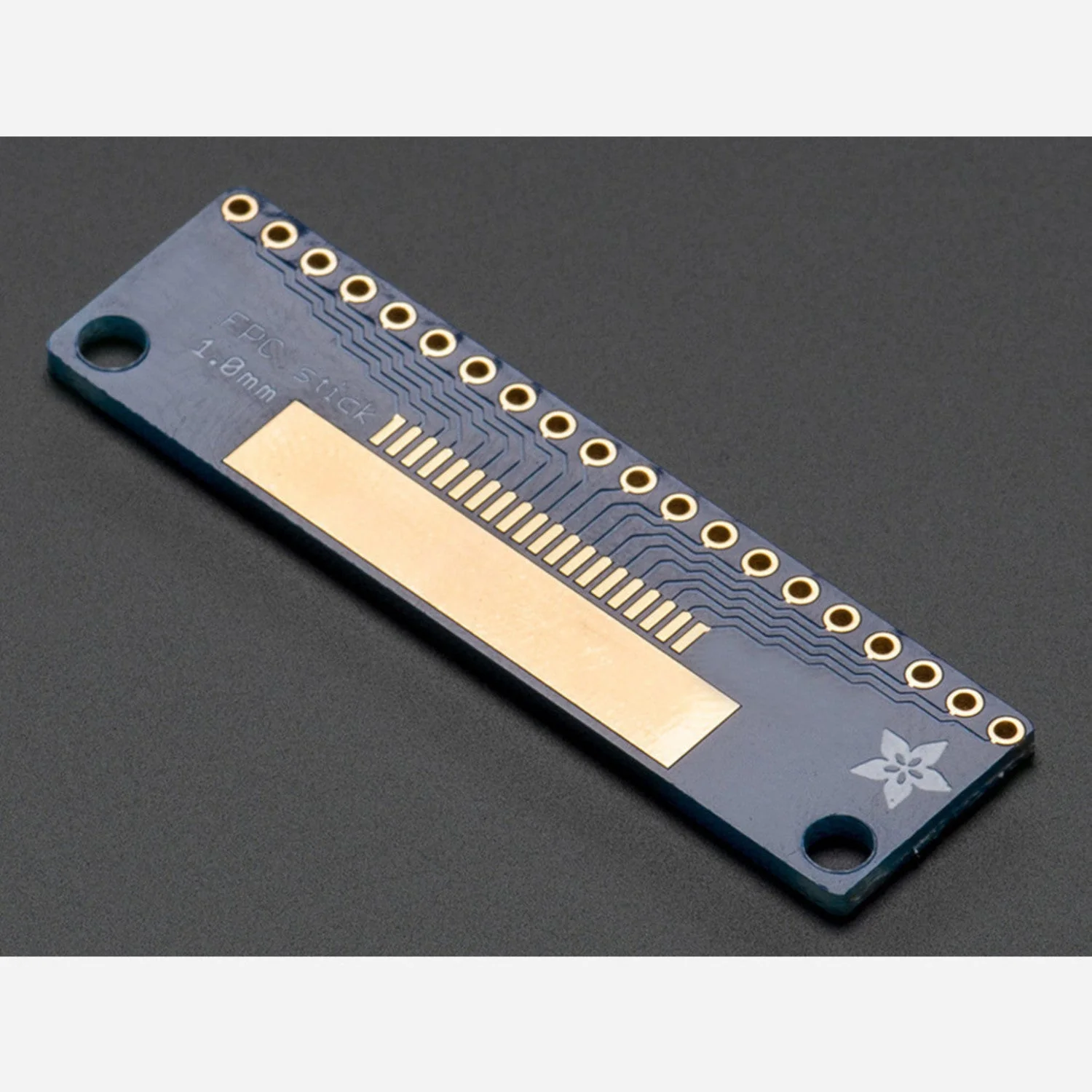

The Adafruit FPC Stick is a double-sided adapter PCB for connecting to 0.5 mm or 1.0 mm pitch flat flexible cables (FPCs). One side accommodates 0.5 mm pitch connectors, while the other handles 1.0 mm pitch — and it can also work with some 2.0 mm pitch connectors. Each of the 20 FPC pads breaks out to a standard 0.1-inch (2.54 mm) spaced header row for easy breadboard prototyping.

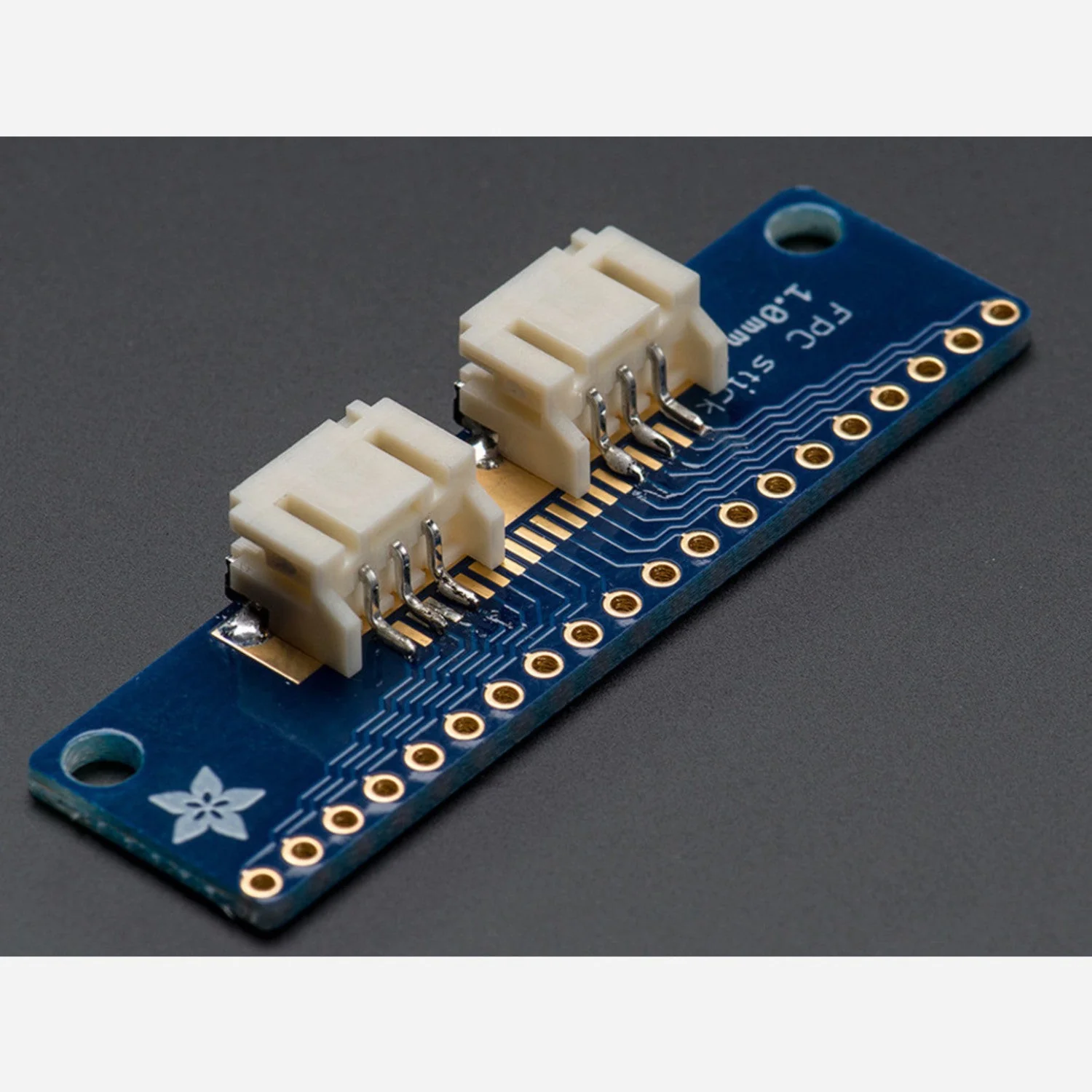

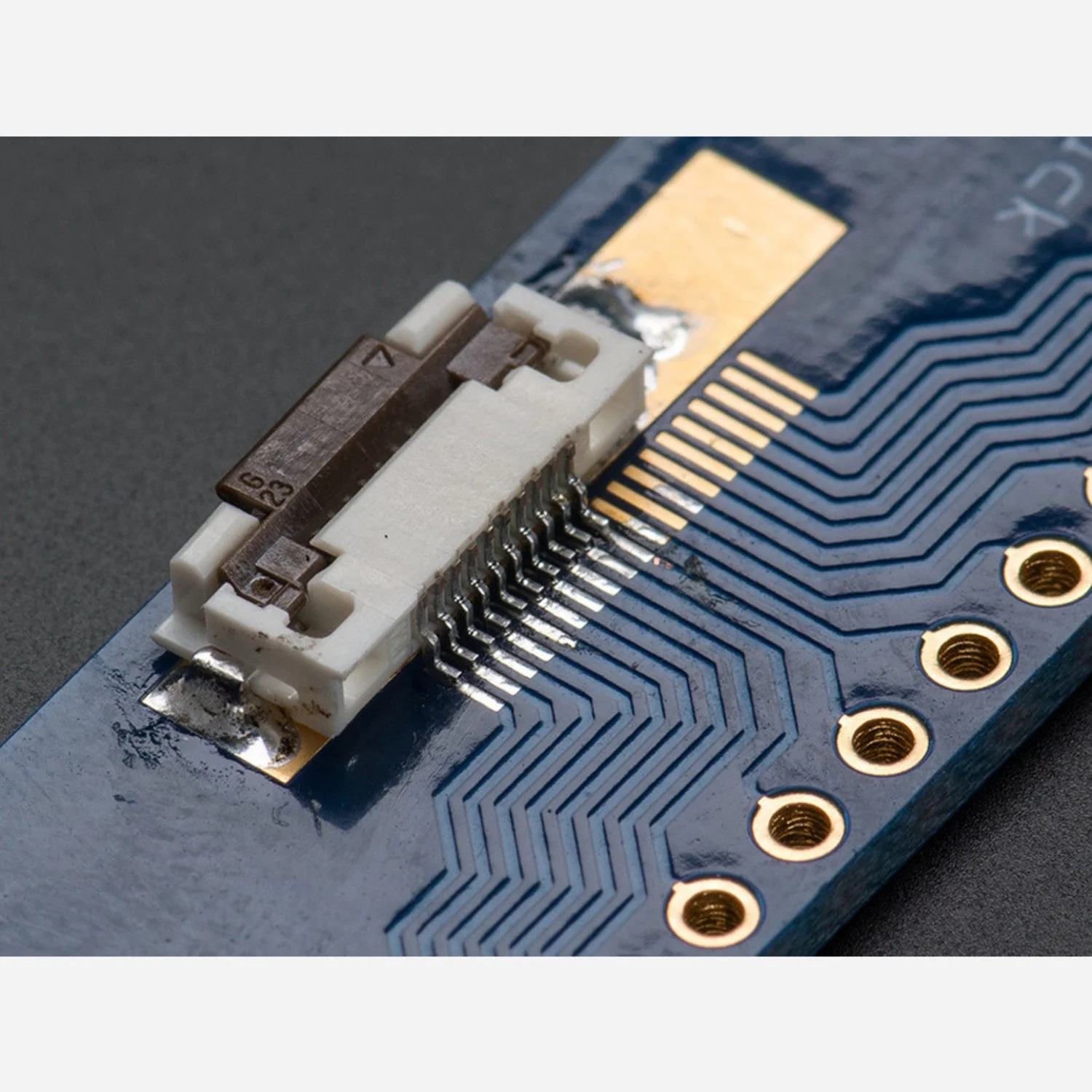

The long pads are designed to accommodate most ZIF (zero-insertion force) and snap-style FPC connectors, making it a versatile tool for quickly prototyping with flat flex cables and ribbon connectors.

Key Features

• 20-Pin FPC Adapter – Breaks out FPC pads to standard 0.1-inch header spacing

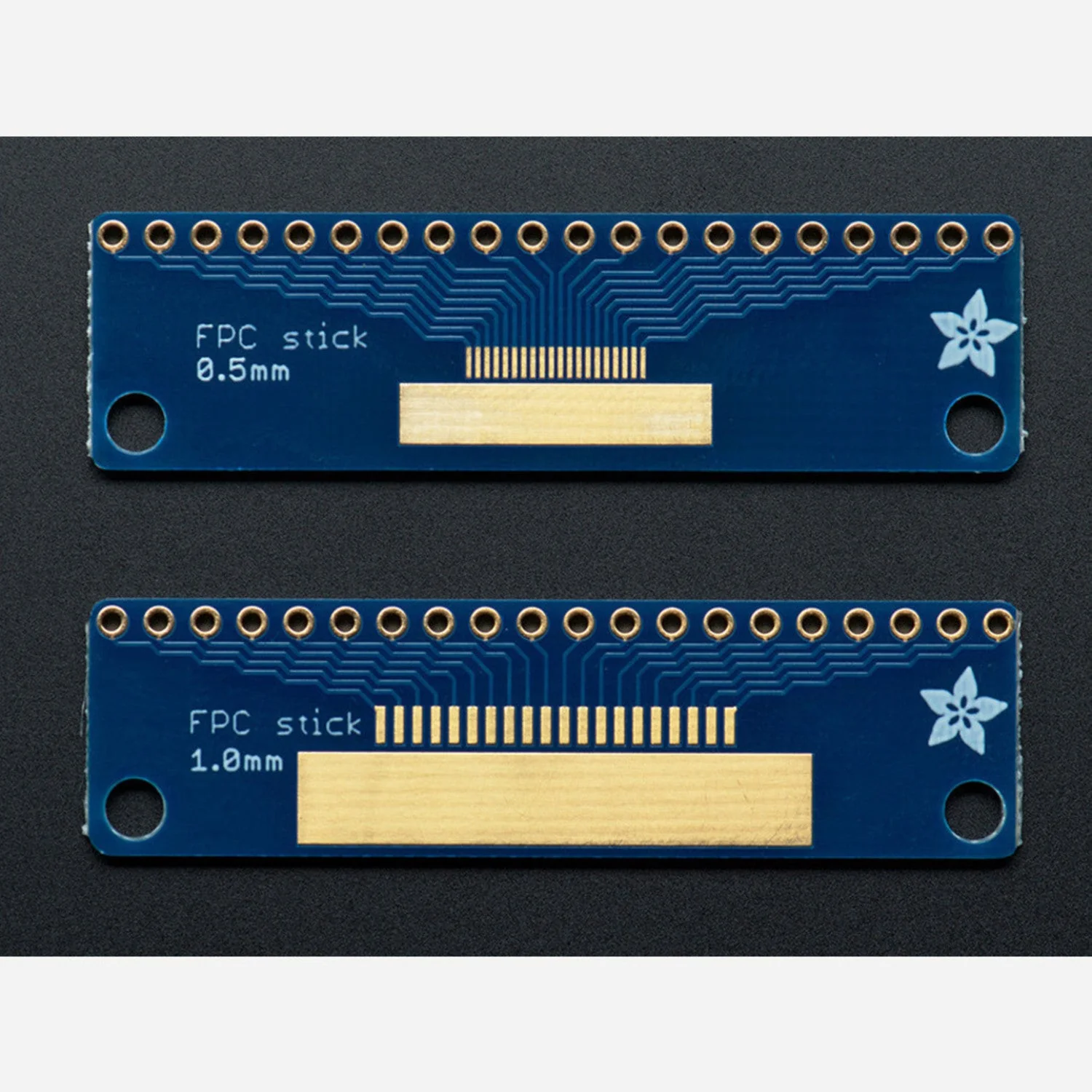

• Dual-Sided Design – 0.5 mm pitch on one side, 1.0 mm pitch on the other
• Wide Compatibility – Works with most ZIF and snap FPC connectors; also suits some 2.0 mm pitch cables
• Long Pads + Mechanical Pad – Extra-long contact pads plus a mechanical support pad for secure connector attachment

Ideal For

• Prototyping with FPC/FFC ribbon cables
• Testing displays, touchscreens, and other FPC-connected components
• Breaking out fine-pitch connectors to breadboard-friendly spacing

Package Contents

• 1× FPC Stick double-sided PCB (header and connectors not included)
