Add long-range LoRa radio to any Feather board with the Adafruit LoRa Radio FeatherWing. Built around the SX127x LoRa module, this add-on provides kilometre-range packet radio communication at 900 MHz (tuneable to 868 MHz or 915 MHz) — perfect for sensor networks, remote monitoring, and bridging to the Internet via a WiFi or cellular Feather.

Unlike WiFi or Bluetooth, LoRa uses simple packet-based communication with no pairing or association needed. With default settings, expect over 2 km line-of-sight range using a simple wire antenna, or up to 20 km with directional antennas and optimised settings.

Key Features

• SX127x LoRa Module – 900 MHz (tuneable to 868/915 MHz ISM bands) with SPI interface
• +5 to +20 dBm Output – Up to 100 mW transmit power, selectable in software
• ~2 km Range – Line-of-sight with wire antenna; up to 20 km with directional antennas
• Low Power – ~300 µA full sleep, ~120 mA peak transmit at +20 dBm, ~40 mA active listening

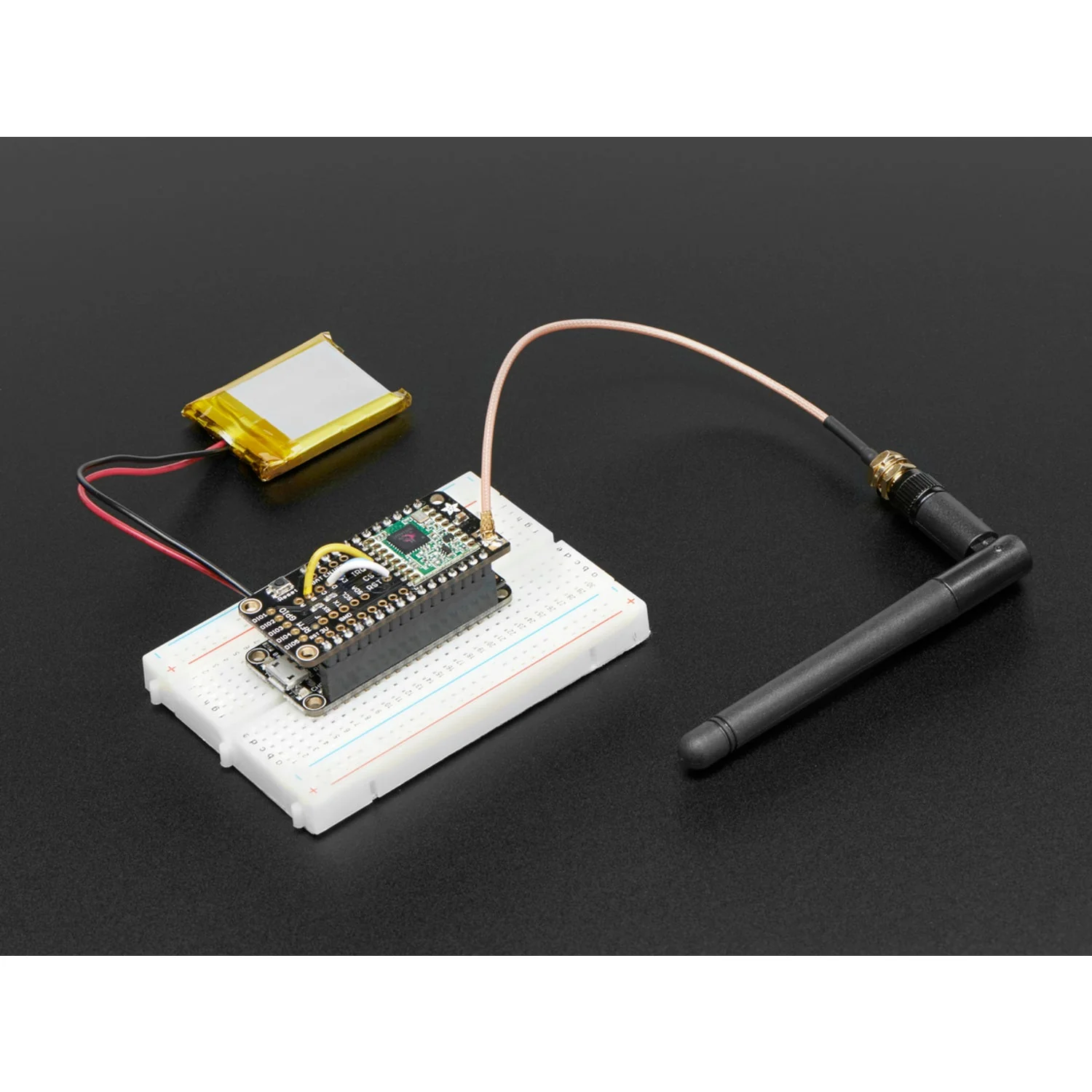

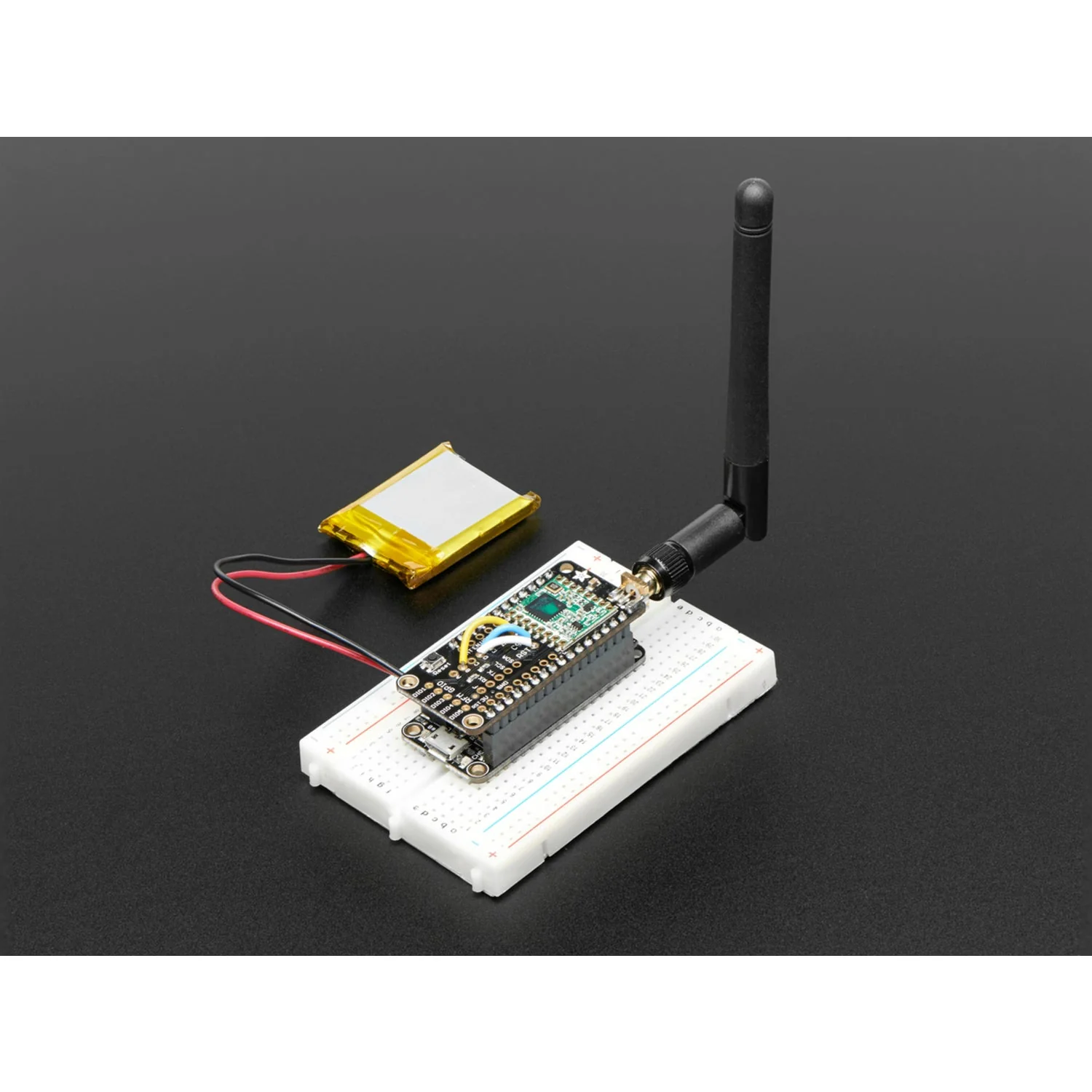

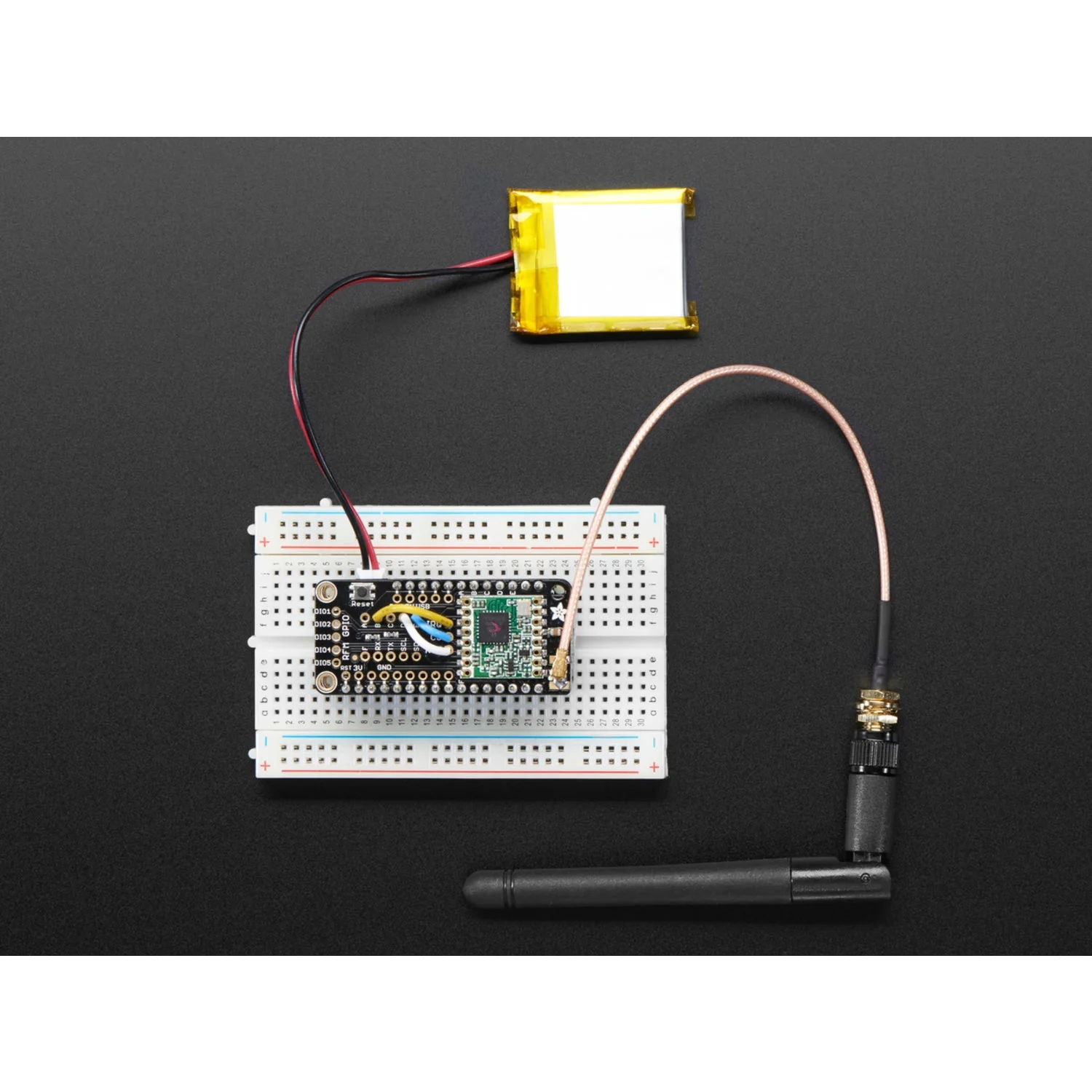

• Flexible Antenna Options – Solder pad for wire antenna, or add a uFL/SMA edge-mount connector
• Arduino Libraries – Ready-to-use packet radio libraries
• FeatherWing Form Factor – Stacks onto any Feather board

Ideal For

• Long-range sensor networks and remote data collection
• LoRa-to-Internet gateways via WiFi or cellular Feathers
• Campus or farm-wide wireless communication
• Battery-powered remote monitoring stations

Package Contents

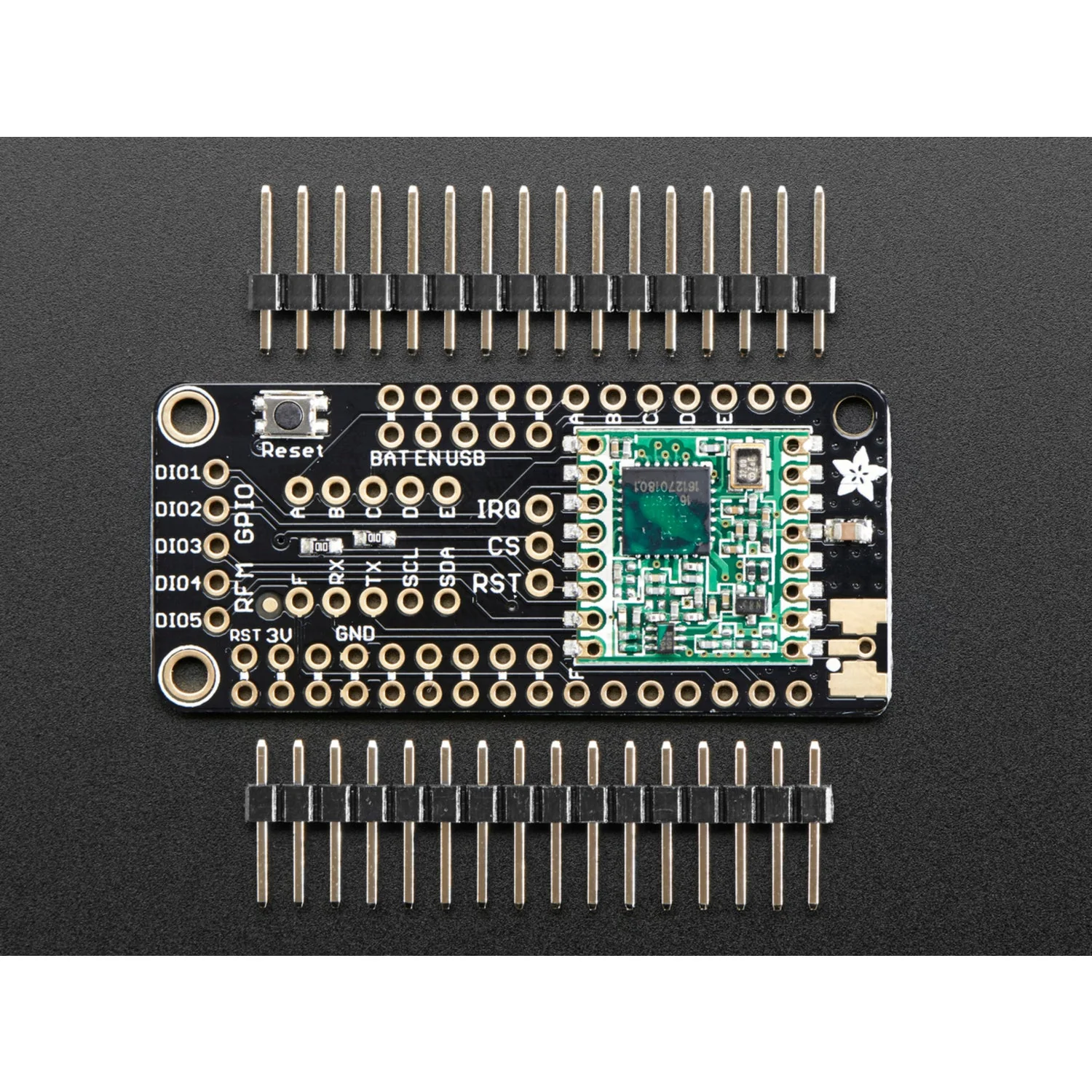

• 1× Adafruit LoRa Radio FeatherWing (RFM95W @ 900 MHz)
• Header pins (soldering required)
