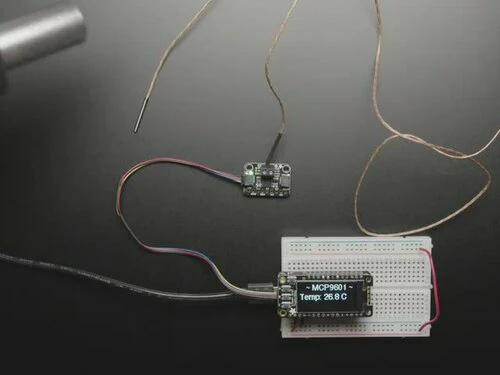

The Adafruit MCP9601 (MCP96L01) I2C Thermocouple Amplifier handles all the analogue complexity of thermocouple measurement over a simple I2C interface. Connect your thermocouple, wire up I2C (or use the solderless STEMMA QT connector), and read accurate temperature data from K, J, T, N, S, E, B, and R type thermocouples.

The MCP96L01 chip includes built-in cold-junction compensation, configurable over/under temperature alerts, and reports both the thermocouple (hot) and ambient chip (cold) temperatures. The breakout board features a 3.3V regulator and level shifting, so it works seamlessly with both 3.3V and 5V logic.

Key Features

• 8 Thermocouple Types Supported – K, J, T, N, S, E, B, and R type
• ADC Resolution – ±0.0625°C measurement resolution
• Thermocouple Accuracy – ±2.0°C typical / ±4.0°C maximum (MCP96L01 chip accuracy, not including thermocouple tolerance)
• I2C Interface – Simple digital output with no analogue calibration required
• STEMMA QT / Qwiic Ports – Solderless I2C connection, no soldering needed
• Cold-Junction Compensation – Built-in reference for accurate readings
• Configurable Alerts – Set over/under temperature thresholds
• 3.3V and 5V Compatible – On-board regulator and level shifting

Supported Temperature Ranges

• K Type: −200°C to +1372°C
• J Type: −150°C to +1200°C
• T Type: −200°C to +400°C
• N Type: −150°C to +1300°C
• E Type: −200°C to +1000°C
• S Type: +250°C to +1664°C
• B Type: +1000°C to +1800°C
• R Type: +250°C to +1664°C

Ideal For

• Industrial temperature monitoring and data logging
• Reflow oven and kiln temperature control
• Scientific and laboratory measurement
• Any application requiring wide-range thermocouple readings over I2C

Package Contents

• 1× Adafruit MCP9601 (MCP96L01) Thermocouple Amplifier breakout board (with STEMMA QT / Qwiic connectors)
• 1× 2-pin terminal block
• 1× Header pin strip

Resources

• MCP9601 Guide with Wiring & Code (Adafruit Learn)
• What is STEMMA QT? (Adafruit Learn Guide)
