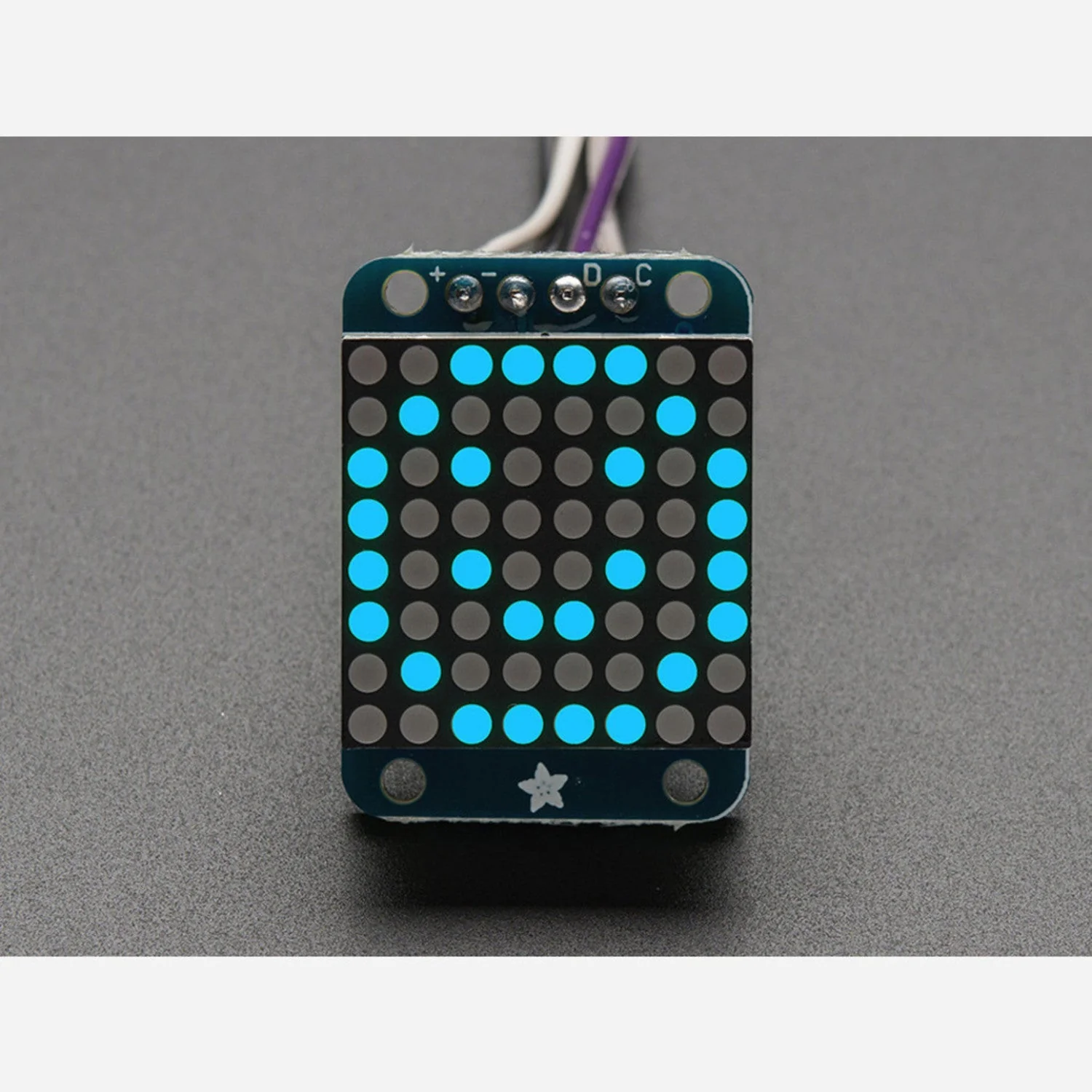

The Adafruit Mini 0.7" 8×8 LED Matrix with I2C Backpack makes it easy to add a bright blue dot-matrix display to any project. The I2C backpack handles all the multiplexing, so you only need two data pins (SDA and SCL) plus power to control all 64 LEDs — no complex wiring or external driver chips required.

The backpack features a built-in display driver with constant-current output for ultra-bright, consistent colour at any brightness level. With 16-step dimming and address-selection jumpers, you can connect up to four 8×8 matrices on a single I2C bus for larger displays.

Key Features

• 0.7" 8×8 Blue LED Matrix – 64 ultra-bright blue LEDs
• I2C Backpack – Only 2 data pins needed; built-in multiplexing and clock
• Constant-Current Drivers – Consistent brightness and colour across all LEDs
• 16-Step Dimming – Adjustable brightness via I2C commands
• Address Jumpers – Connect up to 4 matrices on one I2C bus
• Compact Size – 0.7" (20 mm) matrix for small display applications

Ideal For

• Small status displays and pixel art
• Scrolling text and simple animations
• Multi-matrix tiled displays
• Wearable and portable electronics

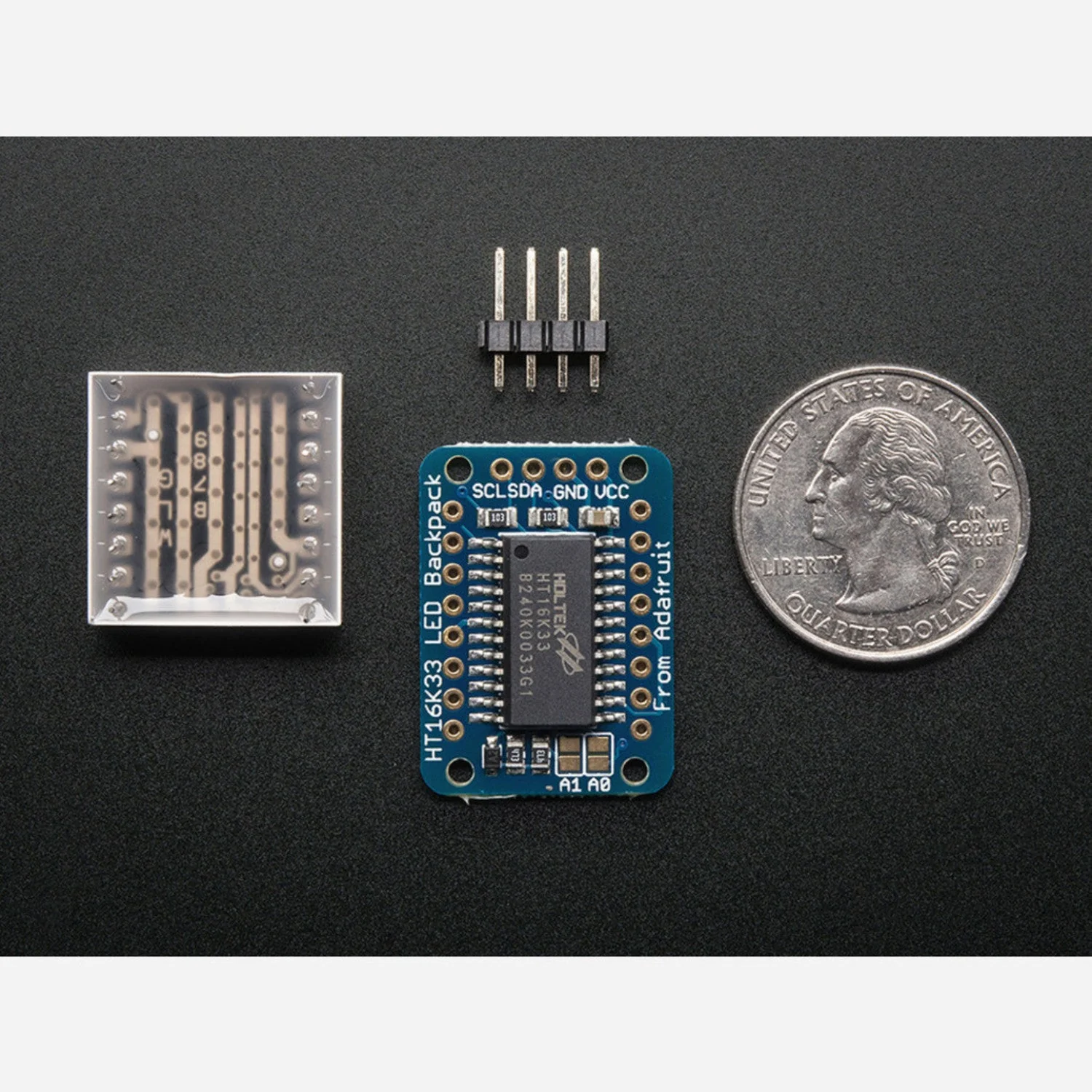

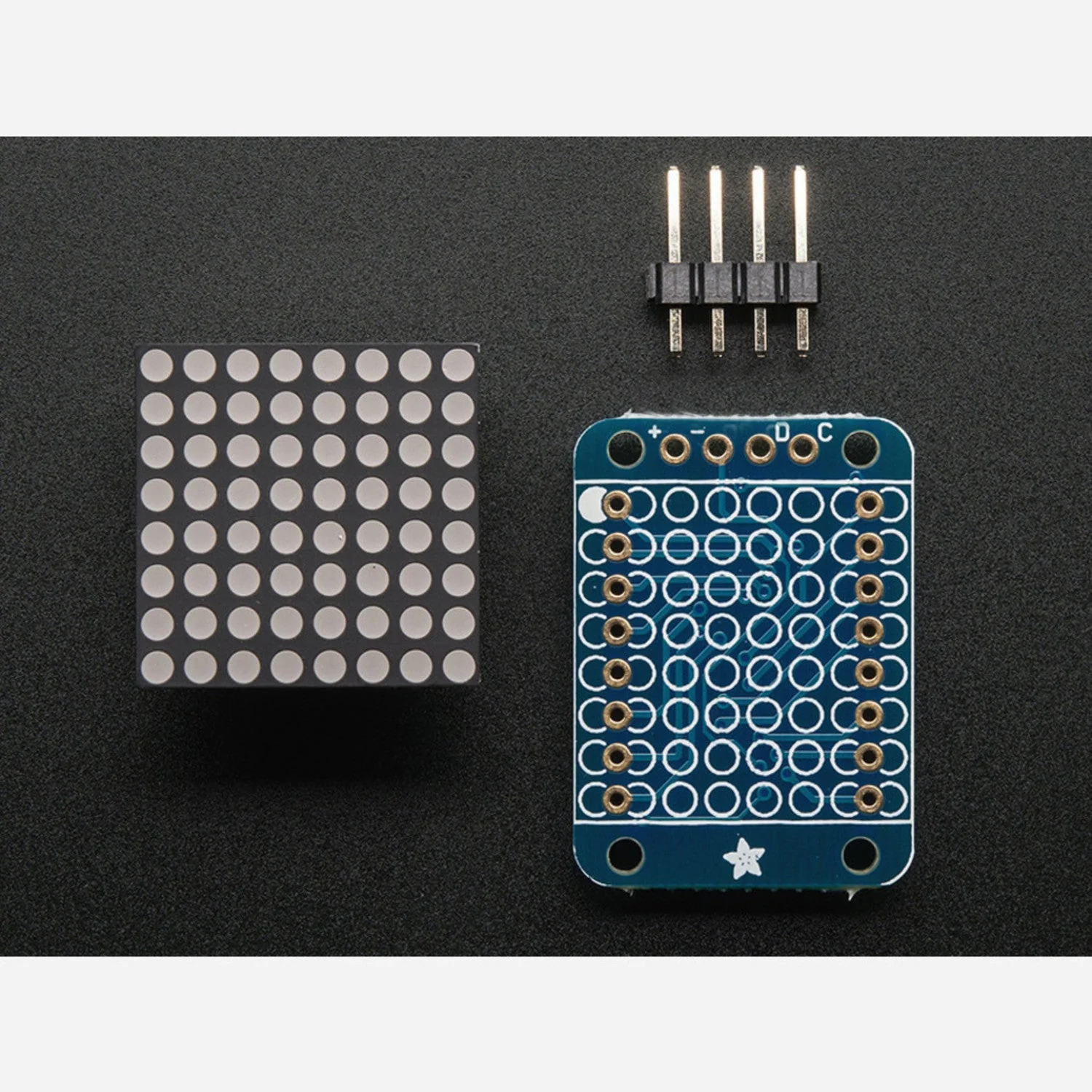

Package Contents

• 1× Adafruit I2C LED Backpack (assembled and tested)
• 1× 0.7" 8×8 blue LED matrix
• 1× 4-pin header

Resources

• LED Backpack Tutorial (Adafruit Learn)
• LED Backpack Library (GitHub)
