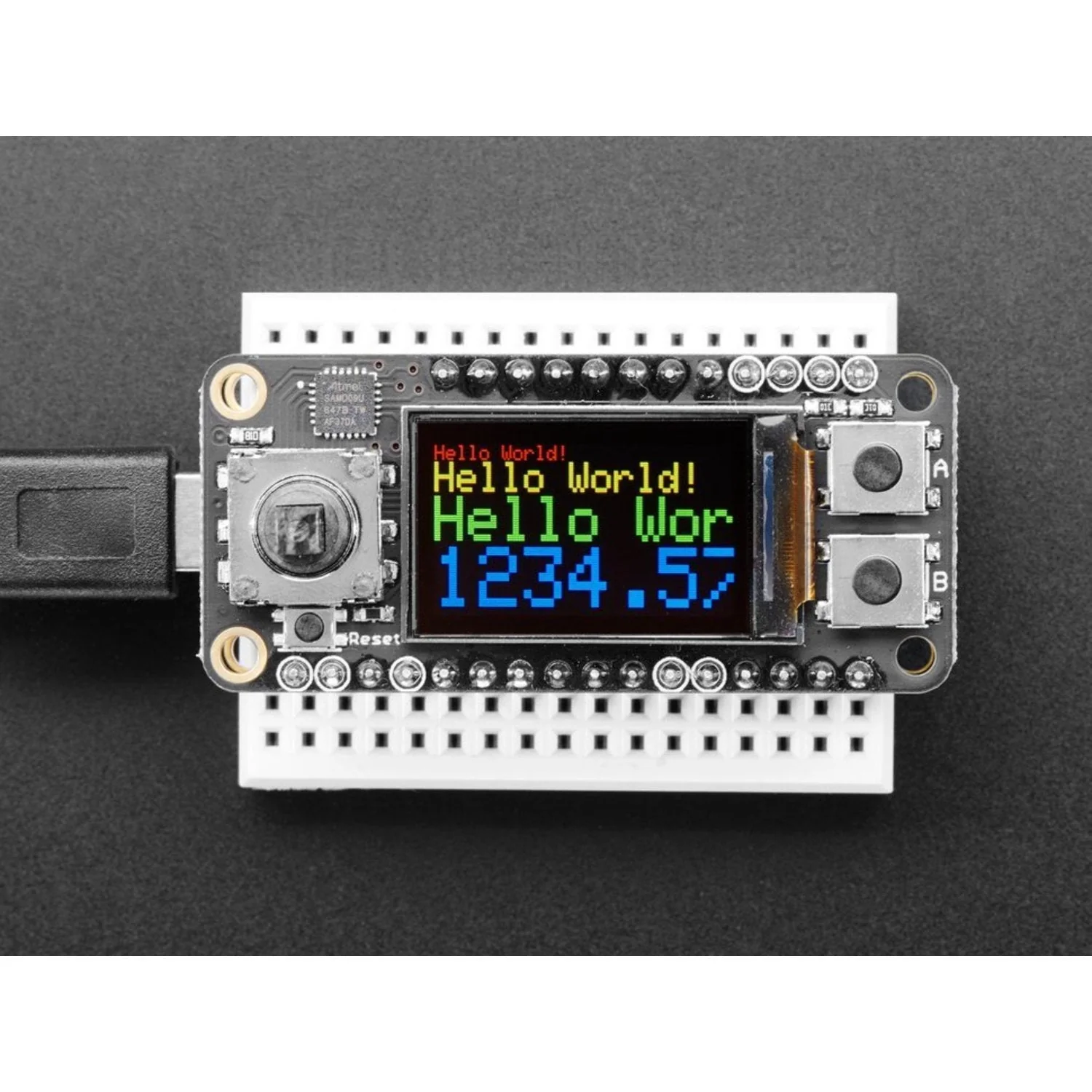

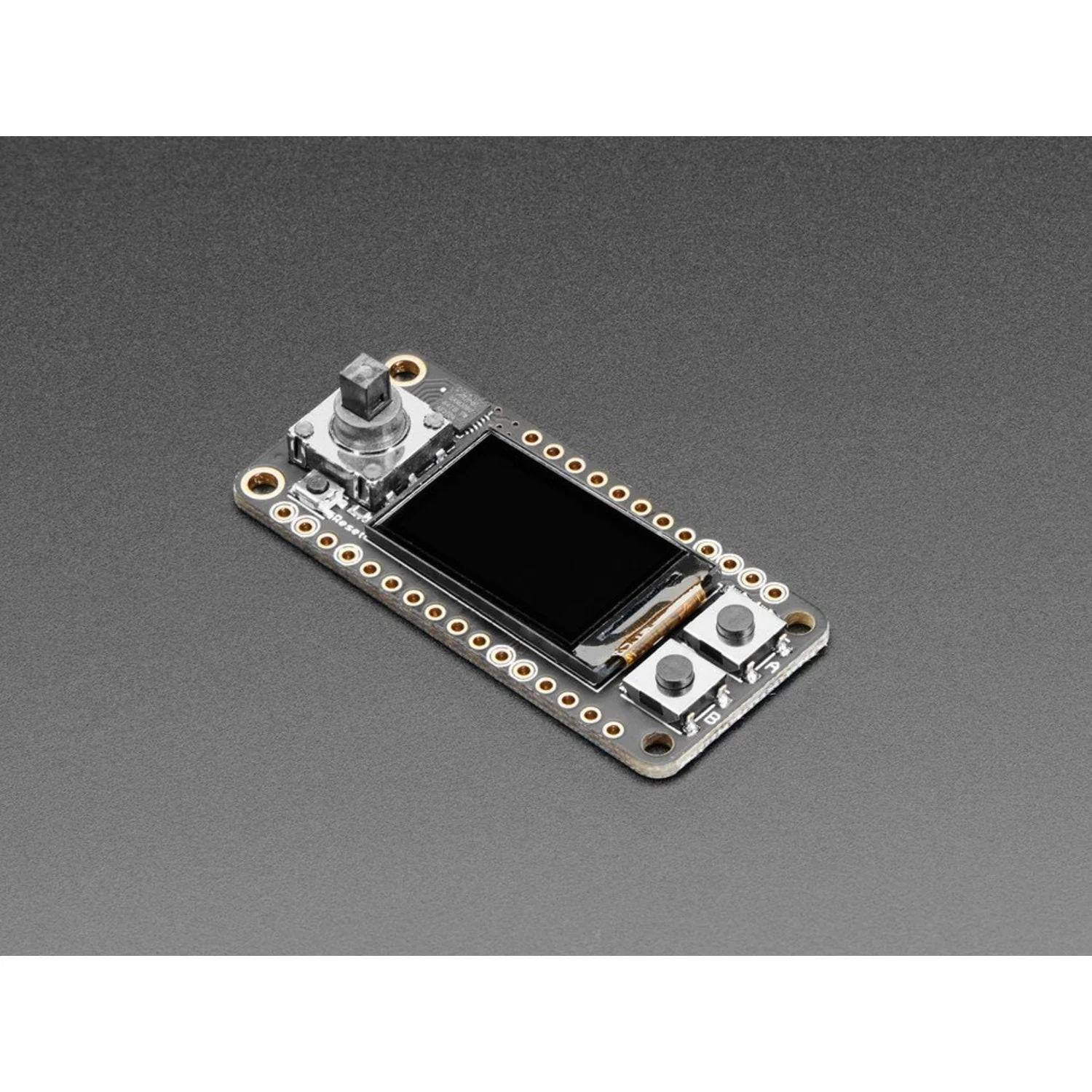

The Adafruit Mini Color TFT with Joystick FeatherWing adds a vibrant 0.96" colour display and a complete user interface to any Feather board. The 160×80 pixel TFT display supports 16-bit full colour, and the built-in 5-way navigation joystick plus two push buttons give you everything needed to build interactive menus and controls.

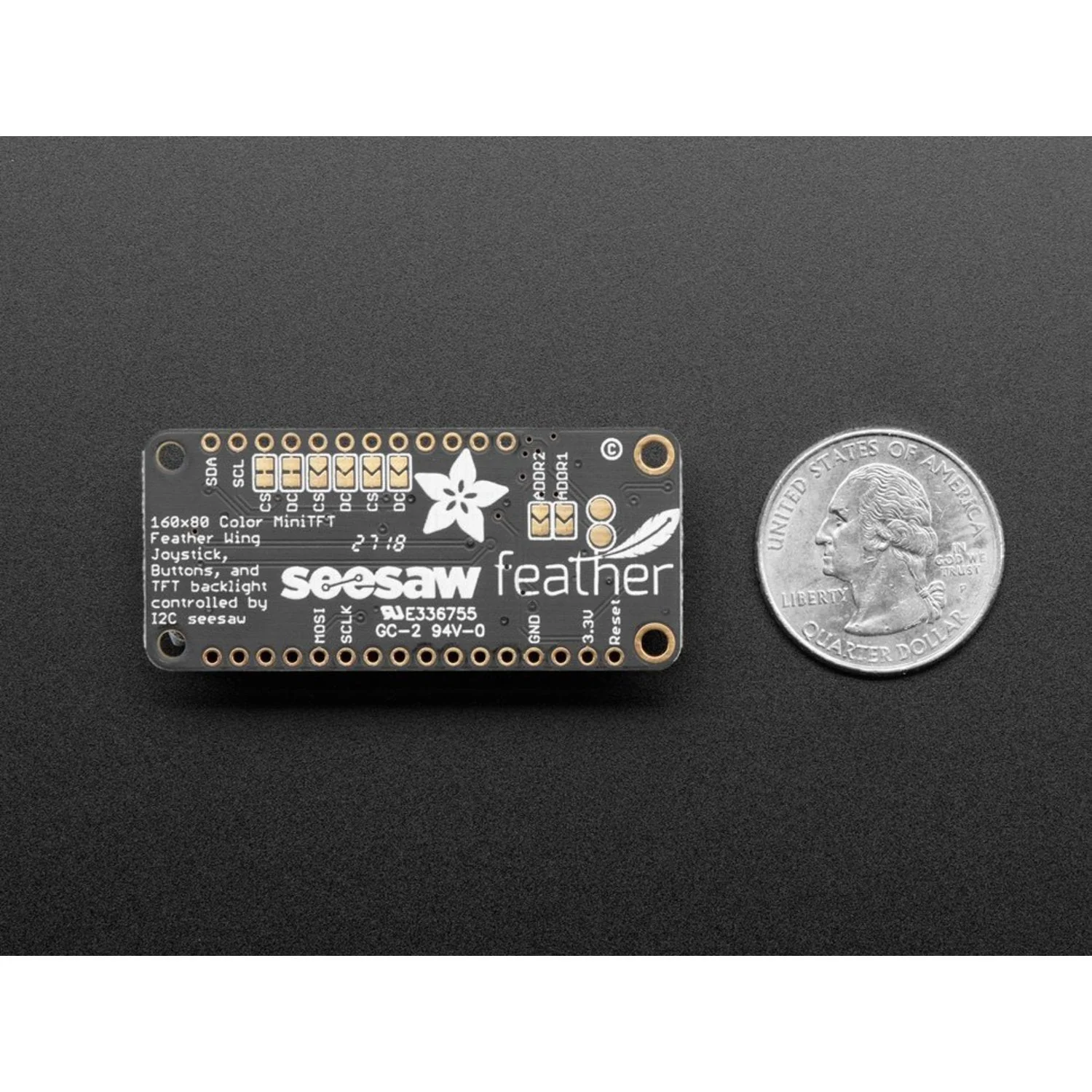

Thanks to the seesaw I2C co-processor, all seven input switches are managed over I2C — no extra GPIO pins required. This makes it compatible with even low-pin-count Feathers like the ESP8266. The TFT reset pin and backlight are also controlled via seesaw, keeping pin usage minimal.

Key Features

• 0.96" 160×80 Colour TFT Display – 16-bit full colour with pixel-addressable frame buffer
• 5-Way Navigation Joystick – Left, right, up, down, and centre press for selection
• 2 Push Buttons – For mode changes or custom functions
• Seesaw I2C Co-Processor – All 7 switches managed over I2C; no extra GPIO needed
• SPI Display Interface – Uses standard hardware SPI plus 2 GPIO for TFT control
• I2C Backlight & Reset Control – Managed by seesaw for minimal pin usage
• Universal Feather Compatibility – Works with all Feather boards

Ideal For

• Interactive Feather projects with menus and navigation
• Portable handheld devices and game consoles
• Status displays with user input controls
• IoT dashboards with local UI

Package Contents

• 1× Adafruit Mini Color TFT with Joystick FeatherWing (fully assembled)
