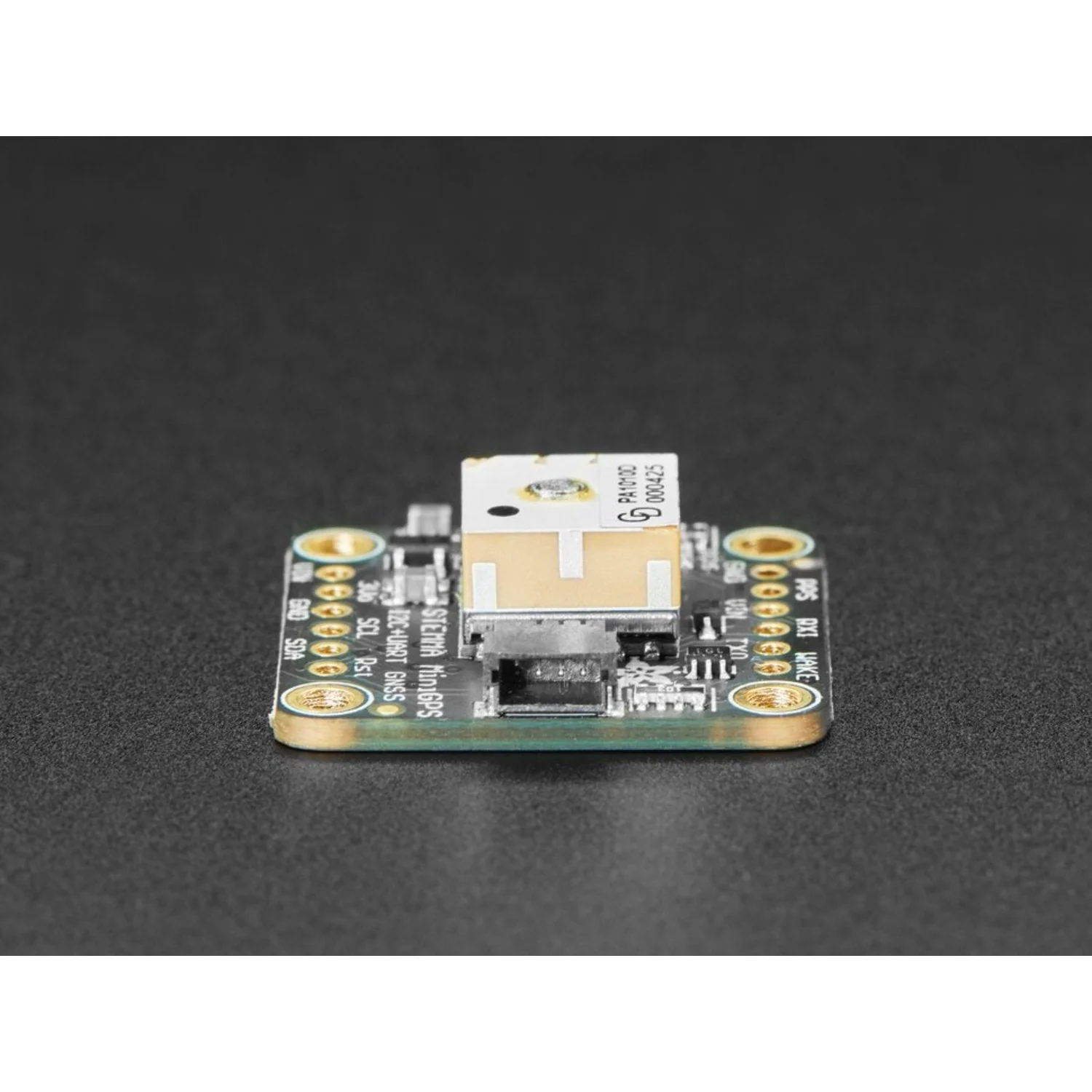

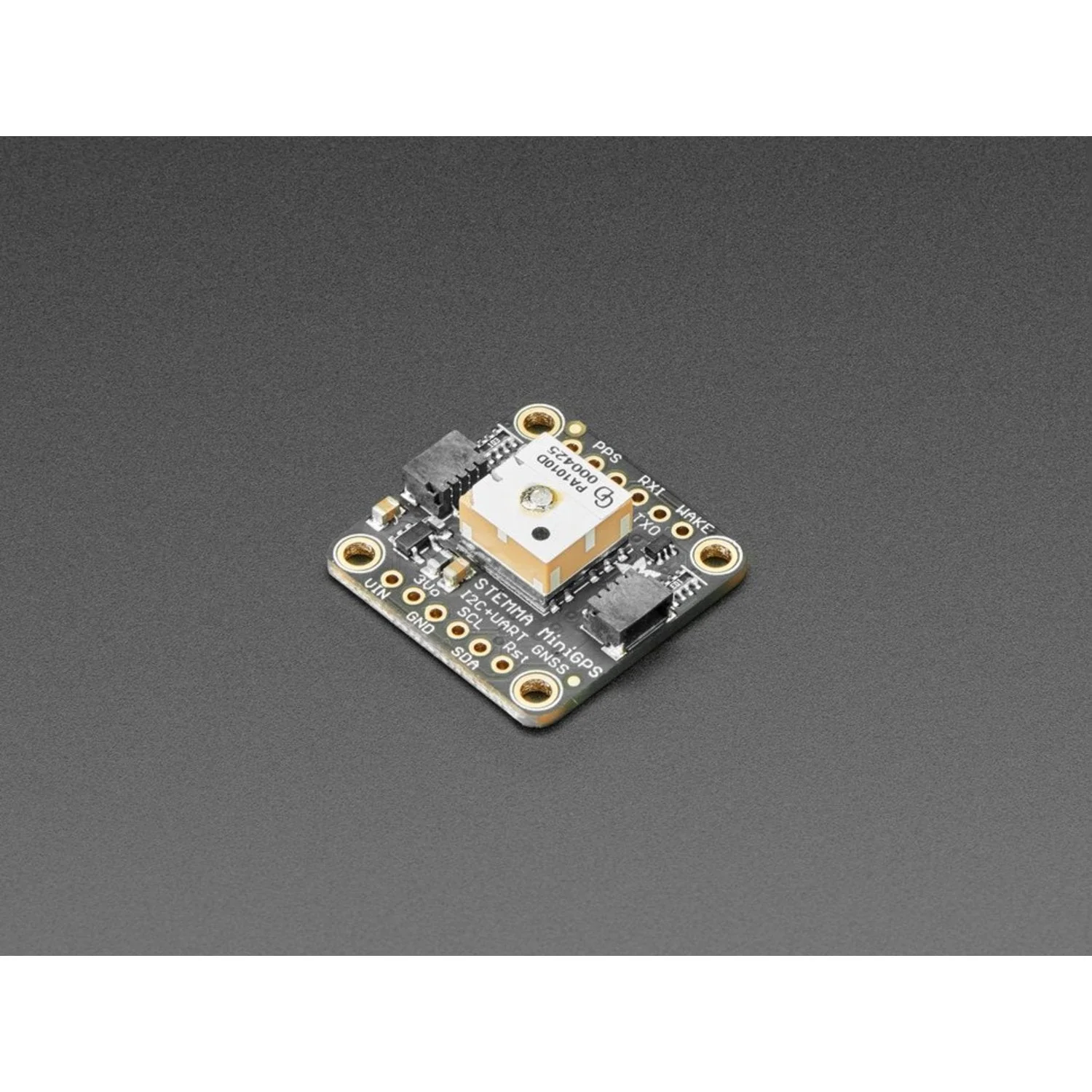

The Adafruit Mini GPS PA1010D is a compact 25×25 mm GPS/GNSS breakout with a built-in patch antenna, dual UART and I2C interfaces, and STEMMA QT connectors for solderless plug-and-play use. Powered by the MTK3333 chipset, it supports GPS, GLONASS, Galileo, and QZSS satellite systems with up to 10 Hz position updates.

With −165 dBm tracking sensitivity, 30 mA navigation current, and 5V-friendly design, this module is ideal for compact projects where space and power are at a premium. Unlike the Ultimate GPS modules, this one is designed to be as small as possible — there's no external antenna connector.

Key Features

• Multi-GNSS Support – GPS, GLONASS, Galileo, and QZSS
• High Sensitivity – −165 dBm tracking with up to 33 simultaneous channels
• Up to 10 Hz Updates – High-speed position logging and tracking
• Dual Interface – Both UART and I2C; choose whichever suits your project
• STEMMA QT / Qwiic Ports – Solderless I2C connection, no soldering needed
• Built-In Patch Antenna – No external antenna required
• Low Power – Only 30 mA during navigation, with low-power and standby modes
• 5V Friendly – On-board 3.3V regulator with 5V-safe inputs
• PPS Output – Pulse per second with ±20 ns jitter on fix
• RTC Battery Support – CR1220 holder for warm starts (battery not included)
• Status LEDs – Green power LED and red PPS LED (blinks at ~1 Hz on fix)

Specifications

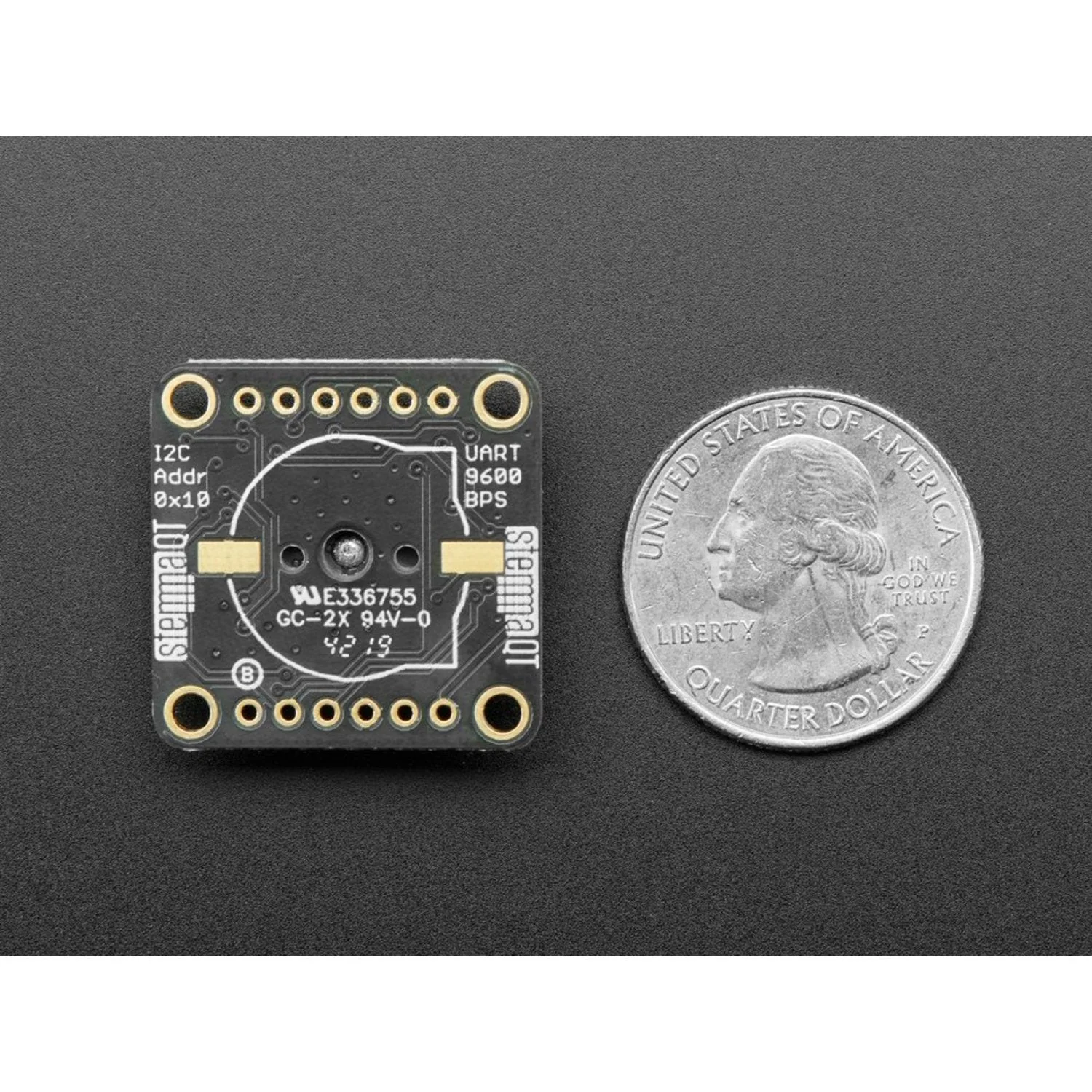

• Dimensions: 25 × 25 mm (1.0 × 1.0 in)
• Up to 210 PRN channels – 99 search, 33 simultaneous tracking
• Current Draw: ~30 mA during navigation

Ideal For

• Compact GPS tracking and logging projects
• Wearable and portable GPS devices
• Drone and robotics navigation
• Time-synchronisation applications using PPS output

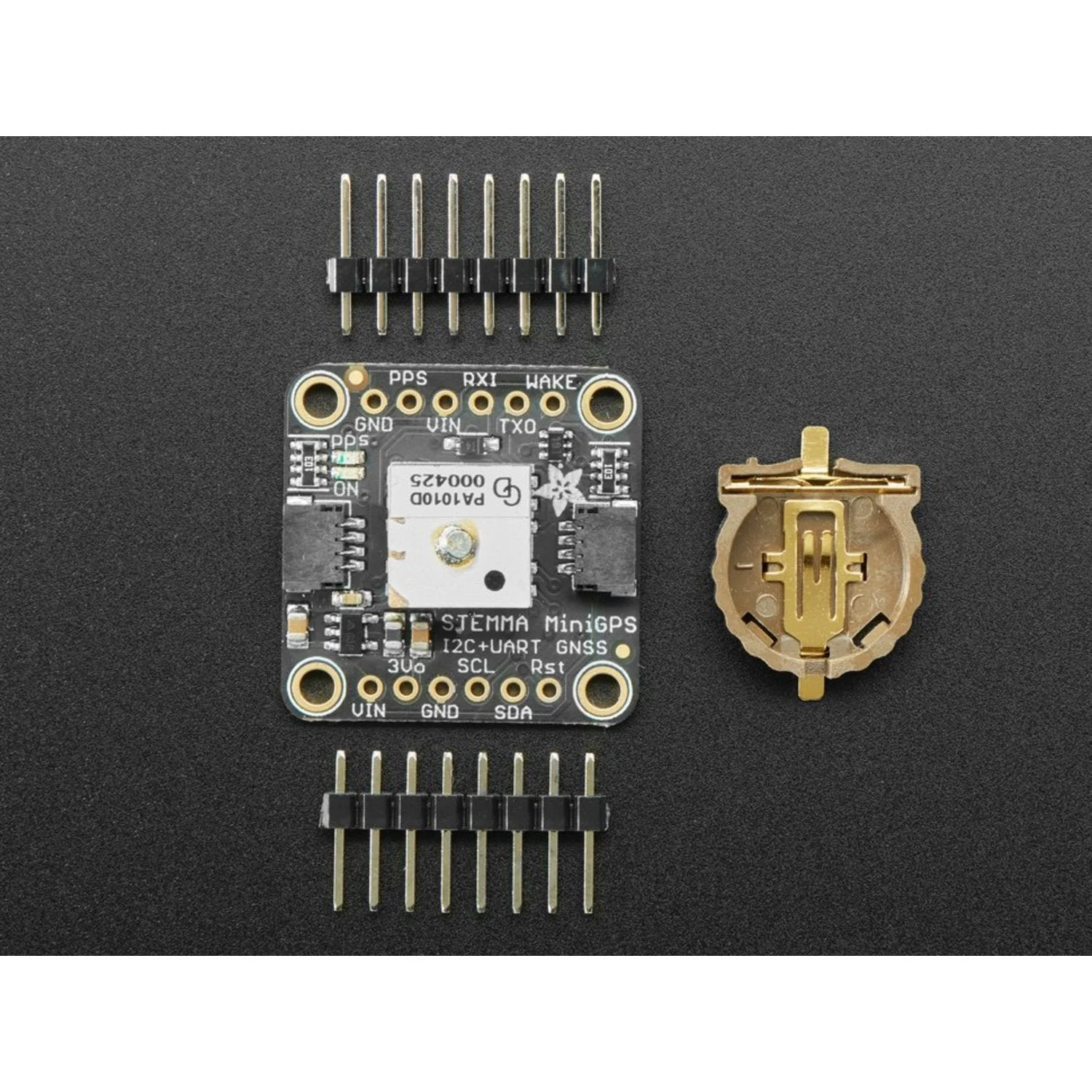

Package Contents

• 1× Adafruit Mini GPS PA1010D breakout (with STEMMA QT connectors)
• 1× Header pin strip
• 1× CR1220 coin cell holder (battery not included)

Resources

• GPS Tutorial & Example Code (Adafruit Learn)
• What is STEMMA QT? (Adafruit Learn Guide)
