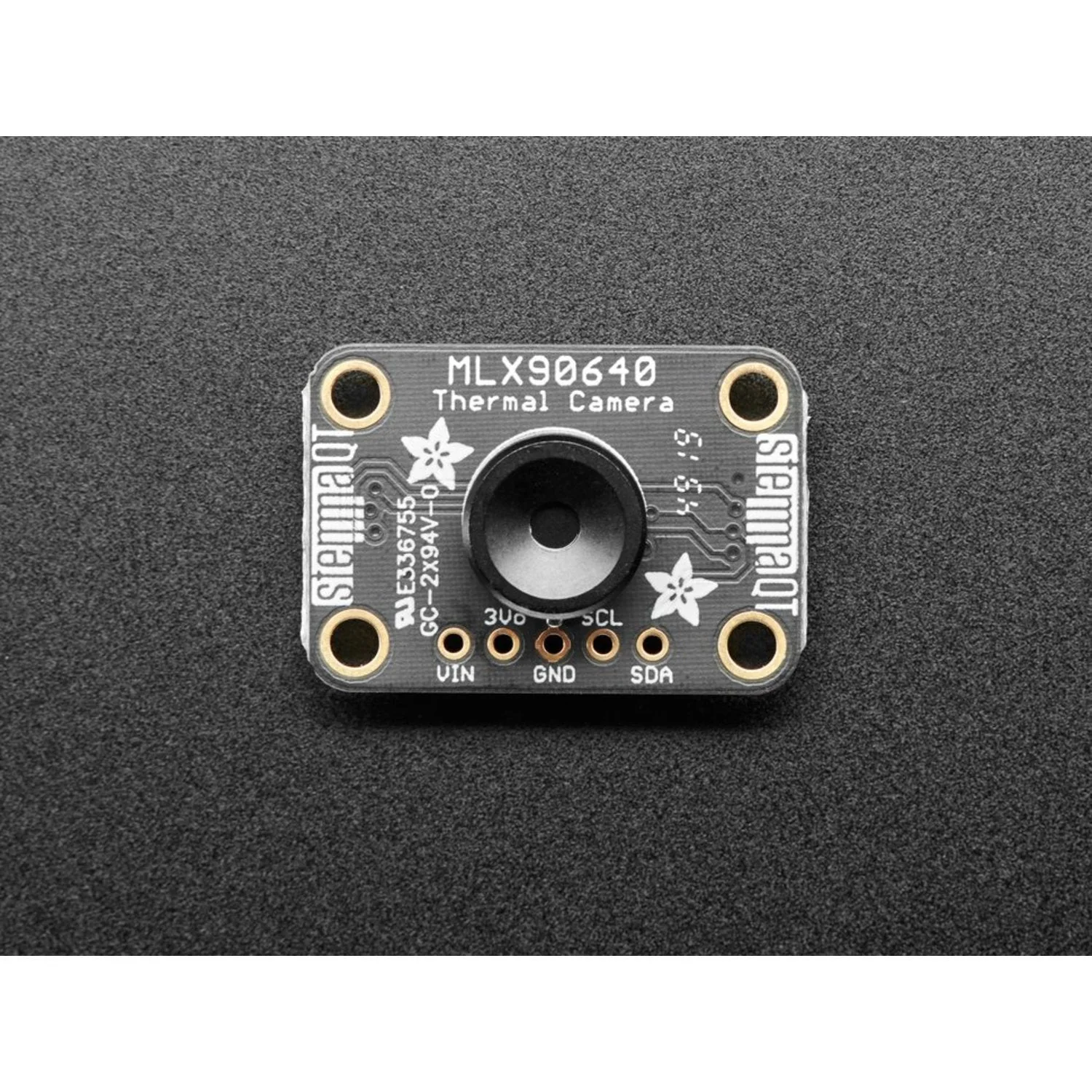

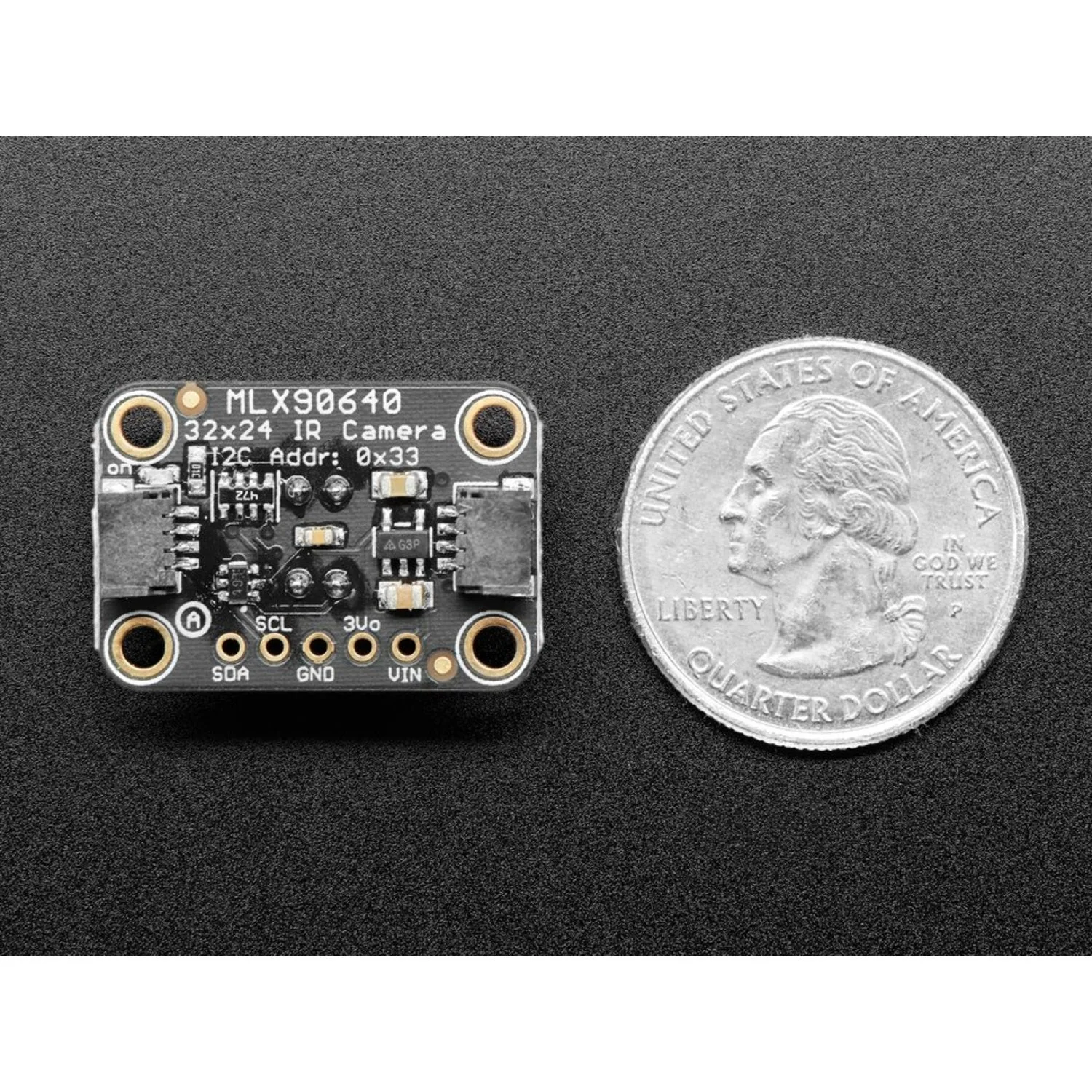

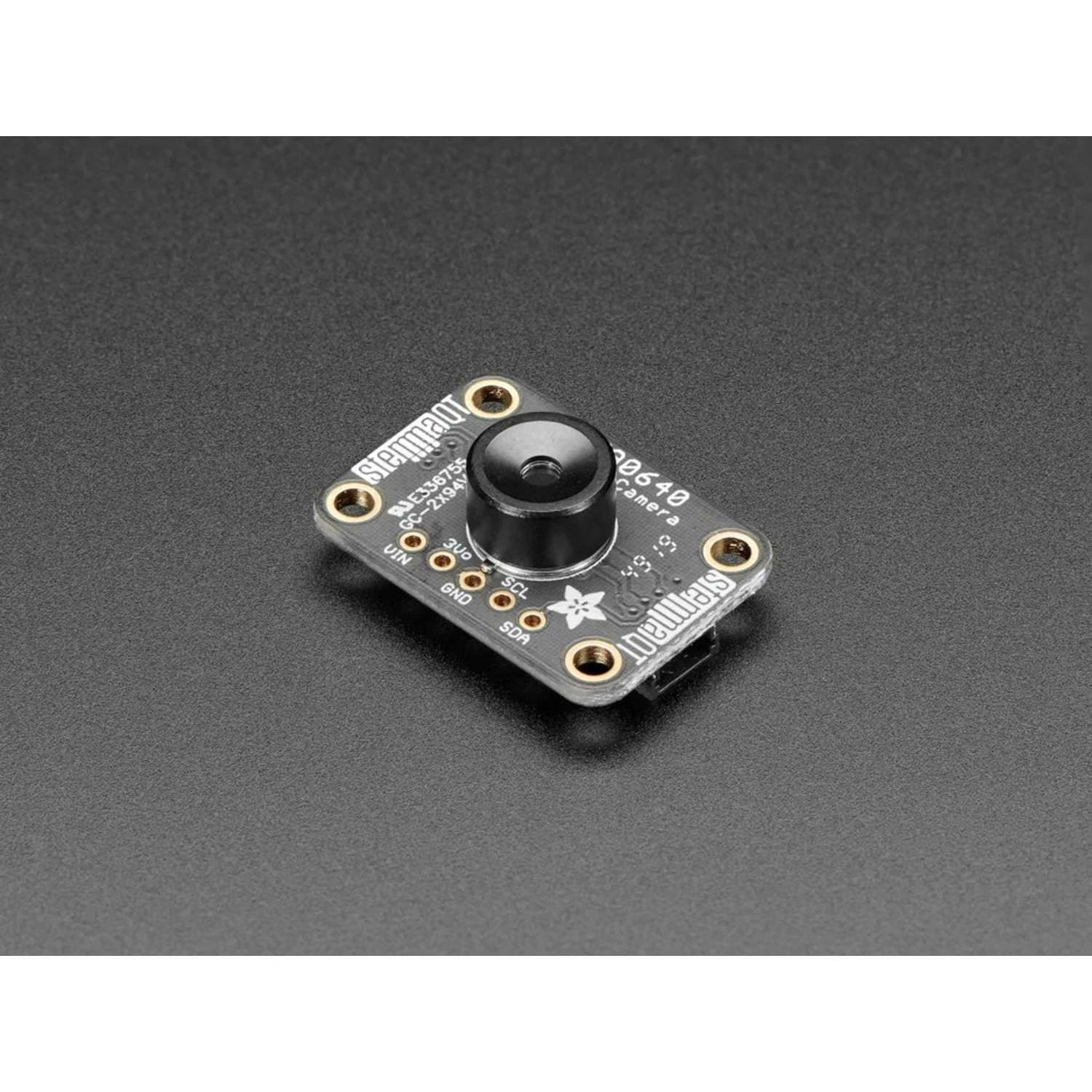

The Adafruit MLX90640 IR Thermal Camera Breakout features a 24×32 array of infrared thermal sensors that returns 768 individual temperature readings over I2C. It's an affordable way to add heat-vision to any microcontroller or Raspberry Pi project — like a miniature thermal camera you can integrate into your own designs.

The sensor measures temperatures from −40°C to 300°C with ±2°C accuracy (in the 0–100°C range) and captures frames at up to 16 Hz. This is the 110° field-of-view version, ideal for wide-area monitoring. The breakout includes a 3.3 V regulator and level shifting, so it works with both 3.3 V and 5 V systems, and features STEMMA QT / Qwiic connectors for solderless I2C wiring.

Key Features

• 24×32 Thermal Array – 768 individually readable IR temperature pixels
• 110° Field of View – Wide-angle coverage for room-scale thermal imaging
• Temperature Range – −40°C to 300°C with ±2°C accuracy (0–100°C)
• Up to 16 Hz Frame Rate – Suitable for motion detection and slow-moving thermal scenes
• I2C Interface – Works with Arduino (SAMD21/M0 or SAMD51/M4 with 20 KB+ RAM) and Raspberry Pi
• STEMMA QT / Qwiic Connectors – Solderless I2C connection with JST SH cables
• 3.3 V and 5 V Compatible – On-board regulator and level shifting

Ideal For

• DIY thermal cameras and heat mapping
• Human/occupancy detection systems
• HVAC monitoring and energy auditing
• Robotics and environmental sensing

Package Contents

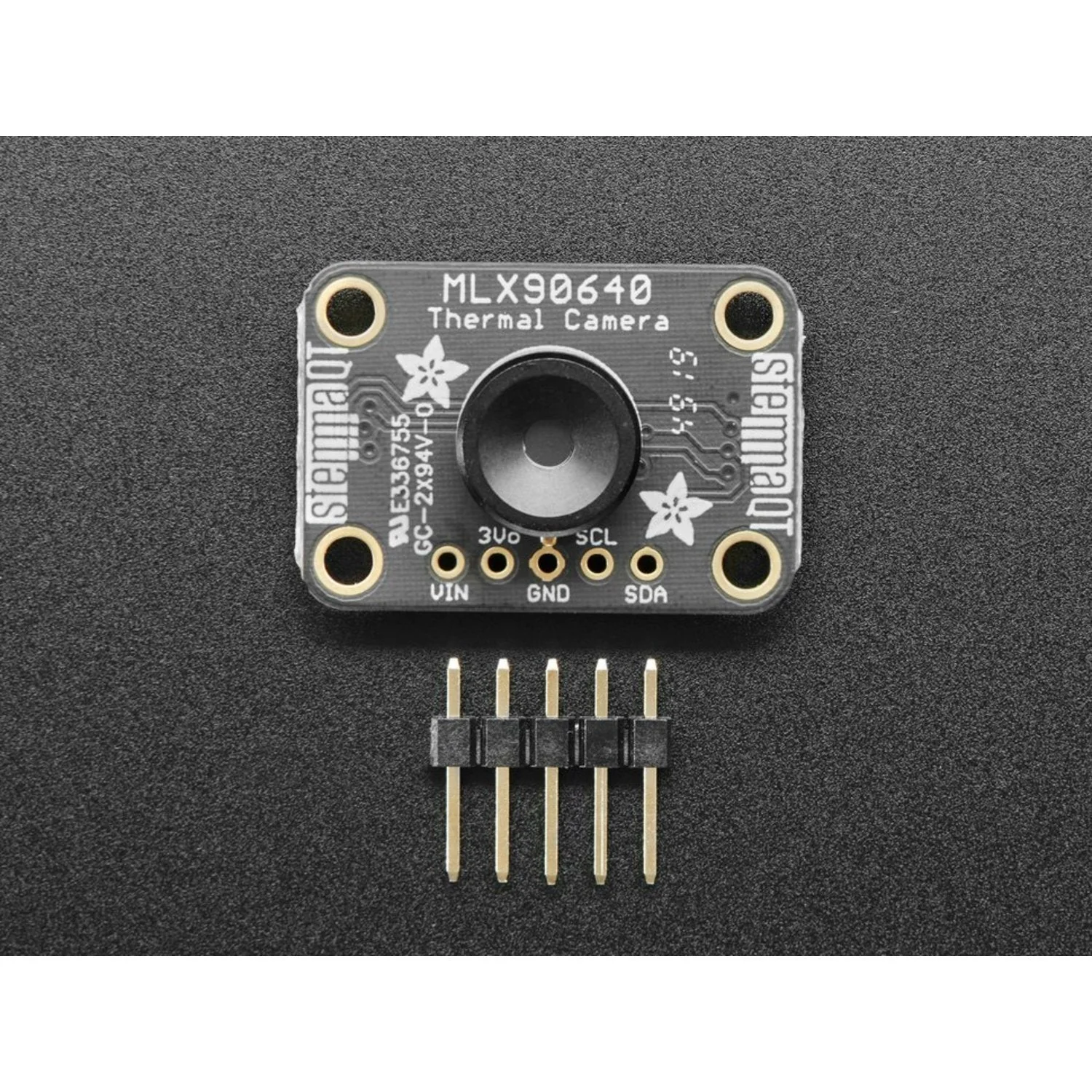

• 1× Adafruit MLX90640 24×32 IR Thermal Camera Breakout – 110° FoV

Resources

• STEMMA QT Overview
• Arduino Library (GitHub)
• CircuitPython Library (GitHub)
