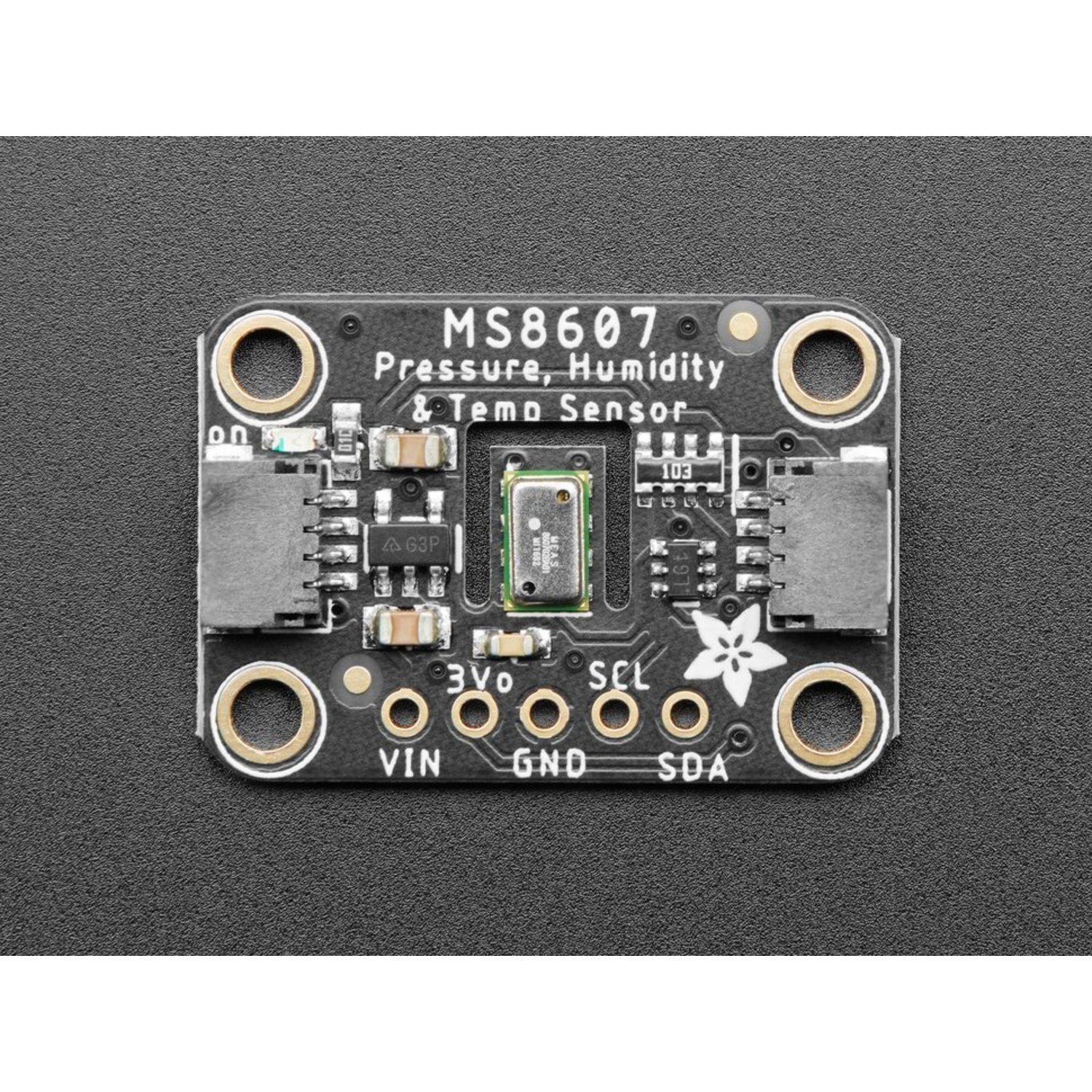

The Adafruit MS8607 is a factory-calibrated 3-in-1 sensor that measures barometric pressure, relative humidity, and temperature over I2C. Made by TE Connectivity, this PHT (Pressure, Humidity, Temperature) sensor is a compact, all-in-one solution for weather stations, environmental monitoring, and climate-controlled enclosures.

With extremely low power consumption (as low as 0.78 µA), the MS8607 is well-suited for battery-powered sensing projects. The breakout includes a 3.3 V regulator and level shifting for compatibility with both 3.3 V and 5 V systems, plus STEMMA QT / Qwiic connectors for solderless I2C wiring.

Key Features

• Barometric Pressure – ±2 hPa accuracy
• Relative Humidity – ±3% RH accuracy
• Temperature – ±1°C accuracy
• 16-Bit Output – Factory-calibrated with constants stored on-chip
• Ultra-Low Power – As low as 0.78 µA for battery-friendly operation
• I2C Interface – Simple two-wire digital communication
• STEMMA QT / Qwiic Connectors – Solderless I2C connection (cable not included)
• 3.3 V and 5 V Compatible – On-board regulator and level shifting

Ideal For

• Weather stations and environmental monitoring
• Climate-controlled enclosures and terrariums
• Indoor air quality projects
• Battery-powered remote sensing

Package Contents

• 1× Adafruit MS8607 PHT Sensor Breakout (assembled)
• 1× Header strip

Resources

• STEMMA QT Overview
• MS8607 PHT Sensor Learn Guide
