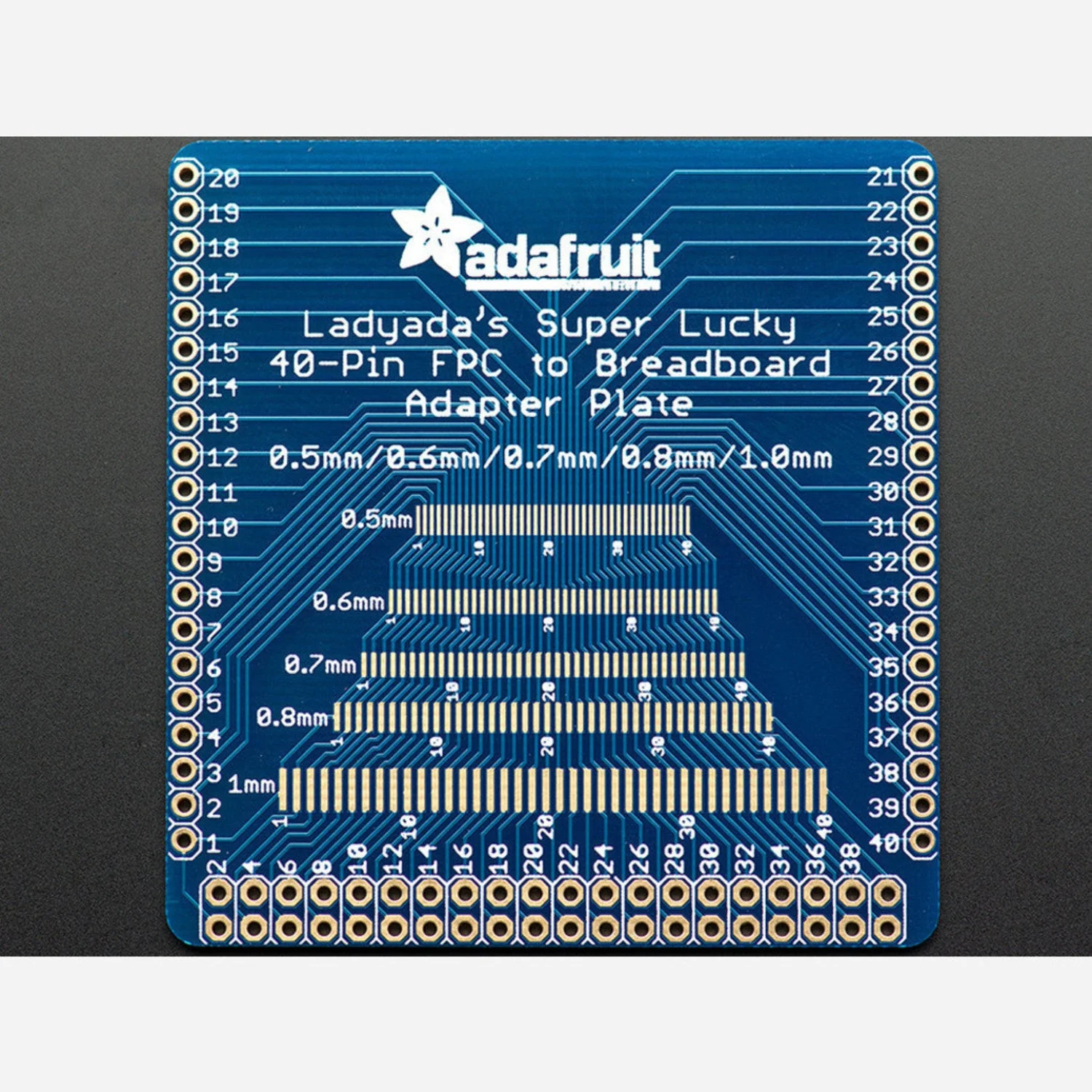

The Adafruit Multi-pitch FPC Adapter breaks out 40 pins of flexible printed circuit (FPC) cable to standard 0.1" spaced headers for easy breadboard prototyping. With pads for 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, and 1.0 mm pitch cables, it covers the most common FPC connector spacings in a single versatile board.

Each of the 40 pads connects to both a 2×20 pin header footprint and two strips of 20-pin 0.1" header spaced 2.1" apart. Compatible with most ZIF and snap FPC connectors, or solder the flex cable directly to the pads.

Key Features

• Multi-Pitch Support – Pads for 0.5, 0.6, 0.7, 0.8, and 1.0 mm pitch FPC cables
• 40-Pin Capacity – Handles up to 40-conductor flex cables
• Dual Breakout – 2×20 header footprint plus two 20-pin strips (2.1" apart)
• ZIF/Snap Compatible – Accepts most FPC connector types, or direct solder
• Breadboard Friendly – 0.1" pin spacing for standard breadboards and perfboard

Ideal For

• Prototyping with FPC/flex cable connections
• Testing LCD, camera, and sensor flex cables
• Breaking out fine-pitch connectors to breadboard-friendly headers

Package Contents

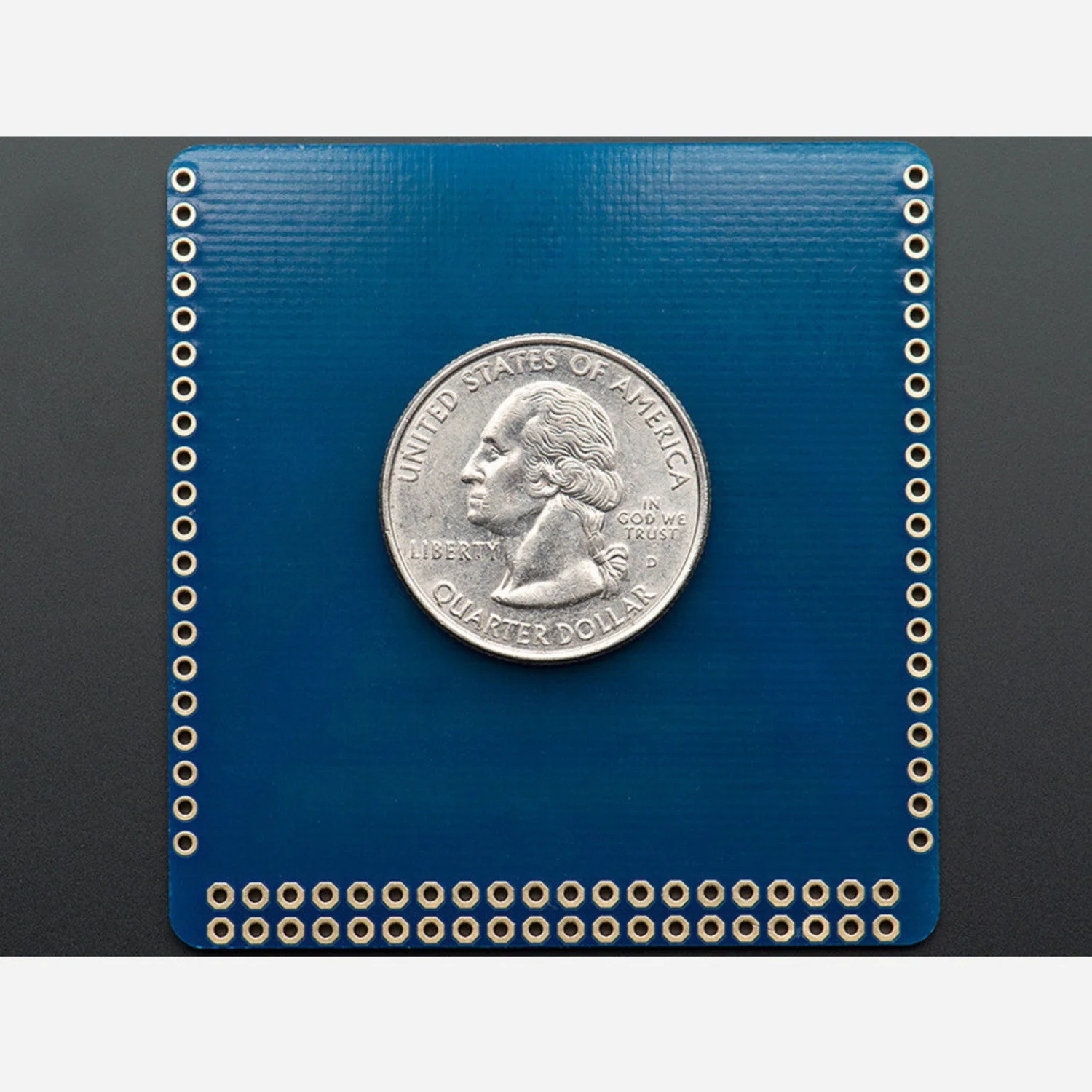

• 1× Multi-pitch FPC Adapter PCB (single-sided)
