Adafruit NeoPixel 332 LED-per-Meter Silicone Bead LED Strip - 0.5 Meter

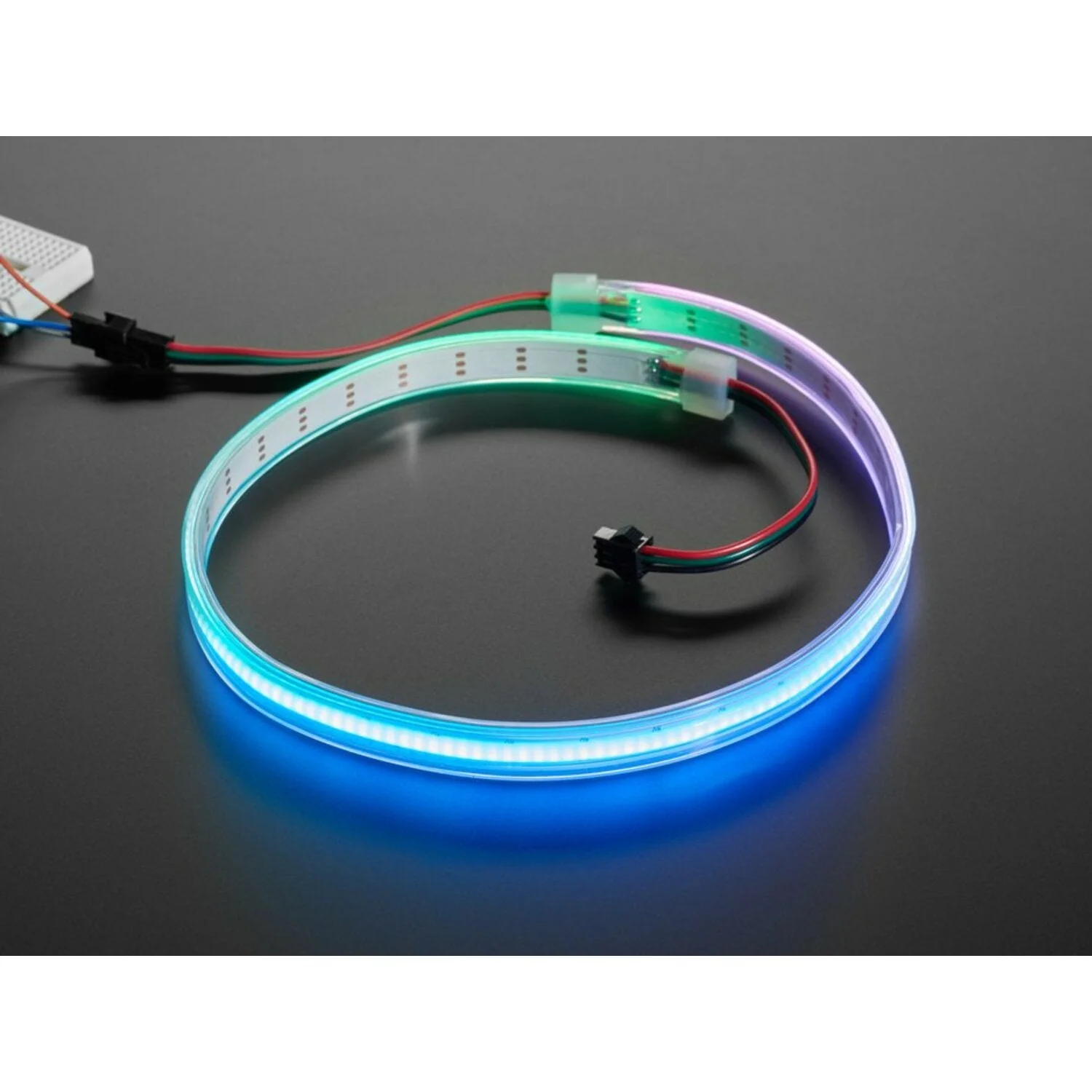

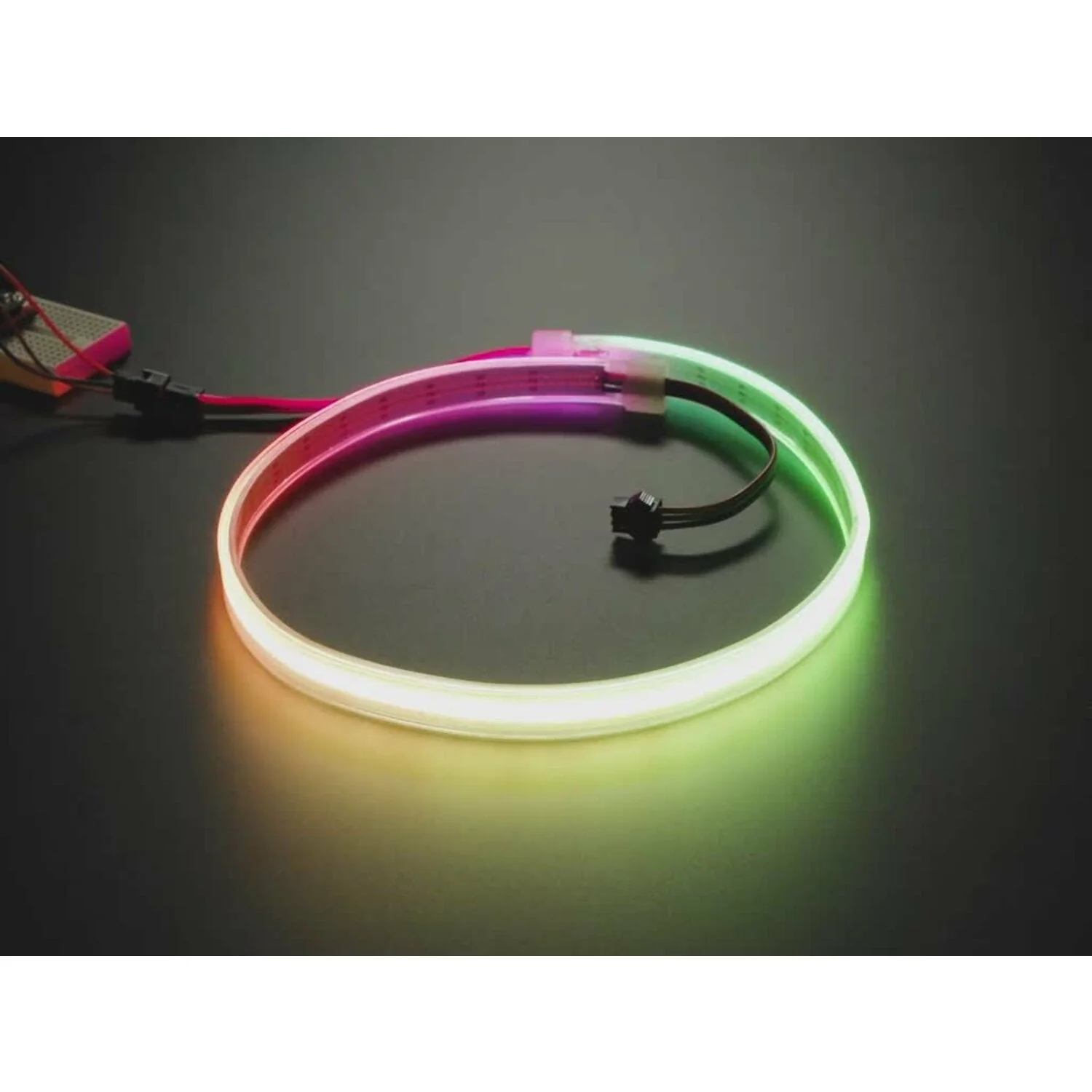

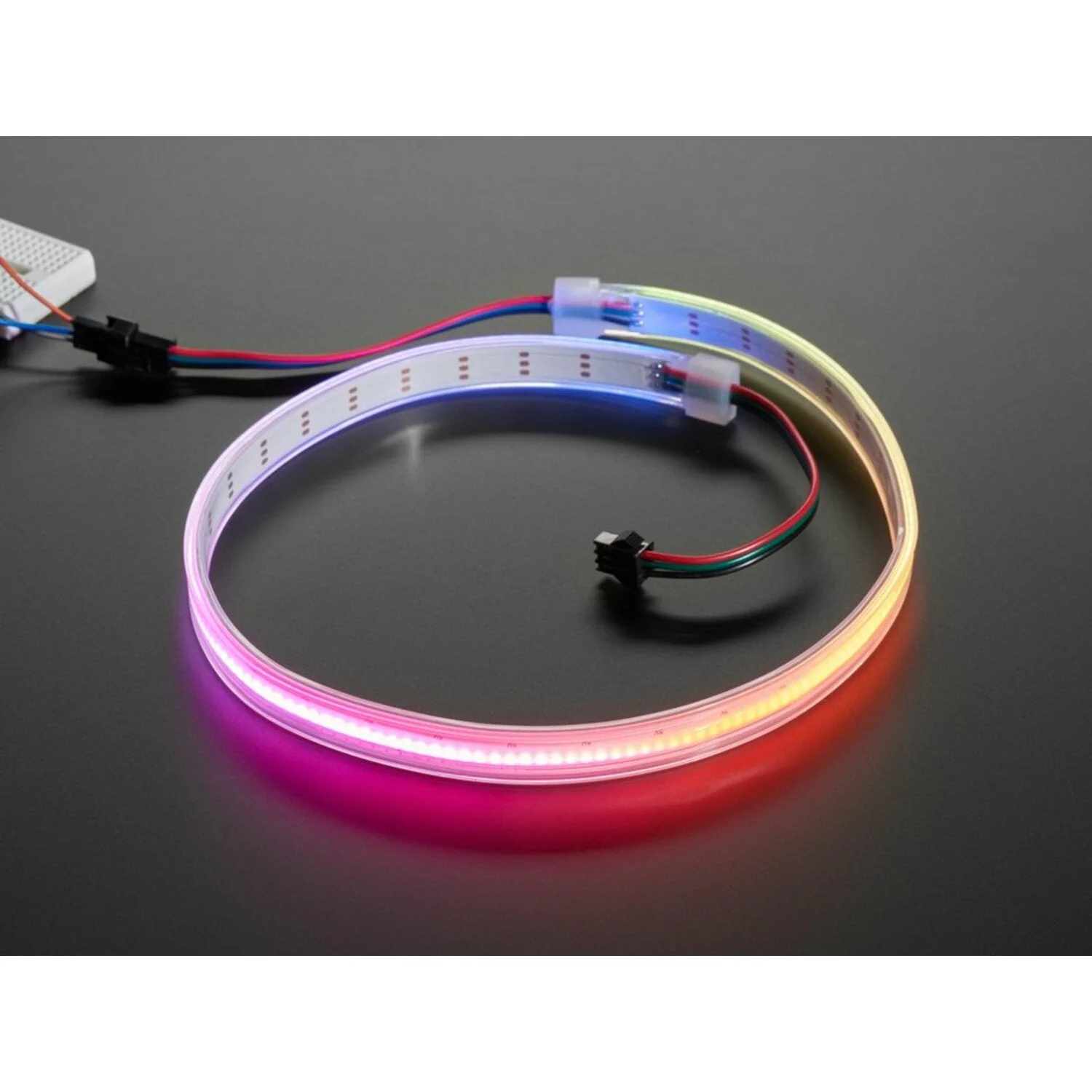

The Adafruit NeoPixel 332 LED/m Silicone Bead Strip packs an astonishing 165 miniature SK6812 NeoPixels into a 0.5 m length, coated with a milky silicone bead diffuser for a smooth, continuous colour gradient. At 332 LEDs per metre, this is one of the highest-density addressable LED strips available.

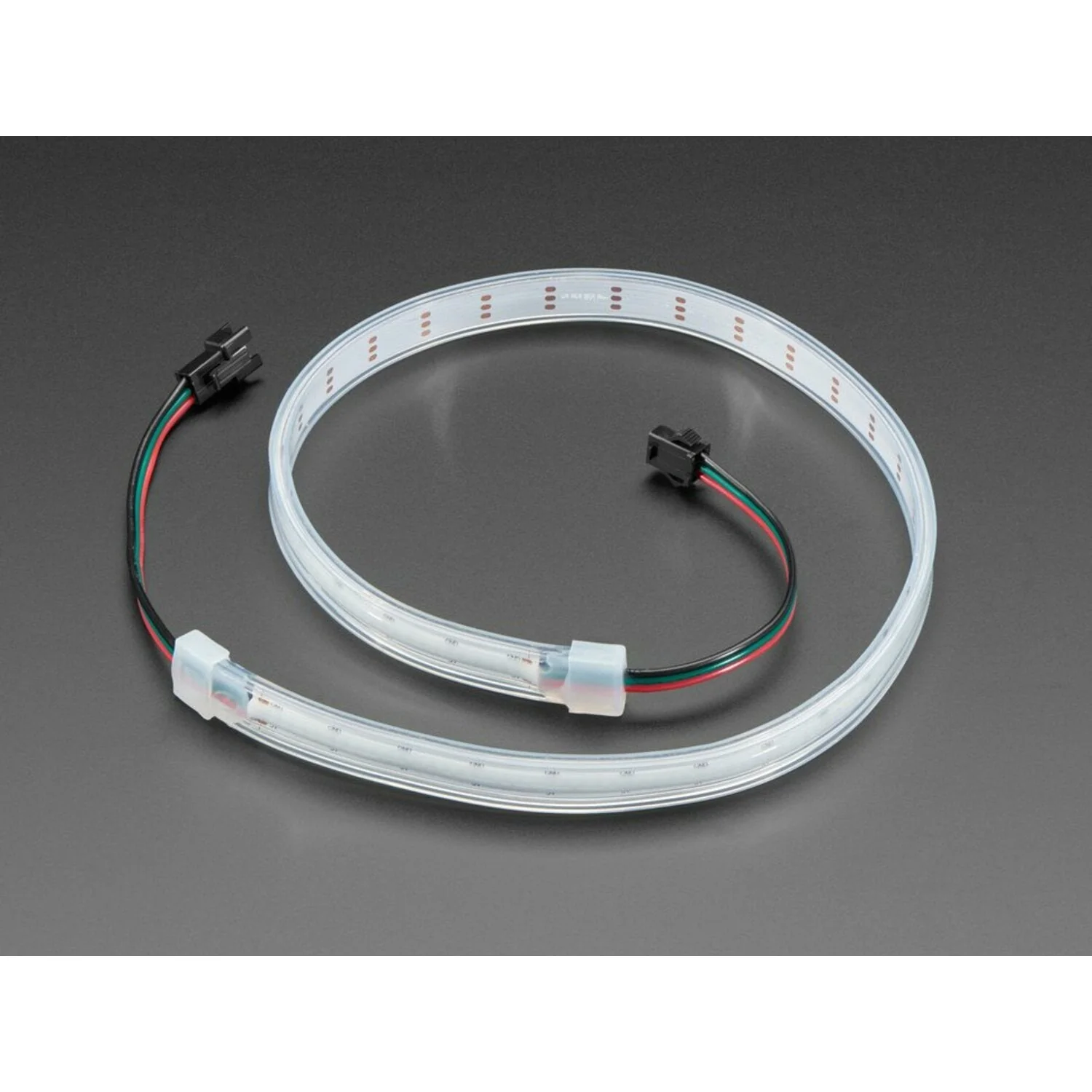

Each LED provides 24-bit colour (8-bit per RGB channel) on a single data line. The SK6812 LEDs work with 3–5 V logic and power (best at 5 V), and don't require an inline resistor. The strip is 14 mm wide on flexible PCB with weatherproof sheathing, and comes with JST SM 3-pin connectors and colour-coded wires (black = ground, green = signal, red = 5 V).
Key Features
- 332 LEDs per Metre – 165 miniature SK6812 NeoPixels in 0.5 m

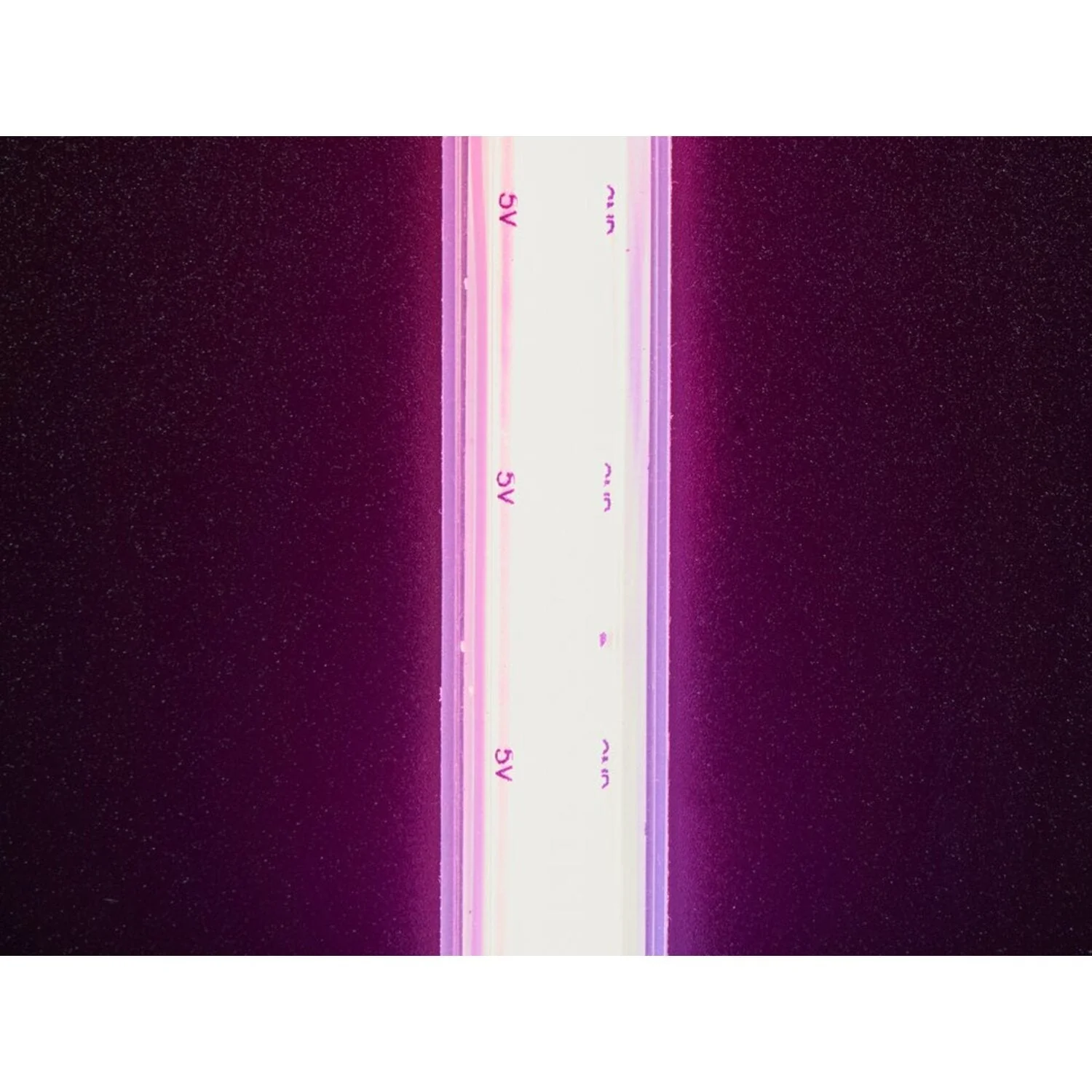

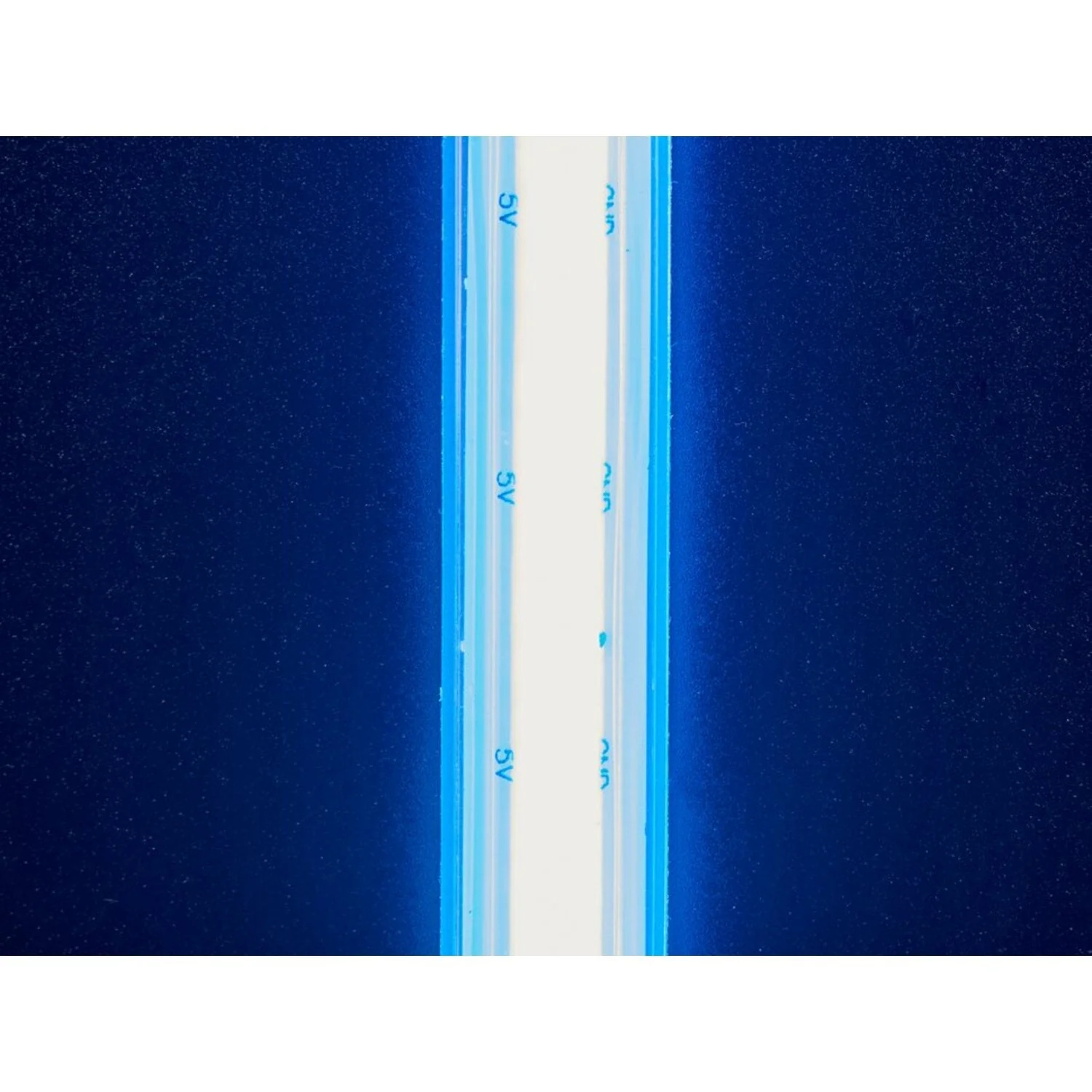

- Silicone Bead Diffuser – Milky coating produces smooth, continuous colour blending
- 24-Bit Colour – 8-bit PWM per red, green, and blue channel
- Single-Pin Control – One digital output drives the entire strip
- 3–5 V Compatible – SK6812 LEDs work without inline resistor
- Cuttable – Shorten with wire cutters as needed
- Chainable – Connect multiple strips (watch current budget)

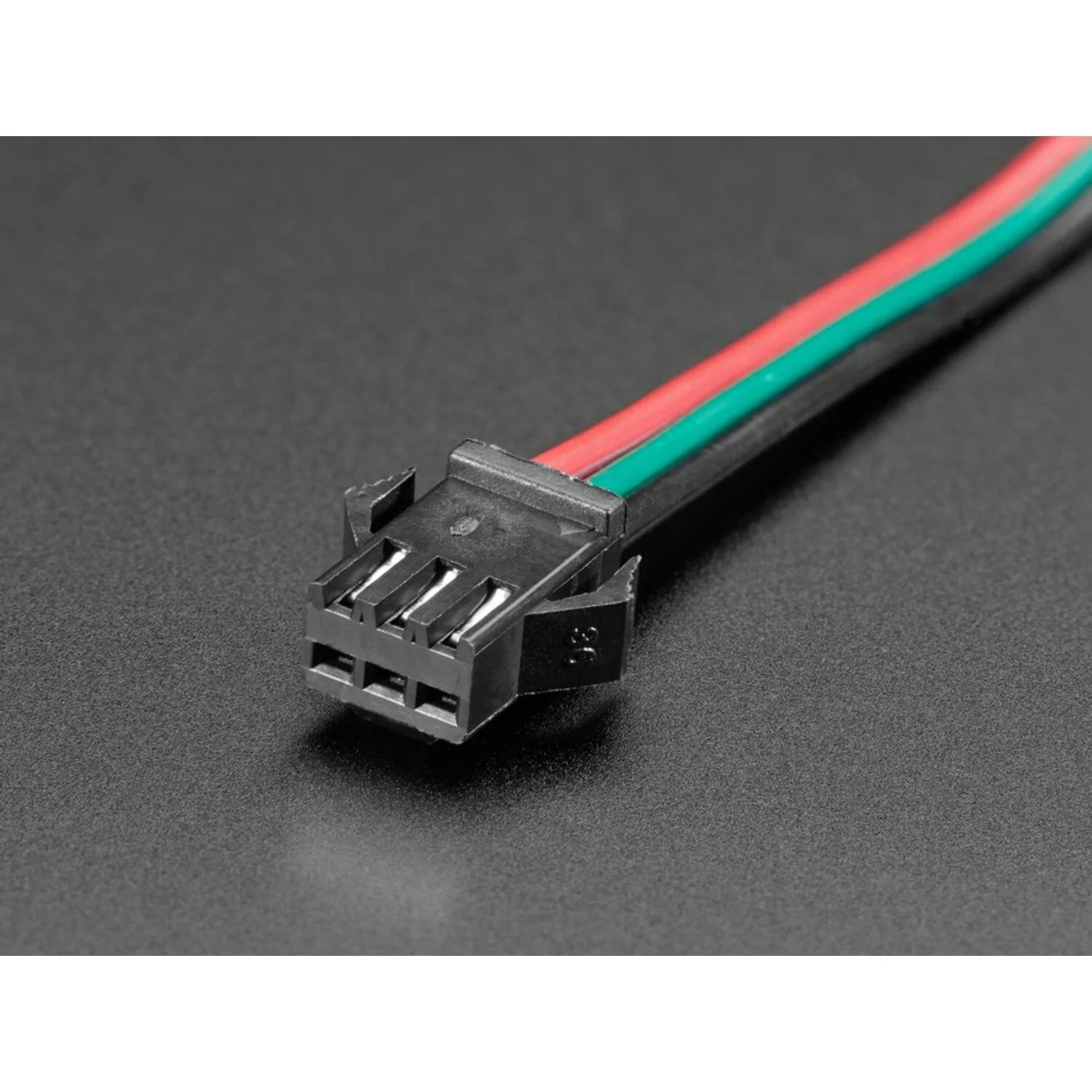

- JST SM 3-Pin Connectors – Plug and socket on each end with colour-coded wires
Power Requirements
- Maximum theoretical draw – ~10 A at 5 V for 0.5 m (all LEDs full white)
- Typical draw – Less than one-third of maximum for colourful patterns
- A 5 V 2 A supply is sufficient for colourful designs at moderate brightness
Ideal For
- Ultra-smooth colour gradient effects
- Wearable electronics and costumes
- High-density light painting
- Compact LED art with continuous colour blending
Package Contents
- 1× 0.5 m NeoPixel 332 LED/m Silicone Bead Strip (with weatherproof sheathing)
Resources
- NeoPixel Uberguide – Comprehensive guide with wiring, code examples, and best practices
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Adafruit NeoPixel 332 LED/m Silicone Bead Strip packs an astonishing 165 miniature SK6812 NeoPixels into a 0.5 m length, coated with a milky silicone bead diffuser for a smooth, continuous colour gradient. At 332 LEDs per metre, this is one of the highest-density addressable LED strips available.
Each LED provides 24-bit colour (8-bit per RGB channel) on a single data line. The SK6812 LEDs work with 3–5 V logic and power (best at 5 V), and don't require an inline resistor. The strip is 14 mm wide on flexible PCB with weatherproof sheathing, and comes with JST SM 3-pin connectors and colour-coded wires (black = ground, green = signal, red = 5 V).
Key Features
- 332 LEDs per Metre – 165 miniature SK6812 NeoPixels in 0.5 m
- Silicone Bead Diffuser – Milky coating produces smooth, continuous colour blending
- 24-Bit Colour – 8-bit PWM per red, green, and blue channel
- Single-Pin Control – One digital output drives the entire strip
- 3–5 V Compatible – SK6812 LEDs work without inline resistor
- Cuttable – Shorten with wire cutters as needed
- Chainable – Connect multiple strips (watch current budget)
- JST SM 3-Pin Connectors – Plug and socket on each end with colour-coded wires
Power Requirements
- Maximum theoretical draw – ~10 A at 5 V for 0.5 m (all LEDs full white)
- Typical draw – Less than one-third of maximum for colourful patterns
- A 5 V 2 A supply is sufficient for colourful designs at moderate brightness
Ideal For
- Ultra-smooth colour gradient effects
- Wearable electronics and costumes
- High-density light painting
- Compact LED art with continuous colour blending
Package Contents
- 1× 0.5 m NeoPixel 332 LED/m Silicone Bead Strip (with weatherproof sheathing)
Resources
- NeoPixel Uberguide – Comprehensive guide with wiring, code examples, and best practices
