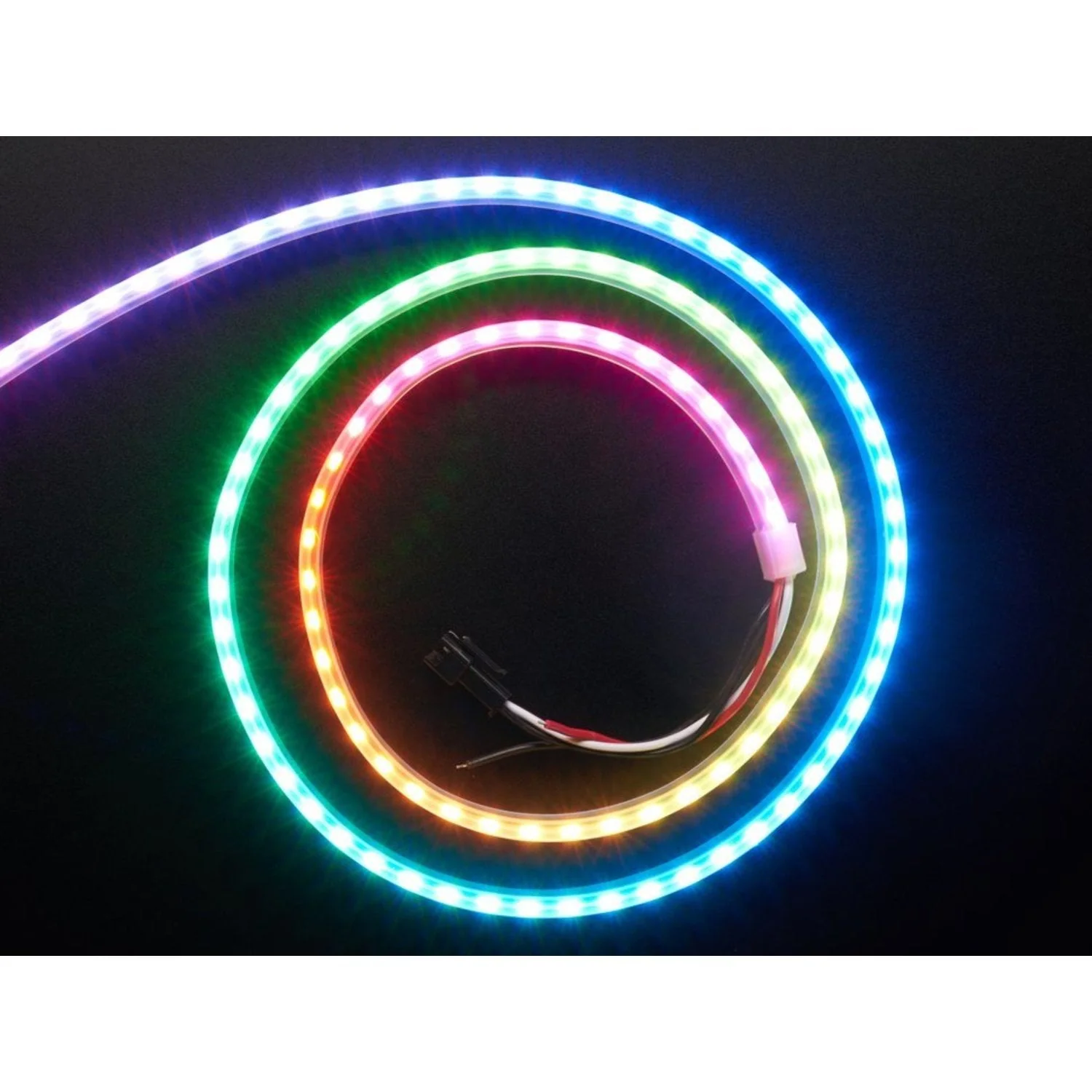

A high-density side-emitting NeoPixel strip with 120 individually addressable RGB LEDs per metre on a flexible black PCB. Unlike standard NeoPixel strips that emit light upward, these side-light LEDs emit at 90 degrees — perfect for accent lighting along thin edges, curves, and corners.

The skinny form factor allows these strips to run along edges and curve around shapes where traditional top-emitting strips won't fit. Also available at 60 LED/m and 90 LED/m densities.

Key Features

• 120 Side-Emitting LEDs per Metre – High-density side light for seamless edge illumination
• 90-Degree Light Emission – LEDs emit sideways rather than upward for edge and accent lighting
• Individually Addressable – Control each LED independently with single-pin data
• Skinny Form Factor – Narrow enough to fit along thin edges and curves
• Black Flex PCB – Blends into dark surfaces when off
• Weatherproof Sheathing – Protective casing included
• Cuttable – Cut line at the halfway point; solder to 0.1" copper pads

Power Requirements

• Voltage – 5V DC
• Recommended Supplies – 5V 2A supply for 1 metre; 5V 10A supply for multiple metres

Ideal For

• Edge and accent lighting along furniture, shelves, and displays
• Backlighting for signs and lettering
• Curved surface illumination
• Architectural detail lighting

Package Contents

• 1× NeoPixel LED Side Light Strip – 120 LED/m, 1 metre, black PCB, with 2-pin JST SM connectors

Resources

• NeoPixel Uberguide – Comprehensive wiring, coding, and power guide
