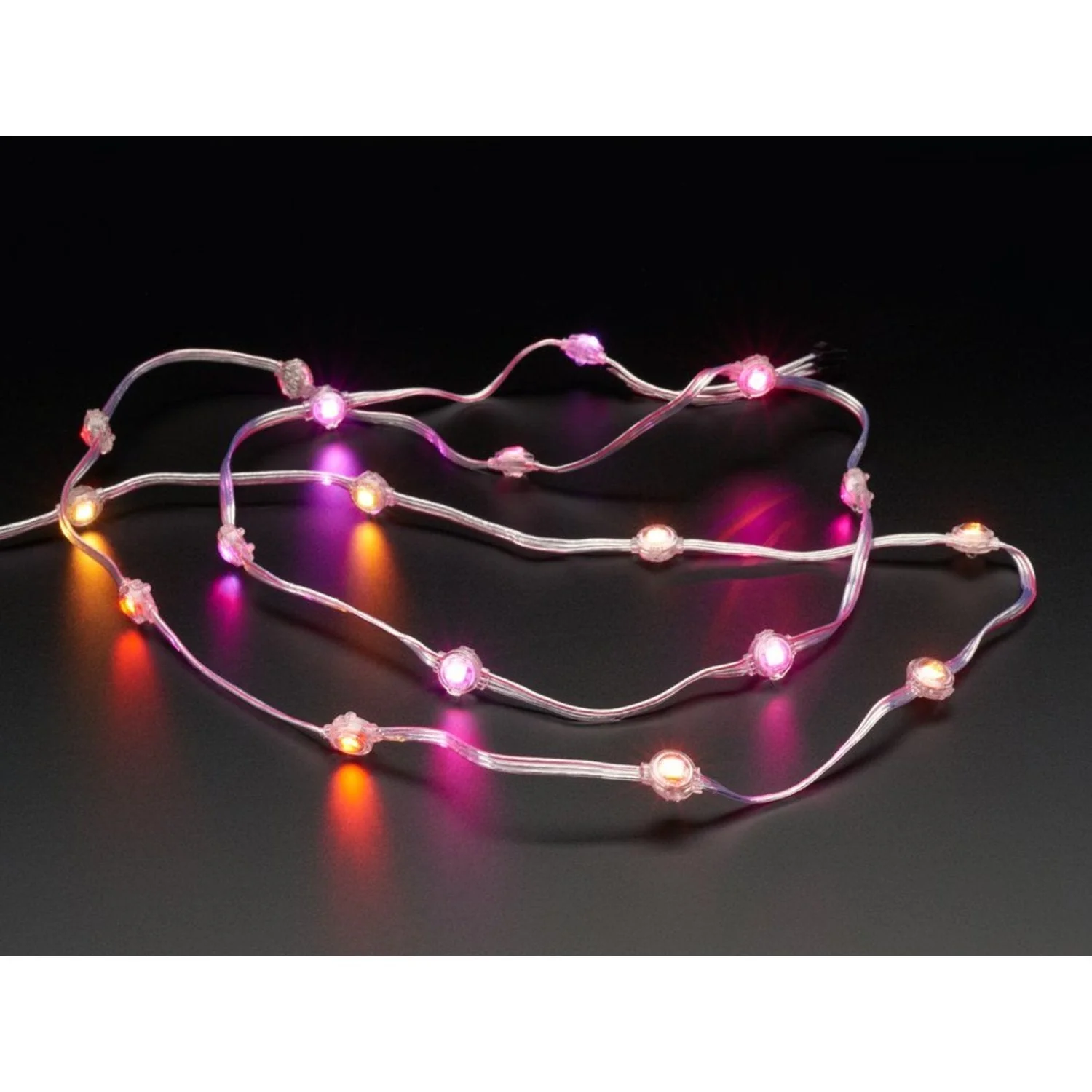

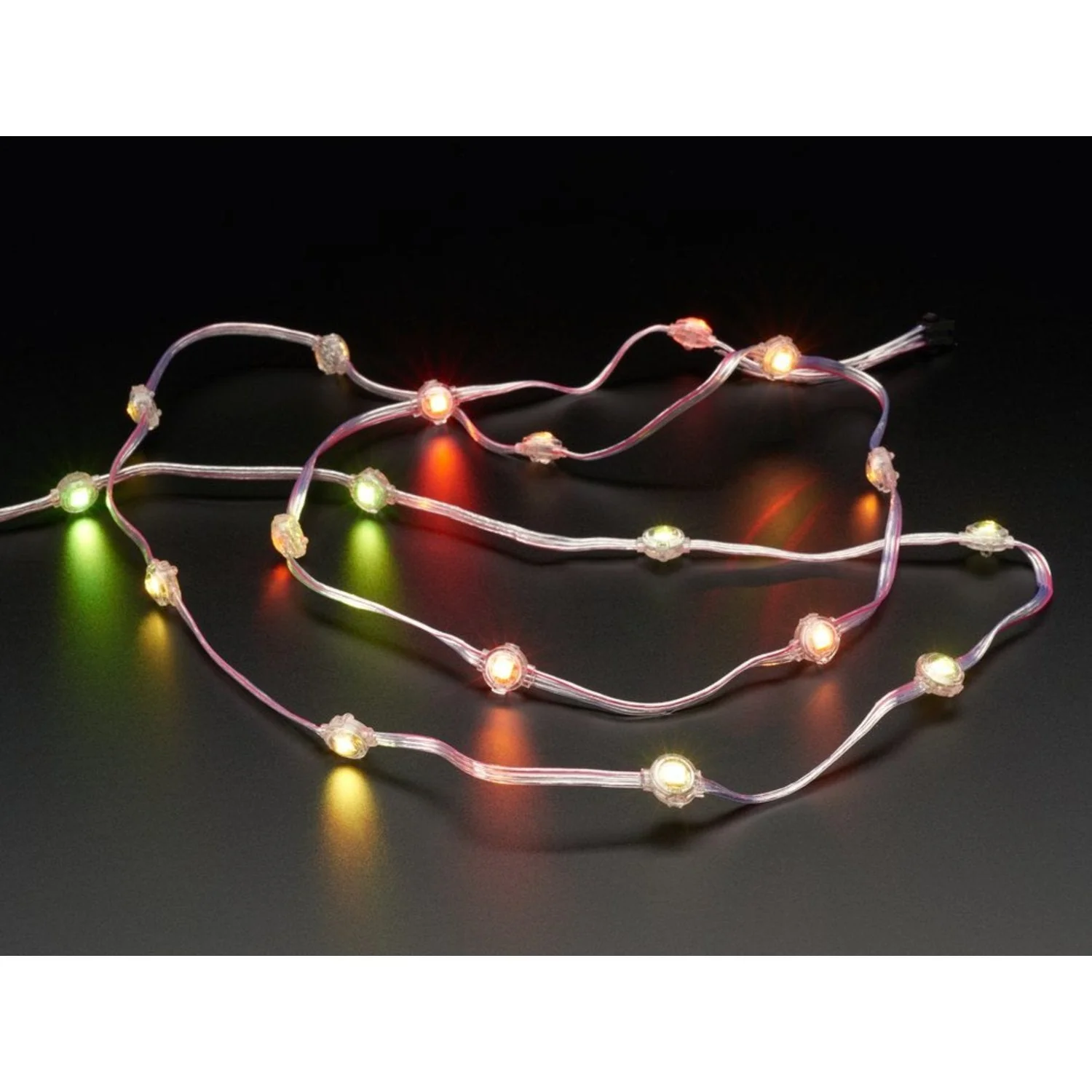

Stranded NeoPixel dots are perfect for adding individual points of colour to costumes, wearables, and decorations without the rigidity of a PCB strip. Each strand contains 20 individually addressable NeoPixel LEDs enclosed in small weatherproof plastic buttons, spaced 4 inches (10 cm) apart. Also available with 2-inch spacing for denser dot patterns.

Each dot has plastic hooks moulded into the back for tack-sewing onto fabric. The flexible wire cabling between dots allows natural movement, and the wider 4-inch spacing covers more area with fewer LEDs — ideal for spread-out decorative effects.

Key Features

• 20 NeoPixel Dots – Individually addressable RGB LEDs in small plastic enclosures
• 4-Inch (10 cm) Spacing – Wider spacing for spread-out lighting effects across larger areas
• Sewable Design – Built-in plastic hooks for tack-sewing onto fabric or structures
• Weatherproof Buttons – Each dot is enclosed in a protective plastic housing (not submersible)
• Flexible Wiring – Wire strand between dots allows bending and movement without damage
• Chainable – Add more strands or disconnect unwanted dots at the end
• Single-Pin Control – Built-in PWM controller in each LED maintains colour without continuous data

Wiring

• Red Wire – +5V power
• Middle Wire – Data
• Edge Wire – Ground

Ideal For

• Costumes and cosplay lighting
• Wearable electronics and fashion tech
• Holiday and decorative lighting across larger areas
• Embedding into models, props, and structures

Package Contents

• 1× NeoPixel LED Dots Strand – 20 LEDs at 4" pitch

Resources

• NeoPixel Uberguide – Comprehensive wiring, coding, and power guide
