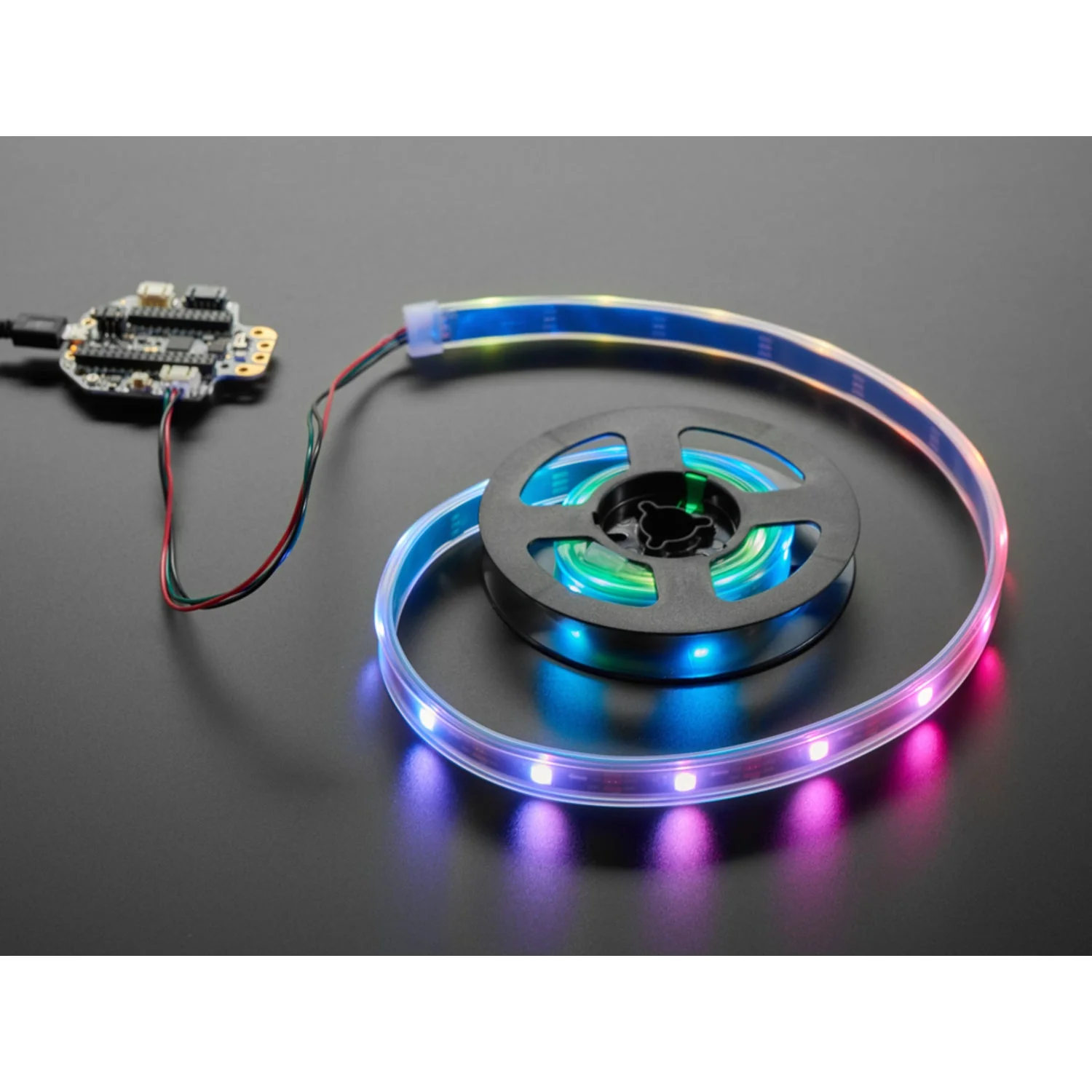

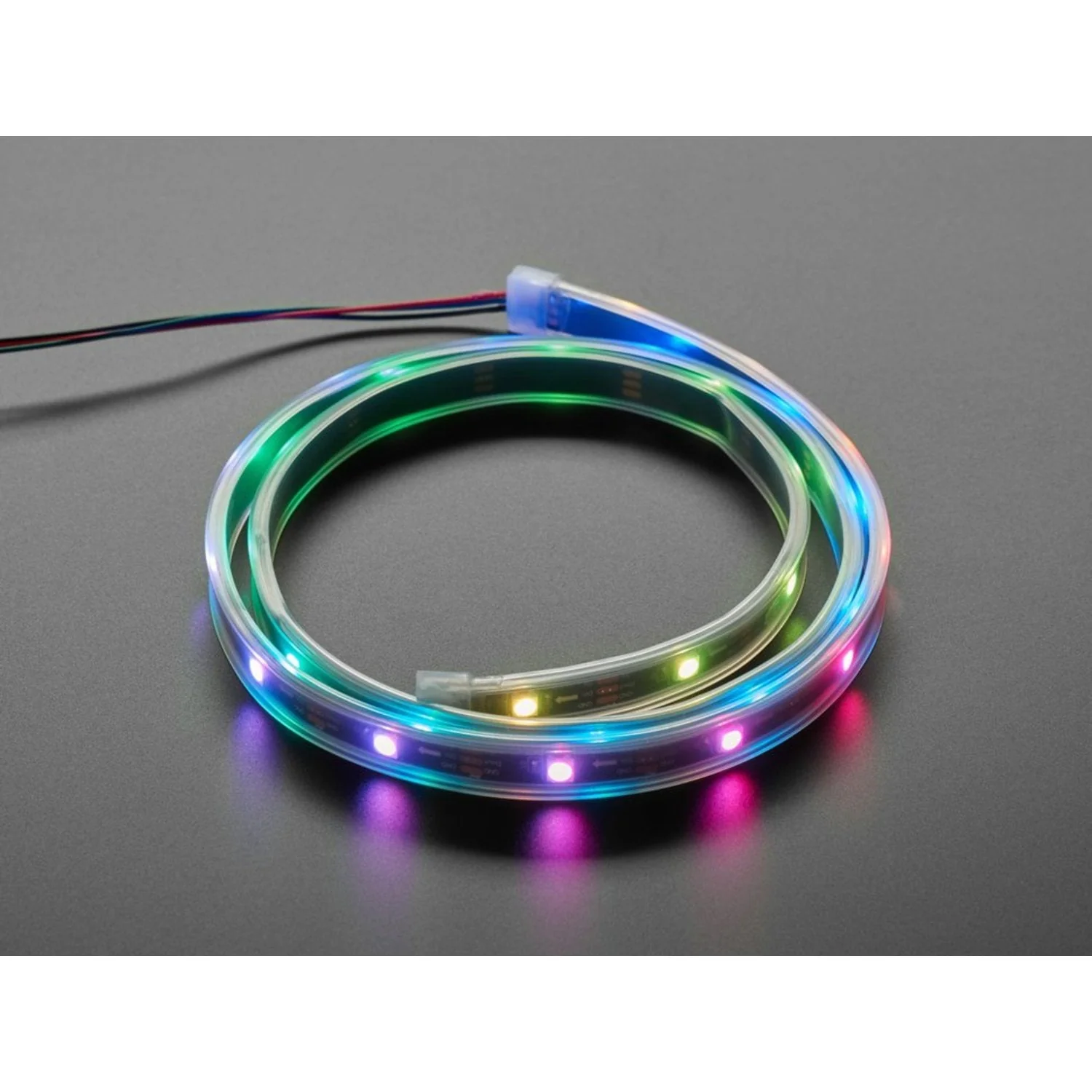

A plug-and-play NeoPixel strip with a JST PH 3-pin connector for instant connection to STEMMA-compatible boards. The strip has 30 individually addressable RGB LEDs on a 1-metre black flex PCB — perfect for Hallowing, PyPortal, BrainCraft HAT, or any board with a 3-pin JST PH NeoPixel socket.

Uses SK6812 LEDs that work at 3–5V logic and power, with no inline resistor needed. The 30 cm colour-coded wires terminate in a JST PH plug for a secure, solder-free connection.

Key Features

• JST PH 3-Pin Connector – Plugs directly into STEMMA-compatible NeoPixel sockets for instant setup
• 30 RGB LEDs – Individually addressable with 24-bit colour on a 1-metre strip
• 3–5V Compatible – SK6812 LEDs work at 3V logic and power, no inline resistor needed
• Colour-Coded Wires – 30 cm leads: red (power), green (signal), black (ground)
• Black Flex PCB – Blends into dark surfaces with high contrast when off
• Weatherproof Sheathing – Protective casing included
• Cuttable – Shorten the strip by cutting with wire cutters
• Single-Pin Control – Only one digital output pin required

Power Requirements

• Voltage – 3–5V DC (do not exceed 6V)
• Max Current – ~1A at full white (4.8W for the full metre)
• Typical Current – Colourful patterns draw well under 1/3 of maximum
• Can often be powered directly from your microcontroller board

Ideal For

• Hallowing, PyPortal, and BrainCraft HAT projects
• Any board with a STEMMA 3-pin JST PH NeoPixel socket
• Quick prototyping without soldering
• Wearables and costumes

Package Contents

• 1× NeoPixel LED Strip – 30 LED/m, 1 metre, black PCB, with JST PH 3-pin connector

Resources

• NeoPixel Uberguide – Wiring, coding, and power guide (Arduino, MakeCode, and CircuitPython)
