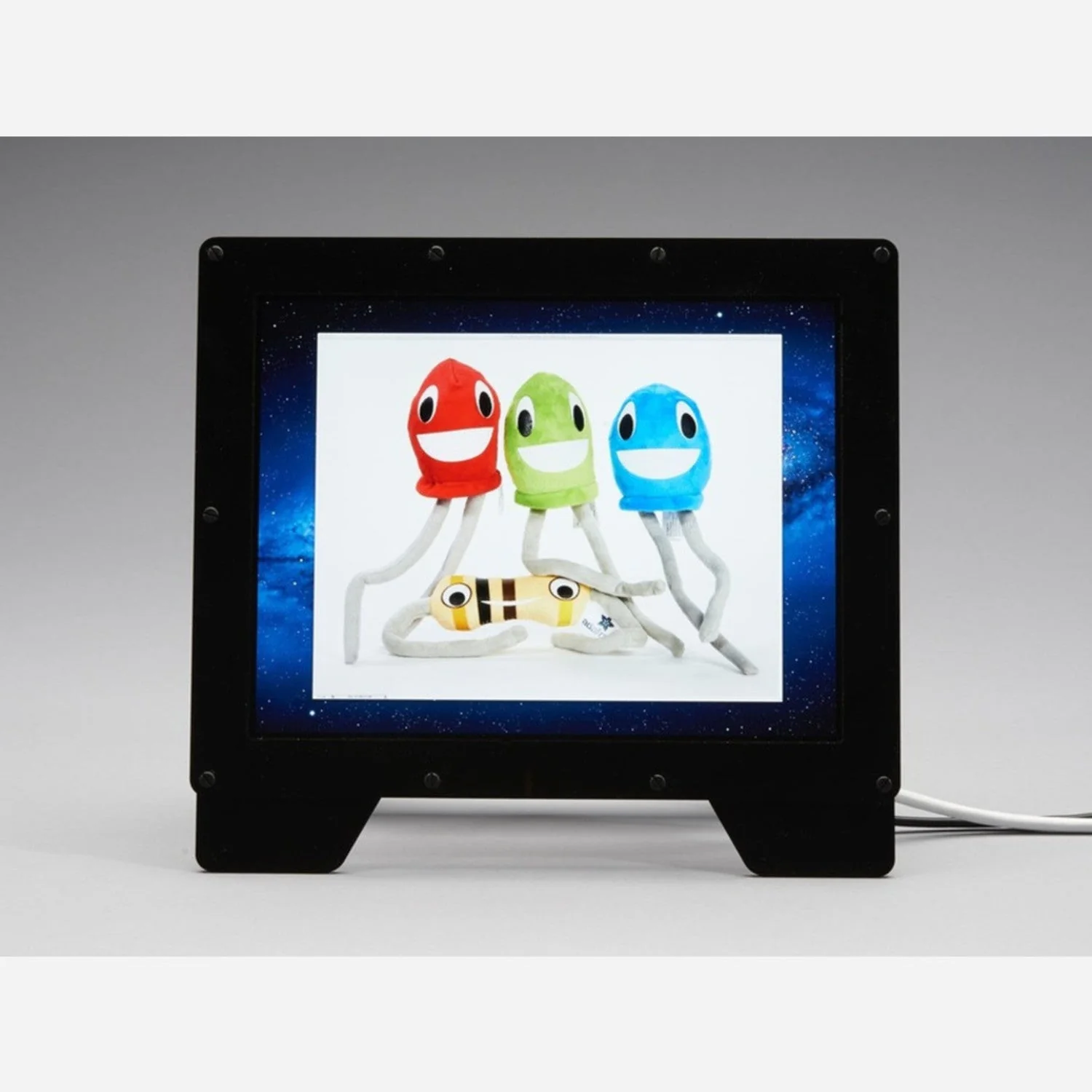

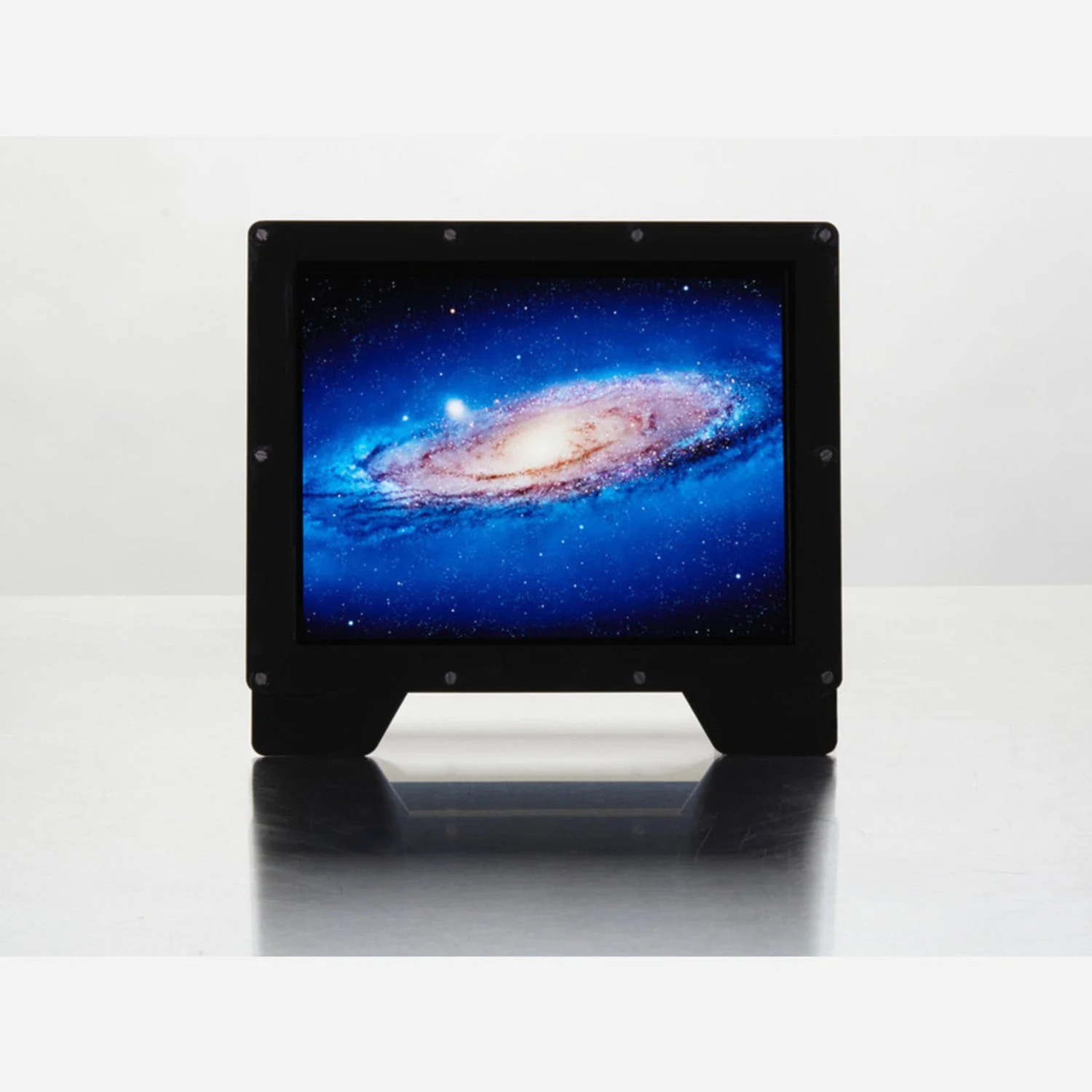

The Adafruit Qualia 9.7" DisplayPort Monitor is a high-resolution desktop display kit featuring a 2048×1536 IPS panel (the same retina-class display used in the iPad 3 and 4). Connect it to any computer with a DisplayPort or Thunderbolt port for an ultra-sharp secondary monitor — no drivers, soldering, or configuration required.

The custom driver board uses the LT3754 12-channel constant-current LED driver for perfectly consistent backlighting across all temperatures and usage conditions. An ATtiny85 handles soft on/off and PWM backlight dimming. The kit includes the display panel (pre-attached and tested), driver board, acrylic enclosure, 3 m (10 ft) DisplayPort cable, and 9 V power adapter.

Key Features

• 9.7" IPS Display – 2048×1536 retina-class resolution with excellent viewing angles
• DisplayPort Input – Plug-and-play with any DisplayPort or Thunderbolt port
• LT3754 Backlight Driver – 12-channel constant-current for perfectly even backlighting
• Adjustable Brightness – PWM-controlled backlight dimming with soft on/off
• No Drivers Required – Works immediately on any OS

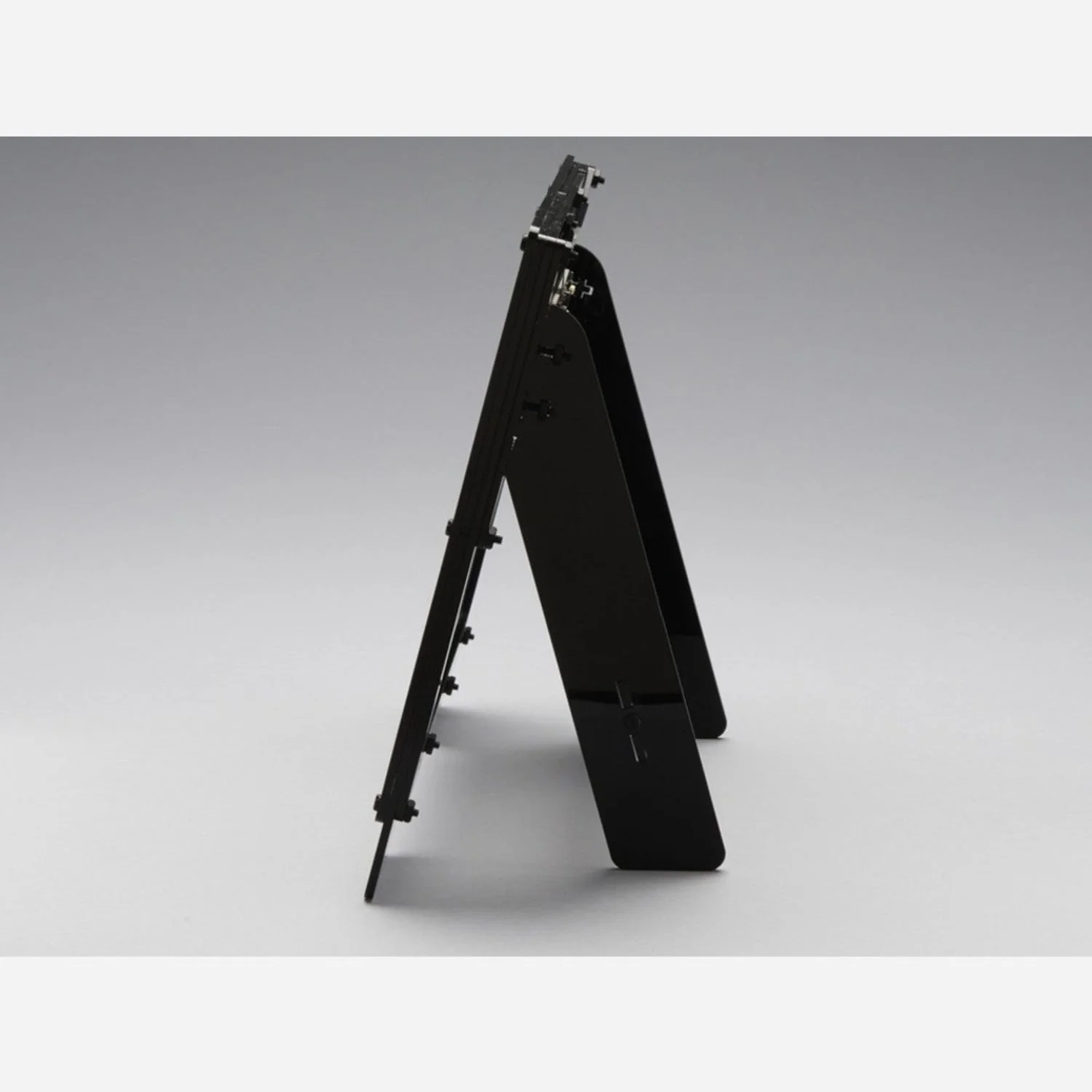

• Stand-Up Enclosure – Acrylic case assembles in about 30 minutes with a small screwdriver

Package Contents

• 1× 9.7" 2048×1536 IPS display panel (pre-attached to driver board)
• 1× Custom DisplayPort driver board
• 1× Acrylic enclosure kit
• 1× 3 m (10 ft) DisplayPort cable
• 1× 9 V power adapter

Ideal For

• Secondary monitor for photo and video editing
• Web development retina display preview
• Dashboard and notification display
• Compact high-resolution desktop monitor

Resources

• Qualia DisplayPort Monitor Assembly Guide
