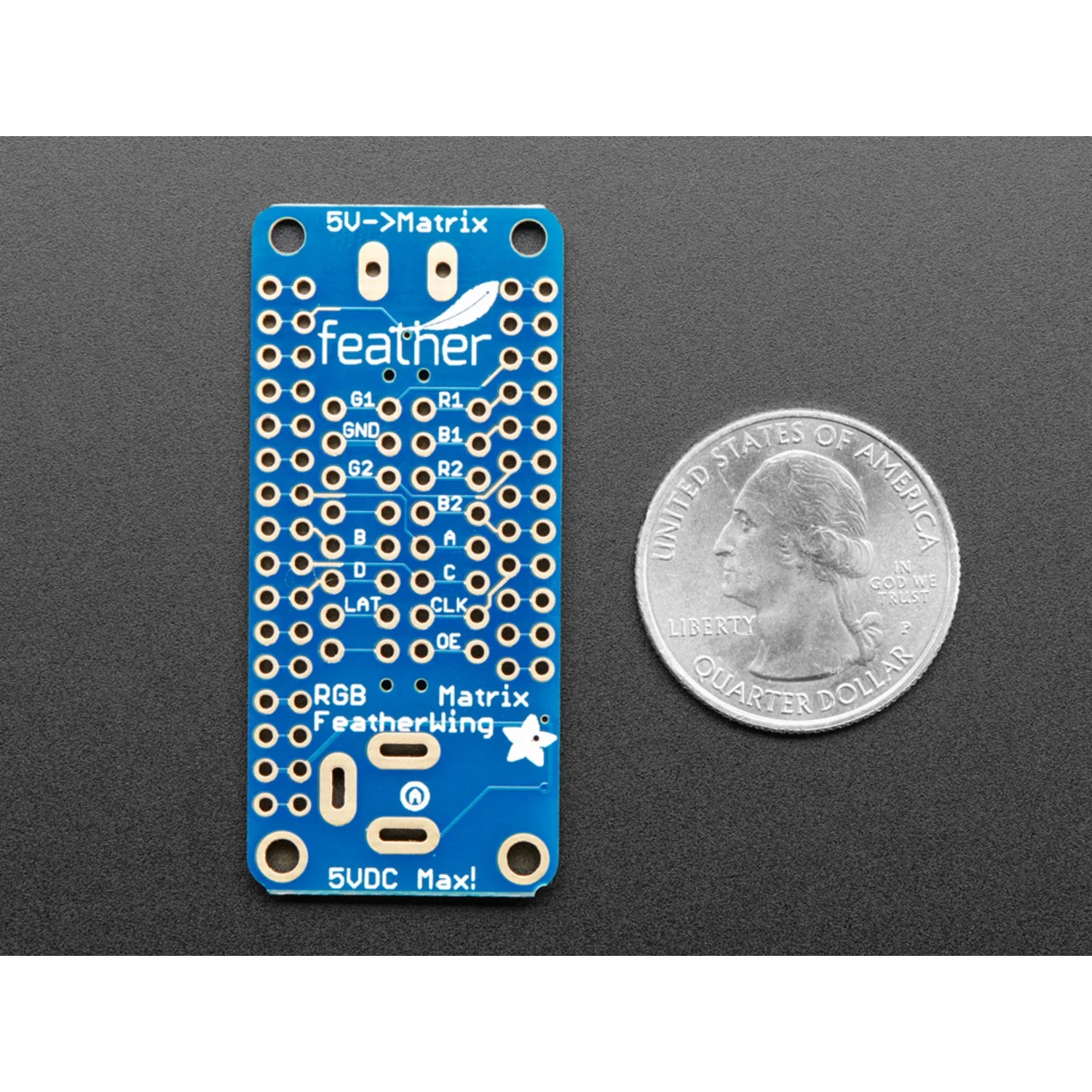

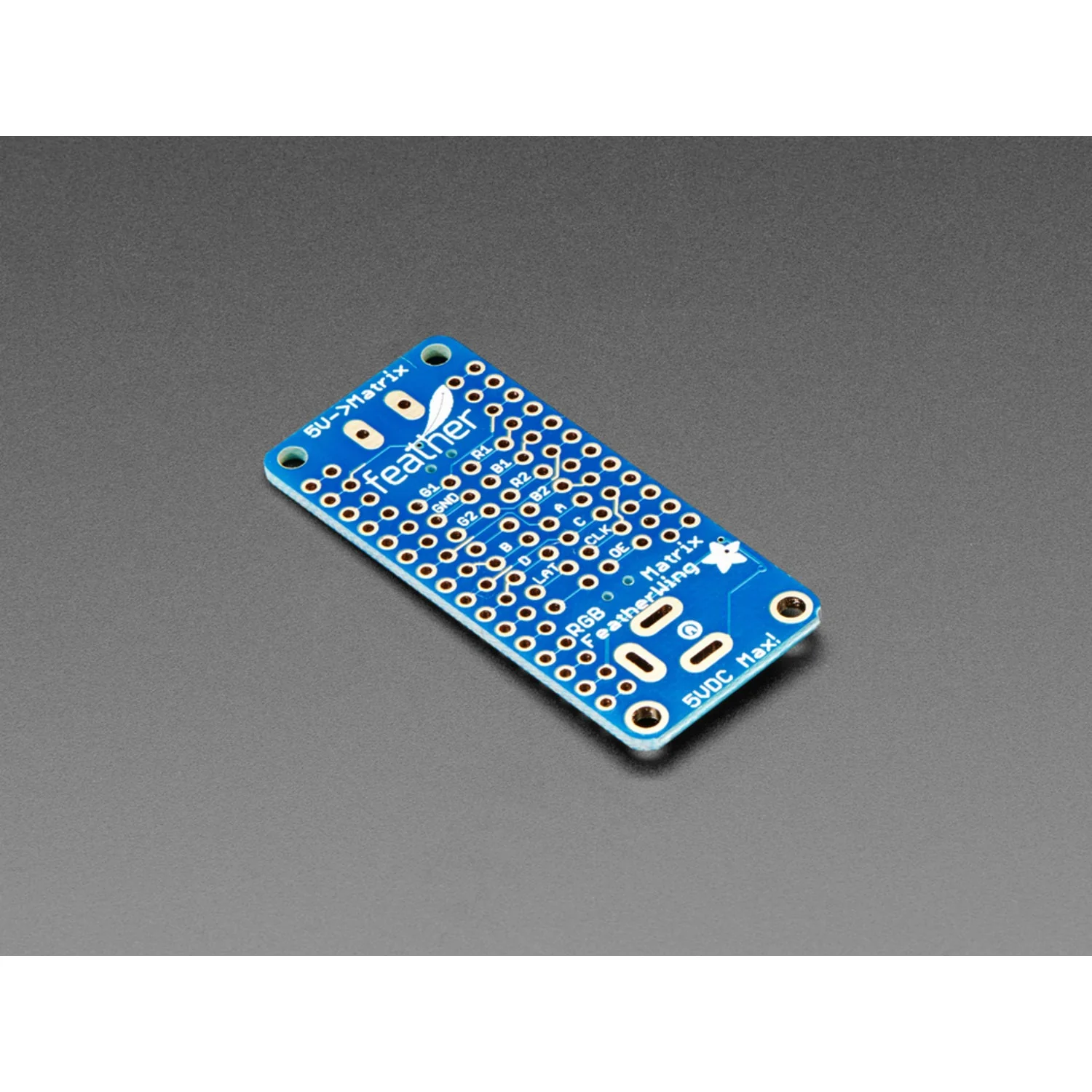

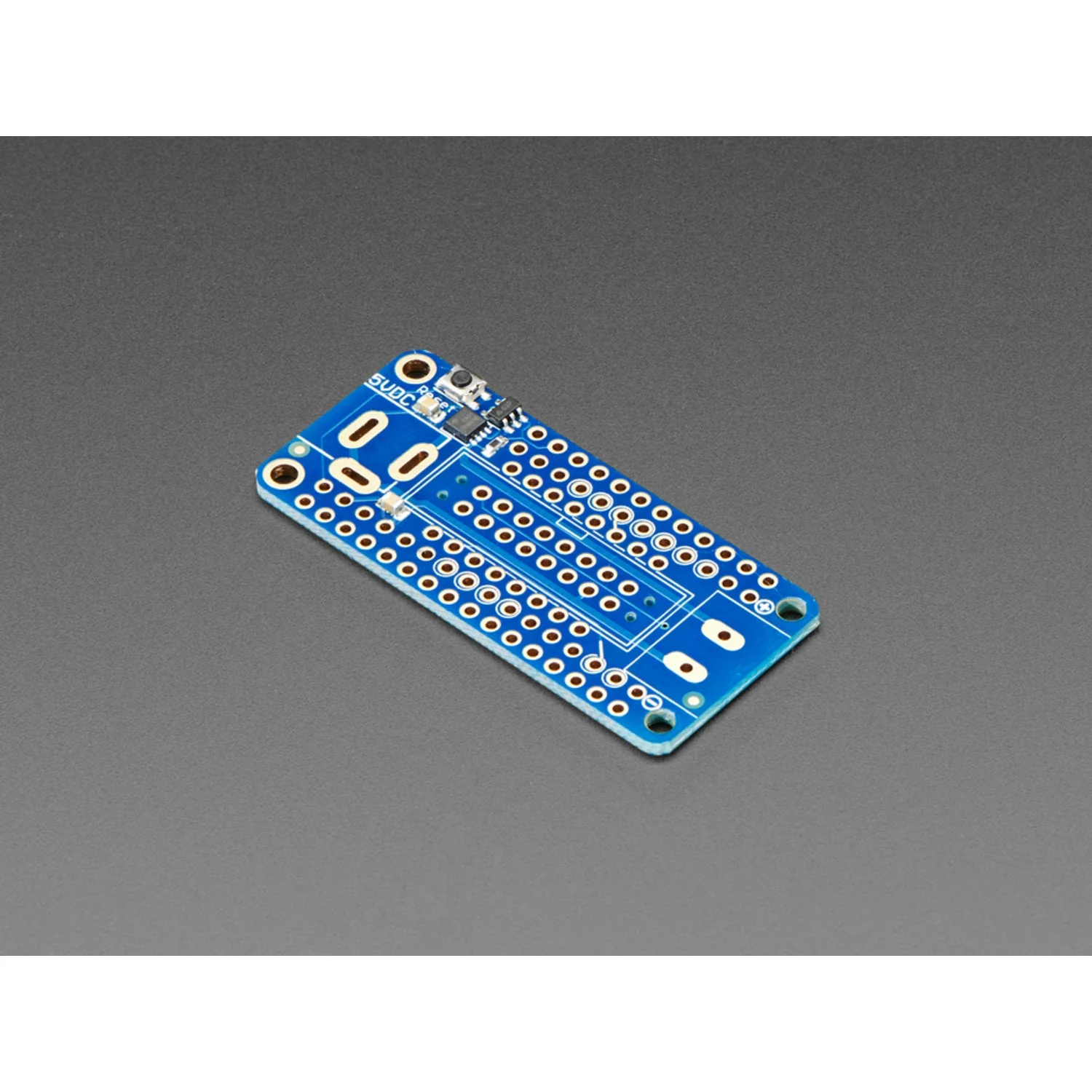

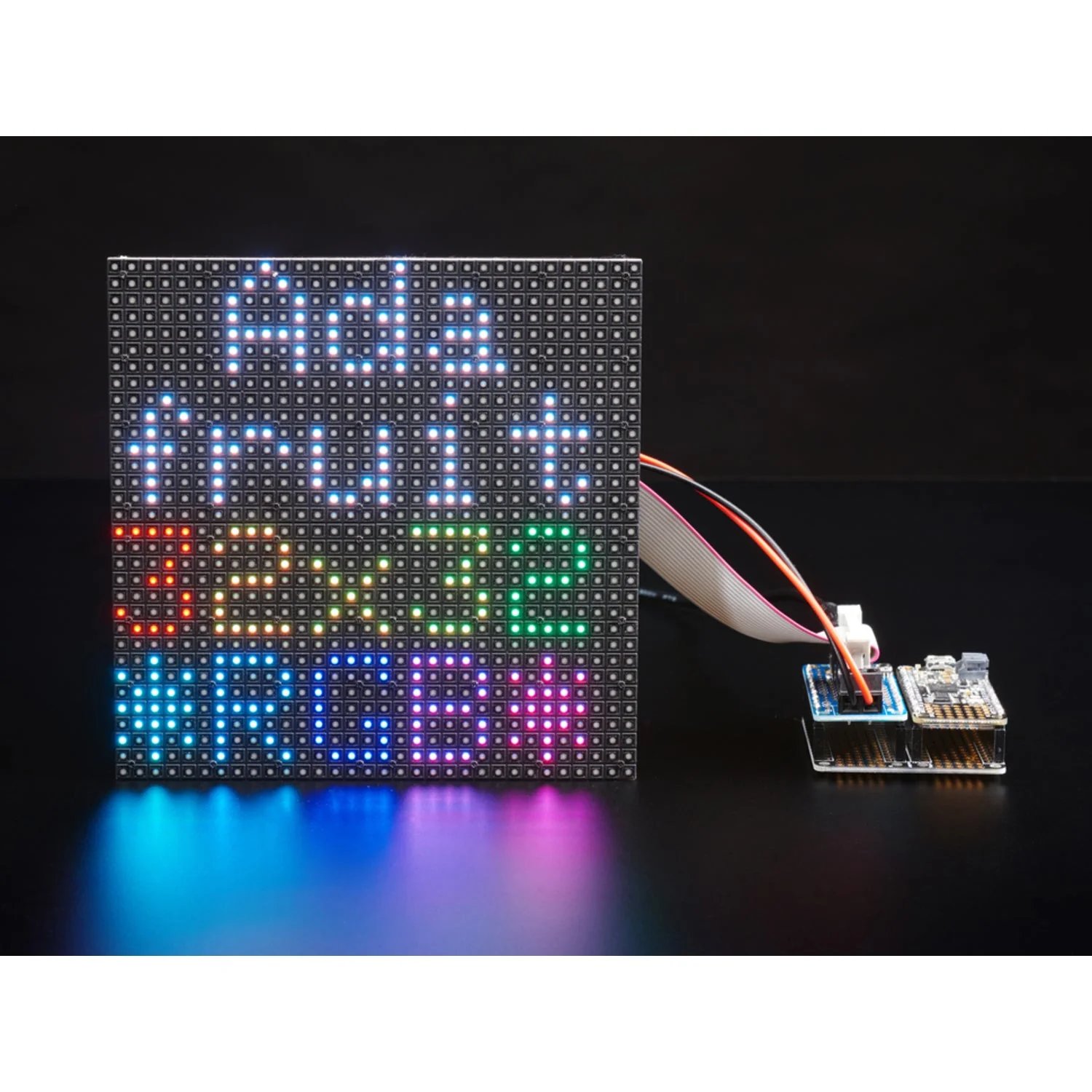

The Adafruit RGB Matrix FeatherWing Kit lets you drive HUB75-type RGB LED matrices from any SAMD21 M0 or SAMD51 M4 Feather board. With built-in power regulation and a compact form factor, it's the easiest way to create colourful scrolling displays and LED wall projects using the Feather ecosystem.

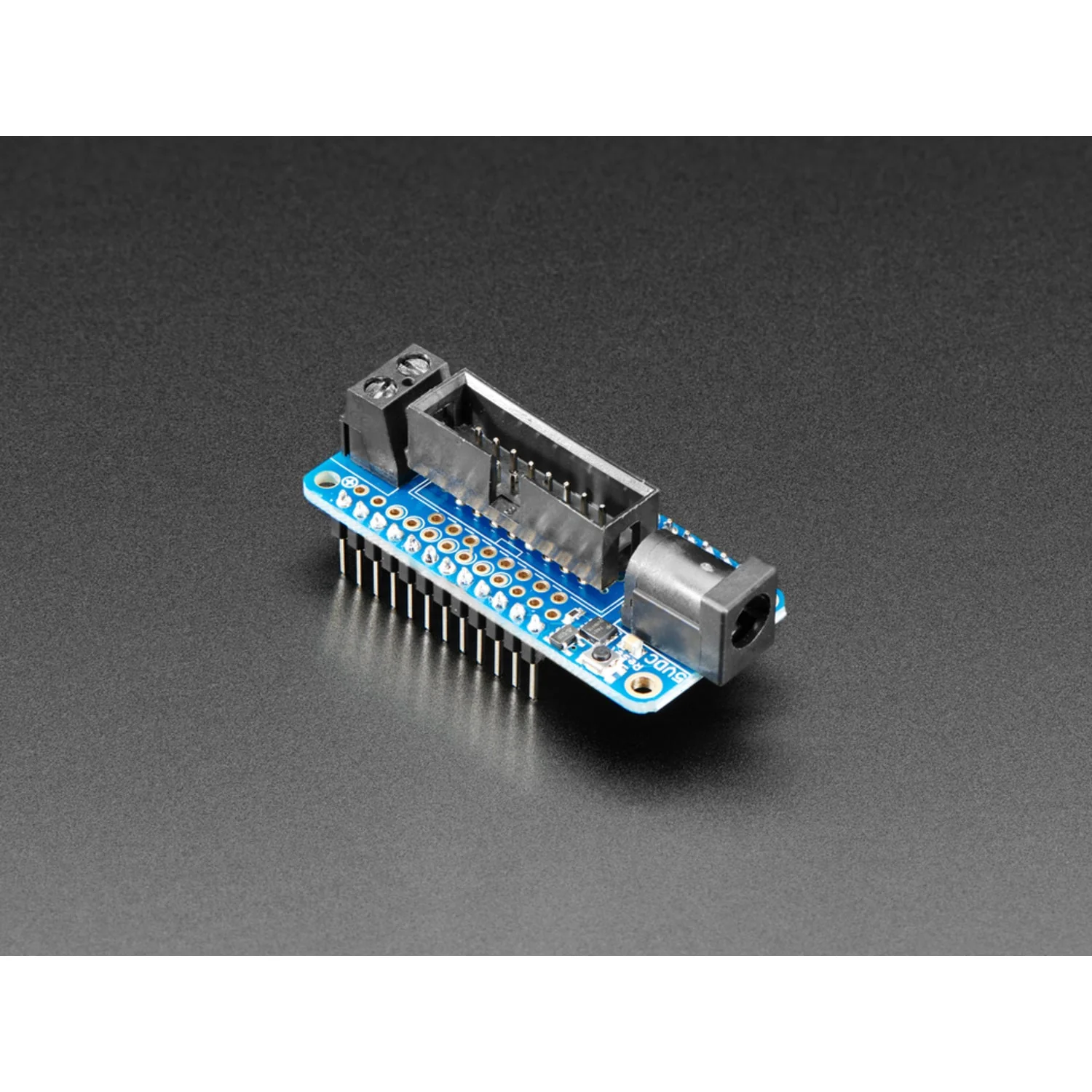

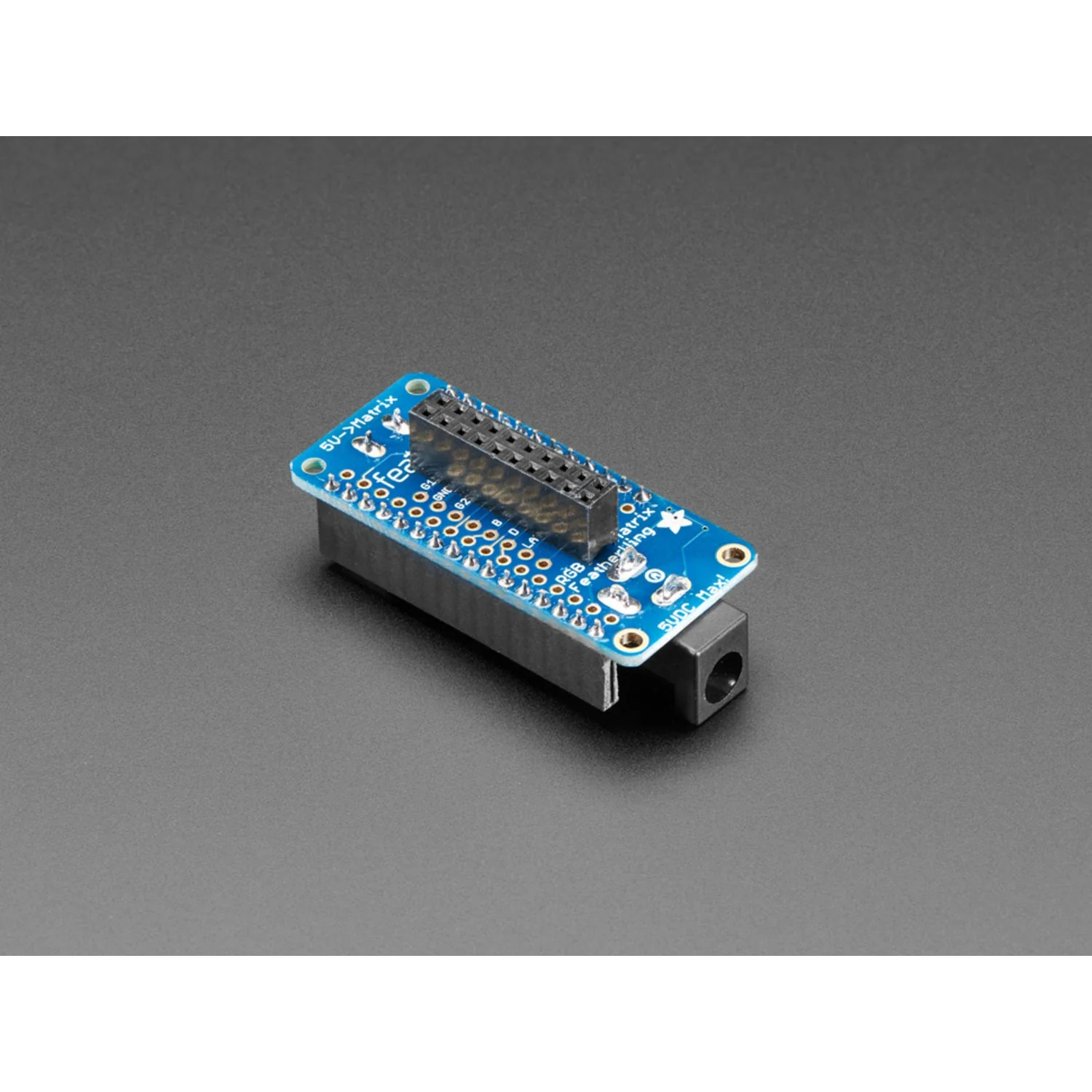

The wing can be assembled in two ways: solder the 2×8 IDC header on top to connect via cable and stack on your Feather, or solder the 2×10 socket header on the bottom to plug the wing directly into the back of your matrix with the Feather stacked on top. A 5 V DC jack with polarity protection powers the matrix, and an onboard 3.3 V regulator powers the Feather — no separate USB or battery needed.

Key Features

• Feather-Compatible – Works with SAMD21 M0 and SAMD51 M4 Feather boards
• HUB75 Matrix Support – Drives 16×32, 32×32, and 64×32 RGB LED matrices
• Dual Assembly Options – IDC cable on top or direct plug-in on the back of the matrix
• Onboard Power Regulation – 5 V input with polarity protection; built-in 3.3 V regulator for the Feather
• 2.1 mm DC Jack – Standard barrel connector for 5 V power supply
• Compact Build – No separate USB or battery required for the Feather

Ideal For

• Portable LED matrix signage and displays
• Compact scrolling text projects
• Wearable or battery-powered LED installations
• Feather-based IoT display projects

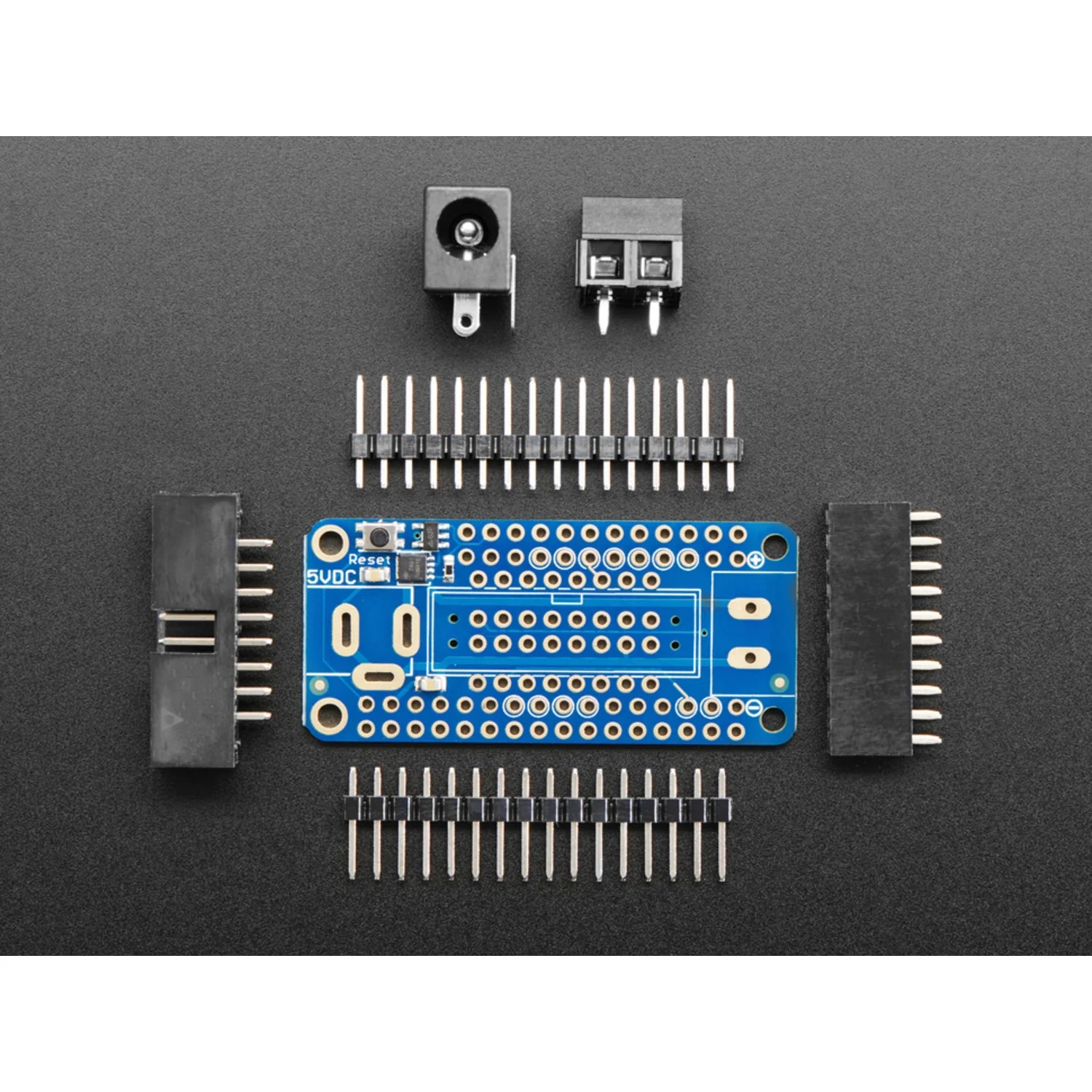

Package Contents

• 1× RGB Matrix FeatherWing PCB (surface-mount parts pre-attached)
• 1× 2×8 IDC shrouded header
• 1× 2×10 female socket header
• 1× 2.1 mm DC jack
• 1× 5.08 mm terminal block
• 1× Male header strip

Resources

• RGB Matrix Panel Library (GitHub)
