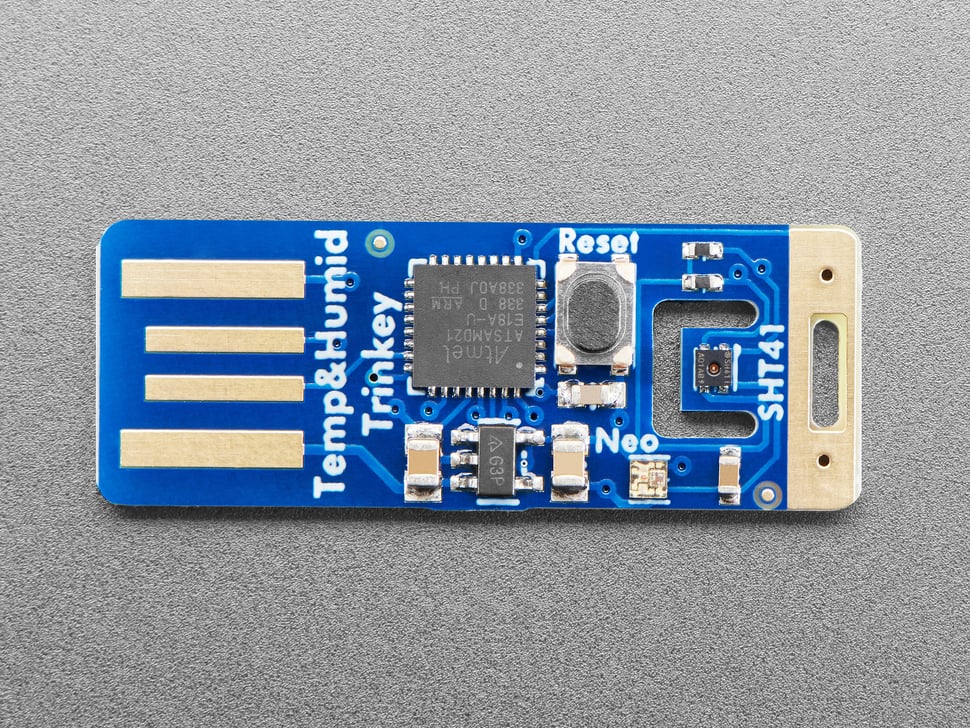

The Adafruit SHT41 Trinkey is a tiny USB A device that combines an ATSAMD21 microcontroller with a Sensirion SHT41 temperature and humidity sensor. Simply plug it into any USB A port on your computer and start reading environmental data — no wiring, soldering, or driver installation required.

The board ships pre-programmed to output a unique serial number, temperature, humidity, and capacitive touch data over a serial/COM port in CSV format, so it works straight out of the box. Reprogram it with CircuitPython or Arduino to customise the behaviour, add HID or MIDI functionality, or create your own sensor applications.

Key Features

• SHT41 Sensor – ±1.8% RH typical accuracy (25–75% RH) and ±0.2 °C typical temperature accuracy (0–75 °C)
• ATSAMD21E18 Processor – 48 MHz Cortex M0+ with 256 KB flash and 32 KB RAM
• USB A Plug – Plugs directly into any computer's USB port, no cable needed
• Pre-Programmed – Ships with CSV serial output of temperature, humidity, and touch data
• NeoPixel LED – Single RGB LED for visual feedback
• Capacitive Touch Pad – One touch input on the end of the board
• Native USB – Serial, MIDI, and HID (keyboard/mouse) support
• CircuitPython & Arduino – Full library support for SHT4x, NeoPixel, and FreeTouch
• Thermal-Isolation Cutout – PCB cutout reduces heat transfer from USB port to sensor

Also Consider

• SHT41 Breakout – Standalone SHT41 sensor with STEMMA QT for use with any microcontroller

Ideal For

• Quick desktop temperature and humidity monitoring
• Data logging without additional hardware
• Environmental monitoring for server rooms or offices
• Simple USB sensor projects and prototyping

Package Contents

• 1× Adafruit SHT41 Trinkey (pre-programmed, ready to use)
