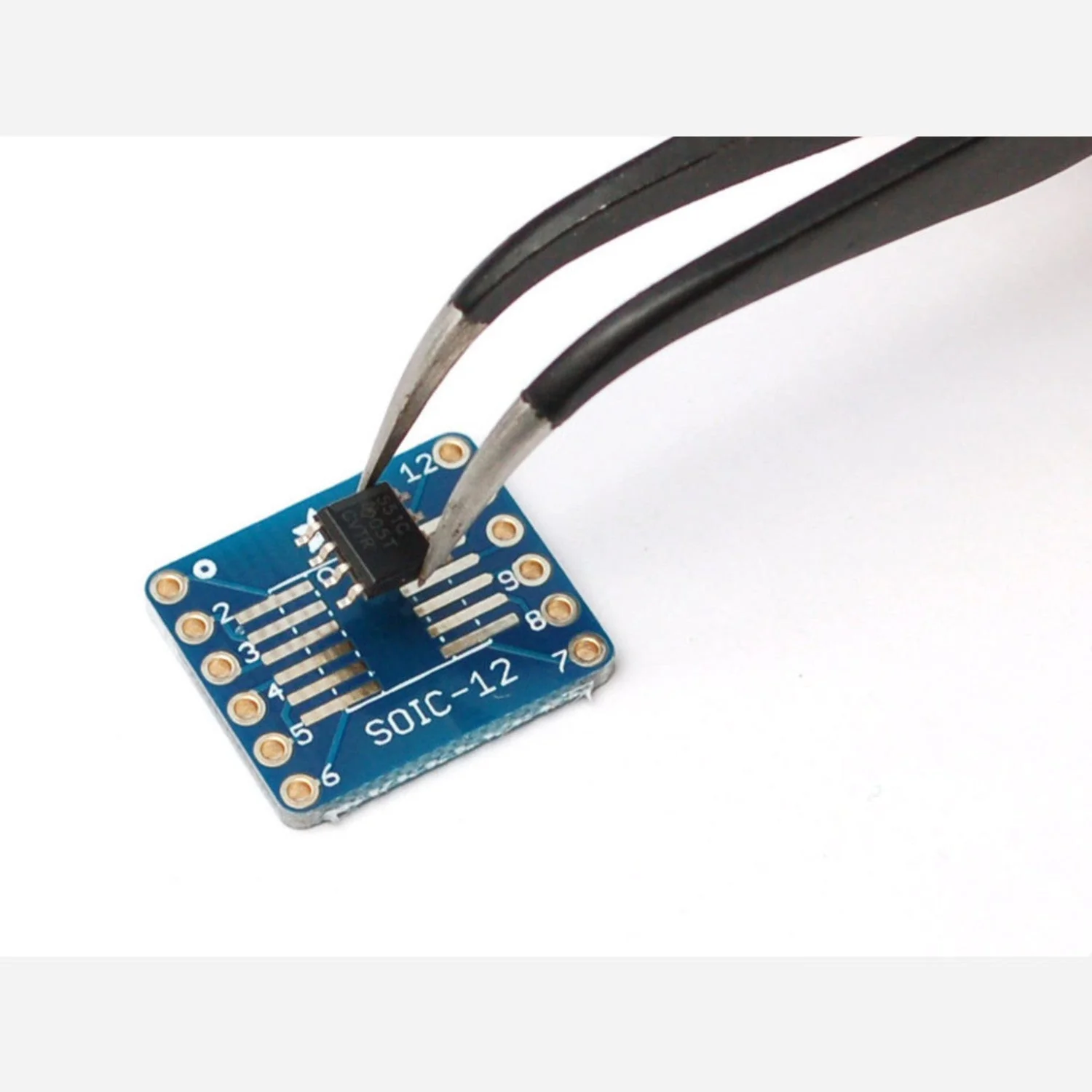

Adafruit SMT breakout PCB for SOIC or TSSOP - various sizes - 12 pin - pack of six
The Adafruit SMT Breakout PCB for 12-pin SOIC or TSSOP packages lets you easily prototype with surface-mount chips on standard solderless breadboards. One side accommodates a 12-pin TSSOP footprint while the other supports 12-pin SOIC (narrow, medium, or wide), with traces routed to two rows of 0.1"-spaced through-holes.
Key Features
- Dual Footprint – Supports SOIC (narrow, medium, or wide) on one side and TSSOP on the other
- 12-Pin Layout – Traces from each pad routed to breadboard-friendly 0.1" pitch holes
- 0.6" Row Spacing – Fits standard solderless breadboards with a centre channel
- Standard Thickness PCB – Durable construction for repeated use
Also Consider
Package Contents

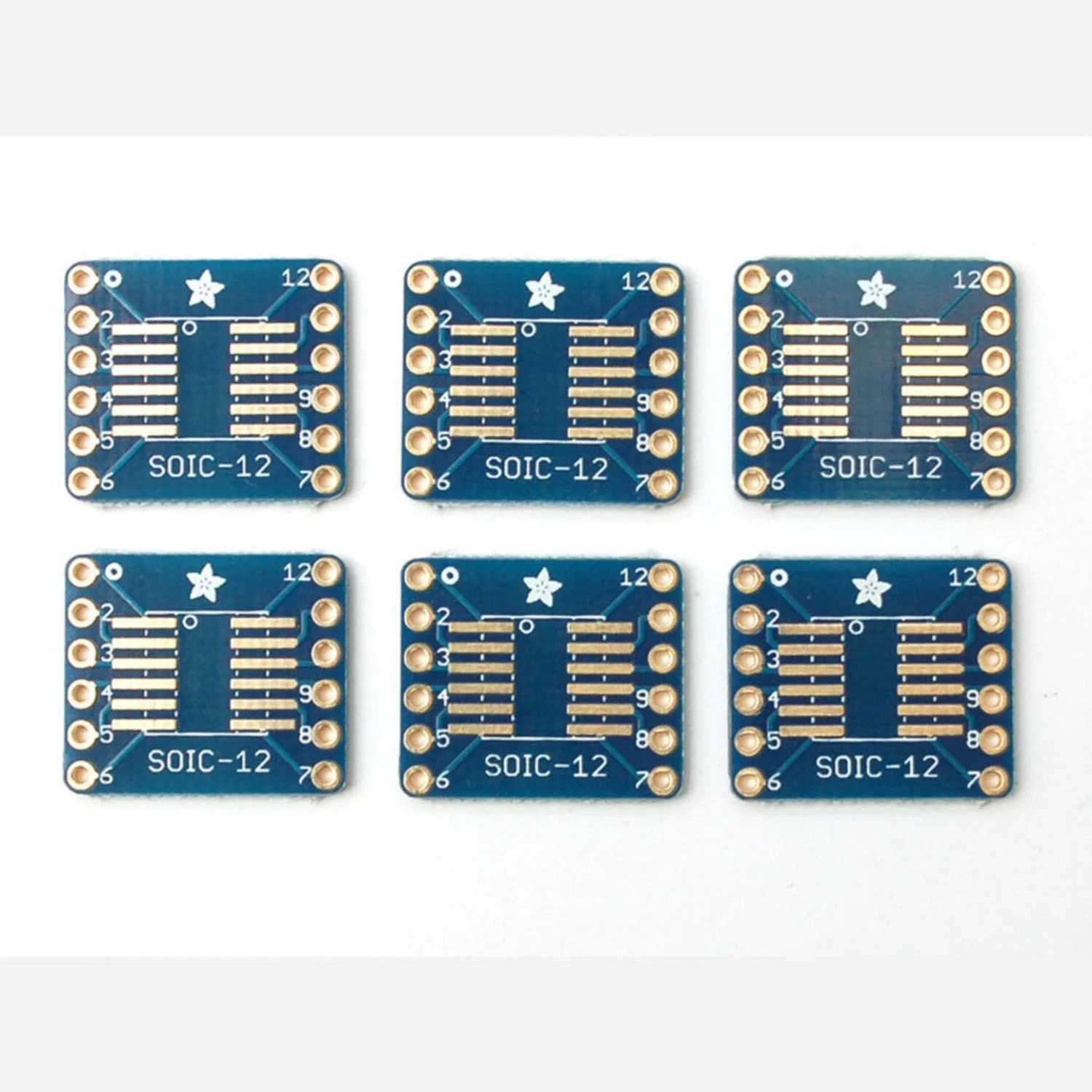

- 6× SMT breakout PCBs (each supports SOIC or TSSOP)
Note: You can use a smaller pin-count chip, but the pin numbering will not match — use care when wiring.
