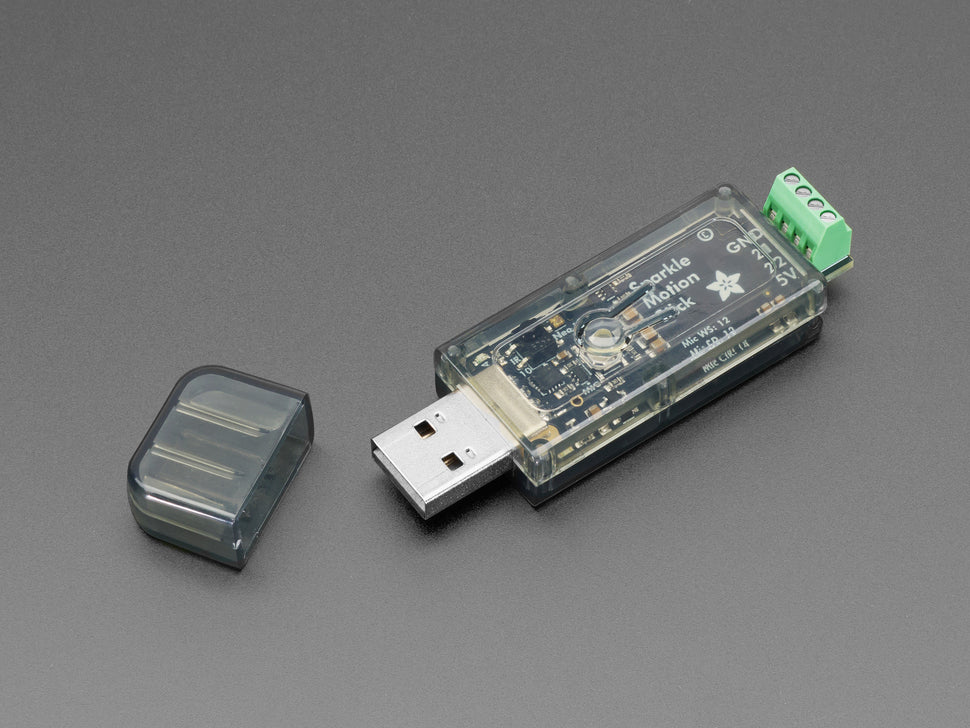

The Adafruit Sparkle Motion Stick is a compact USB-A dongle version of the Sparkle Motion smart LED driver, designed for WLED projects that need a small, portable form factor. This kit includes both the Sparkle Motion Stick and a snap-on enclosure with a button lever and USB port cap.

Powered via USB Type A at up to 5V 2A, it works with off-the-shelf USB battery packs for portable operation. The ESP32 module provides Wi-Fi, Bluetooth LE, and Bluetooth Classic connectivity, with a built-in I2S microphone for audio-reactive lighting and an IR receiver for remote control.

Key Features

• ESP32 Module – Dual-core 240 MHz Tensilica, 4 MB flash, Wi-Fi, Bluetooth LE, and Bluetooth Classic
• USB Type A Power – Up to 5V 2A input; works with USB battery packs
• 2A Resetting Fuse – Overcurrent protection
• Two Level-Shifted Outputs – Both signal outputs shifted to 5V, plus power and ground
• I2S Microphone – Built-in for audio-reactive lighting
• IR Receiver – On GPIO 10 for remote control integration
• User Button – GPIO 0, accessible through the enclosure
• Status Indicators – Red LED on pin 4 and NeoPixel on pin 18
• Screw Terminal Blocks – No-solder connectivity for LED strips
• Snap-On Enclosure – Three-piece case with button lever and USB port cap

Also Consider

• Sparkle Motion – All-In-One WLED and xLights Board – Full-featured version with USB-C PD (5V/12V/20V), three outputs, STEMMA QT, reset button, and GPIO breakout pads

Ideal For

• Portable WLED lighting projects
• Audio-reactive LED effects
• Compact smart LED installations
• Battery-powered wearable lighting

Package Contents

• 1× Adafruit Sparkle Motion Stick with screw terminal blocks
• 1× Three-piece snap-on enclosure with button lever and USB cap
