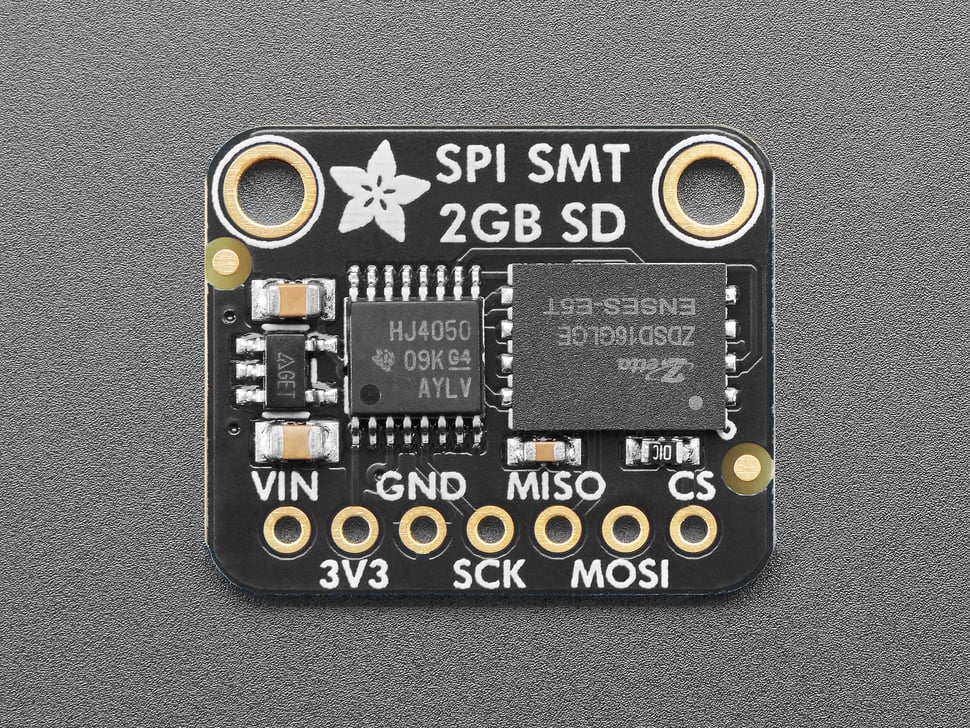

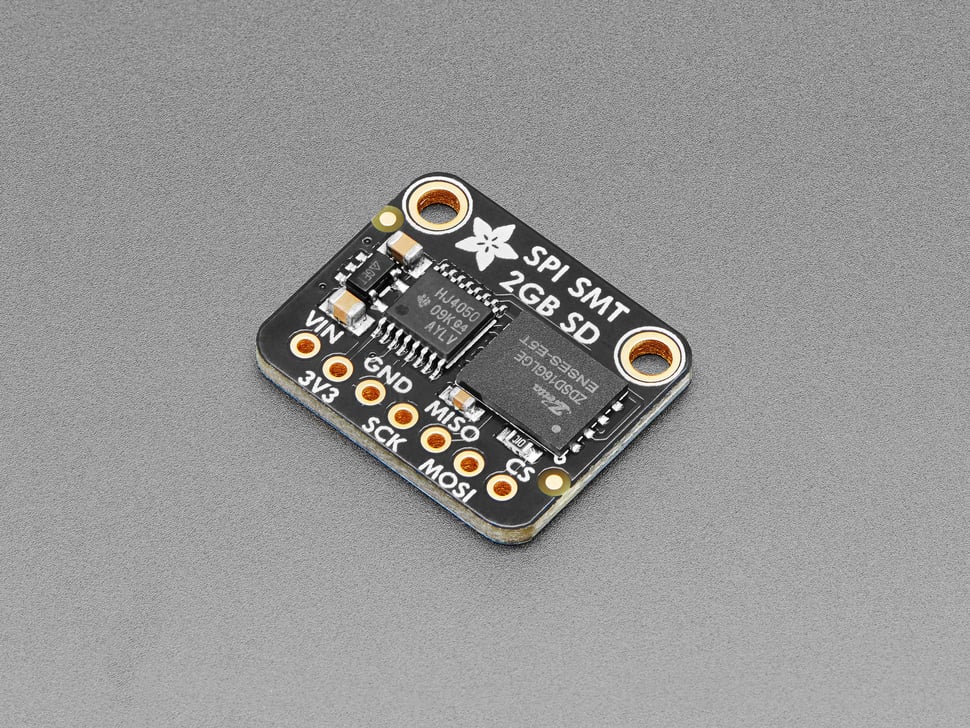

The Adafruit SPI Flash SD Card breakout features an XTSD 2 GB chip — an SD card in an SMT package that you can wire up like standard SPI flash but use with existing SD card libraries. It comes pre-formatted as a 2 GB FAT volume and works straight away with the built-in SD library in Arduino or the sdcard module in CircuitPython.

Unlike standard SPI flash, this NAND memory chip handles wear levelling and ECC calculations automatically — just read and write like any SD card without manual block erasing. The breakout includes level shifting for 3V and 5V logic compatibility, a 3.3V regulator, and a pull-up on chip select.

Key Features

• XTSD 2 GB Chip – SD card in SMT format, pre-formatted FAT
• SPI Interface – Compatible with standard SD card libraries (Arduino SD, CircuitPython sdcard)
• Automatic Wear Levelling + ECC – No manual block erasing required
• Up to 50 MHz Clock – Write speed class 8 (in SDIO mode; SPI will be slower)
• Level Shifting – Works with both 3V and 5V logic
• 3.3V Regulator – Onboard regulator and CS pull-up

Also Consider

• SPI FLASH Breakout W25Q128 – 128 Mbit / 16 MByte – Traditional SPI flash (no wear levelling)
• SPI FLASH Breakout W25Q64 – 64 Mbit / 8 MByte – Smaller SPI flash option

Ideal For

• Data logging in high-vibration environments (no loose SD card)
• Compact designs requiring soldered storage
• USB mass storage devices with microcontrollers
• Projects needing SD card compatibility without a card slot

Package Contents

• 1× SPI Flash SD Card breakout board (XTSD 2 GB)
