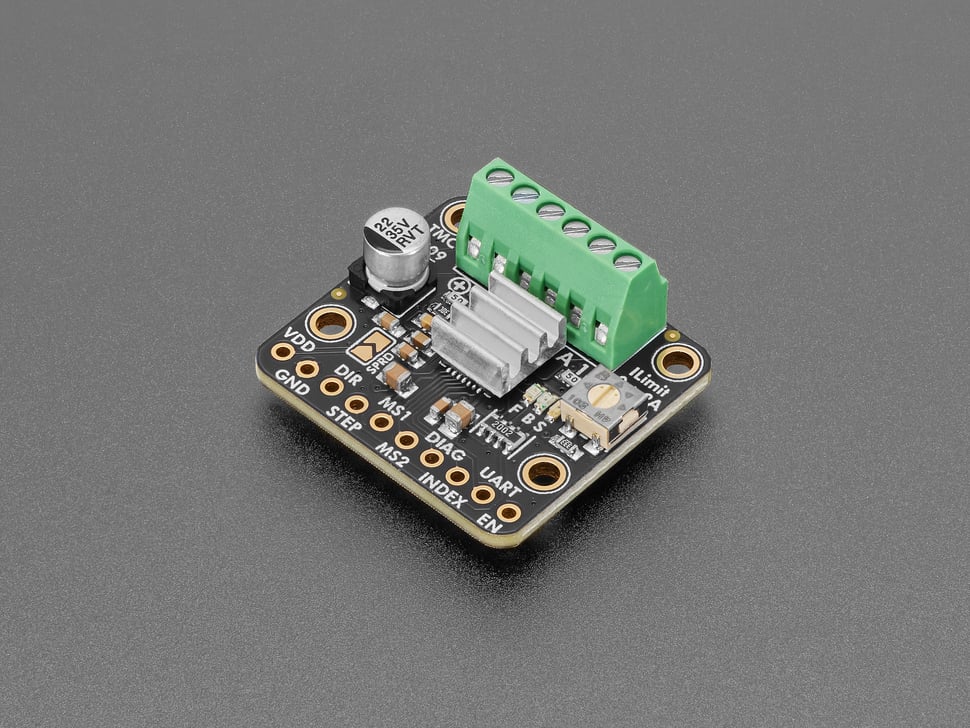

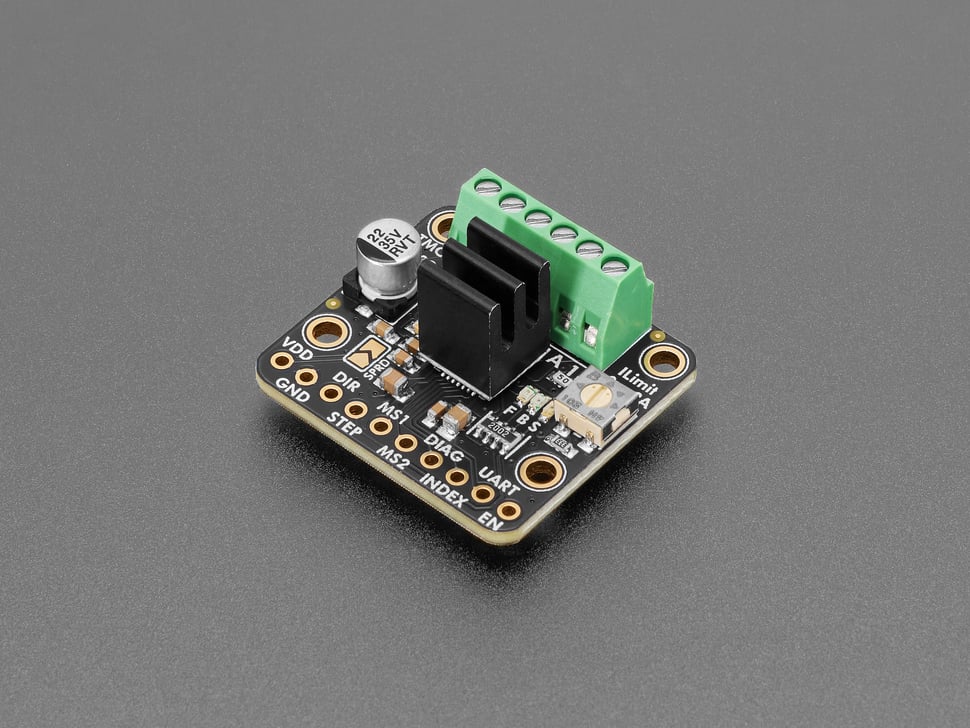

Adafruit TMC2209 Stepper Motor Driver Breakout Board
The Adafruit TMC2209 Stepper Motor Driver Breakout Board makes controlling stepper motors easy and virtually silent. Using Trinamic's "Stealth Chopper" technology, this driver delivers smooth, quiet microstepping with just two control pins — no timers, PWM, or real-time microcontroller required. Simply set the DIRection pin and toggle the STEP pin to move.
Designed for prototyping, this breakout features screw terminal blocks for motor power and stepper wires, clearly labelled control pins, mounting holes, and LED indicators for direction and step signals. The board is fabricated with 2 oz copper for better current handling and heat dissipation, supporting up to 2A with adjustable current limiting via an onboard potentiometer.
Key Features
- Trinamic TMC2209 Driver – Silent "Stealth Chopper" DMOS microstepping driver with overcurrent protection
- 2-Pin Control – Drive steppers with just DIRection and STEP pins, no timers or PWM needed
- Adjustable Microstepping – Defaults to 1/8 microstep; configurable to 1/16, 1/32, or 1/64 via MS1/MS2 pins, or up to 1/256 via UART
- Motor Voltage – 5V to 29V DC input
- Logic Voltage – 3V to 5V, compatible with Arduino, ESP32, Raspberry Pi, and other boards
- Up to 2A Current – Adjustable current limiting via onboard potentiometer
- UART Interface – Optional single-pin serial port with auto-baud for advanced configuration, diagnostics, and StallGuard sensor-less stall detection
- LED Indicators – Red/green LEDs for direction, yellow LED for step activity
- Index and Diagnostic Outputs – Index pulses at microstep zero-crossing; diagnostic output for short/open circuit and stall detection
- Screw Terminal Blocks – Easy connections for motor power and 4-wire bipolar stepper motors (26–20 AWG, 2.54mm spacing)
- 2 oz Copper PCB – Better current carrying capacity and heat dissipation
- Four Mounting Holes – Secure board installation
Ideal For
- CNC machines and 3D printers
- Robotics and precision motion control
- Prototyping stepper motor projects
- Applications requiring silent motor operation
Package Contents
- 1× Adafruit TMC2209 Stepper Motor Driver Breakout Board (assembled and tested)
- 1× Header strip (requires soldering)
Resources
