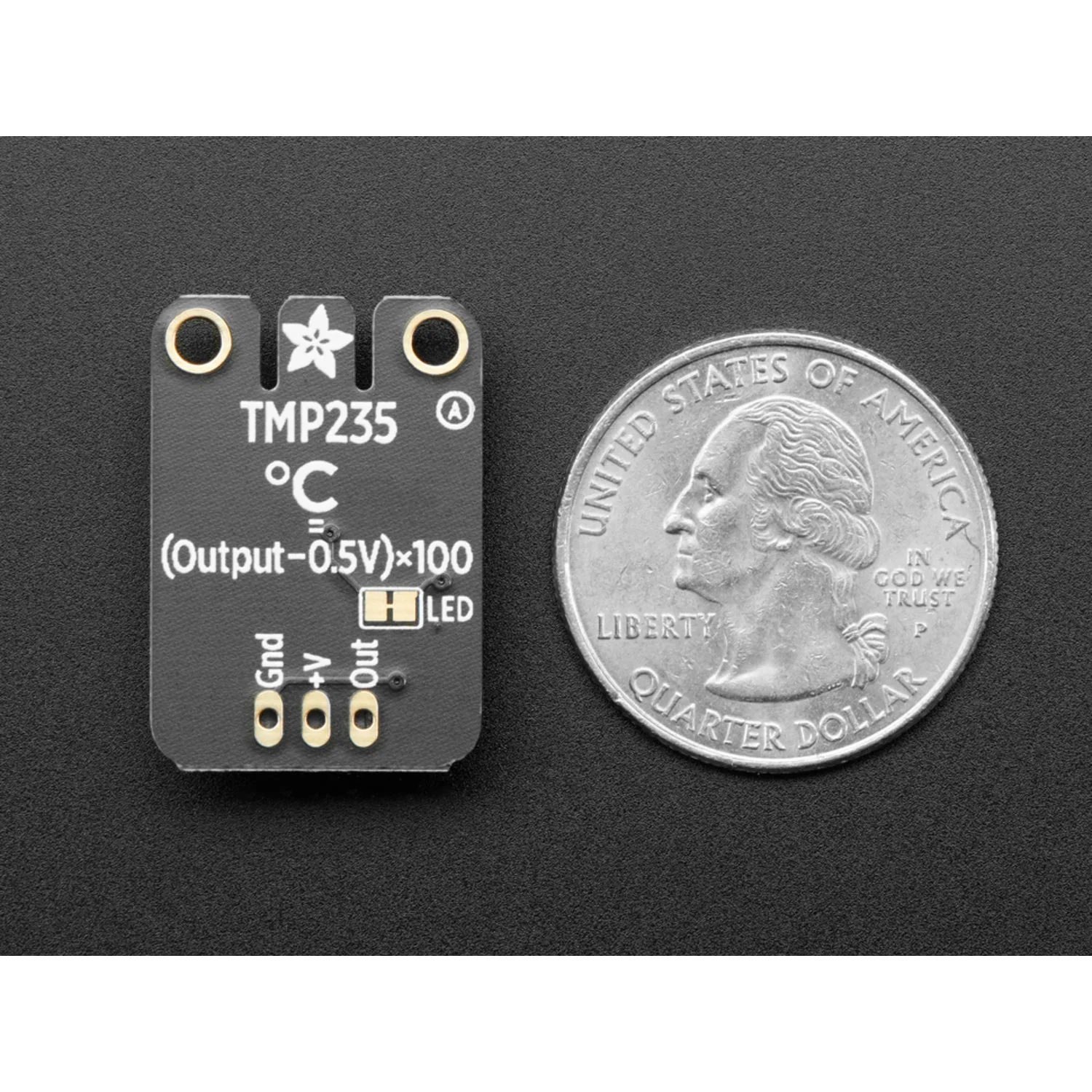

The Adafruit TMP235 is a plug-and-play analog temperature sensor with a 3-pin JST PH (STEMMA) connector. Unlike I2C sensors, this one outputs a simple analog voltage proportional to temperature — just connect it to any microcontroller with an analog input and read the value. No libraries or complex configuration required.

The sensor measures from –50°C to +125°C, outputting 0V at –50°C and 1.75V at +125°C. Converting to temperature is straightforward: Temp °C = 100 × (reading in V) – 50. It runs on 3V to 5V and connects via any 3-pin JST PH cable — red to power, black to ground, white to analog input.

Key Features

• Analog Output – Simple voltage output proportional to temperature, no libraries needed
• –50°C to +125°C Range – 0V at –50°C, 1.75V at +125°C
• 3-Pin JST PH (STEMMA) Connector – Plug-and-play connection with compatible cables
• 3V to 5V Operation – Compatible with a wide range of microcontrollers
• Easy Calculation – Temp °C = 100 × (voltage) – 50

Ideal For

• Simple temperature monitoring projects
• Quick prototyping with analog inputs
• Upgrading from the TMP36 with a plug-and-play connector
• Projects where I2C is unavailable or unnecessary

Package Contents

• 1× Adafruit TMP235 Analog Temperature Sensor (with JST PH connector)

Resources

• Getting Better Precision with Analog Temperature Sensors
