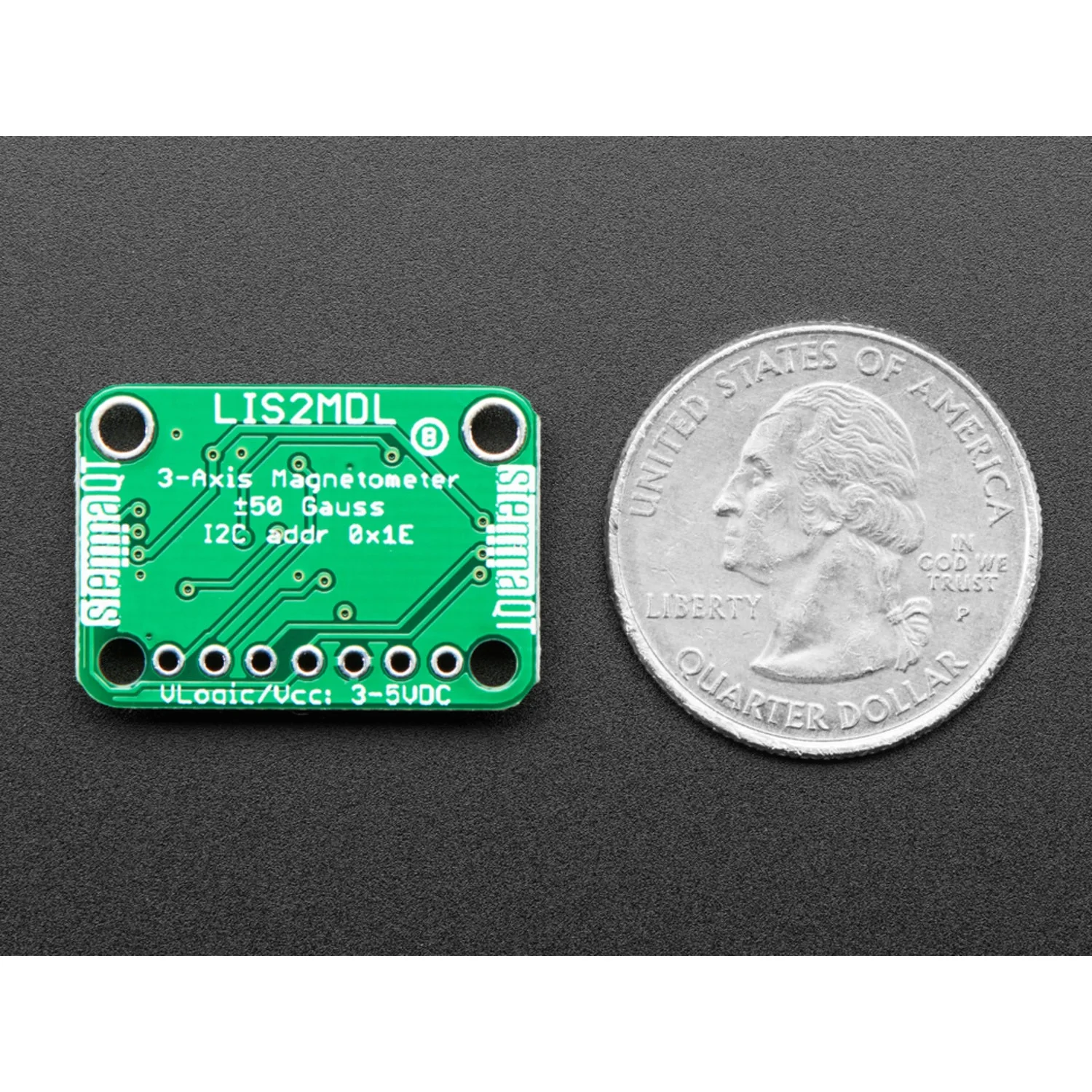

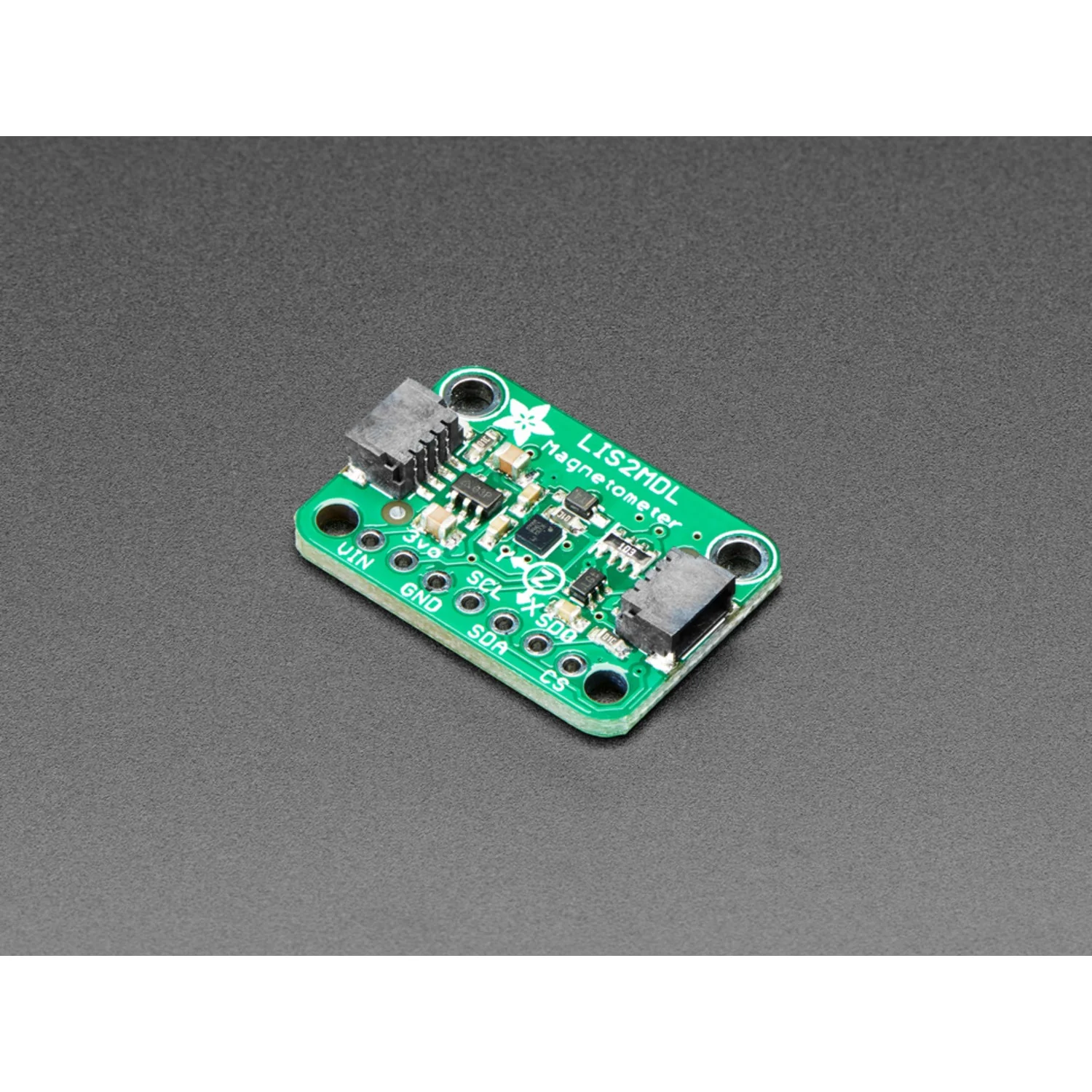

The Adafruit LIS2MDL is a triple-axis magnetometer (compass) breakout from ST, capable of sensing magnetic fields across a wide ±50 gauss (±5000 µT) range with no range configuration required. It's ideal for detecting magnetic north, measuring magnetic fields, or pairing with an accelerometer/gyroscope to create a full 9-DoF inertial measurement unit.

The breakout board includes voltage regulation and level shifting for compatibility with both 3.3V and 5V microcontrollers. STEMMA QT / Qwiic connectors provide solderless I2C connections, and the sensor also supports SPI if preferred. Arduino and CircuitPython/Python libraries are available for quick setup.

Key Features

• ±50 Gauss Range – Wide measurement range (±5000 µT) with no range-setting required
• Triple-Axis Sensing – Measures magnetic field strength on X, Y, and Z axes
• Up to 150 Hz Output – 100 Hz at full resolution, or 150 Hz with slightly reduced precision
• I2C and SPI Interfaces – Flexible connectivity; I2C via STEMMA QT or header pins, SPI also available
• 3.3V and 5V Compatible – Onboard voltage regulator and level shifting

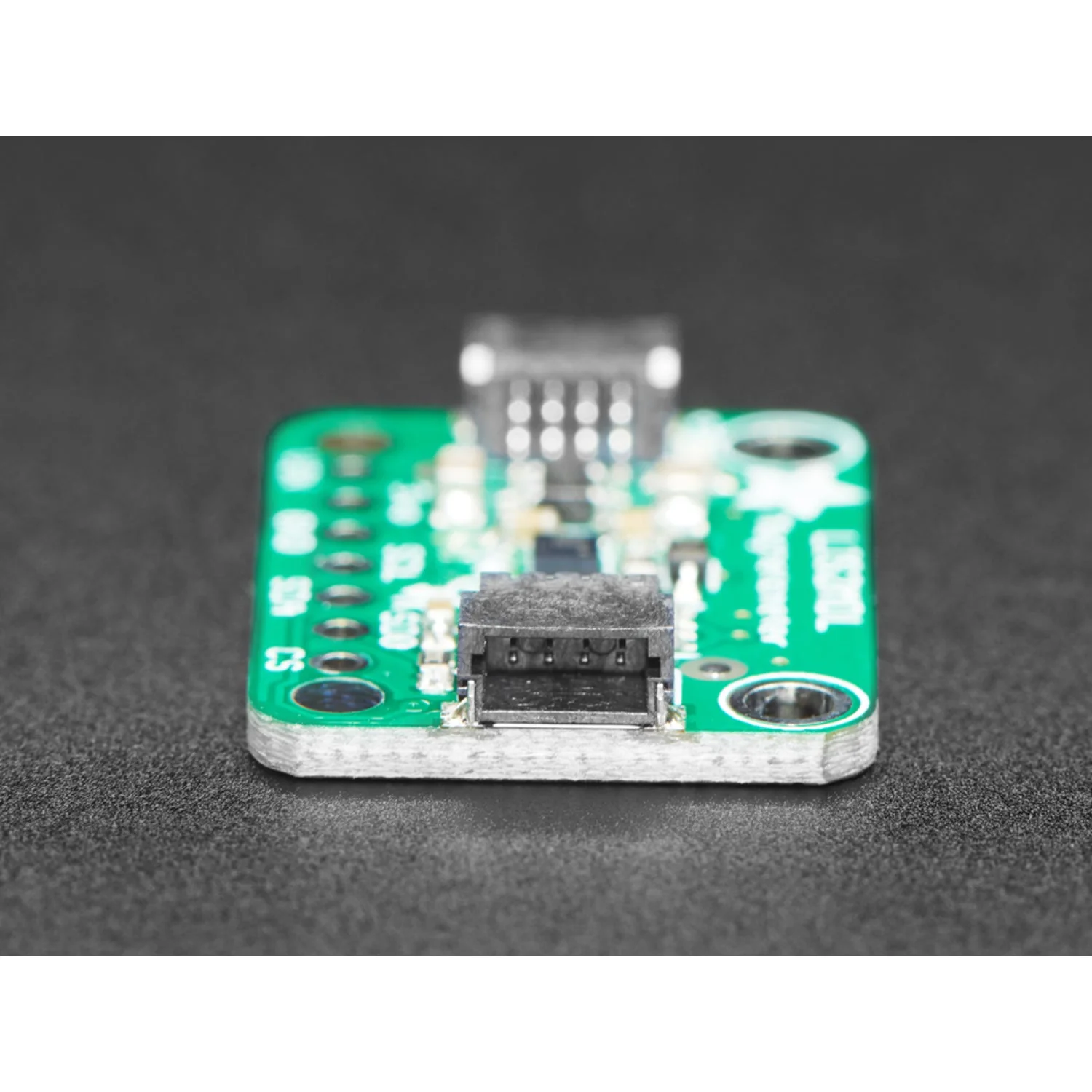

• STEMMA QT / Qwiic Compatible – Solderless I2C connectors for plug-and-play setup and daisy-chaining
• Four Mounting Holes – 2.5mm (0.1") for secure attachment

Ideal For

• Digital compass and heading applications
• 9-DoF IMU when paired with an accelerometer/gyroscope (pairs well with the LSM6DSOX)
• Magnetic field measurement and detection
• Robotics and navigation systems

Package Contents

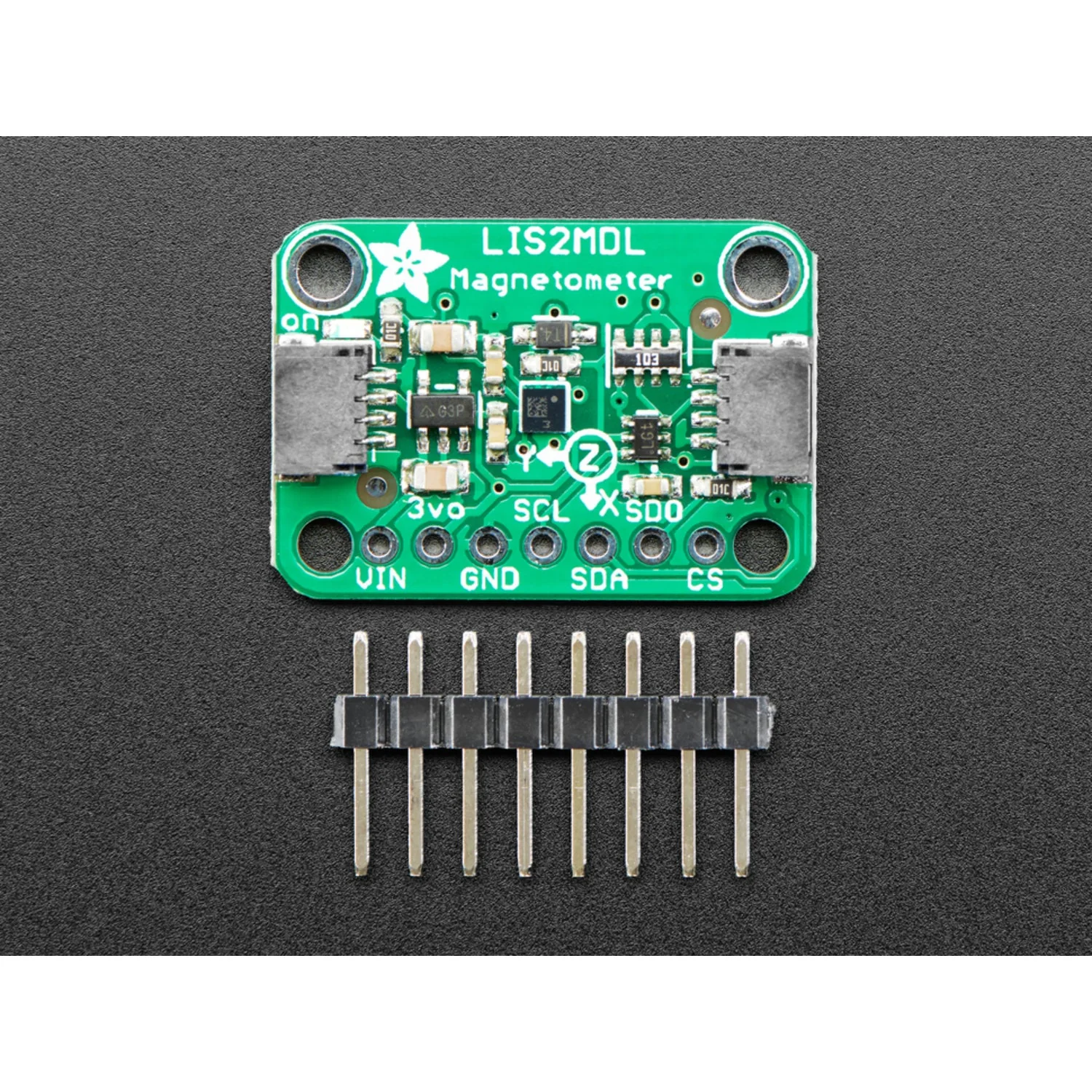

• 1× Adafruit LIS2MDL Triple-Axis Magnetometer Breakout (assembled and tested)
• 1× 0.1" header strip

Resources

• Adafruit LIS2MDL Learning Guide (Code, Schematics & Examples)
• Arduino Library (GitHub)
• CircuitPython / Python Library (GitHub)
