The Adafruit TSMP96000 "Code Learning" Infrared IR Receiver Breakout detects IR signals across a wide frequency range of 20–60 KHz, making it perfect for "code learning" applications where you need your device to work with any IR remote control — even when you don't know the carrier frequency.

Unlike standard 38 KHz IR receivers that output a demodulated signal, this breakout delivers the modulated IR signal with the carrier intact, allowing your microcontroller to analyse both the data and the carrier frequency. A green power LED and red signal LED provide instant visual feedback during operation.

Key Features

• Wide Frequency Detection – Receives IR signals from 20 to 60 KHz, covering virtually all consumer IR remotes
• Code Learning Ready – Outputs the modulated signal with carrier intact for full signal analysis
• 3–5V Compatible – Works with both 3.3V and 5V microcontrollers
• STEMMA JST PH Connector – 2mm pitch 3-pin connector for solderless wiring
• Visual Indicators – Green power LED and red signal LED for easy debugging
• Mounting Holes – Easy to mount in enclosures and on devices

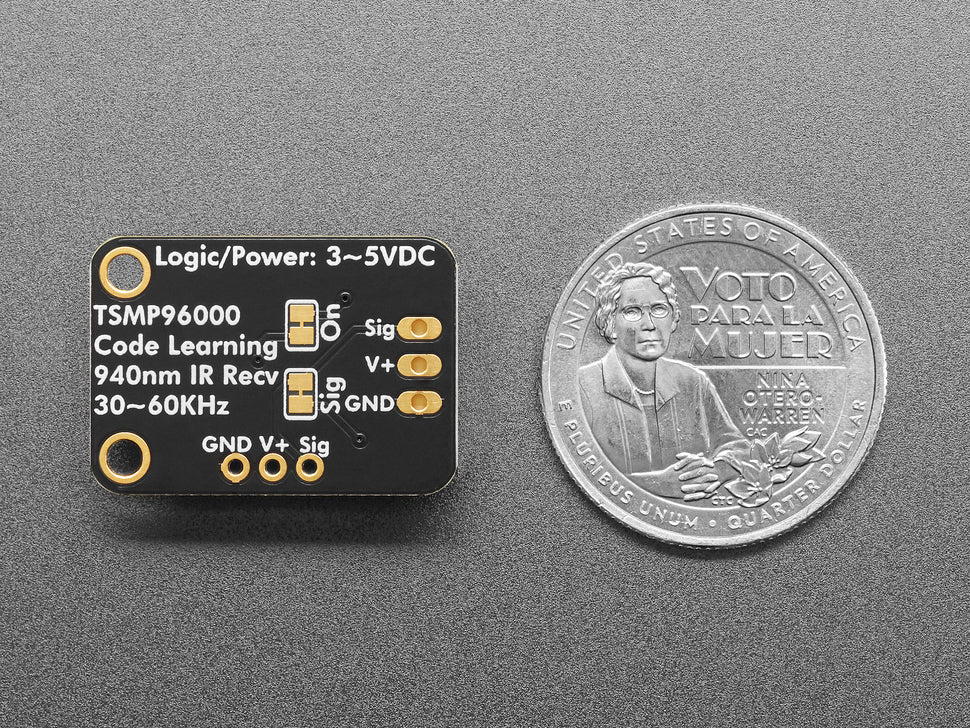

• Compact Size – 25.4 × 17.7 × 7.1 mm (1.0" × 0.7" × 0.3")

Ideal For

• Universal remote control learning and cloning projects
• IR signal analysis and reverse engineering
• Multi-protocol IR receiver systems
• Home automation projects requiring broad IR compatibility

Package Contents

• 1× Adafruit TSMP96000 IR Receiver Breakout (fully assembled and tested)

Resources

• TSMP96000 Datasheet
• Adafruit Learning Guide
