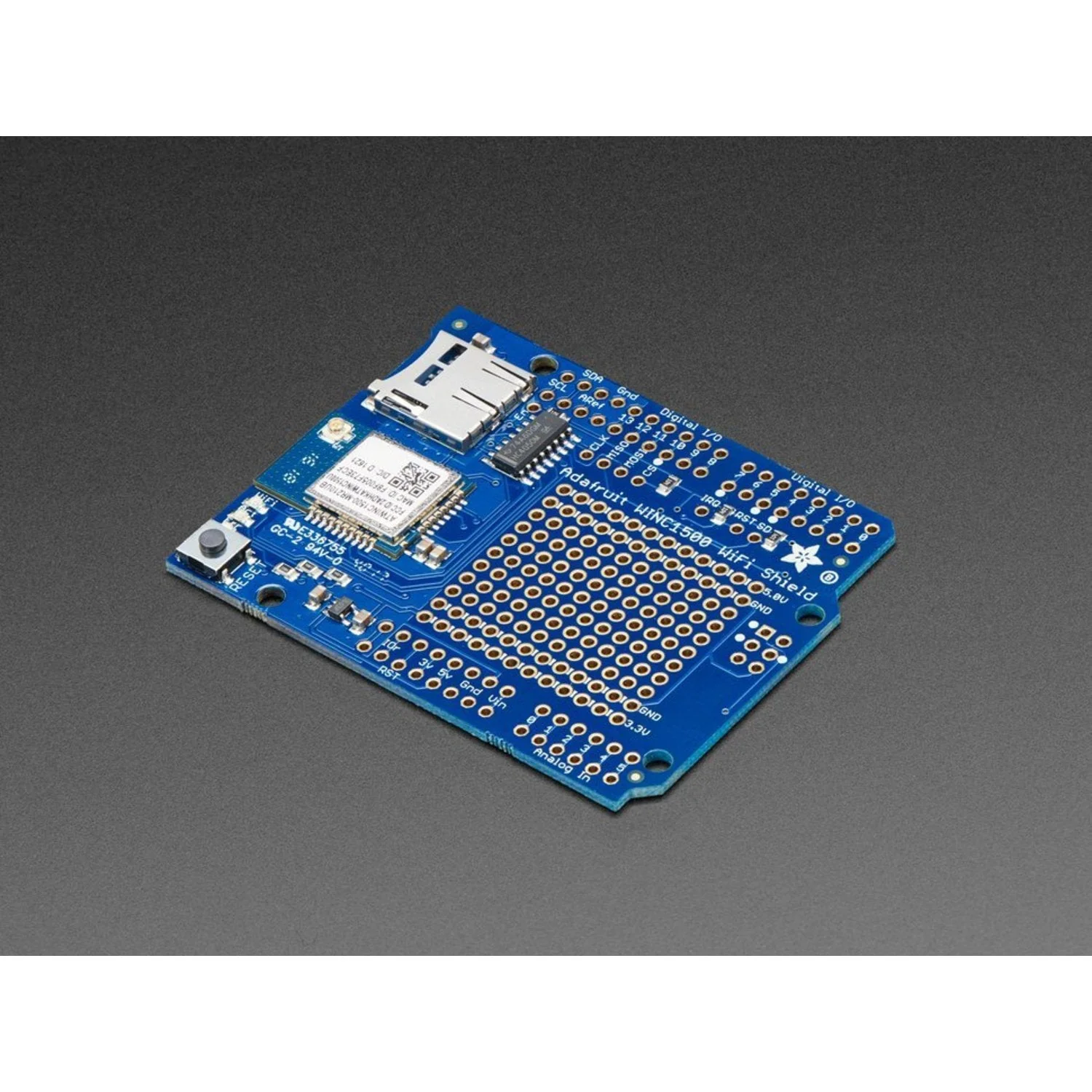

Add WiFi connectivity to your Arduino-compatible board with the Adafruit WINC1500 WiFi Shield, featuring the FCC-certified ATWINC1500 module from Atmel. This 802.11b/g/n shield supports WEP, WPA, and WPA2 encryption with TLS 1.2 for secure connections, and communicates over SPI at speeds up to 12 MHz.

This version includes a uFL connector for attaching an external antenna, giving you extended range for projects that need it. The shield includes onboard level shifting for 3V or 5V logic boards, a 3.3V regulator rated for 300 mA spikes, three user-controllable LEDs, and a microSD card socket. Works best with SAMD21-based boards like the Metro M0 Express or Arduino Zero; also compatible with Arduino Mega. For a simpler setup without an external antenna, see the PCB antenna version.

Key Features

• 802.11b/g/n WiFi – WEP, WPA, and WPA2 encryption with TLS 1.2 support
• uFL Antenna Connector – Attach an external antenna for extended range
• SPI Communication – Up to 12 MHz clock speed for fast, reliable data streaming
• Soft AP Mode – Create ad-hoc networks for direct device connections
• 3V & 5V Compatible – Onboard level shifting and 3.3V regulator (handles 300 mA spikes)
• MicroSD Card Socket – Store or host data (requires SAMD21-based board for simultaneous WiFi + SD use)
• 3× Status LEDs – Controllable via SPI or Arduino library for connection and data indicators

Ideal For

• IoT projects requiring extended WiFi range
• Secure web client applications with TLS 1.2
• Data logging to SD card from cloud services
• Outdoor or long-range wireless sensor networks

Package Contents

• 1× Adafruit WINC1500 WiFi Shield with uFL Connector

Resources

• Adafruit Learn Guide
