ADS1015 12-Bit ADC - 4 Channel with Programmable Gain Amplifier
Add high-speed analog-to-digital conversion to any microcontroller with the ADS1015 breakout. This 12-bit ADC delivers 3,300 samples per second over I2C, with four single-ended or two differential input channels and a built-in programmable gain amplifier (up to 16×) for boosting small signals.
The STEMMA QT / Qwiic connectors allow solderless I2C chaining, and the board runs on 2V to 5V power and logic. Up to four ADS1015 boards can share a single I2C bus for 16 single-ended inputs. For higher precision at slower speeds, consider the ADS1115 16-Bit ADC.
Key Features
- 12-Bit Resolution – 3,300 samples per second for fast data acquisition
- 4 Channels – Configurable as 4 single-ended or 2 differential inputs
- Programmable Gain Amplifier – Up to 16× gain for small signal measurement
- 2V to 5V Operation – Compatible with both 3.3V and 5V logic
- STEMMA QT / Qwiic Compatible – Solderless I2C connection and daisy-chaining
- Configurable I2C Address – Up to 4 boards on a single bus (16 inputs total)
- Four Mounting Holes – Easy attachment to enclosures or panels
Ideal For
- Adding analog inputs to digital-only microcontrollers
- Sensor data acquisition at high sample rates
- Voltage and current monitoring
- Multi-channel analog measurement systems
Package Contents

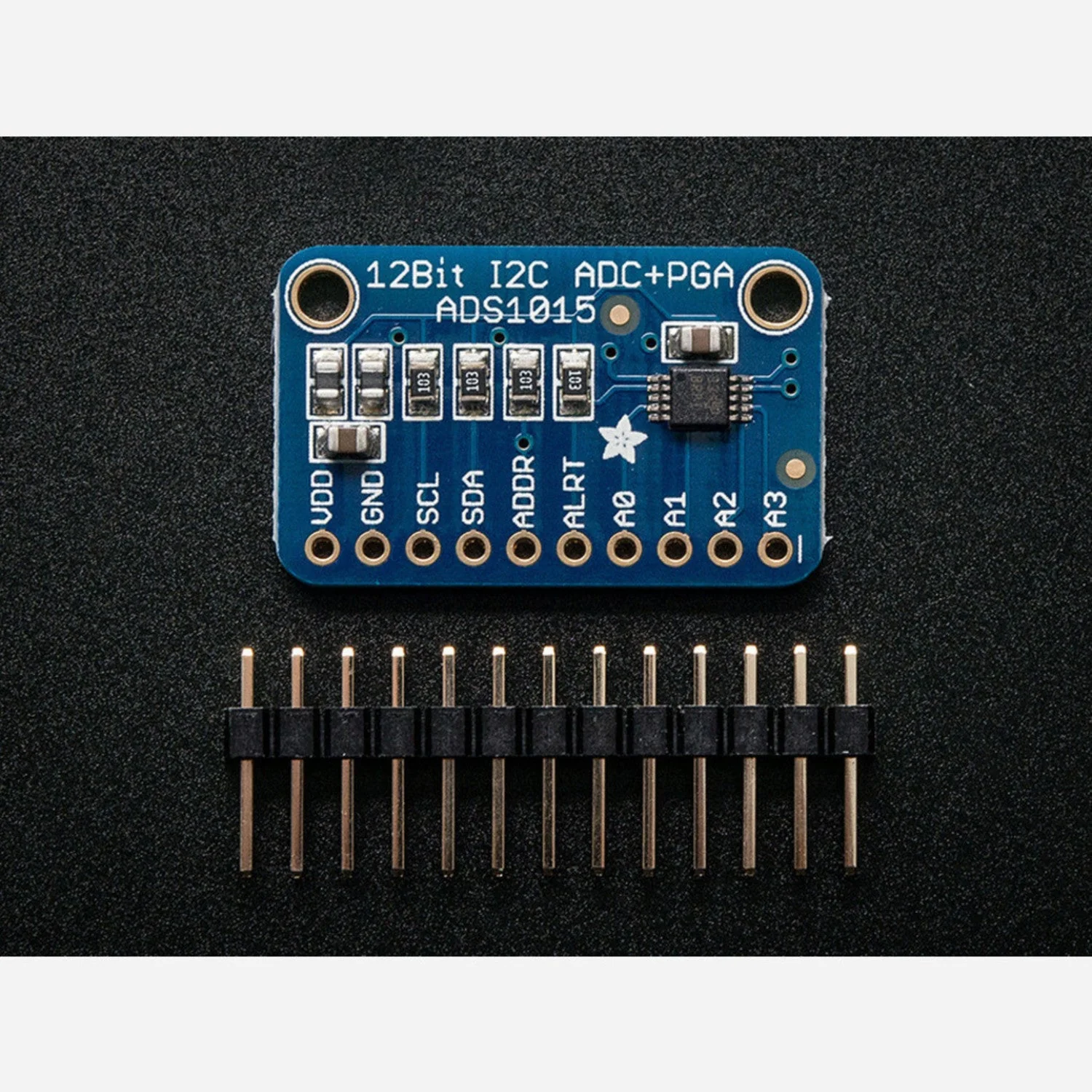

- 1× ADS1015 12-Bit ADC Breakout Board (assembled and tested)
- 1× Header strip
