Alchitry Br Prototype Element Board (No Top Connectors)

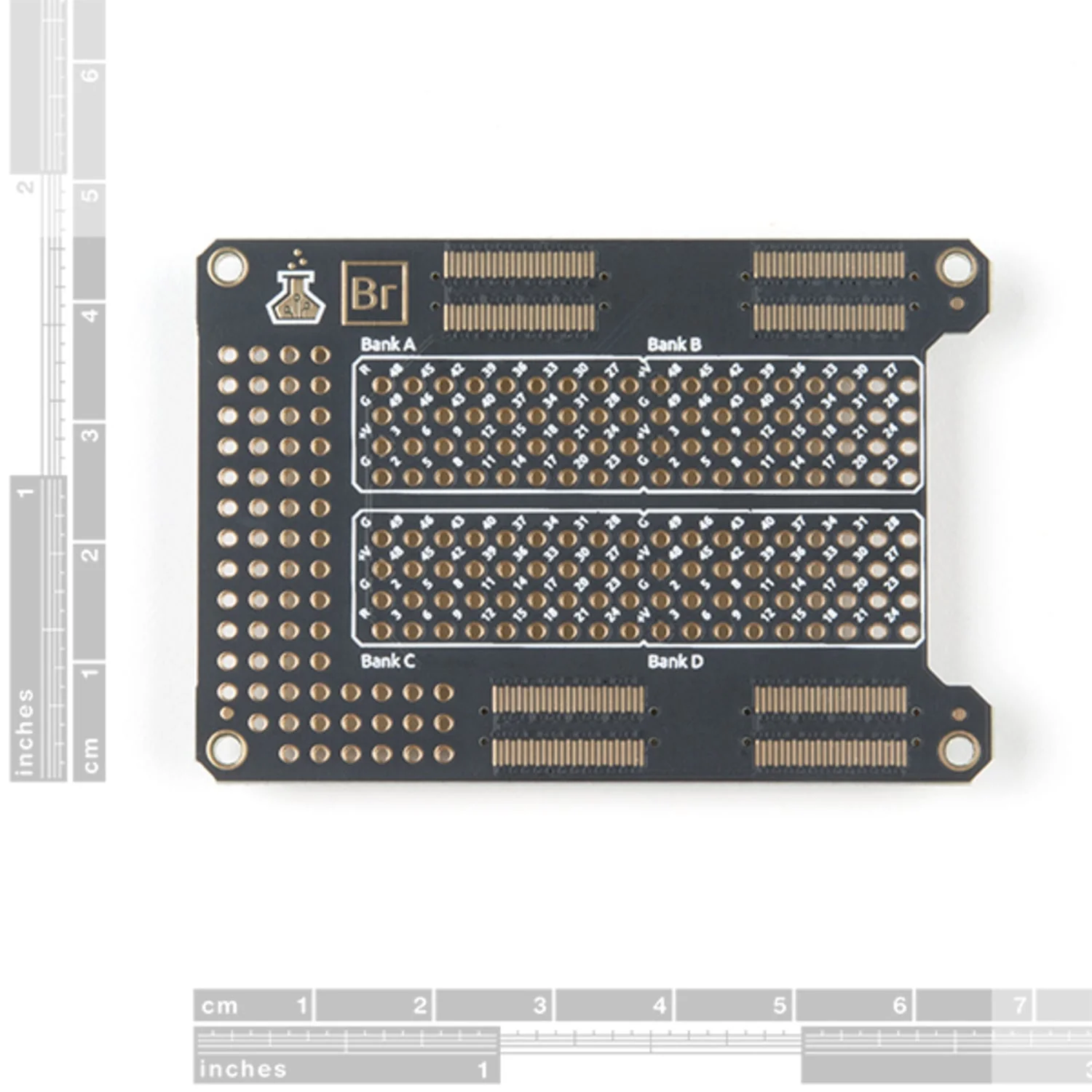

The Alchitry Br (No Top Connectors) is a prototyping Element board for the Alchitry Au and Alchitry Cu FPGA development boards. It breaks out all signals from the four headers of your Au or Cu and provides a large prototyping area with a 0.1" pin grid for building custom circuits.
This version has connectors on the underside only — it connects directly to your Au or Cu but does not support stacking additional Element boards on top. Add optional female headers (sold separately) to the prototyping area to create a breadboard-style test surface.
Key Features
- Full Signal Breakout – All header signals from Au/Cu broken out
- Large Prototyping Area – 0.1" pin grid for custom circuits
- Bottom Connectors Only – Sits as the top board in your stack
- Compatible – Works with Alchitry Au, Au+, and Cu boards
Package Contents
- 1× Alchitry Br Prototype Element Board (No Top Connectors)
Original: $22.97
-70%$22.97
$6.89Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Alchitry Br (No Top Connectors) is a prototyping Element board for the Alchitry Au and Alchitry Cu FPGA development boards. It breaks out all signals from the four headers of your Au or Cu and provides a large prototyping area with a 0.1" pin grid for building custom circuits.
This version has connectors on the underside only — it connects directly to your Au or Cu but does not support stacking additional Element boards on top. Add optional female headers (sold separately) to the prototyping area to create a breadboard-style test surface.
Key Features
- Full Signal Breakout – All header signals from Au/Cu broken out
- Large Prototyping Area – 0.1" pin grid for custom circuits
- Bottom Connectors Only – Sits as the top board in your stack
- Compatible – Works with Alchitry Au, Au+, and Cu boards
Package Contents
- 1× Alchitry Br Prototype Element Board (No Top Connectors)
