Aluminum Active Cooler for LattePanda Mu Compute Module

Product image 1

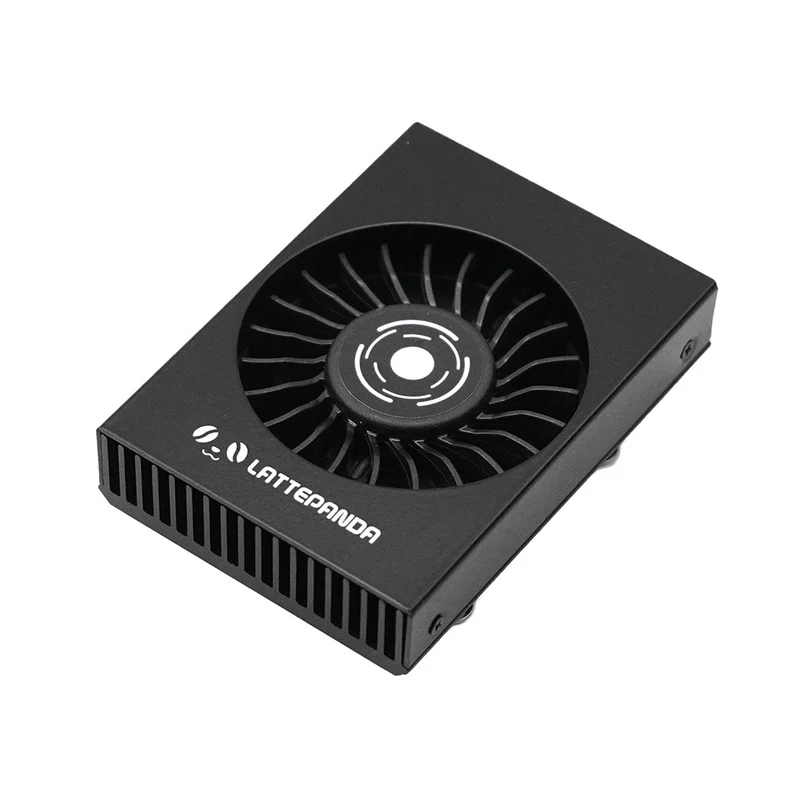

Aluminum Active Cooler for LattePanda Mu Compute Module

A purpose-built active cooler for the LattePanda Mu compute module, featuring an aluminium alloy heatsink with an integrated double ball-bearing fan. The heat dissipation fins rapidly absorb CPU heat while the low-noise fan maintains stable operating temperatures under sustained workloads.

Includes high-quality phase-change thermal material pre-applied to the contact surface for optimal thermal conductivity. The wall-mountable design integrates cleanly with LattePanda Mu carrier boards.

Key Features

  • Active Cooling – Integrated fan with aluminium alloy heatsink for maximum heat dissipation
  • Double Ball-Bearing Fan – Low-noise design rated up to 4000 RPM
  • Phase-Change Thermal Material – Pre-applied for optimal CPU contact and thermal transfer
  • All-Metal Construction – Corrosion-resistant aluminium alloy for durability
  • Wall-Mountable – Designed for flexible mounting in custom enclosures
  • Spring-Screw Mounting – Three-point attachment for even pressure distribution

Specifications

  • Compatible Board – LattePanda Mu
  • Operating Voltage – 5V
  • Operating Current – 0.35A
  • Max Fan Speed – 4000 RPM
  • Connector – PH2.0-4P
  • Wire Length – 105mm
  • Dimensions – 69.6 × 50.4 × 19mm
  • Material – Aluminium alloy
  • Weight – 69g

Package Contents

  • 1× LattePanda Mu Active Cooler (with pre-applied phase-change material)
Note: Compatible exclusively with the LattePanda Mu compute module. Always power off the LattePanda Mu before installing or removing the cooler. When tightening the three spring screws, alternate between them in a circular pattern — do not fully tighten one screw before the others, as uneven pressure may damage the CPU.
$6.60

Original: $22.00

-70%
Aluminum Active Cooler for LattePanda Mu Compute Module—

$22.00

$6.60
