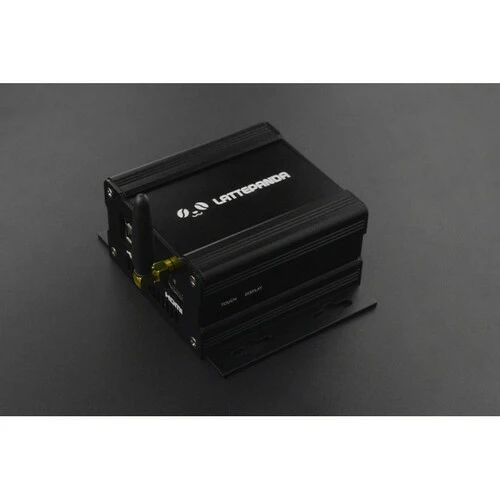

An aluminium alloy heatsink enclosure for the LattePanda V1 single board computer. The all-metal construction with black anodised and sandblasted finish provides excellent durability and a professional appearance. The bottom-mounted aluminium heatsink module with 12mm fins provides passive cooling sufficient for full-load operation in a 24°C environment.

Features a wing-shaped mounting plate for stable desk placement or wall mounting, and includes an external Wi-Fi/Bluetooth antenna with IPEX to SMA adapter. The modular panel design allows customisation with different surface panels to accommodate expansion shields.

Key Features

• Passive Heatsink Cooling – Aluminium alloy heatsink module with 12mm fins for fanless operation
• All-Metal Construction – Black anodised with sandblasted finish for durability and scratch resistance
• Wall-Mountable – Wing-shaped fixing plate for desk or wall placement
• External Antenna – Included IPEX to SMA adapter for Wi-Fi and Bluetooth signal
• Modular Design – Customisable surface panels for expansion shield compatibility

Specifications

• Compatible Board – LattePanda V1
• Dimensions – 90 × 116.5mm (86mm excluding wing piece) × 48.5mm
• Material – Aluminium alloy
• Weight – 450g
• Thermal Pad Rating – 6 W/m·K
• Antenna Frequency – 2.4GHz

Package Contents

• 1× Case parts
• 1× Heat dissipation module
• 1× Antenna
• 1× IPEX to SMA adapter
• 2× Thermal pads
